Solid State Logic UMD192 USB 3.0 Audio Interface
Tax included.
The most powerful MADI & Dante digital audio interface available
Solid State Logic is proud to introduce the UMD192, a powerful and portable USB audio interface designed to meet the demands of high-spec studios, professional live sound, and broadcast environments. With seamless integration across MADI, Dante, and USB, the UMD192 offers flexible routing, high channel counts, and uncompromising performance for recording, playback, and format bridging. Providing 192 channels at both 96 and 48 kHz, or 128 channels at 192 kHz in a compact and portable ½RU form factor.
The Perfect Bridge Between USB, MADI and Dante

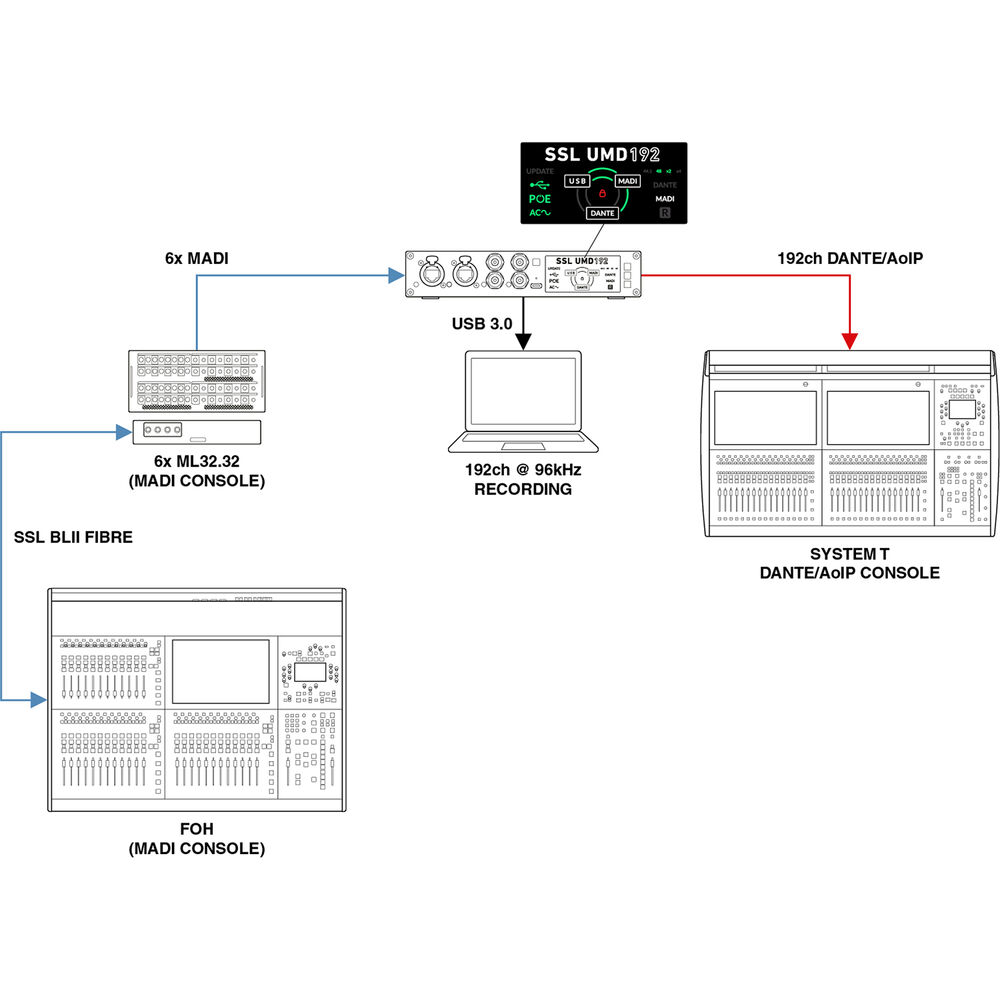

Built for versatility, the UMD192 supports bidirectional audio between any two formats – MADI, Dante or USB – with the third format able to receive a split feed. This makes it ideal for bridging multiple MADI-connected devices into a Dante network, or for high-channel-count recording and playback via USB 3.0. On the network side, UMD192 delivers fully interoperable Dante AoIP with AES67 and ST 2110 (with DDM) support and ultra-low Dante latency down to 0.25 ms. UMD192 provides flexible clocking options from either MADI or Dante, covering sample rates from 44.1 to 192 kHz. With six MADI BNC pairs, the UMD192 can also be configured in redundant mode, enabling three dual-redundant MADI connections for mission-critical broadcast and live workflows.
Intuitive Front Panel Control
The UMD192 front panel delivers clear, high‑visibility indicators with real‑time feedback on signal flow, sample‑rate sync, power status, and network connectivity, keeping you in control, even under pressure. UMD192’s front panel controls are locked by default to protect your predefined configuration and prevent accidental changes to settings. Press and hold the padlock button to temporarily unlock the other controls and change modes.
- Lockout – Press and hold to unlock other front panel controls. Press and hold until the red lock symbol in the centre of the circle in the indicator panel turns off.
- Mode – Press to cycle through the signal flow modes.
- Clock Source – Press to toggle between Dante and MADI as clock source.
- MADI Redundancy – Press to toggle between MADI Redundancy on or off. Redundant mode applies to all MADI ports.
Flexible Power & Redundancy
The UMD192 supports multiple power sources – AC mains, Power over Ethernet (PoE), and USB – giving engineers flexible deployment options and the ability to build redundancy into their setups. Each power source can be used on its own or in combination for failover. For example, the AC input can be paired with a PoE injector to create a simple redundant power configuration when a PoE switch isn’t available.
Solid State Logic UMD192 Features:
- A high-capacity USB 3.0 audio interface for mission-critical live sound, broadcast, and studio environments
- Delivers bidirectional audio between any two formats — MADI, Dante, and USB — with the 3rd format able to receive a split feed
- Supports 192 channels at 48kHz and 44.1kHz, 192 channels at 96kHz and 88.2kHz, and 128 channels at 192kHz and 176.4kHz
- USB 3.0 class-compliant interface works natively with macOS and provides Windows support via the SSL driver

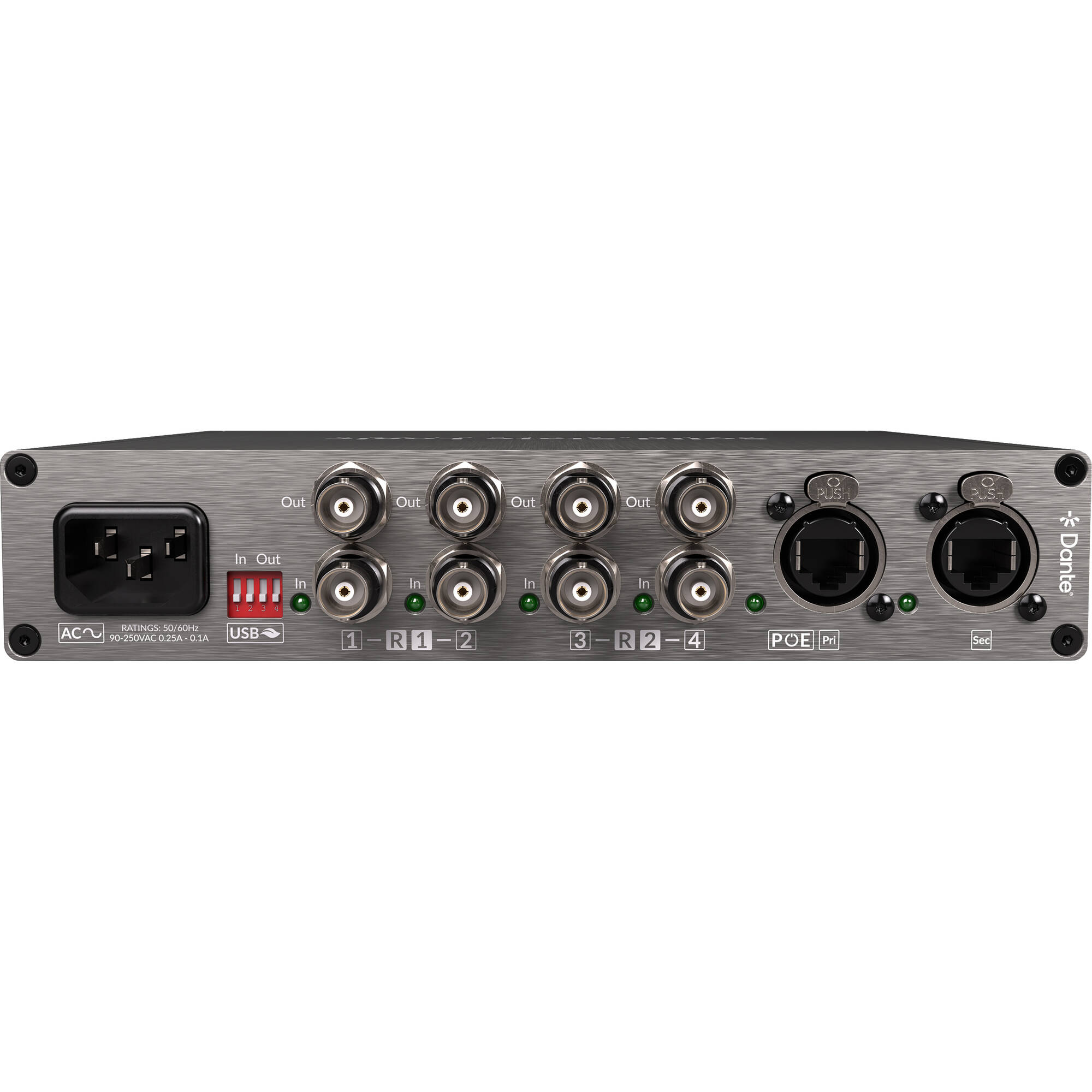

- 6 MADI BNC pairs with redundant mode for 3 dual-redundant MADI connections
- Fully interoperable Dante AoIP with latency as low as 0.25ms
- Flexible MADI and Dante clocking options ensure lock-tight synchronization
- Ruggedized Ethernet ports with Link and Activity LEDs certify rock-solid reliability
- Vivid indicators provide real-time feedback on signal flow, sample rate sync, power status, and network connectivity
- Intuitive controls with a lockout feature to safeguard against unauthorized tampering
- Supports multiple power options — AC, PoE, and USB — with redundancy
- Lightweight, half-rack form factor is ideal for desktop, console-side, and rackmounted use
Tech Specs:
- Computer Connectivity:USB 3.0
- Form Factor:Desktop
- Digital Inputs:6 x BNC (MADI), 4x EtherCON (Dante)
- Digital Outputs:6 x BNC (MADI)
- USB:1 x USB-C
- Power Supply:Standard IEC AC Cable, PoE
If you would like to confirm availability first or inquire for possible price-matching send us a quick mail.
