Chandler Limited REDD Overview

The Chandler Limited REDD Microphone fuses the concept of a large-diaphragm condenser together with the well-regarded REDD.47 line amplifier. With controls for the preamplifier circuit split between the included power supply and the microphone itself, this unit aims to give you the shortest distance between two quintessential elements in your recording chain.

Make no mistake, this is an unmistakably EMI-style, large-diaphragm condenser sporting a handmade, hand-milled platinum membrane. It provides both cardioid and omnidirectional polar patterns.

However, as this microphone integrates with a version of the classic REDD.47 tube preamp, use of an external pre is not necessary. Many of the preamplifier’s controls are available right from the microphone. For changing the harmonic content/tonal character, NORM and DRIVE settings are found at the bottom of the mic. You’ll also note the polarity-invert switch, as well as a pad switch, the polar pattern selector, and a prominent gain knob.

On the included PSU, you’ll find a low-contour control, which acts similarly to—but not exactly like—a high-pass filter, which emphasizes top-end while simultaneously tightening the lows. This feature is located on the variable-output control knob. Simply pull the knob to engage low-contour mode.

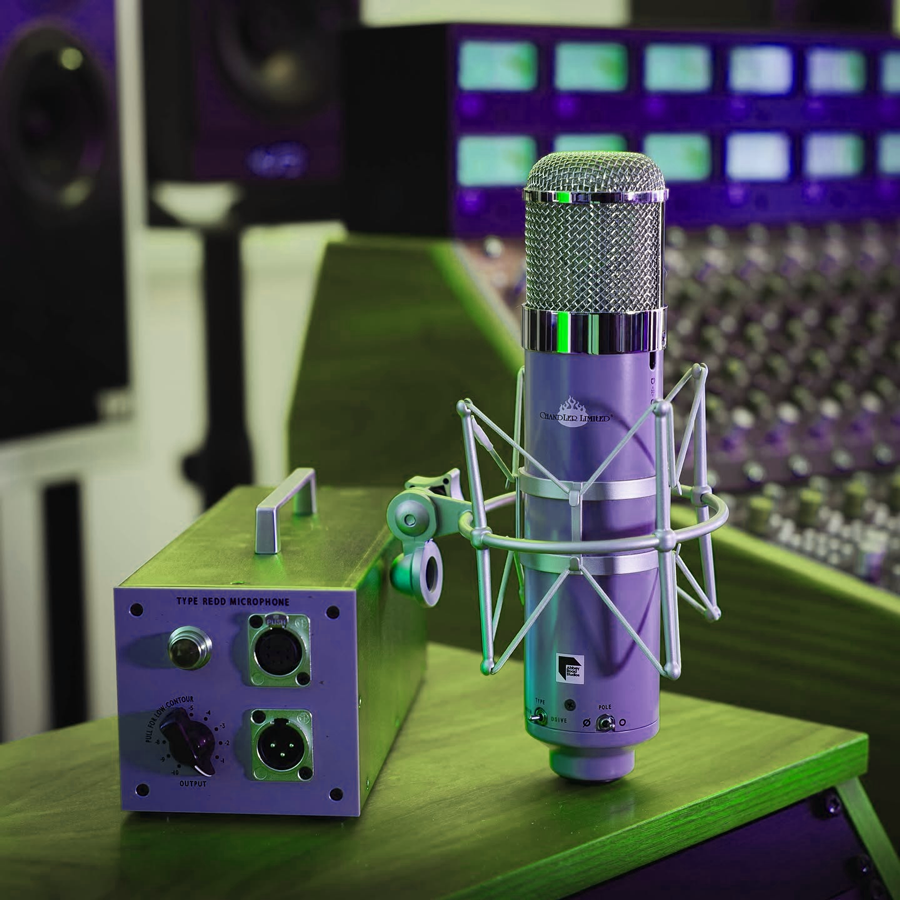

A 7-pin receptacle on the PSU is provided for connecting the microphone, as is your standard 3-pin XLR jack for outputting to an interface, a converter, or a separate, dedicated preamp, should you wish to color the sound further before hitting any other processor. A shockmount, an AC cable, a pattern-select screwdriver, and a flight case are all included.

Adjustable Character
When the toggle switch is set to NORM, the REDD Microphone preamplifier is considered in its normal operational condition. The sound, in this state, is more organic, natural, and "laid-back" in comparison to DRIVE mode. The DRIVE setting, on the other hand, has an overall effect over the adjustable gain range, both in terms of structure, and, more importantly, harmonic content. This feature is similar to the FINE GAIN on the rackmount version of the REDD.47 amplifier. However, with this unit, the setting is always fully on and non-variable. For further tonal tweaking, investigate the LOW-CONTOUR function, which triggers an alternate voicing of the microphone, one with a tighter sound that emphasizes the top-end.

Tube-Powered
The dedicated on-board REDD.47 Mic Amplifier circuit relies on two vacuum tubes.

Chandler Limited REDD Microphone Features:

• The first EMI-branded mic in over a half century
• Combines microphone and preamp in 1 elegant device
• Onboard vacuum tube REDD.47 mic amplifier circuit
• Use it with or without an external mic preamp
• Handmade platinum-membrane capsule
• Rotary switch lets you dial in gain between +4 and +33dB
• Drive setting increased gain to +36dB, introducing tasty tonal coloration
• 10dB pad and polarity reverse switches
• Includes outboard power supply, high-quality spider-type shockmount
• Ships with 25-foot Mogami mic cable and custom-molded flight case
• Crafted in Chandler Limited's Shell Rock, Iowa, factory
• Chandler Limited and their associated logos are registered trademarks of Chandler Limited, Inc. Abbey Road Studios, EMI, TG, REDD, RS and their associated logos are trademarks of EMI (IP) Limited.
