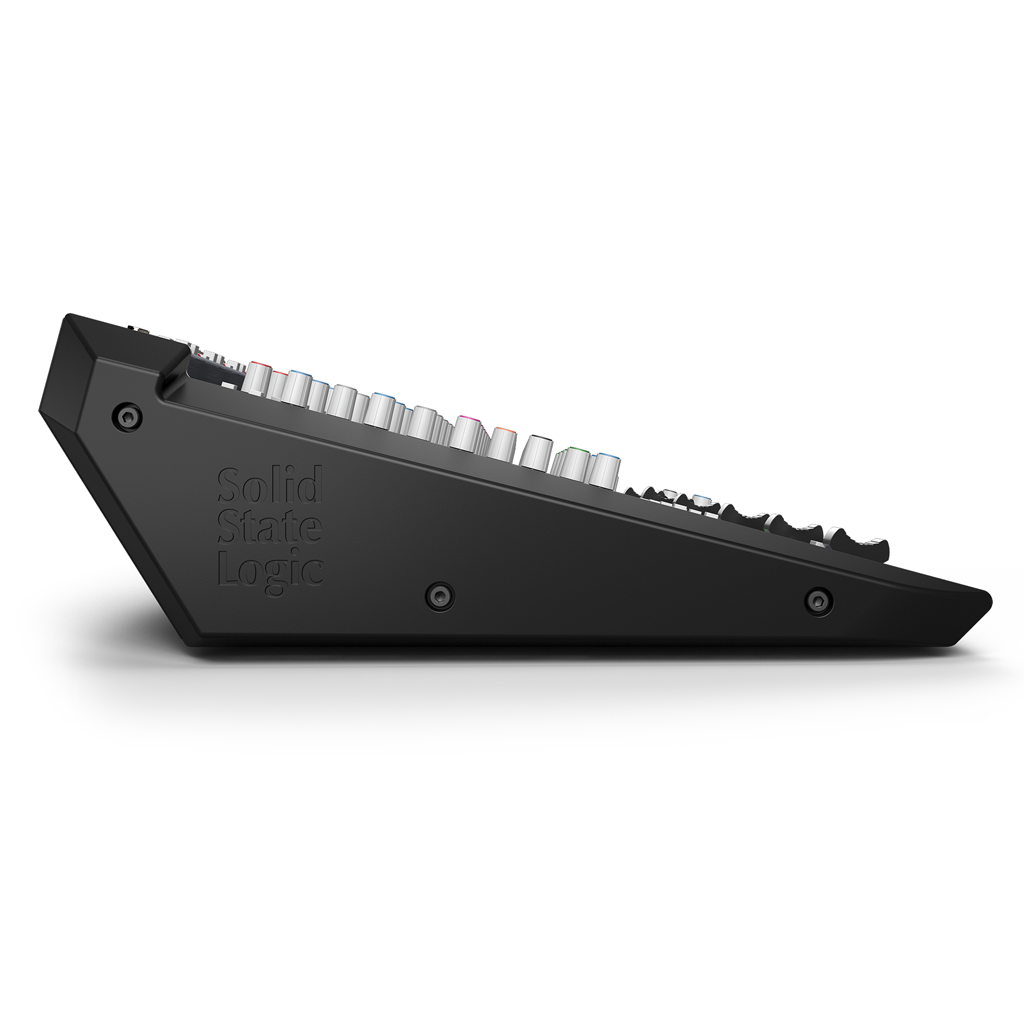

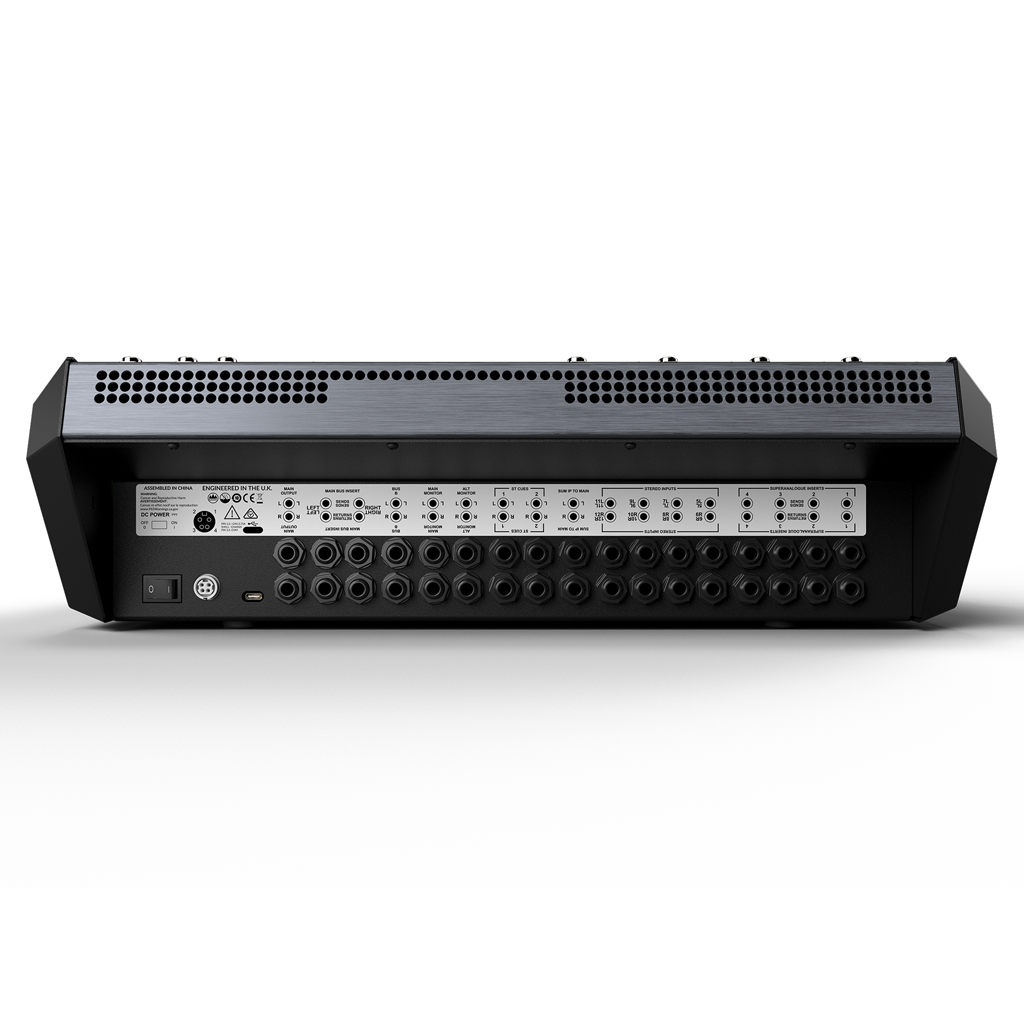

Solid State Logic BiG SiX Desktop Analog Mixer and Interface

Advanced hybrid production

Stunning 18-input Analog Recording Console with 4 SuperAnalogue Preamp Channels with Per-channel Compressors, Per-channel 3-band EQ, 9 Long-throw Faders, 18 Summing Channels, G Bus Compressor, Talkback with LMC, and 16-in/16-out USB-C Audio Interface.

BiG SiX combines production tools from iconic SSL studio consoles with the latest in hybrid workflow. G-Series Bus Compressor with renowned ‘Auto’ release, E-Series EQ, glorious sounding mic pres with channel processing, and advanced monitoring and routing, all designed on a SuperAnalogueTM foundation and brought together with full USB integration. BiG SiX is the essential SSL studio.

Main Features:

• Four SuperAnalogue^TM Mic / line / Hi-Z / 48V / HPF and polarity switch

• Four SuperAnalogue^TM stereo line level inputs with dual mono switching

• Built in 16 channel  96 Khz / 24-bit USB interface with advanced routing

• Essential version of G-Comp Bus Compressor with 'Auto' release

• 3 Band SSL LF/MF/HF EQ on every channel
• Classic SSL channel dynamics processing

• Listen Mic Compressor
• Dual independent headphone outputs with source matrix
• 100 mm console grade faders
• Professional metering
• Comprehensive monitoring section
• Two stereo cue feeds
• Bus B / Mute switching
• Two fully balanced stereo external inputs
• Up to 18 inputs at mixdown
• Mix Bus inject for cascading additional SiX/BiG SiX

Tech Specs:

• Type:Analog Mixer with USB Interface
• Channels:18 Inputs (includes summing and inserts), 8 Fader Channels
• Computer Connectivity:USB (16 x 16)
• A/D Resolution:24-bit/96kHz
• Faders:9 x 100mm Faders
• Inputs - Mic Preamps:4 x XLR
• Phantom Power:Yes (per channel)
• Inputs - Line:8 x 1/4" (4 x stereo channel), 4 x 1/4" (2 x external stereo input)
• Inputs - Other:4 x 1/4" (Hi-Z)
• Outputs - Main:2 x 1/4" TRS (main), 2 x 1/4" TRS (main monitor), 2 x 1/4" TRS (alt monitor)
• Aux Sends:2 x Stereo Cue Send (pre/post)
• Busses/Groups:2 x 1/4" TRS (Bus B out)
• Inserts:2 x 1/4" TRS (L/R main bus insert send), 2 x 1/4" TRS (L/R main bus insert return)
• Headphones:2 x 1/4"
• USB:1 x USB-C
• Talkback:1 x XLR
• EQ Bands:3-band EQ, High/Low Bell Curve, Mid Frequency Shift
• Signal Processing:G-Series Bus Compressor (main mix bus), Channel Compression
• OS Requirements - Mac:OS X 10.14 or later
• OS Requirements - PC:Windows 10 or later (SSL USB ASIO/WDM driver required)
• Rackmountable:Optional rackmount kit (sold separately)
• Power Source:4-pin 15V DC power supply (included)
