Superior Punch and Clarity – Unparalleled SuperAnalogue™ Performance.

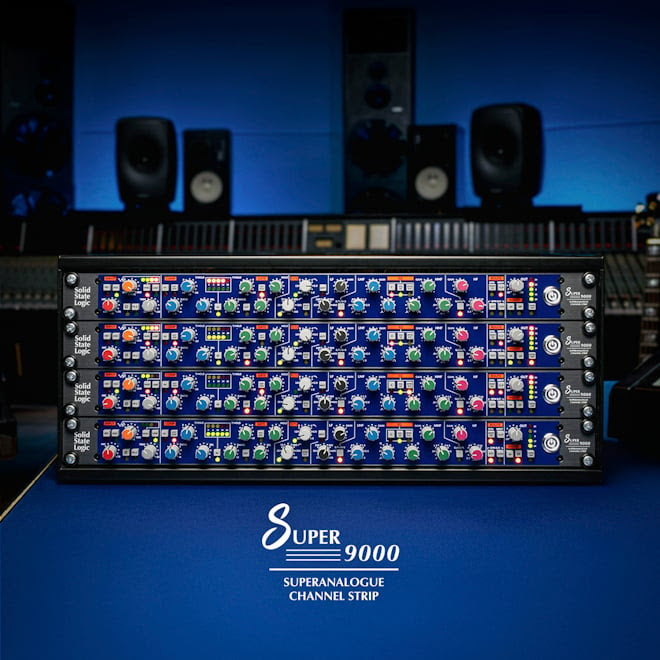

Super 9000 is Solid State Logic’s all-in-one analogue channel strip, combining the best of SuperAnalogue™ technology to deliver the modern SSL sound. First introduced in the legendary SL 9000 J and perfected in the Duality, the Super 9000 Channel Strip offers the ultra-low distortion, exceptional punch, and breathtaking clarity of our SuperAnalogue™ studio consoles in 1U.
The 9000 Series Legacy
The 9000 Series became the benchmark for modern music production, trusted by the world’s most influential artists and engineers. Seminal hip-hop and R&B artists such as Dr Dre, Jay-Z, NAS, DMX, Mary J Blige, and Nicki Minaj relied on its precision and depth. Rock giants like Metallica, as well as the Fugees’ Wyclef Jean, installed 9000 Series consoles in their private studios. Its sonic signature – clean, wide, and open with extended highs, ultra-deep lows, and punch which could knock you down in the control room – paved the way for the modern SSL sound.
Solid State Logic Super 9000 Features:
- Premium mono channel strip with dual mic preamps, 4-band EQ, and dynamics
- SuperAnalogue (9000) and VHD (Duality) mic preamps, selectable
- Selectable mic pre impedance: 1.3 kΩ, 11 kΩ
- 48V phantom power, polarity invert, pad, and Line input switches
- Input Flip moves the VHD Pre from the Mic path into the Line in path
- 4-band EQ with switchable 292 “Pink Knob” and 242 “Black Knob” modes
- 9000/Duality dynamics section with compressor and gate/expander
- Dynamics sidechain link for linking two Super 9000 compressors for stereo operation
- External sidechain (key) input
- 8dB/octave highpass and 12dB/octave lowpass filters
- Insert point for integrating external processors into the signal path
- To-Sidechain switching: Filters to Dynamics sidechain, EQ to Dynamics sidechain
- Flexible process-order routing: Filters to input, Dynamics post-EQ, Insert to output
- Switchable input and output metering
- Line Output trim
Tech Specs
- Preamp Type:Solid State
- Number of Channels:1
- Phantom Power:Yes
- Pads:Yes
- Polarity Switch:Yes
- EQ:4-band EQ, LPF, HPF
- Compressor:VCA
- Other Processing:Gate
- Analog Inputs:1 x XLR, 1 x XLR-1/4" (line)
- Analog Outputs:1 x XLR
- Other I/O:2 x 1/4" (return/send), 1 x XLR-1/4" Combo (dynamic sidechain in), 1 x 1/4" (sidechain link)
- Rack Spaces:1U
- Power Source:Standard IEC AC cable
