PMC PMC8-2 Three-way Active Studio Monitor - Pair

MONITORS THAT MAKE BETTER MUSIC

As with any PMC loudspeaker, thanks to its super-consistent dispersion and tonal balance, the PMC8-2 may be simply and seamlessly combined with smaller PMC speakers to create larger multi-channel or immersive systems.

The twin bass drivers are partnered with the same PMC55 mid-range tweeter, DSP system and four channels of 400W Class-D amplification used in the PMC6-2. Again, the speaker is configurable directly via the rear panel or using the browser-based SoundAlign™ software from a computer or tablet.

​SOUNDALIGN​​™ Smart & Network Equipped​

The SoundAlign​​™ web interface gives you an unique and responsive way of controlling and configuring your near-field and mid-field active monitors and their subs. The SoundAlign™ allows you to run large multichannel systems smoother with smart features such as:

Easily manage many speakers

Monitor Selector
View your system and select monitors to adjust

Speaker Controls
Modify any speaker parameter – Level, EQ & more

Settings

Manage presets & update firmware

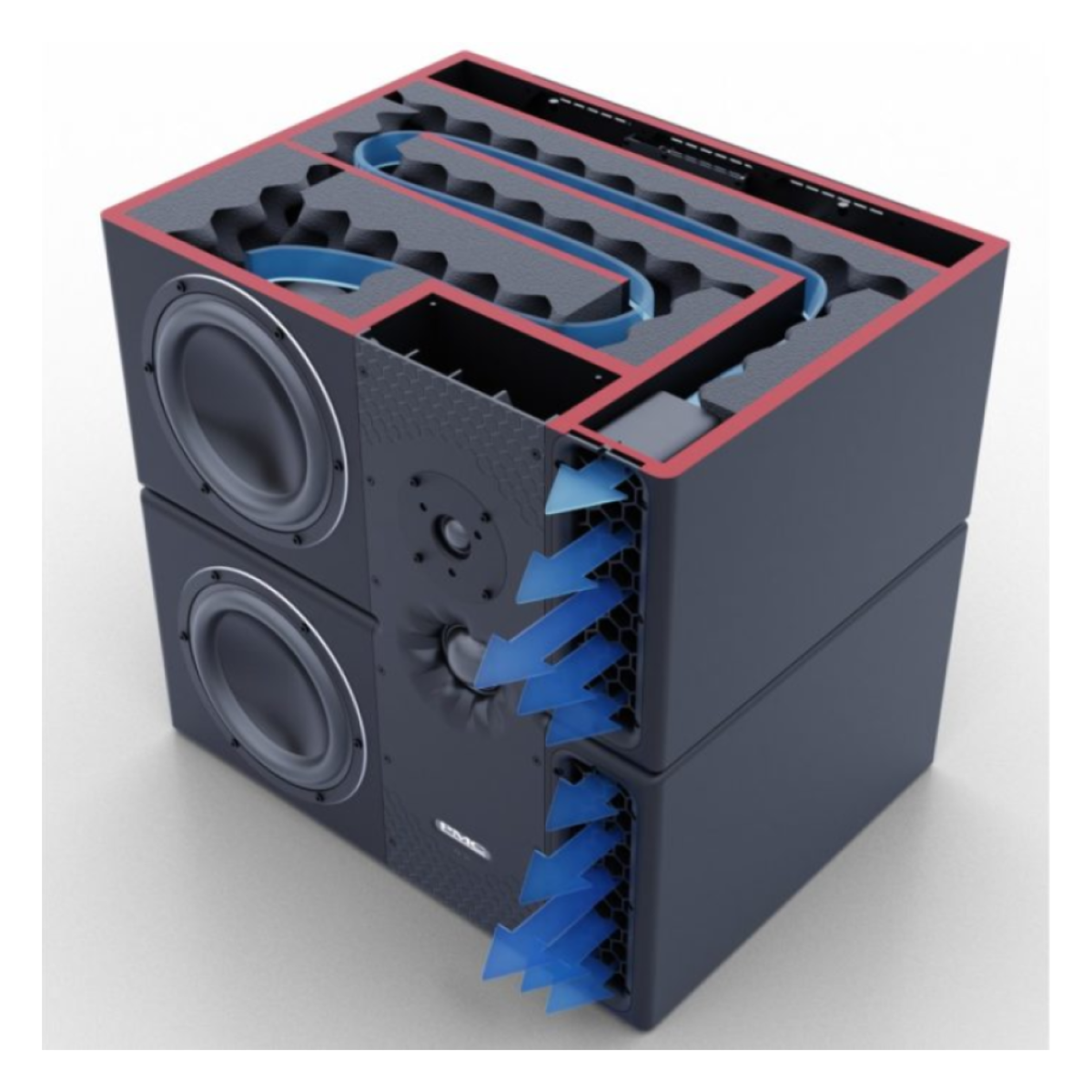

Advanced Transmission Line (ATL™)

Together with the precisely tuned ATL™ cabinet and hexagonal Laminair™ vents, the PMC8-2 delivers phenomenal performance that approaches that of our Main reference monitors, with smooth and consistent bass response down to 25Hz, a revealing mid-range and wide, stable sound-staging. As with the rest of the range, the PMC8-2’s superb definition, fidelity, dynamics and bass accuracy allow mix decisions to be made quickly with complete confidence, and with no listening fatigue even after long sessions.

PMC8-2s can be upgraded through the addition of a PMC8-2 SUB to create an XBD system, enhancing the system’s bass headroom by 6dB. Dedicated short and taller floor-stands are available for the PMC8-2 and PMC8-2 XBD systems which position them on the ideal listening axis.

Main features:

• ​Active 3-way nearfield reference monitor with ATL™ bass loading
• Frequency response: 25Hz - 25kHz (- 3dB @1m full space, on-axis)
• Max. cont. SPL: 113dB @1m (half space value calculated as +3dB from full space measurement.
• Unweighted input, 20-20kHz Pink Noise (IEC) with 12dB CF for 2 hours AES2-1984 duration)
• State-of-the-art Class-D amplifiers: HF 400W, MF 400W, LF 2x 400W
• Analogue / AES3 digital input (16/24-bit, 18 -192kHz sample rate)
• Digital ‘through’ output (AES3 24-bit 96kHz
• SoundAlign™ network control interface for single or group EQ & settings
• Sophisticated DSP crossover, driver protection, EQ, and delay/polarity options
• PMC8-2 + PMC8-2 SUB creates PMC8-2 XBD, with up to 6dB of additional headroom
• Optional dedicated floor stands for PMC8-2 (40”) and PMC8-2 XBD (19”)​

Tech Specs:

• Type: Nearfield/Midfield reference monitor
• Powered: Yes
• Power Configuration: 3-way active
• LF Driver Size: 2x 8" Woofer
• MF Driver Size: 2" mid-range (soft dome)

• HF Driver Size: 1" Tweeter (soft dome)
• Effective ATL™ Length: 3m (9.8ft)
• Frequency Response: 25Hz - 25kHz (- 3dB) (@1m full space, on-axis)
• Sensitivity: +4dBu input signal = 98dB SPL @ 1m
• Max continuous SPL: 113dB @1m
• Max Peak SPL: 125dB @1m
• Directivity: H +/-45 degrees || V +/-50 degrees
• Input Types: XLR switchable between analogue & digital AES3
• Output Types: XLR digital AES3 (fixed 24-bit @ 96kHz)
• Network: Ethernet with PMC SoundAlign web interface
• Latency: 2.4mS
• LF Driver Power Amp: 2x 400W
• MF Driver Power Amp: 400W
• HF Driver Power Amp: 400W
• Idle Power: 50W
• Max Power: 1500W
• Mains: 100 - 240VAC auto-switching, 50-60Hz
• Cabinet dimensions: H 5340mm (21") | W 551mm (21.7") | D 440mm (17.3")
• Weight: 39kg
