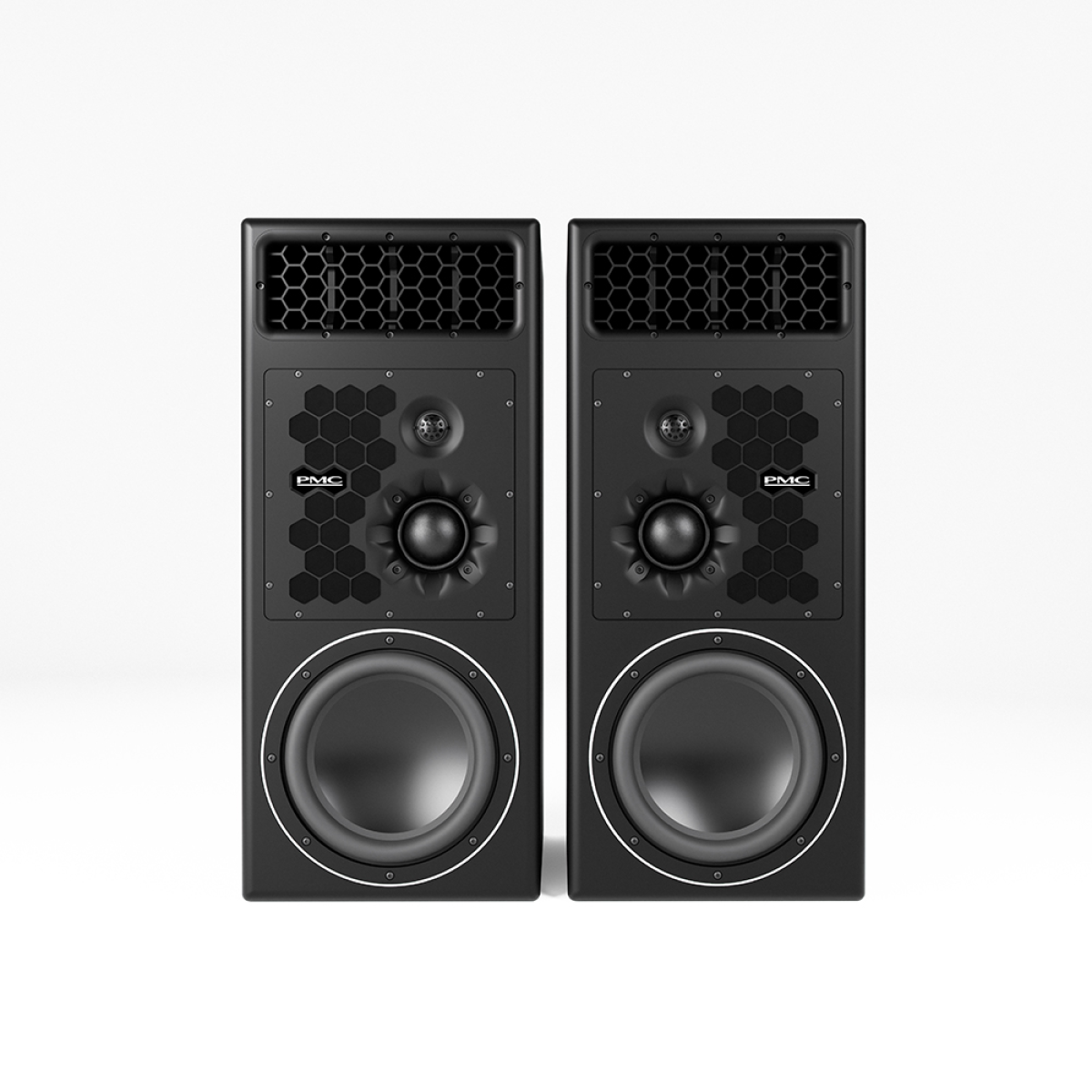

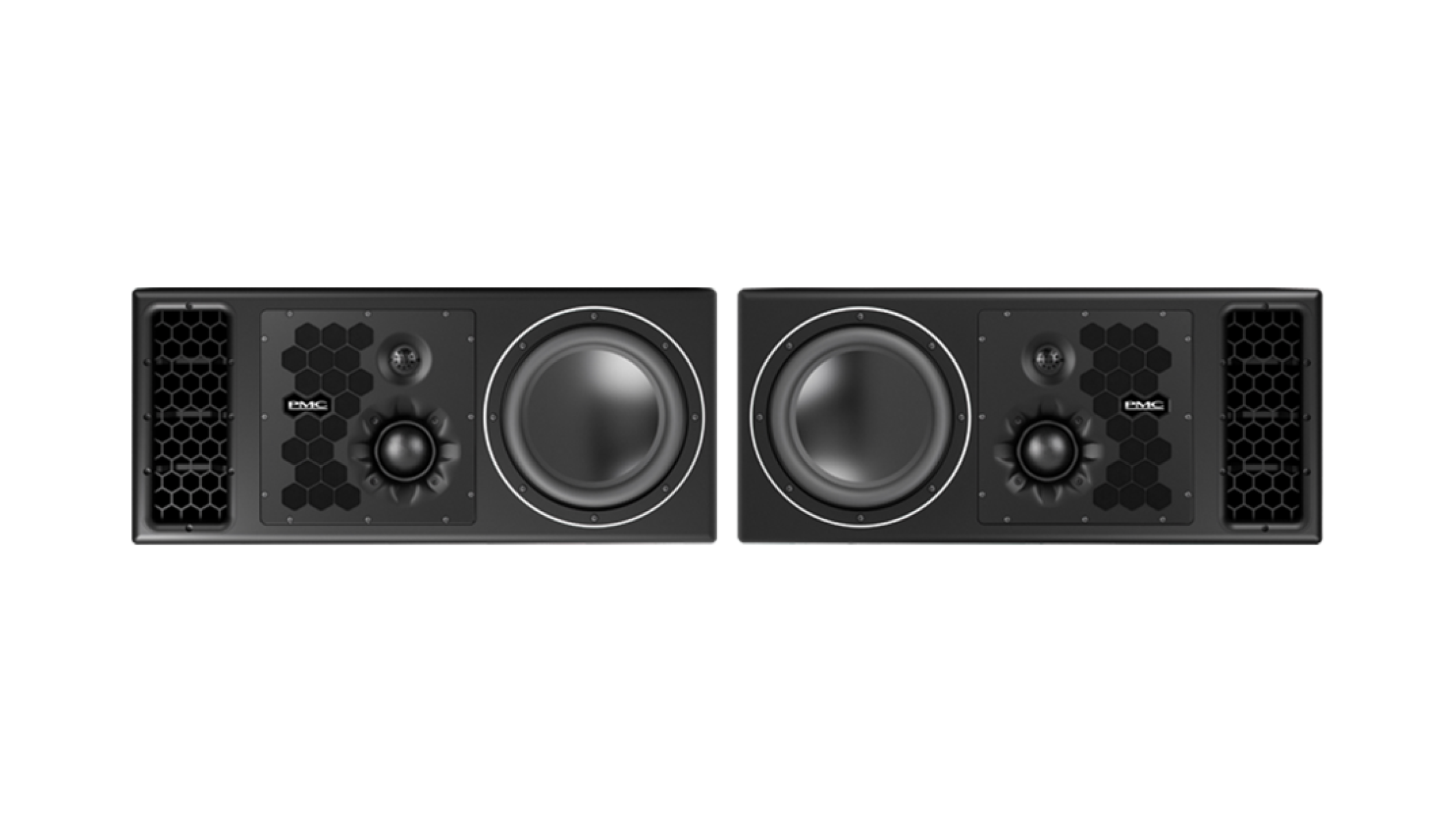

PMC 12 3-Way Active Reference Monitor - New

Uncompromising Truth for the World’s Finest Studios

The PMC (Professional Monitor Company) 12 is a highly advanced, three-way active reference monitor designed to deliver unflinching accuracy and massive headroom in the most demanding professional environments. Engineered for medium-to-large control rooms, mastering suites, and film post-production facilities, the PMC 12 provides a significant step up in scale and dynamics. Whether you are a mixing engineer perfecting a Dolby Atmos® session or a mastering professional requiring absolute tonal consistency, this system ensures your creative decisions translate perfectly to the outside world.

Precision Low-End with ATL™ and LaminairX™
At the heart of the PMC 12 is the proprietary Advanced Transmission Line (ATL™) technology, which uses a 3.5m internal path to deliver deeper, cleaner bass than conventional ported designs. By incorporating LaminairX™ aerodynamic venting—inspired by F1 racing technology—the system reduces drag and turbulence at the exit point. This results in superior bass timing, ultra-wide dynamic range, and a low end that remains perfectly in balance even when monitoring at whisper-quiet levels.

Legendary Midrange and n-compass™ Clarity
Midrange is the heart of any mix, and the PMC 12 handles it with the hand-built PMC75v3 75mm soft-dome driver. Enhanced by the new n-compass™ waveguide, this driver provides exceptional vocal transparency and a vast, consistent "sweet spot." This wide dispersion ensures that every detail, from transient definition to subtle spatial cues, is revealed with absolute phase integrity across the entire listening area.

Next-Generation Master36 DSP Power

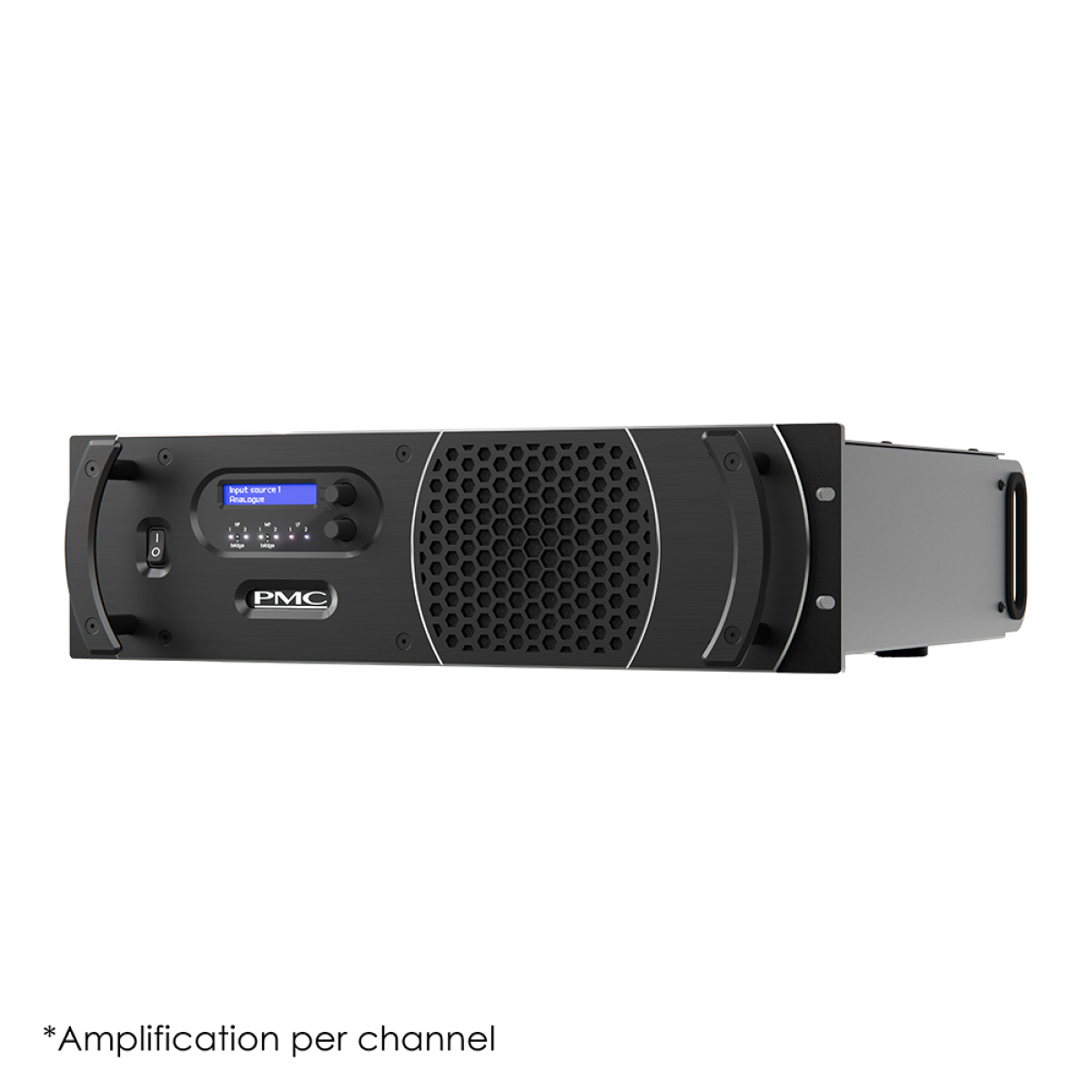

The entire system is driven by the external master36 system controller, a powerhouse providing 3600W of Class-D amplification. This unit integrates 32-bit SoundAlign2™ DSP processing, offering optimized crossovers, transparent protection, and comprehensive room EQ. This external configuration ensures the monitor cabinets remain thermally stable and allows for precise software-based management via any standard web browser.

Main Features:

• Three-way mid/far-field main reference monitor system
• Next-generation 12-inch Radial™ bass driver with triple-wound voice coil (36mm linear excursion)
• Hand-built PMC75v3 soft-dome midrange driver for world-class vocal transparency
• Precision 34mm soft-dome tweeter for crystal-clear high-frequency reproduction
• Advanced Transmission Line (ATL™) design for flat bass response down to 20Hz
• LaminairX™ aerodynamic venting to eliminate port noise and air turbulence
• External master36 rack-mount controller providing 3600W of total system power
• SoundAlign2™ web interface for intuitive room alignment and system management
• Switchable XLR inputs supporting both high-resolution analog and digital AES signals
• Scalable architecture for expansion to a twin-cabinet XBD configuration

Tech Specs:

• LF Driver: 12” (300mm) Radial™ Driver with triple-wound coil
• MF Driver: 75mm (3”) PMC75v3 soft-dome with n-compass™ waveguide
• HF Driver: 34mm soft-dome tweeter
• Frequency Response: 20Hz - 25kHz
• Total Amplifier Power: 3600W via master36 controller
• Amplifier Split: LF: 1000W / MF: 800W / HF: 800W
• Crossover Frequencies: 380Hz and 3.8kHz (DSP dependent)
• Input Connectors: XLR (switchable Analog/Digital AES)
• Digital Output: XLR digital AES3 (24-bit/96kHz)
• Networking: RJ45 port for SoundAlign2™ web interface
• DSP Features: Room Alignment EQ, Protection, and Crossovers
• Dimensions (HxWxD): 870 x 380 x 535 mm
• Weight: 62kg per unit
