On-Stage DB1050 - Passive Multimedia Direct Box
Tax included.
Description
Multimedia DI Box with Stereo-to-Mono Summing

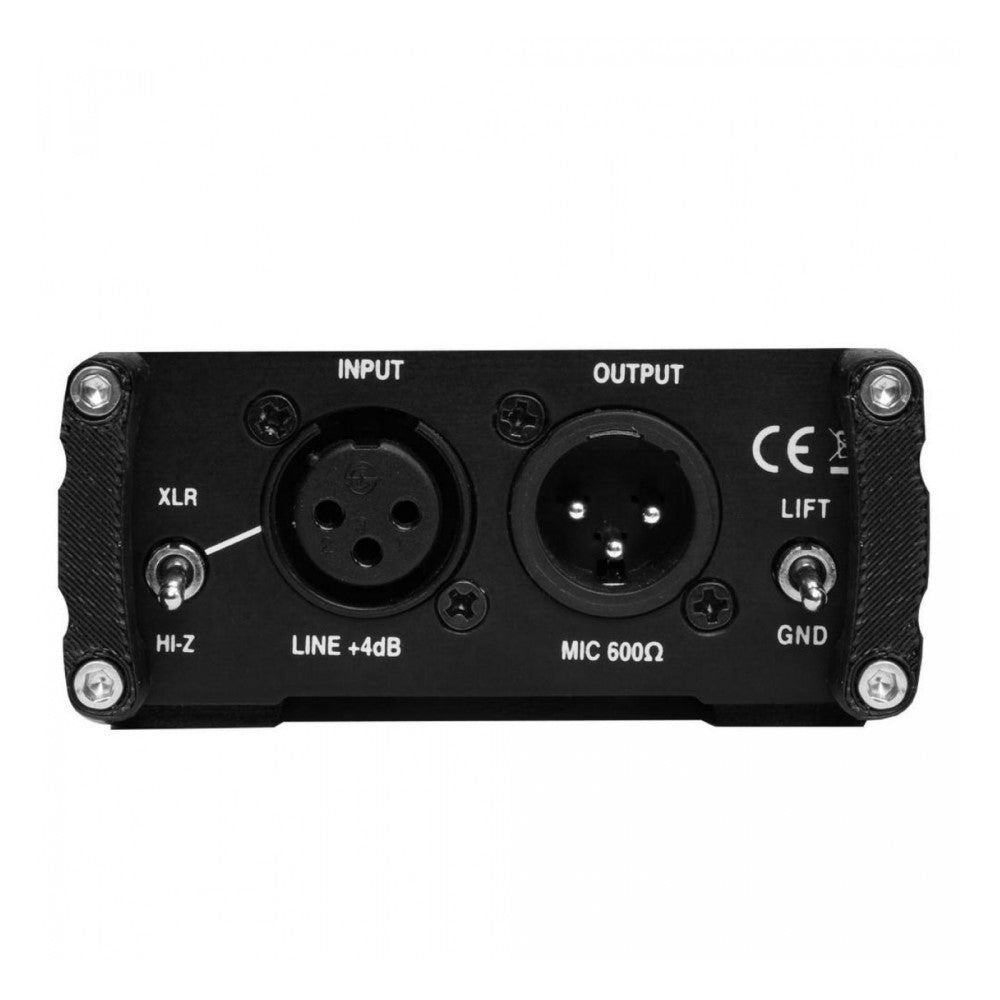

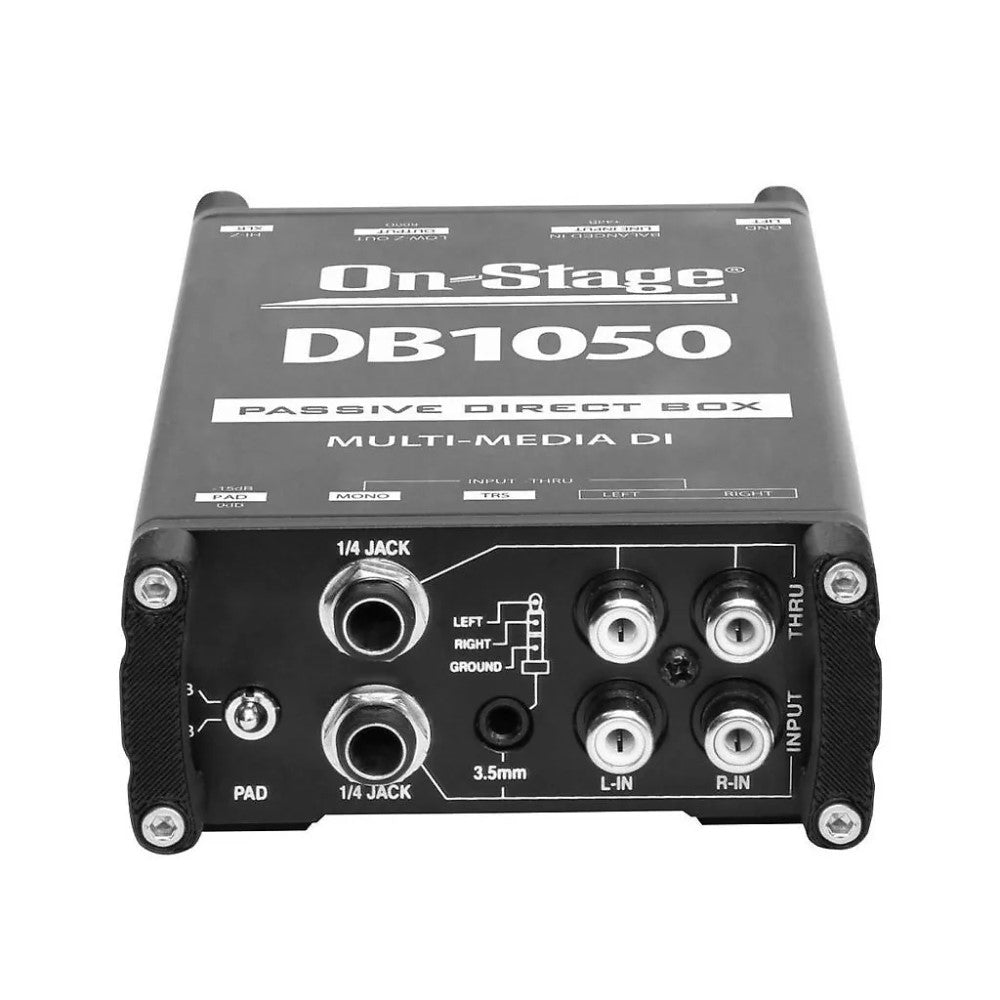

The DB1050 Passive Multimedia DI Box from On-Stage converts any line-level stereo source to a low-impedance XLR mono signal ready to send via a long cable run to a mixer or PA system. Features include low-distortion passive circuitry that doesn't require power, a -15 dB pad switch to prevent clipping, a ground-lift switch to defeat ground-loop hum, throughput connectors to pass an unaltered signal to a stage amp, a Hi-Z/XLR input selector, and a variety of input connectors to enable convenient use with various sources. Its heavy-duty metal enclosure protects the internal components and ensures reliable performance.
Main features:
Tech Specs:
- Type: Passive
- Channels: 1
- Pads: -15dB
- Ground Lift: Yes

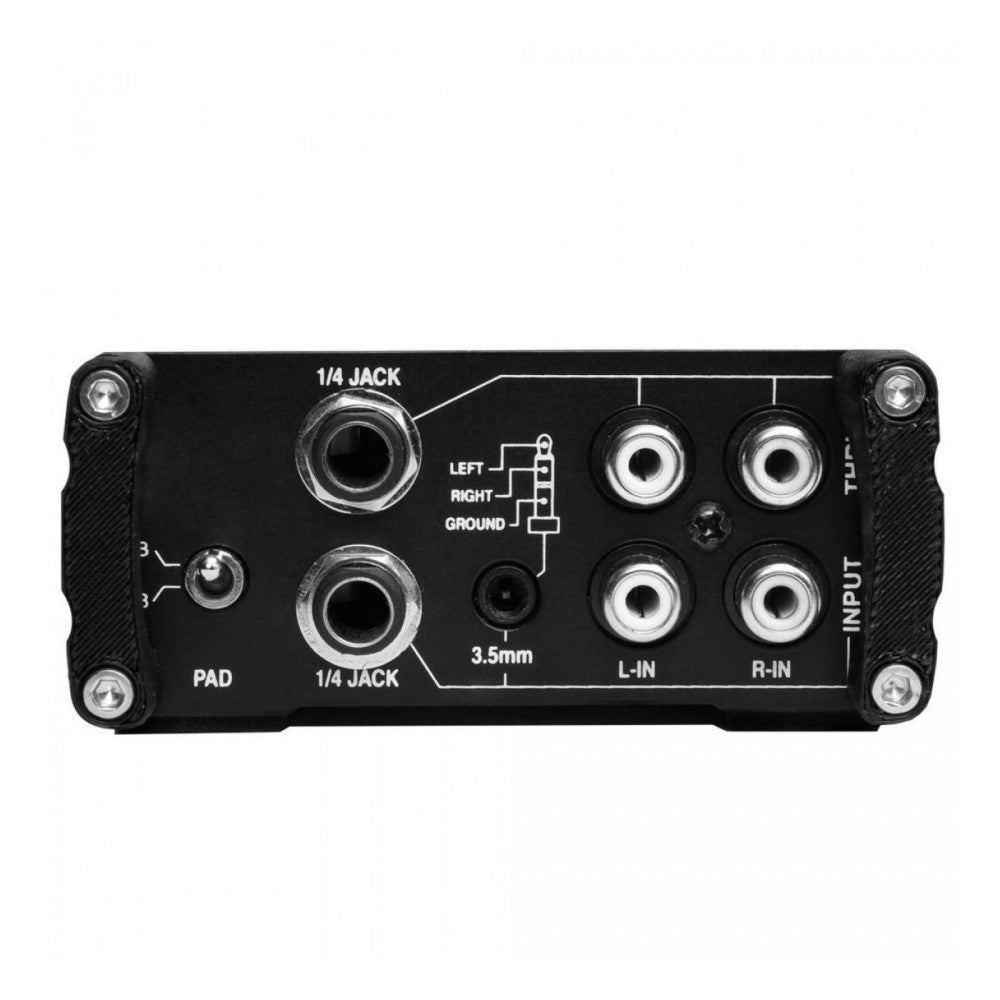

- Inputs: 2 x 1/4" TS (Unbalanced), 1 x 1/8" / 3.5 mm TRS (Unbalanced), 2 x RCA Coaxial (Unbalanced, One Stereo Pair), 1 x 3-Pin XLR (Balanced)
- Outputs: 1 x 3-Pin XLR (Balanced), 2 x RCA Coaxial Thru (Unbalanced, One Stereo Pair)
-
Power Source: Not required
- Dimensions: 38mm x 89mm x 152mm (H x W x L)
- Weight: 0.3kg
- Discover more On-Stage Direct Boxes [DB1050]: https://on-stage.com/products/view/12557
