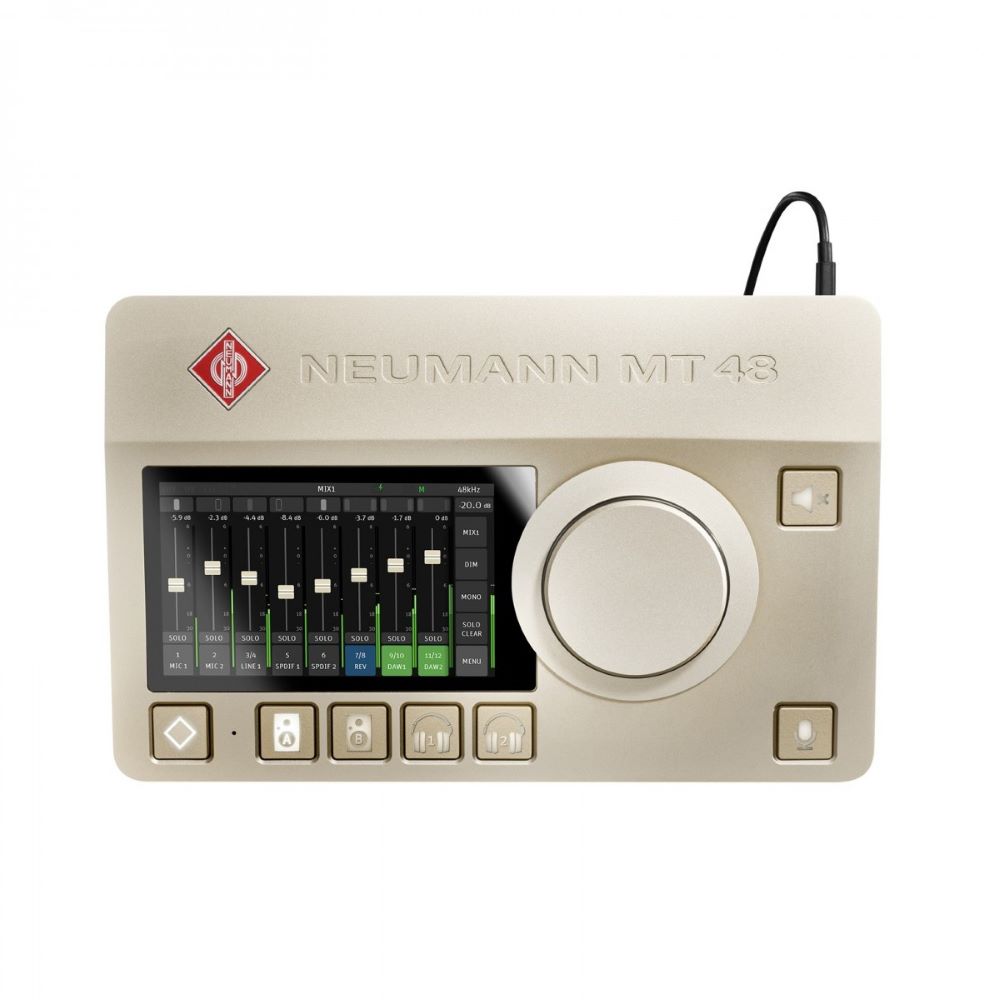

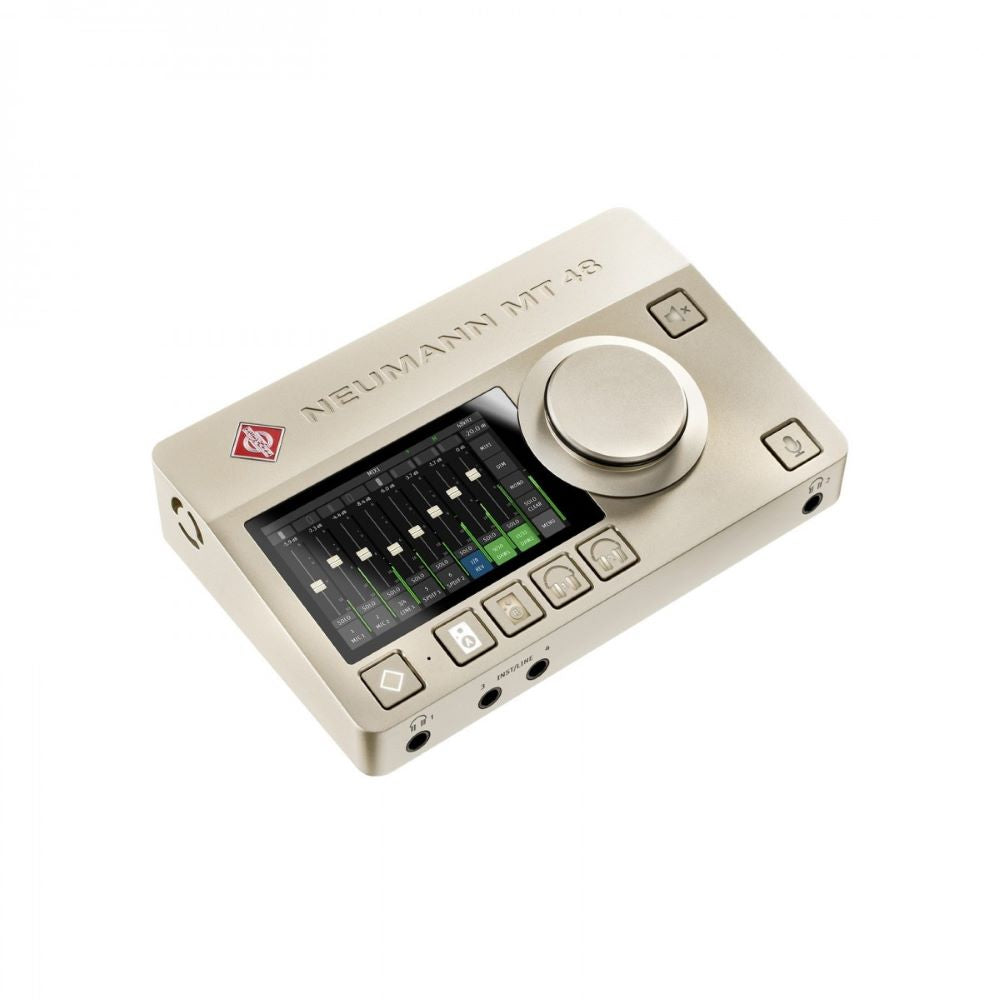

Neumann MT 48 USB-C Audio Interface

The Best For the Best

The Neumann MT 48 brings precision to the digital workflow. It is the first audio interface in its class that is able to capture the full dynamic range of Neumann microphones and is optimally matched to the KH-Line of studio monitors and Neumann headphones. The result is an ideal signal chain without any bottlenecks: uncompromising sound quality from the microphone diaphragm to your ear.

Swiss Connection
MT 48 was developed in close cooperation with the Swiss manufacturer Merging Technologies, whose high-precision AD converters offer a staggering dynamic range of 136 dB. This gives the MT 48 four times the resolution of comparable audio interfaces.

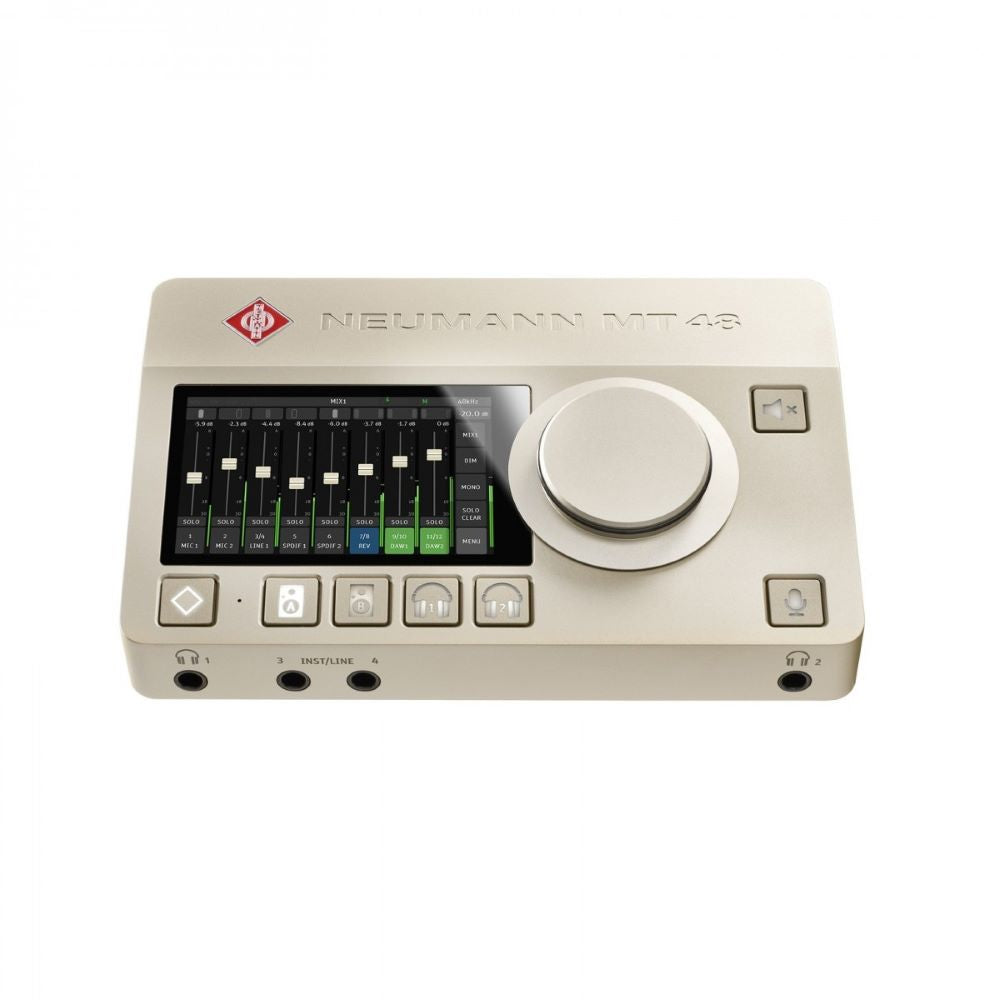

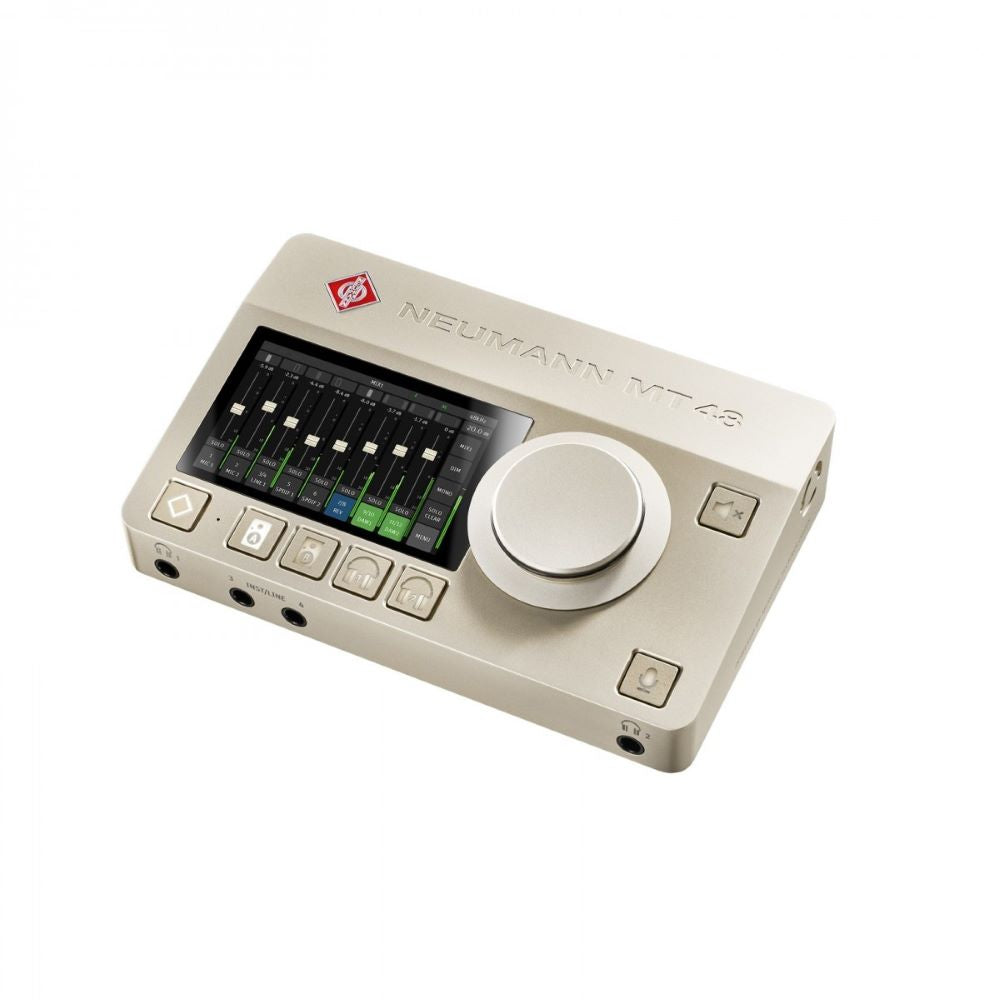

The MT 48 also comes fully equipped for the reference-class personal studio: two extremely low-noise mic/line preamps with up to 78 dB gain, two line/instrument inputs, four monitor/line outputs and two superb headphone outputs, each with state-of-the-art AD/DA converters. The MT 48’s connectivity may be expanded via ADAT / S/PDIF and AES67; a MIDI interface is also integrated. Four separate monitor mixes can be controlled directly on the unit via touchscreen. On-board processing includes a fully parametric 4-band EQ, a 3-way dynamics processor (gate/compressor/limiter) per channel and a high-quality reverb. So musicians get inspiring sound for top performances. And there is still plenty of DSP power for future developments.

Main features:

• Optimized for Neumann's studio microphones, KH-series studio monitors, and NDH-series headphones
• High-precision AD converters yield a jaw-dropping dynamic range of 136dB
• 2 low-noise mic preamps with up to 78dB of gain
• 2 line/instrument inputs yield true reference-quality sound
• 4 analogue outputs for monitoring and patching in outboard gear
• 2 excellent-sounding headphone outputs
• Supports ADAT, S/PDIF, and AES67 digital expansion
• Includes onboard MIDI I/O
• Built-in DSP provides a fully parametric 4-band EQ, feature-rich dynamics processor, and studio-quality reverb
• Control 4 separate monitor mixes — with effects — directly from the unit's intuitive touchscreen
• DSP deploys for monitoring, printing effects, or both simultaneously via Direct Output Technology
• Limited 2-Year Manufacturer Warranty

Tech Specs

• Computer Connectivity: USB 2.0
• Form Factor: Desktop
• Simultaneous I/O: 12 x 12
• Number of Preamps: 2 x mic, 2 x instrument
• Phantom Power: Yes
• A/D Resolution: Up to 24-bit/192kHz

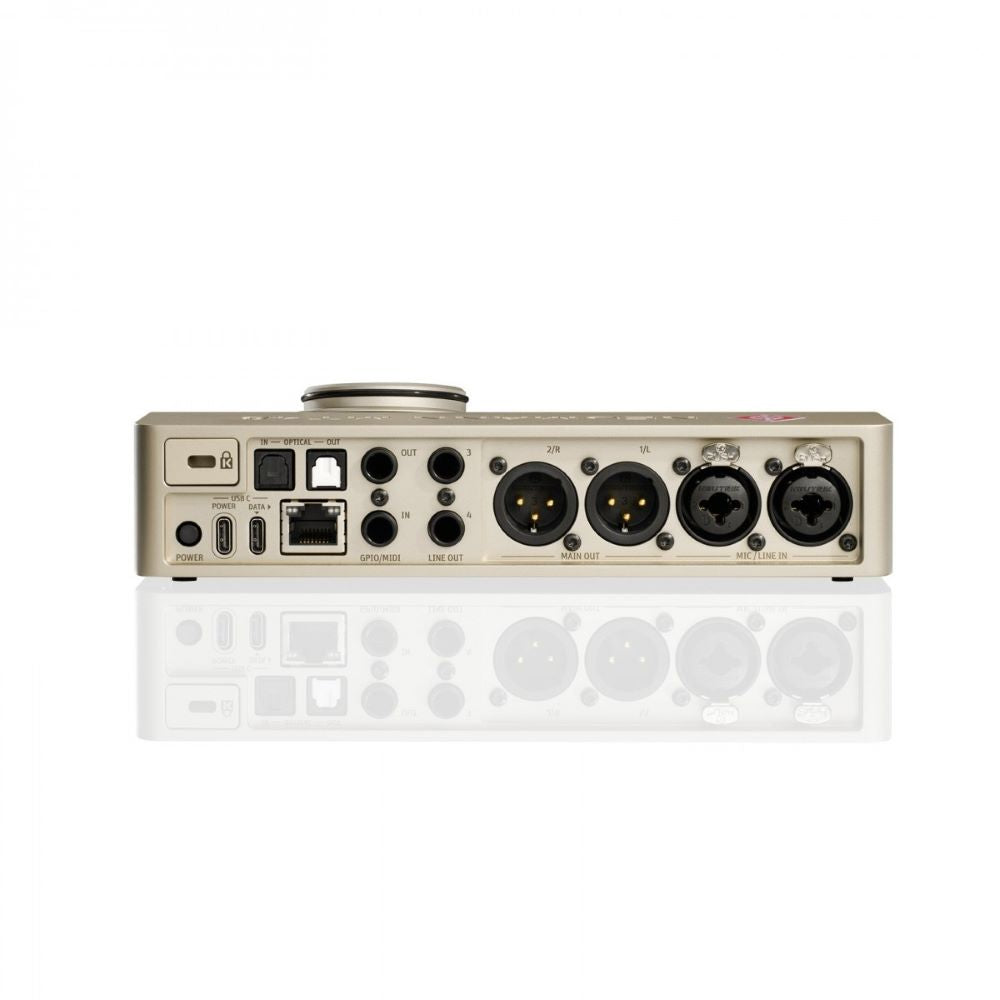

• Analogue Inputs: 2 x XLR-1/4" combo (mic/line), 2 x 1/4" (Hi-Z/line)
• Analogue Outputs: 2 x XLR (main), 2 x 1/4" TRS (line)
• Digital Inputs: 1 x Optical Toslink (ADAT)
• Digital Outputs: 1 x Optical Toslink (ADAT)

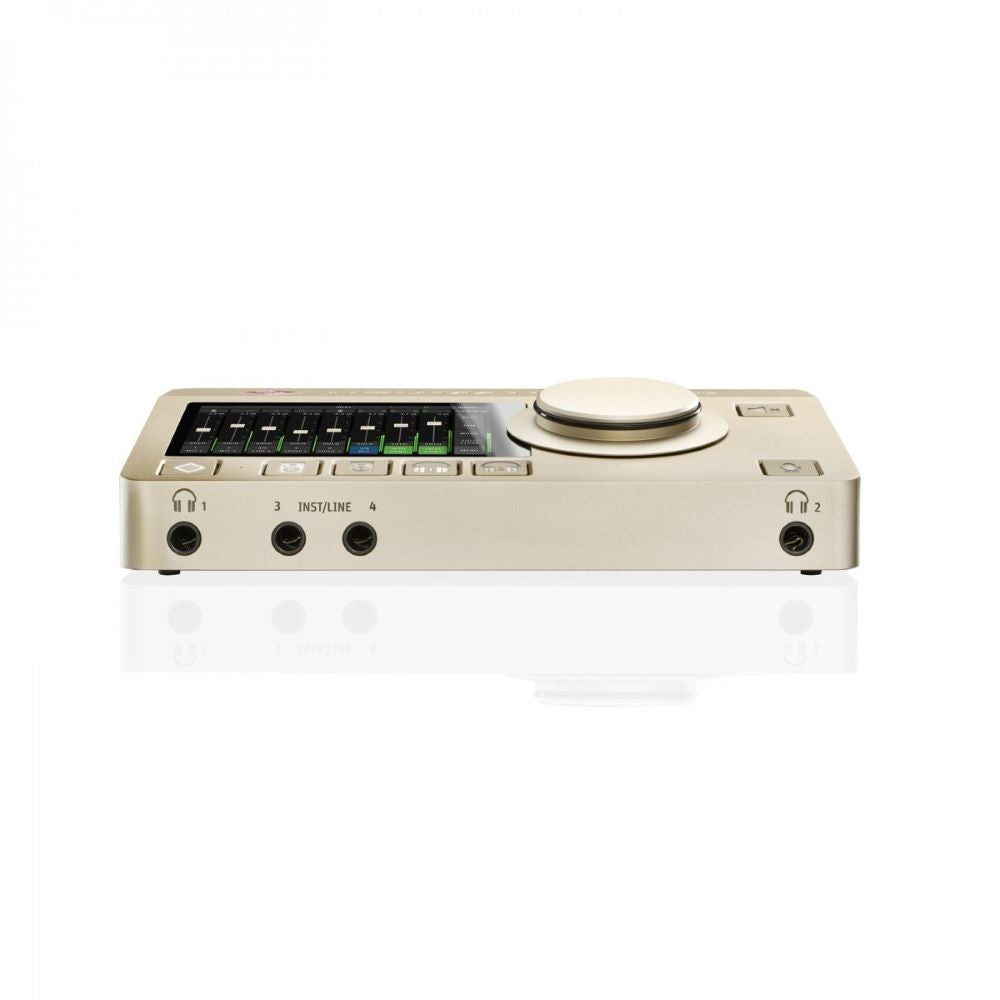

• Headphones: 2 x 1/4" TRS

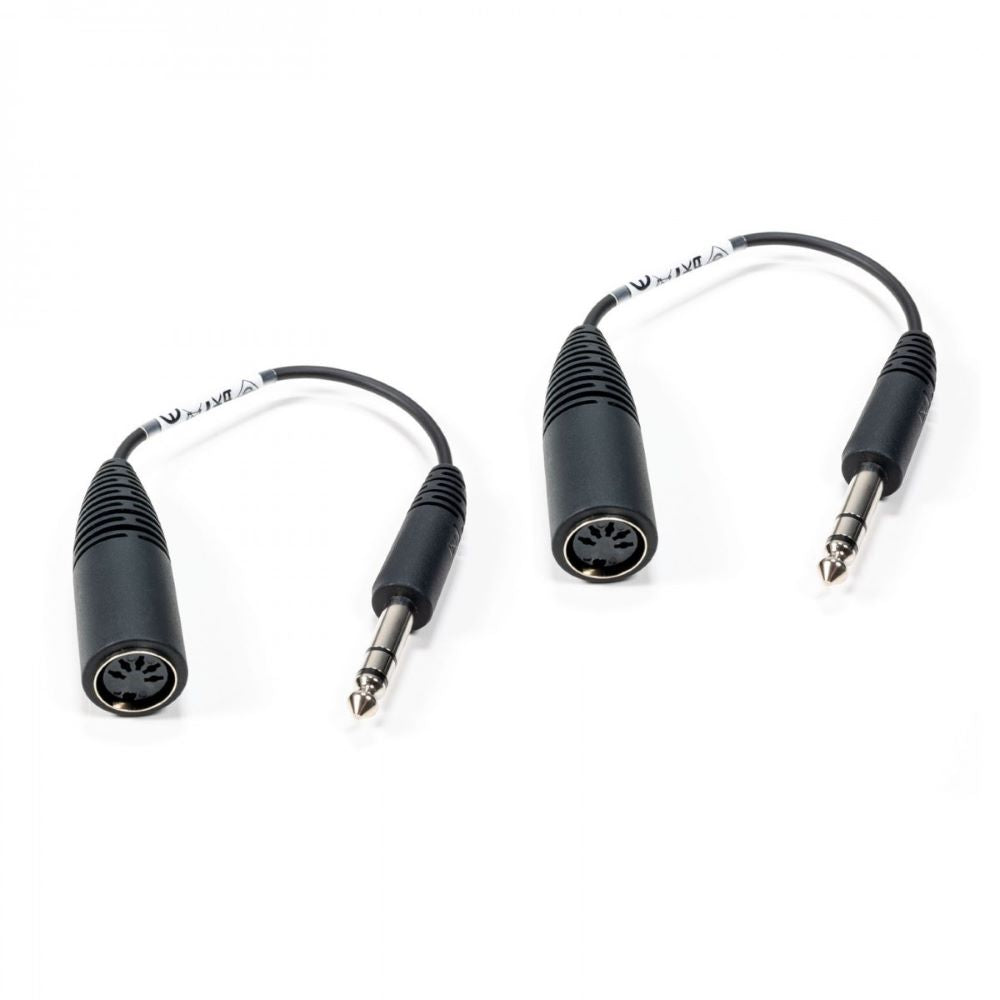

• MIDI I/O: 2 x 1/4" (In/Out)
• USB: 1 x Type C
• Data I/O: Ethernet (Ravenna/AES67)
• OS Requirements - Mac: macOS 10.15 - 13 (Intel/Apple Silicon support)
• OS Requirements - PC: Windows 10 64-bit or later
• Anti-Theft Features: Kensington Security Slot
• Power Supply: 9V to 15V DC power supply (included)
• Dimensions: 200 x 128 x 40mm

• Weight: 905 g
