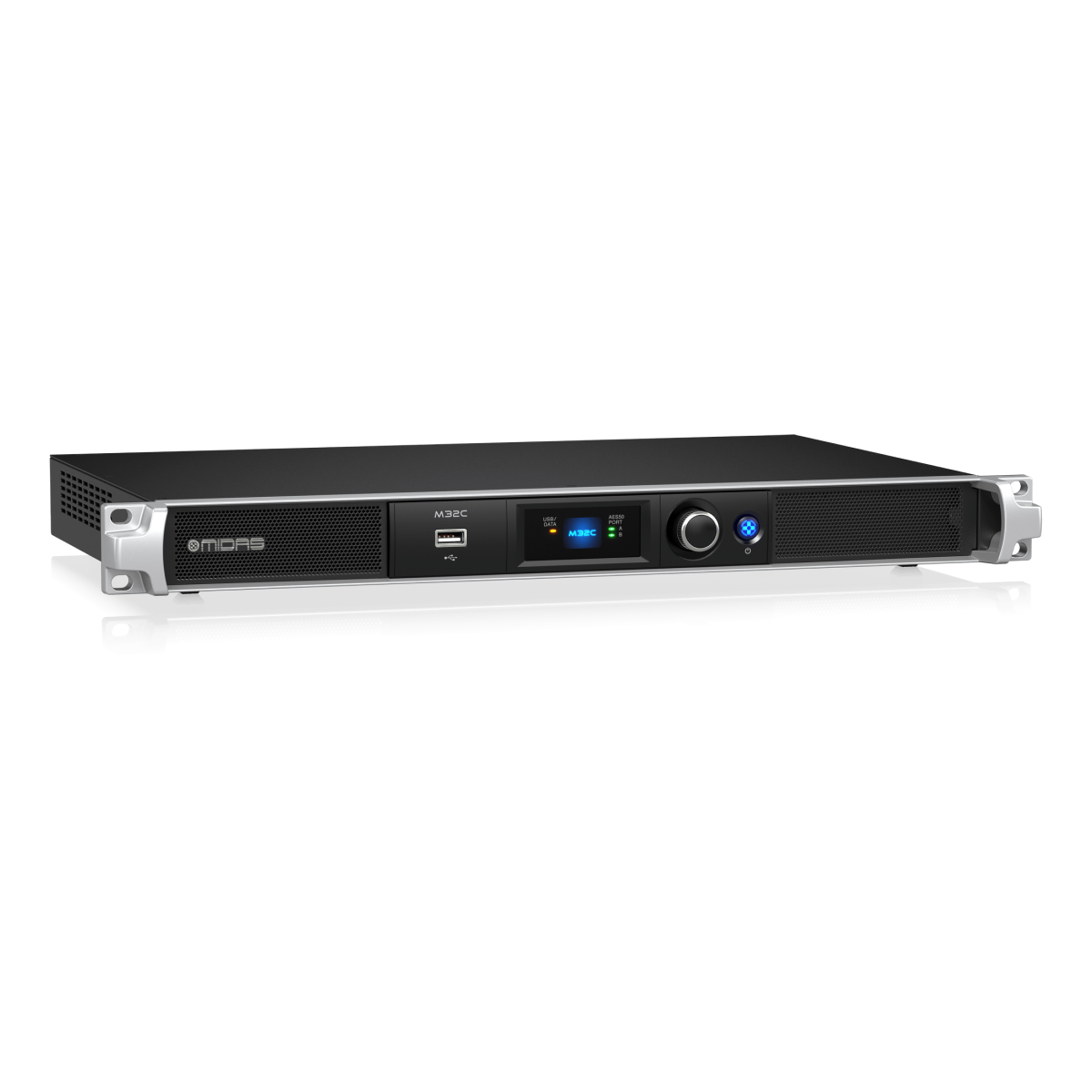

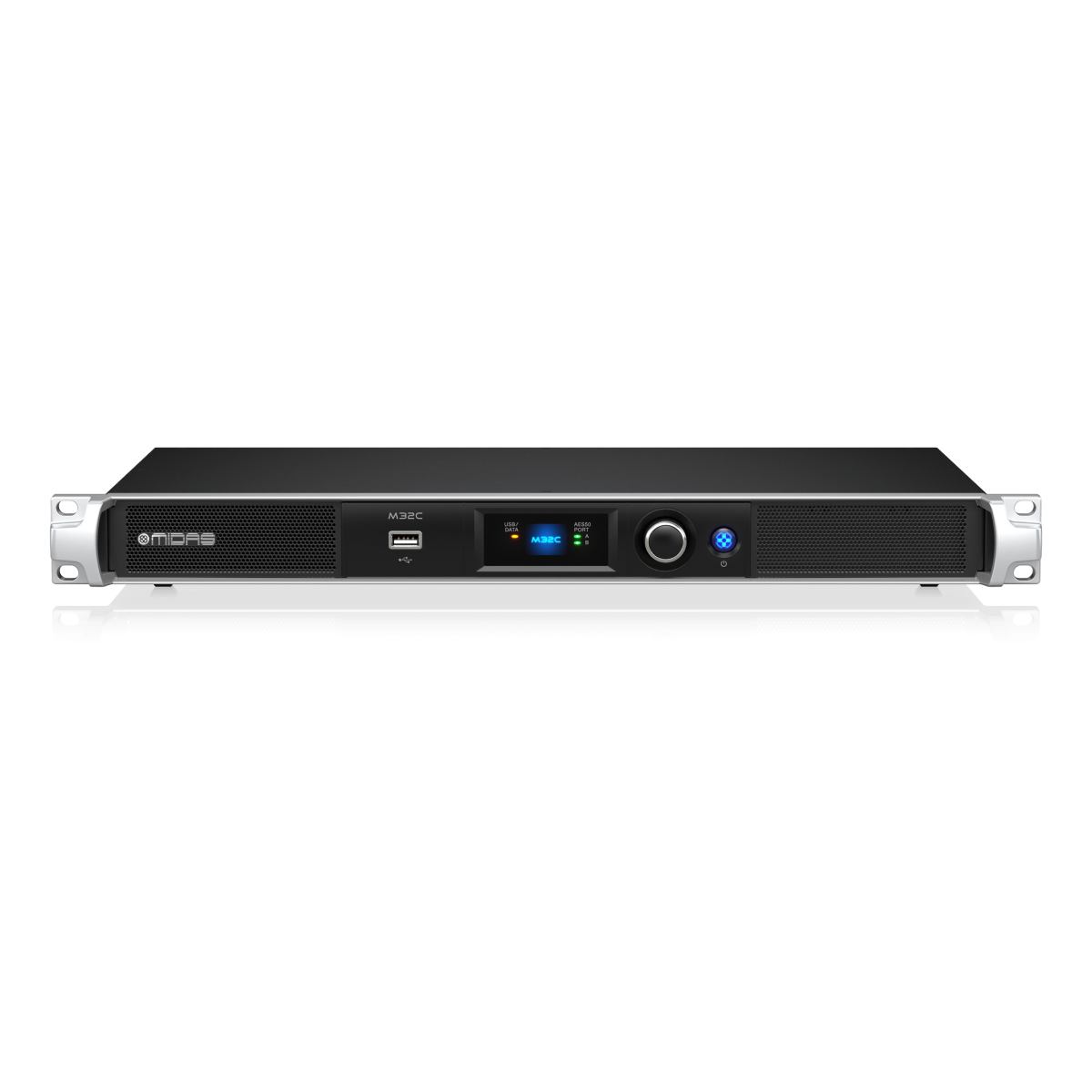

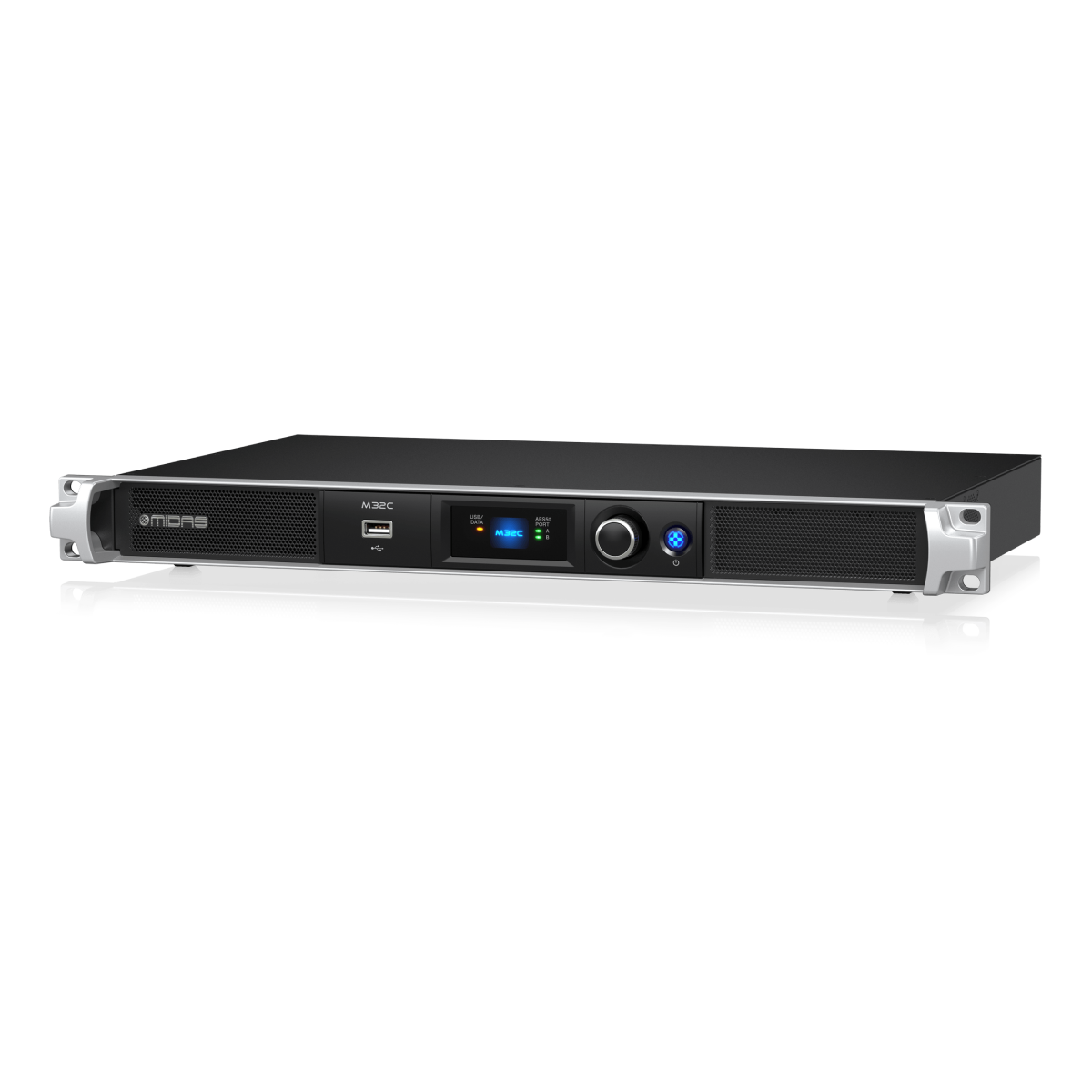

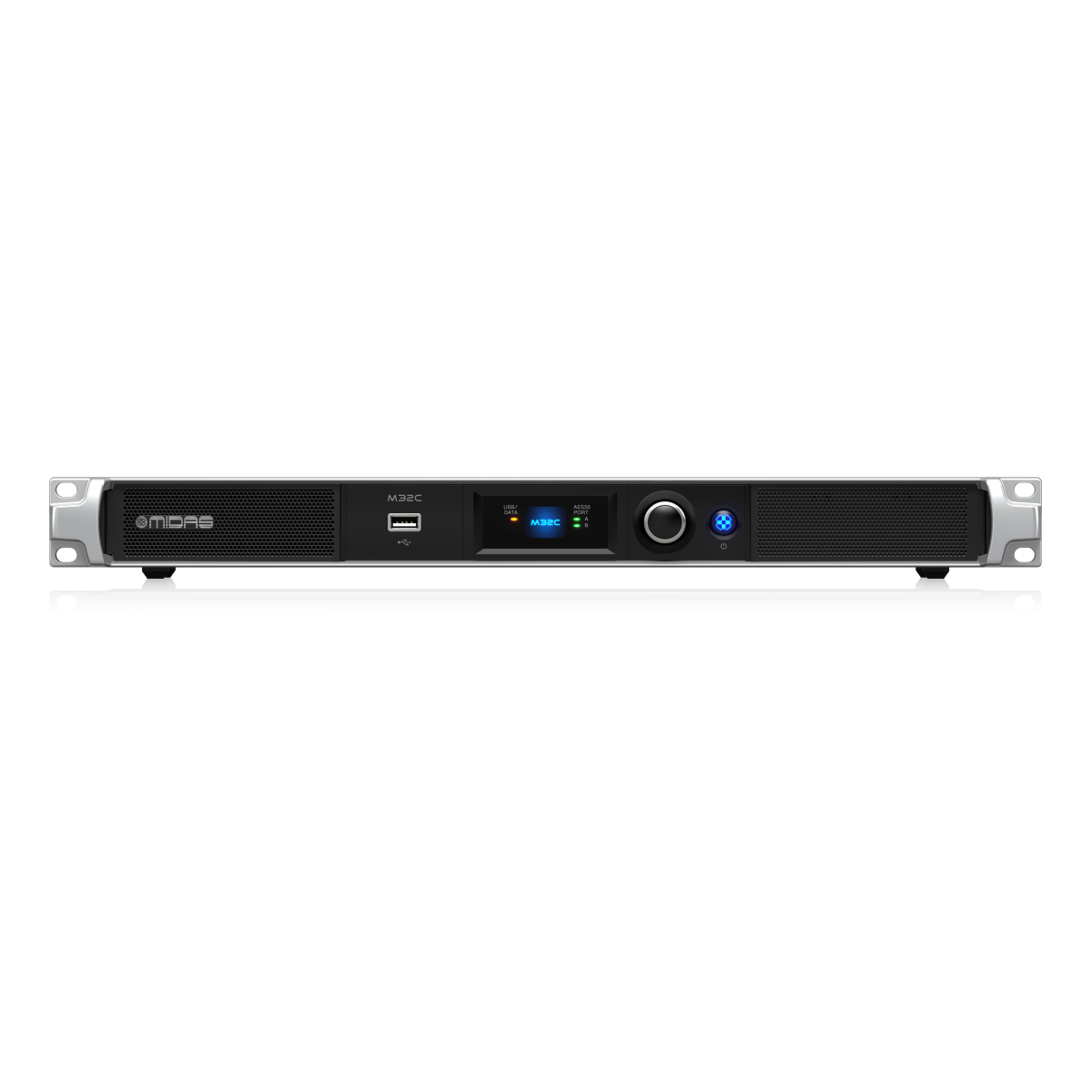

Midas M32C Digital Rack Mixer

Legendary Midas Processing in a Streamlined 1U Core

The Midas M32C packs the processing core of the flagship M32 digital mixing console into a high-performance 1U rackmount chassis. Engineered for mixing engineers, touring crews, broadcast production, and fixed venue installations, it provides 40 input channels and 25 time-aligned, phase-coherent mix buses without compromising on digital power. By pairing the M32C with Midas stage boxes such as the DL16 or DL32, audio professionals can run high I/O counts across remote stage locations with total digital control.

Ultra-Low Latency AES50 Networking
Designed for demanding live sound and recording environments, the M32C features dual AES50 network ports with Klark Teknik SuperMAC technology. This system delivers up to 96 remote input and output channels over standard shielded CAT5e cabling with a 0.8 ms console processing engine and 1.1 ms total network latency. The result is phase-aligned, sample-accurate clock distribution that satisfies strict in-ear monitoring requirements while maintaining total signal transparency.

Studio-Grade Virtual FX Racks
Eliminating the need for bulky outboard racks, the M32C contains eight true-stereo DSP effects engines running inside its low-latency 40-bit floating-point architecture. These processing algorithms feature true physical modelling of iconic analogue studio gear, including the Teletronix LA-2A, Urei 1176LN, Fairchild 670, and Pultec EQP-1a. Engineers gain access to pristine reverberation, dynamic compression, and surgical equalisation on any channel or bus.

Expandable Architecture and Remote Workflow
At the centre of a modern audio infrastructure, the M32C includes a pre-installed 32 x 32 USB 2.0 interface card alongside an open expansion slot. This slot accommodates optional Klark Teknik cards for seamless integration into Dante, MADI, and ADAT networks, or Waves SoundGrid plugin processing. System navigation and mix adjustments are fully manageable via Ethernet using free remote control software, including M32-EDIT, M32-MIX for iPad, and M32-Q for iOS and Android.

Main features:

• 40 input channels and 25 time-aligned, phase-coherent mix buses housed in a 1U rackmountable aluminium and steel chassis.
• 40-bit floating-point digital signal processing engine for high dynamic range and zero-latency DAW monitoring.
• Dual AES50 ports using Klark Teknik SuperMAC technology supporting up to 96 input and 96 output channels over CAT5e cabling.
• Pre-installed 32 x 32 channel USB 2.0 audio interface card with 16 channels of MIDI I/O.
• Eight true-stereo virtual effects processing engines featuring physical emulations of classic studio hardware processors.
• Open architecture expansion slot for optional Dante, MADI, ADAT, and Waves SoundGrid networking cards.
• Integrated ULTRANET bus for 16-channel personal monitor mixing with Powerplay P16 systems and active Turbosound speakers.
• 100-band Real Time Analyser with bar and spectrograph views for detailed frequency monitoring.
• Comprehensive remote control via OSC protocol using M32-EDIT, M32-MIX, M32-Q, and Mixing Station software across PC, Mac, Linux, iOS, and Android.
• 8 DCA groups and 6 Mute groups for simple grouping and workflow control.
• Dedicated monitoring output jacks and balanced talkback mic input with front-panel trim control.
• Auto-ranging universal switch-mode power supply for worldwide operation.

Tech Specs:

• Processing Channels: 32 Input Channels, 8 Aux Channels, 8 FX Return Channels, 16 Aux Buses, 6 Matrices, Main LRC
• Signal Processing: 40-Bit Floating Point
• Sample Rates: 44.1 kHz / 48.0 kHz
• Virtual FX Engines: 8 True Stereo / 16 Mono
• Console Processing Latency: 0.8 ms
• Network Latency: 1.1 ms (Stage Box In > Console > Stage Box Out)
• Scene Memory: 100 Internal Total Recall Scenes

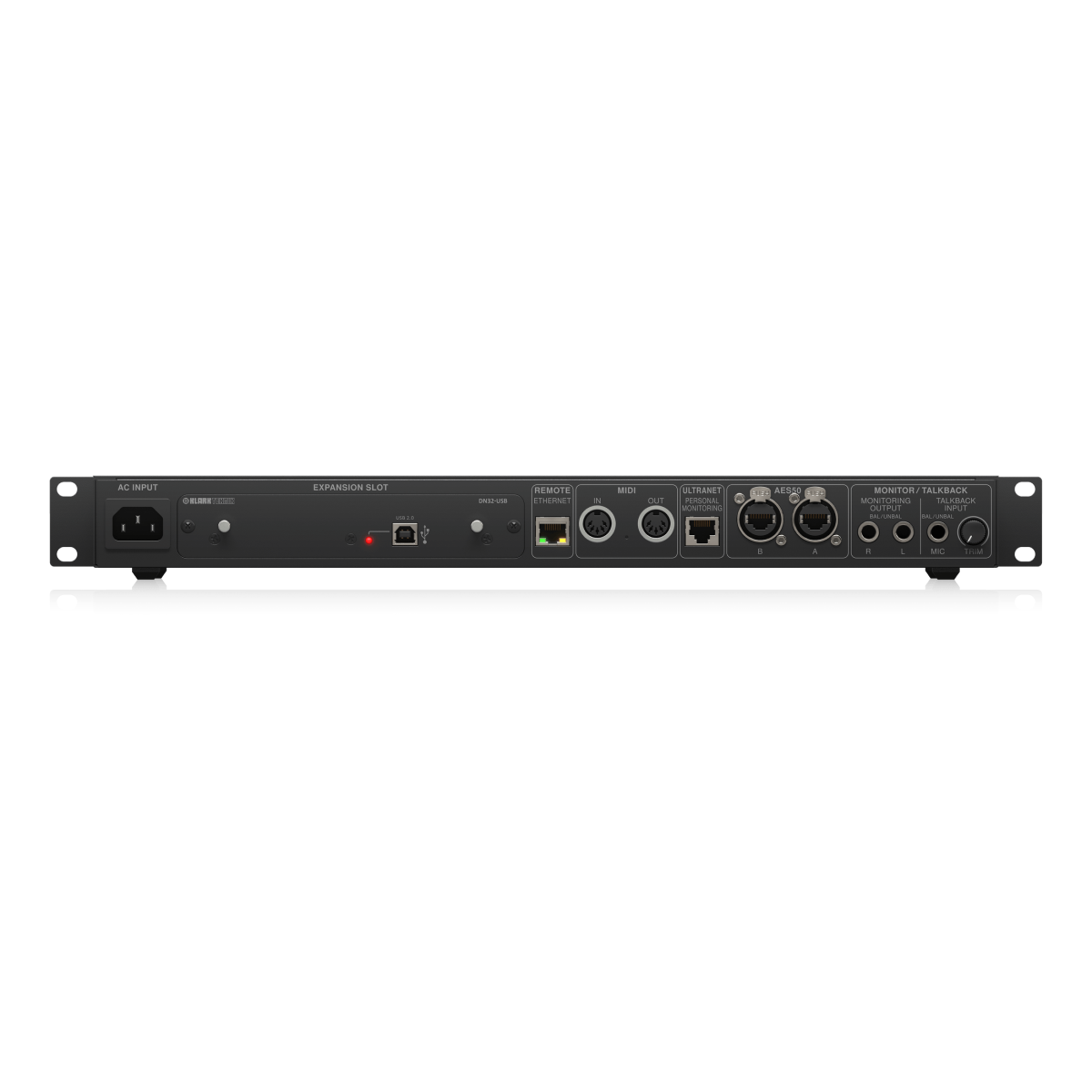

• Digital Networking Ports: 2 x Neutrik EtherCon RJ45 AES50 (Klark Teknik SuperMAC, 48 Channels Bidirectional Each)
• Audio Interface Card: 32 x 32 Channel USB 2.0 Card (DN32-USB) Pre-installed
• Expansion Slot: 1 x Slot for Optional Dante, MADI, ADAT, or SoundGrid Expansion Cards
• Personal Monitoring: 1 x RJ45 ULTRANET Connector (Powerplay P16 Systems, Unpowered)
• Monitoring Outputs: 2 x 1/4" TRS Balanced (+21 dBu Max Output Level, 50 Ω Output Impedance)
• Talkback Input: 1 x 1/4" TRS Dynamic Mic Input (+50 dB Max Gain, +8 dBu Max Input Level, 2 kΩ Impedance)
• Control: 1 x Ethernet RJ45 Rear Panel (Full OSC Remote Control)
• Command Ports: 1 x USB Type-B Rear Panel
• Front Panel USB: 1 x USB Type-A (Firmware Updates, WAV Audio Playback/Recording, Data Import/Export)
• MIDI I/O: 1 x 5-pin DIN Input, 1 x 5-pin DIN Output
• Power Supply: Auto-ranging Switch-Mode 100–240 V AC (50/60 Hz)
• Consumption: 40 W
• Operating Temperature: 5°C to 40°C
• Form Factor: 1U 19" Rackmount
• Construction: Aluminium and High-Impact Steel Structure
• Dimensions:  483 x 300 x 50 mm
• Weight: 3.5 kg
