Furman M-10z E Merit Z Series 10A Power Conditioner

Next-Generation Rack Protection: Smart Voltage Defense & Fast Charging

The Furman Merit Z Series M-10z E is a 10A rackmount power conditioner engineered to protect sensitive audio equipment in 230V environments. Featuring active Extreme Voltage Shutdown (EVS) technology and integrated USB-C and USB-A fast-charging ports, it delivers clean mains power and surge suppression. Built for recording engineers, podcasters, touring performers, and venue installers, it safeguards mixers, interfaces, and outboard gear against voltage fluctuations and electrical noise.

Active EVS Voltage Protection
The M-10z E features active Extreme Voltage Shutdown (EVS) technology that monitors incoming AC mains power and automatically disconnects at dangerous thresholds—under 180 VAC or over 274 VAC - instantly protecting connected equipment from catastrophic damage during power surges or venue wiring faults.

RFI/EMI Noise Filtration for Pure Signal Transmission
Electromagnetic and radio frequency interference through AC power lines creates background hum and system noise. The M-10z E delivers over 20 dB of AC noise filtration across 200 kHz to 10 MHz, cleaning incoming mains power to reduce noise floor in preamps, interfaces, and outboard processors for pristine audio transparency.

Integrated Rackhead Fast Charging and Diagnostics
Modern production workflows require reliable rack-mounted power and device charging. The M-10z E integrates front-panel USB-C (5V/3A) and USB-A (5V/2.4A) fast-charging ports for tablets and wireless gear, while diagnostic LEDs indicate EVS status and protection integrity for quick troubleshooting in studio and venue settings.

Main features:

• 10-amp total current capacity designed for 230V 50/60Hz rack systems.
• Active Extreme Voltage Shutdown (EVS) automatically disconnects power during under-voltage (180 VAC) or over-voltage (274 VAC) conditions.
• AC noise attenuation exceeding 20 dB from 200 kHz to 10 MHz to eliminate EMI/RFI line interference.
• Integrated front-panel USB-C (5V/3A) and USB-A (5V/2.4A) fast charging ports for tablets and wireless units.
• Surge suppression rated for 230 Joules energy dissipation with 6,500 Amps peak impulse current capability.
• Wall-wart spaced rear outlets accommodate bulky external power supplies without blocking neighbouring sockets.

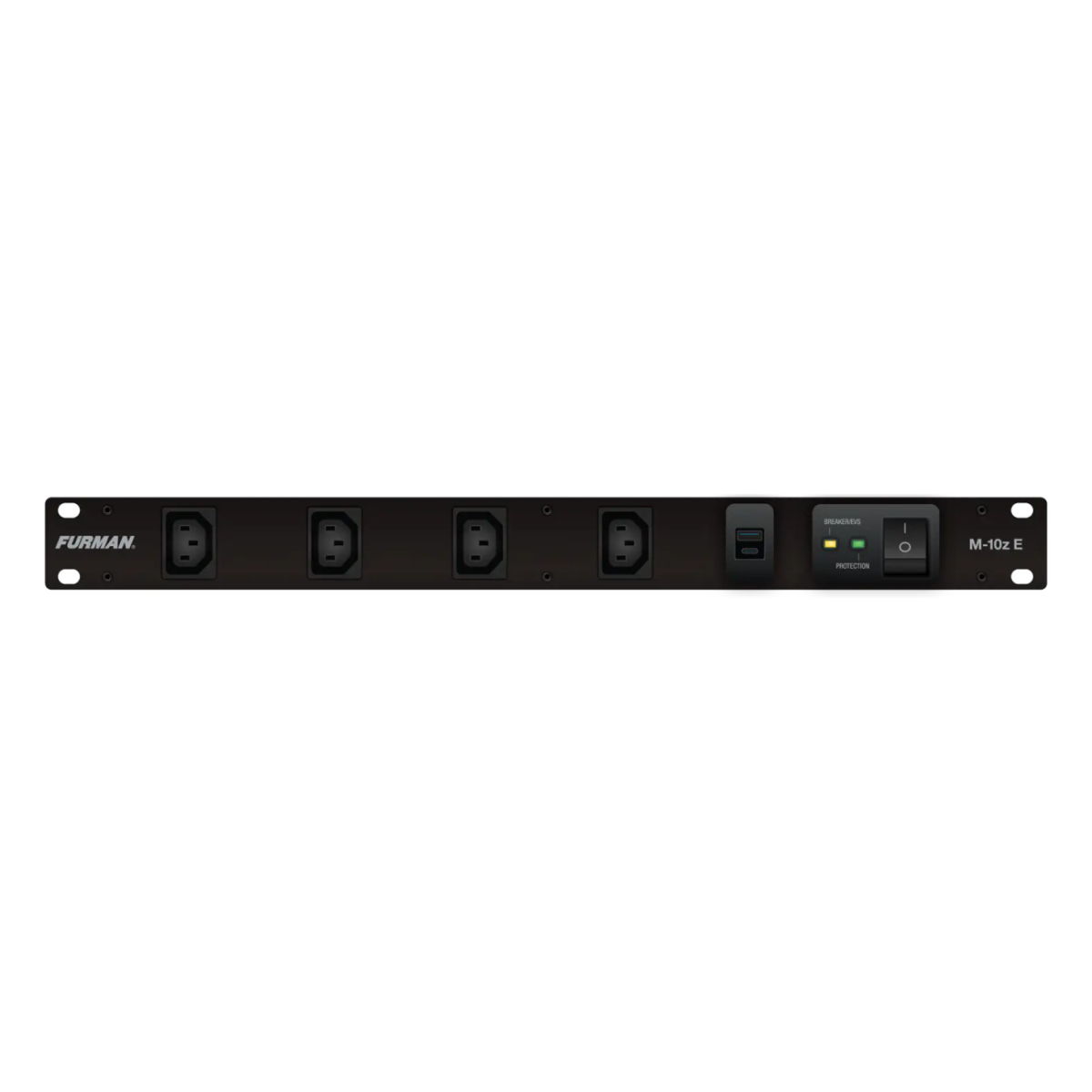

• Front-panel diagnostic LEDs provide instant visual verification for EVS activation, circuit breaker status, and surge protection integrity.
• Compact 1U steel chassis construction measuring 4.4 cm x 48.3 cm x 19.1 cm with integrated rack ears.
• Lightweight 2.9 kg enclosure tailored for mobile tour racks and studio installations.
• Backed by Furman's 3-year limited warranty.

Tech Specs:

• Operating Voltage & Current: 230V ~ 50/60Hz | 10 Amps Maximum
• Line Cord Specs: 3 x 18 AWG

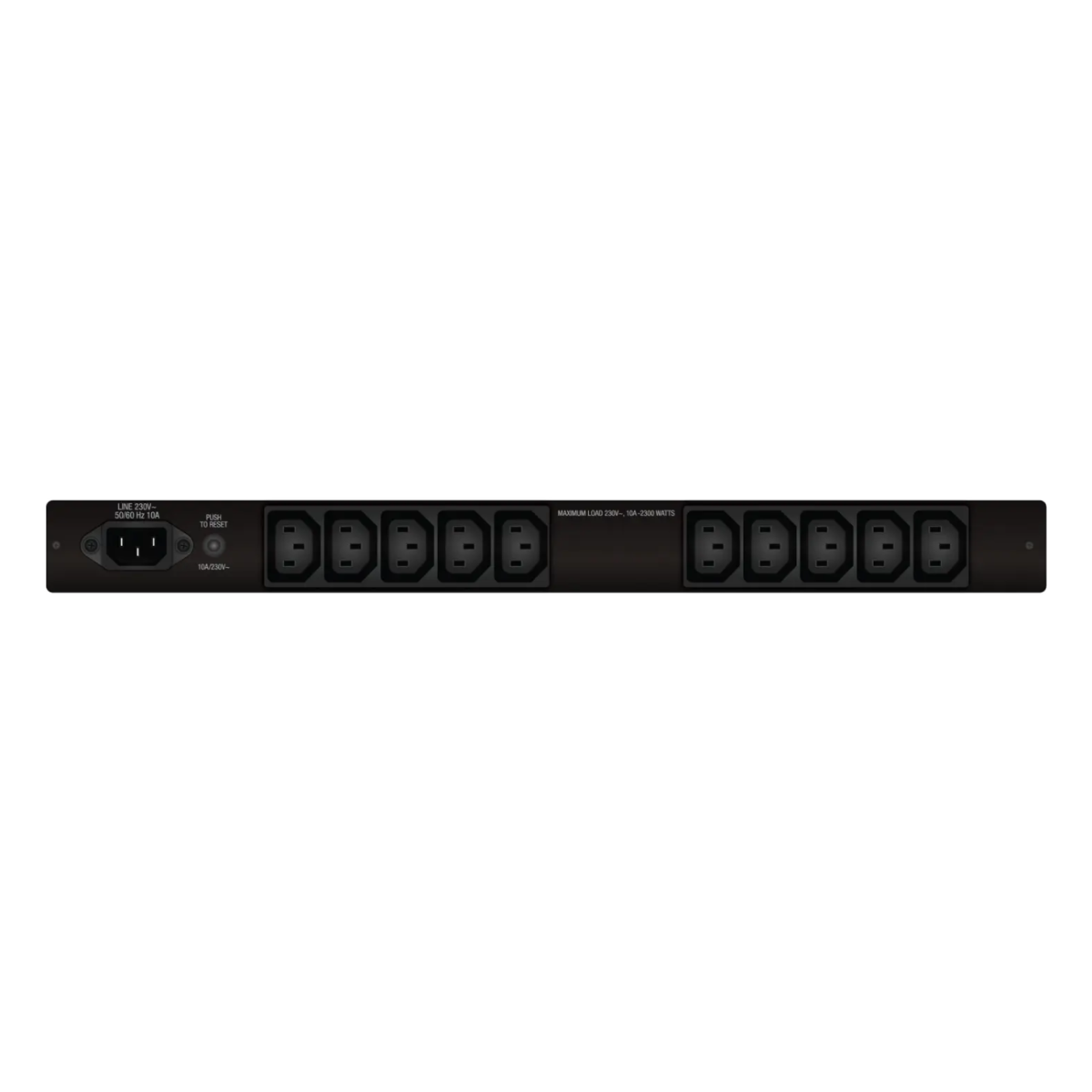

• Rear Outlets: Wall-wart spaced EVS rear AC outlets
• Circuit Breaker: Integrated front-panel circuit breaker reset
• Spike Protection Mode: Line to Neutral
• EVS Shutdown Thresholds: Under-voltage: 180 VAC ± 5% | Over-voltage: 274 VAC ± 5%
• Surge Protection Rating: 230 Joules Energy Dissipation | 6,500 Amps Peak Impulse Current
• Max Continuous Operating Voltage: 350 VAC RMS
• Let-Through Voltage: 920 Volts
• Noise Attenuation: > 20 dB, 200 kHz – 10 MHz
• Front USB Ports: USB-C (5V / 3A) and USB-A (5V / 2.4A)
• Diagnostic Indicators: Power Switch, Protection OK LED, Breaker/EVS Diagnostic LED
• Form Factor & Build: 1U Rackmount (Steel chassis, black painted, integrated rack ears)
• Dimensions: 4.4 cm x 48.3 cm x 19.1 cm
• Weight: 2.9 kg
• Warranty: 3-Year Limited Warranty
