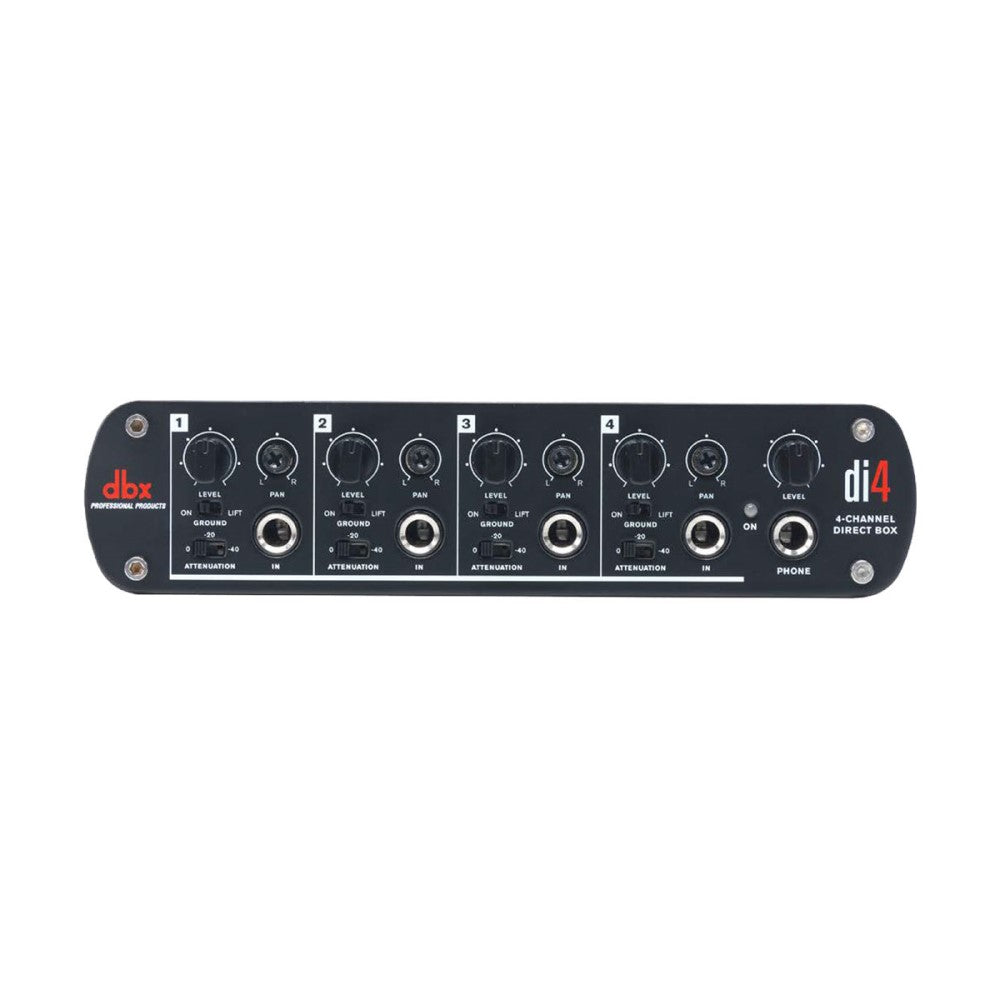

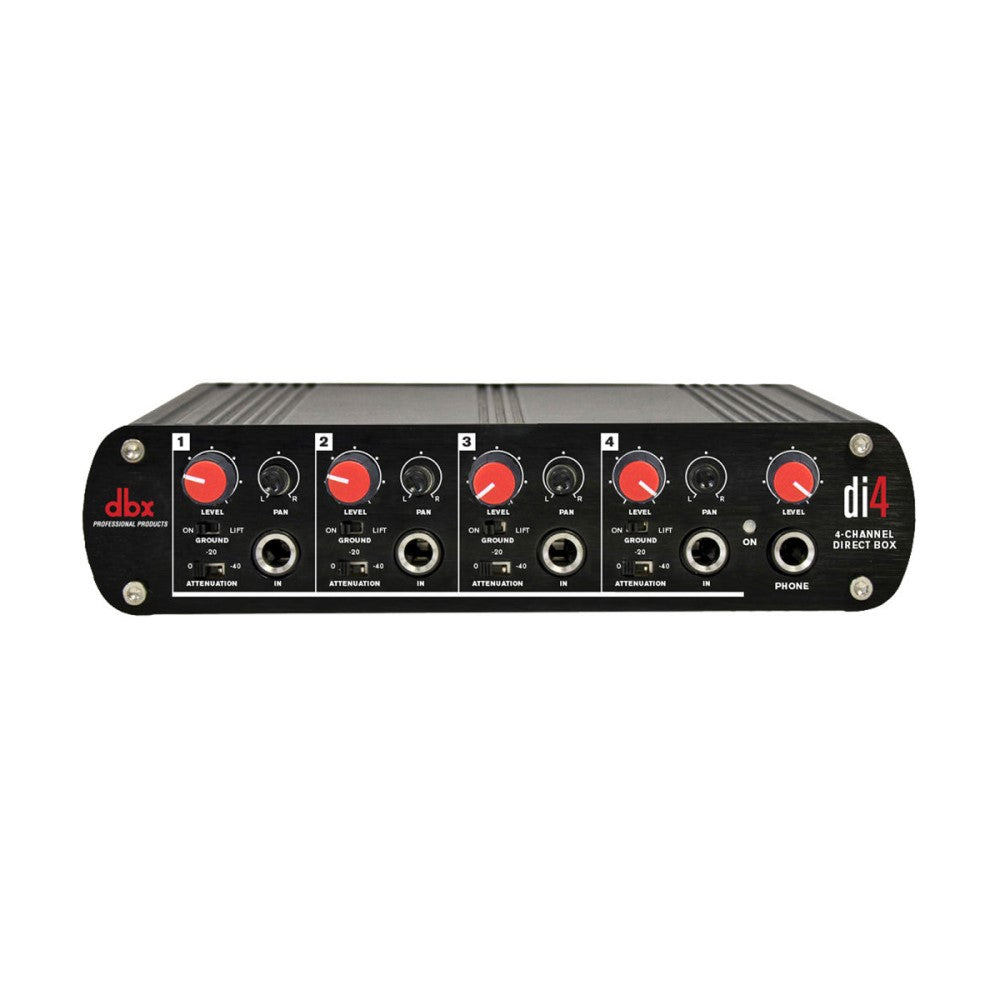

dbx DI4 Active 4-channel Direct Box with Line Mixer
Tax included.
Description
Four independent DI box units in one
The 4-channel Di4 is designed to be used as a standard tool for many audio applications. Offering four channels, the Di4 easily solves the problem of converting unbalanced signals into balanced output suitable for use with mixers, PAs, recording consoles and more. The Di4 also functions as multi-channel stereo line mixer. This feature allows you to connect all your keyboards, samplers and modules into just one rack unit on stage, supply independent XLR balanced outputs to the stage box for a front-of-house engineer, and set your own independent mix for stage monitoring. The Di4 also offers a headphone output.
Main features:
- Four totally independent DI box units in 1/2 RU package
- Independent 20dB pad switch per channel
- Independent ground (earth) lift switch per channel
- Independent volume control per channel for line mixer output
- Independent pan control per channel for line mixer output
- Master volume
- Headphone output
Tech Specs:
- Type: Active
- Channels: 4
- Pads: 3-way 0dB/20dB/40dB Switch per channel
- Ground Lift: Yes
- Inputs: 4 x 1/4" TS
- Outputs: 4 x XLR, 1 x Dual Stereo RCA (aux out), 1 x 1/4" (headphones)
- Power Source: 9V DC power supply (included)
- Dimensions: 44.5 x 230.6 x 217 mm
- Weight: 1.75 kg
- Warranty: Limited 2-Year Manufacturer Warranty
- Discover more dbx Pro Direct Boxes [Di4]: https://dbxpro.com/en/products/di4
But If you want to confirm availability first or inquire for possible discounts send us a quick mail or open the chat tab.
