CTP Systems SCD1010 Dante™ enabled Commentary Box

The Best Dante/AES67 Commentary/Announcer Units

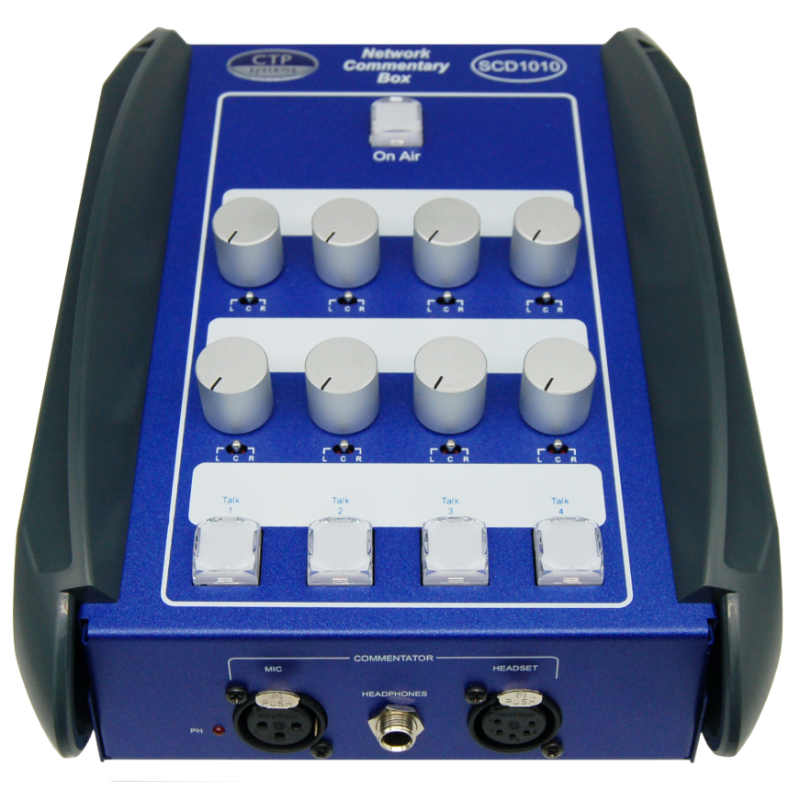

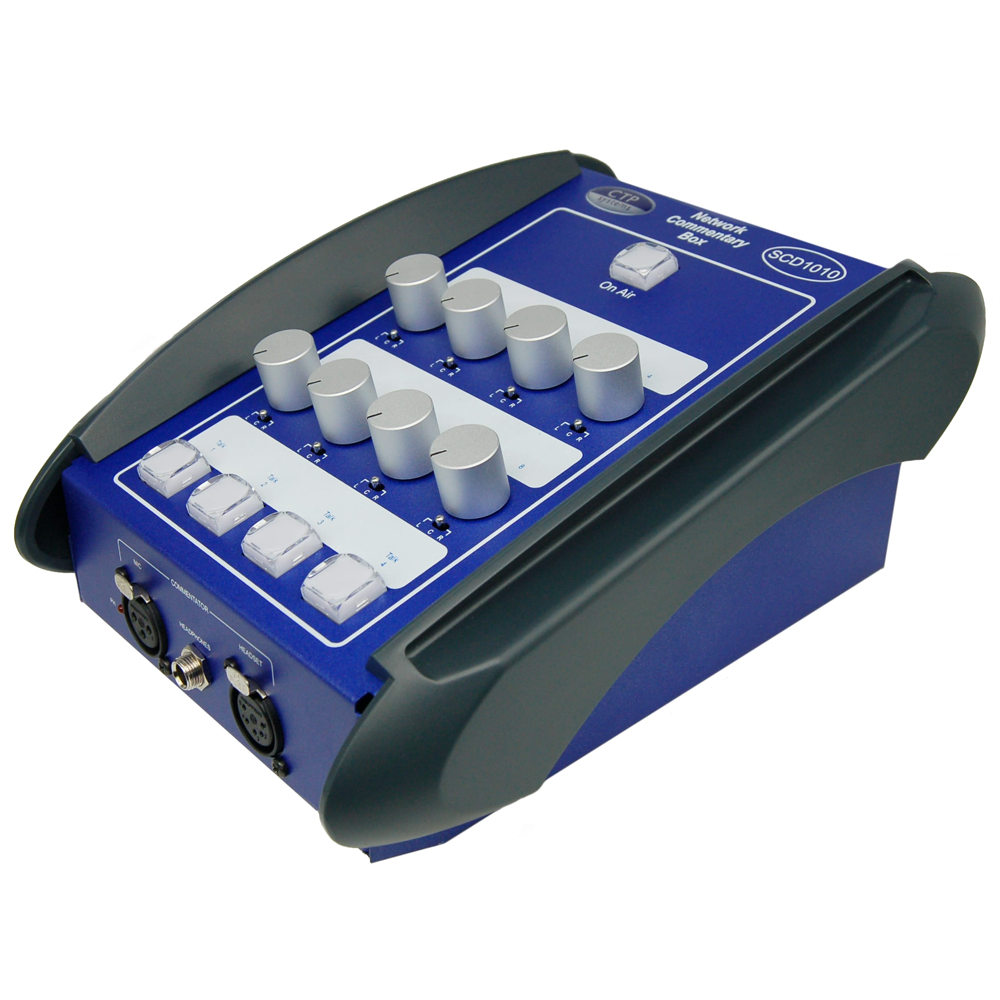

The SCD1010 is a cost effective Dante Commentary box supporting one commentator. Network connection may be fibre or copper and it has full network redundancy. Microphone amplifier gain and many other adjustments such as phantom power and limit levels may be controlled remotely via the SCD1010’s web server. In addition to the commentary box functions there is a built in Dante breakout box with three analogue inputs and six analogue outputs. These inputs and outputs have level controls and may be assigned to local commentary box or network functions, the SCD1010 may even be used as a standalone analogue unit. The SCD1010 can operate at sample rates of 48kHz and 96kHz and may be powered 240V mains, 12 volt or PoE.

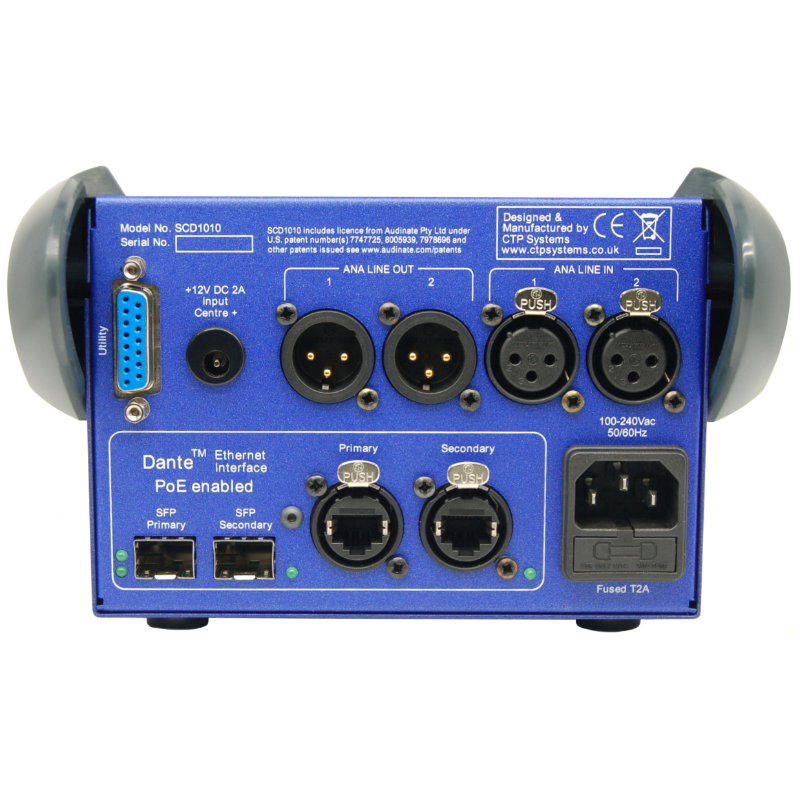

There are three analogue inputs and six analogue outputs available. Two each of these are on XLR connectors on the rear of the unit. One analogue input and four analogue outputs are available on the D15 connector on the rear. These are all accessible via the network.
These breakouts have no fixed function and may be used for external or internal facilities as required

The unit includes an ident. tone generator, assignable sidetone, a 2:1 network mixer and GPI input and output.
