Radial Engineering ProD2 2-channel Passive Direct Box

Radial

Radial Engineering ProD2 2-channel Passive Direct Box

Name: Radial Engineering ProD2 2-channel Passive Direct Box
Brand: Radial
SKU: AS_RadialProD2
Price: 4795.0 ZAR
Availability: InStock

R4,795.00

Tax included.

Description

World-class Stereo Passive DI BOX

The ProD2 is a 2-channel passive direct box that connects stereo keyboards or high-output instruments to a PA system or home recording setup without noise or distortion.

At the heart of the design are two high-performance Eclipse ET-DB2 transformers. These deliver 20Hz to 20kHz performance with less than 1.5dB deviation above 18kHz and are able to withstand tremendous signal levels without distortion. Unlike active circuits that overload when the signal exceeds the rail voltage, transformers saturate. This creates a pleasing effect that naturally rounds out the tone, acting like a subtle limiter which is particularly advantageous when interfacing the ProD2 with digital pianos, samplers and drum machines that can produce excessive dynamics. Transformers are particularly adept at eliminating hum and buzz caused by ground loops.

Main features:

Full-range passive direct box

Isolation transformer eliminates noise

Very low harmonic and phase distortion

Compact and rugged design

Ideal for live sound and studio

Isolated XLR connectors eliminate chassis ground potential

Custom audio transformer on input provides 100% isolation to eliminate hum and noise-causing ground loops while maintaining signal integrity

Military spec PC board with full surface ground plane to reduce susceptibility to RF noise

High-grade switches - long life, high cycle for reliable performance

14-gauge steel welded I-beam construction makes it virtually impossible to torque the PC board

-15dB pad reduces the level going in from loud sources that could overload the circuit and cause distortion

Book-end design creates a protective zone around the switches & connectors, indestructible 14-gauge steel construction

Full no-slip rubber bottom pad provides mechanical isolation, electrical insulation and prevents unit from sliding around

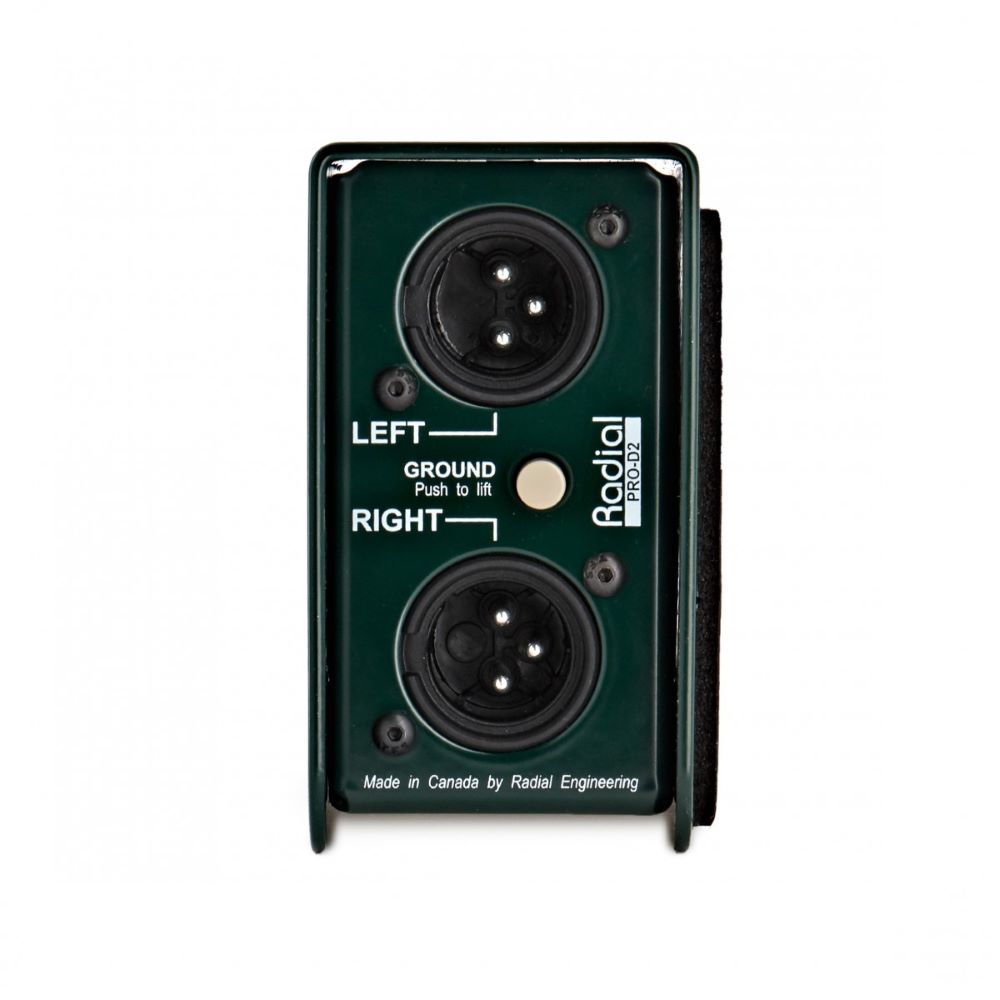

Balanced male XLR output connector, AES standard with pin-1 ground and pin-2 hot

Lift switch lifts the ground to pin-1 on both channels

Heavy-duty baked enamel finish for excellent durability and great looks for years

Tech Specs:

Type: Passive DI
Channels: 2
Pads: -15dB
Ground Lift: Yes

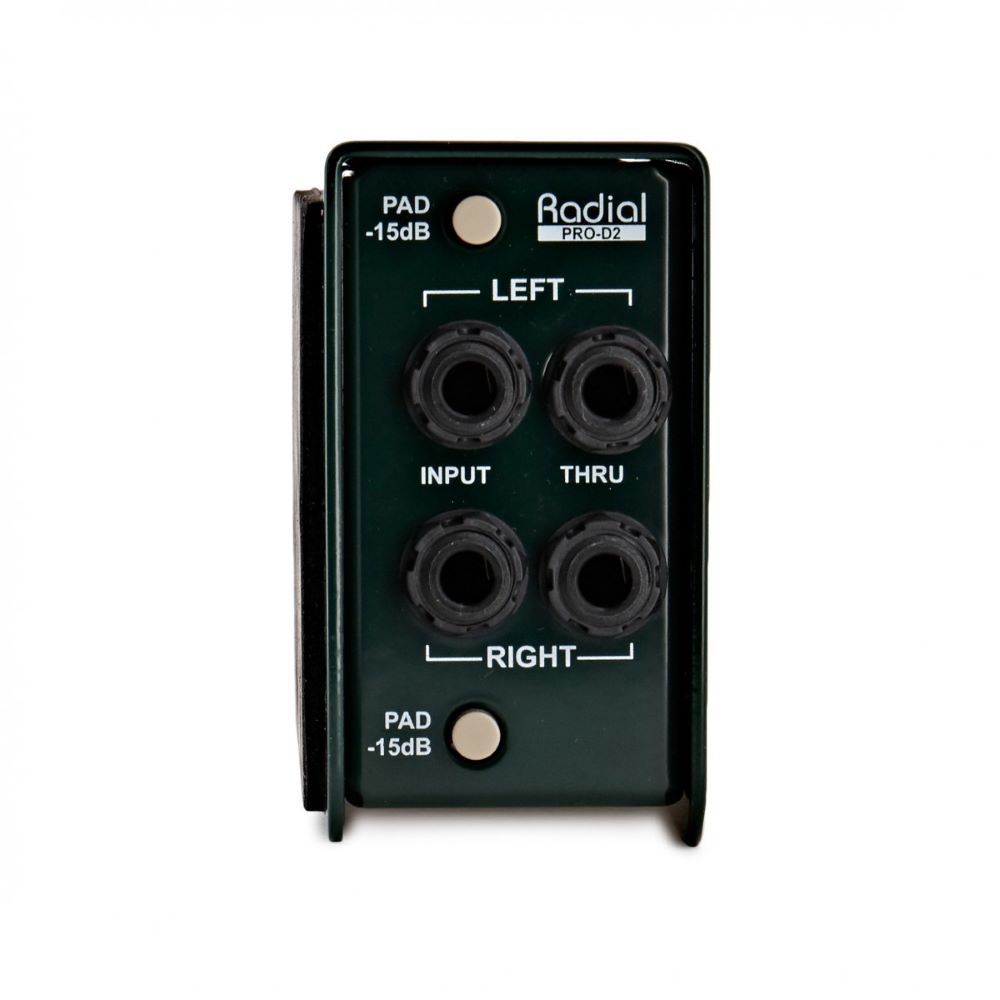

Inputs: 2 x 1/4"
Outputs: 2 x XLR, 2 x 1/4" thru
Dimensions: 48mm x 83mm x 127mm (H x W x D)
Weight: 885 g
Discover more Radial Engineering Direct Boxes [ProD2]: https://www.radialeng.com/product/prod2
