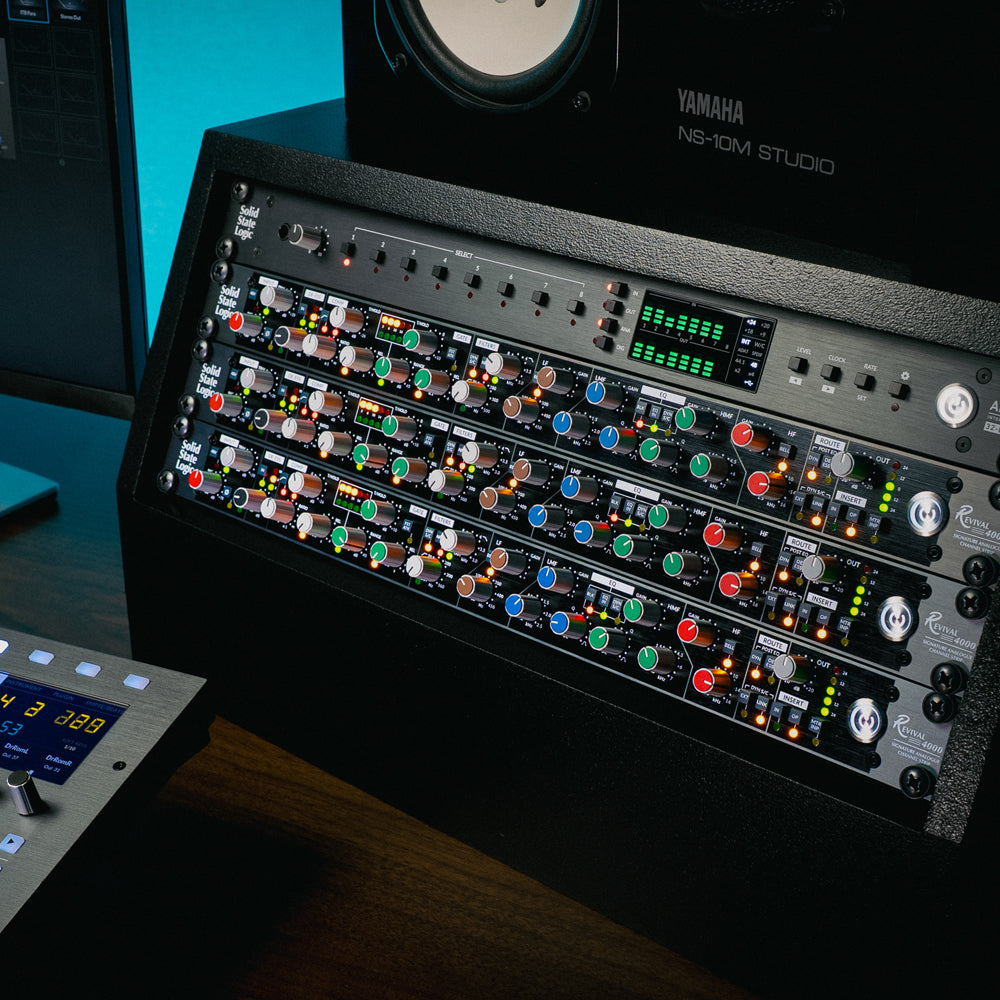

Encapsulating the sonic excellence and features of the legendary Solid-State Logic 4000 series consoles of the '80s in a 1 RU form factor, the Revival 4000 is an all-analog channel strip featuring a Jensen transformer-balanced mic pre, a B series de-esser, a discrete VCA dynamics section, and iconic 4-band parametric EQ. With flexible routing, this channel strip offers striking versatility.
Starting at the mic pre section, the Jensen transformer of the mic preamp provides a rich sound and pristine clarity. The de-esser section provides a 10:1 ratio and helps to tame harsh sibilance on a wide range of sound sources. The Dynamics section, derived from the E series consoles, offers smooth, Class-A VCA dynamics/gate functionality with soft-knee, fast attack, and linear release functions, along with typical threshold, release, ratio, and range controls, plus a 5-segment gain-reduction meter. The 4-band EQ section features the option to switch between the classic E series Brown Knob or the Black Knob based on the 242 EQ. This section provides parametric EQ control over low, low-mid, high-mid, and high frequencies, adjustable Q, and the option to engage a fixed-Q bell curve for the high and low bands. You can use the Route section to place the Dynamics and De-Esser sections post EQ, to activate external side-chain triggering or stereo side-chain linking to a second Revival 4000 series unit. Finally, the master control section provides ±20 dB of output volume control, insert control, and the ability to switch the source used for the 5-segment master LED meter.
- Manual In button inserts de-esser into signal chain
- +10 to -20 dB gain control
- 3-segment LED meter
- XLR 3-pin microphone input
- XLR-1/4" combo input for line / Hi-Z input
- 1/4" insert send and return jacks
- XLR-1/4" combo input for external side-chain trigger
- 1/4" jack for side-chain stereo link
- XLR balanced line output
Main Features:
- All-analog channel strip utilizing circuitry from 2 iconic stages of SSL’s 4000 series console
- Mic preamp built with the same original Jensen JT-115K-E transformer as the 4000 series console
- 1-knob De-Esser levels out harsh sibilance
- Discrete dynamics section designed with the same Class A VCA chip as the original E series channel strip
- Compressor/Limiter and Expander/Gate comprise a full dynamics section to dial in your levels and peaks
- Filter/EQ section featuring 2 distinct circuitry settings, the “02” Brown Knob (±15 dB range) and “242” Black Knob (±18 dB range)
- Dedicated balanced insert point for incorporating additional outboard gear
- Sidechain linking for setups using 2 Revival 4000s in stereo
Specs:
- Preamp Type:Solid State
- Number of Channels:Single channel
- Phantom Power:Yes
- Pads:Yes
- Polarity Switch:Yes
- EQ:4-band EQ, HPF, and LPF
- Compressor:VCA
- Other Processing:Gate, De-Esser
- Analog Inputs:2 x XLR (mic, sidechain), 1 x XLR-1/4" combo (line), 1 x 1/4" (insert send)
- Analog Outputs:1 x XLR, 2 x 1/4" (insert return, sidechain link)
- Rack Spaces:1U
- Power Source:Standard IEC AC Cable
