Audeze LCD-5 Flagship Planar Magnetic Headphones

Transparency / Resolution / Speed

The Audeze LCD-5 sets a new standard for accuracy. Its drivers are engineered with our award-winning Fluxor magnets and updated Fazor waveguides along with our new Patent-pending Parallel Uniforce™ voice coils, which employ varying width parallel traces to keep the impedance low and provide increased voltage headroom by altering the current density within each trace. The uniform force created by this optimization lowers distortion and provides better control over diaphragm movement, resulting in improved sonic resolution.

Clarity and Imaging
We’ve optimized every aspect of the LCD-5’s acoustic chamber to achieve pinpoint imaging and an extremely clean and clear soundstage. The new sculpted earpads and acoustically transparent mesh are designed to minimize reflections and resonance, while the Parallel Uniforce™ voice coil allows increased space between magnets for improved frequency response and a more open soundstage. LCD-5 also features newly designed low-profile Fazor waveguides to further reduce diffractions and interactions with the ear.

Elegant Comfortable Design
Weighing in at only 420 grams, the LCD-5 offers hours of listening pleasure. Every part has been re-engineered, using materials such as magnesium, aluminium and acetate which offer lightweight and high rigidity. When you put on a pair of LCD-5s, your head and ears are cradled in materials of the finest quality. Supple premium leather and carbon-fiber pull all the elements together into a package of the finest craftsmanship, which we hand-assemble in our California workshop.

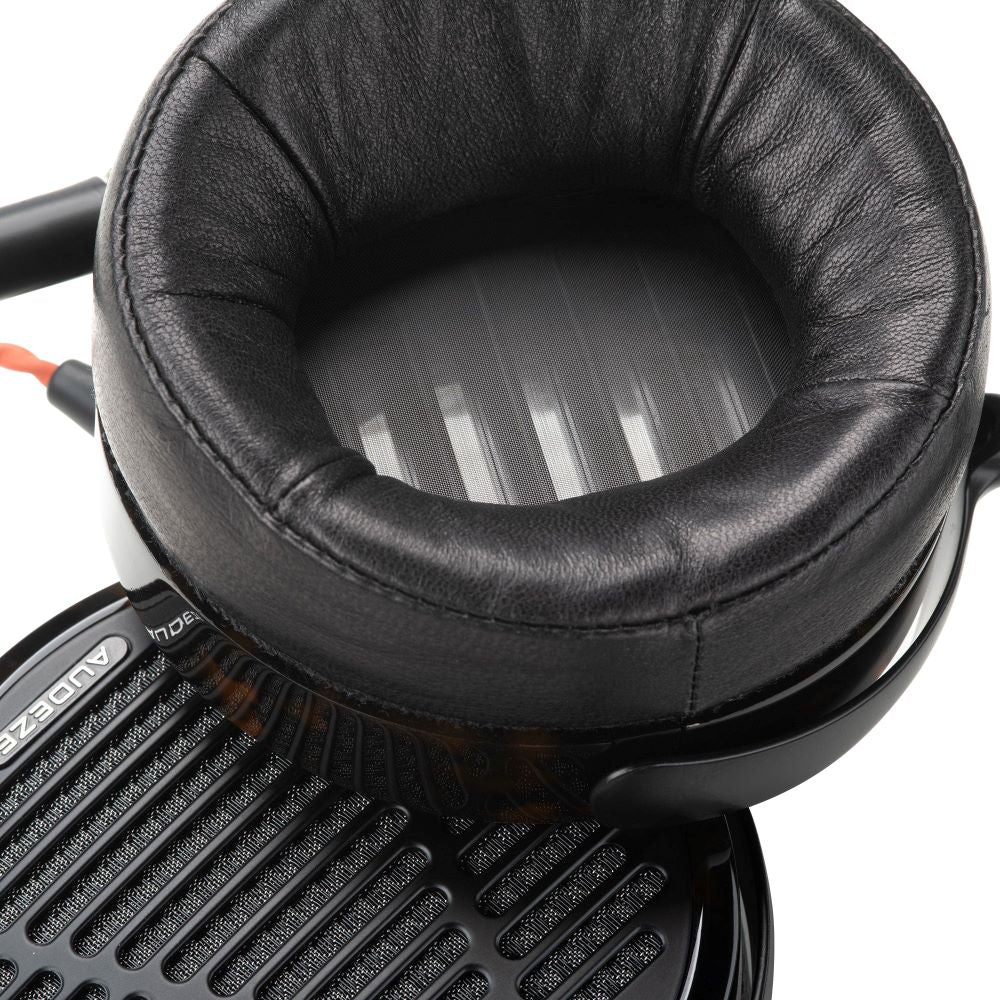

Sculpted Earpads
Our new sculpted, internally sloped earpad architecture reduces unwanted resonances and interior reflections. The ergonomic design cradles your cranium and helps naturally place the headphone in the optimal listening position. The pads have less contact surface area than standard designs to reduce fatigue while providing a superior seal for all shapes and sizes.

Ultra-High Purity Adaptable Balanced Cable
The LCD-5 cable is specially tuned with directional OCC high-purity copper strands that provide a low capacitance and low resistance path for the signal to travel from your amp to the drivers, maintaining unsurpassed clarity and precision. It comes standard with an XLR terminal cable for a balanced system or use it with the single-ended adapter.

Main features:

Tech Specs:

• Type: Wired
• Open/Closed: Open-back
• Fit Style: Over-ear
• Housing Material: Machined Aluminum
• Transducer Type: Planar Magnetic
• Magnetic structure: Fluxor™ magnet array
• Magnet type: Neodymium N50
• Diaphragm type: Ultra-Thin Uniforce™
• Transducer Size: 90 mm
• Maximum power handling: 5W RMS
• Maximum SPL: >130dB
• Frequency Response: 5Hz - 50kHz
• Impedance: 14 ohms
• Sensitivity: 90 dB/1mW (at Drum Reference Point)
• Recommended power level: >500mW
• Connectivity: 1/4" - Dual 4-Pin XLR

• Cable Type: Braided Cable
• Detachable Cable: Yes
• Colour: Black

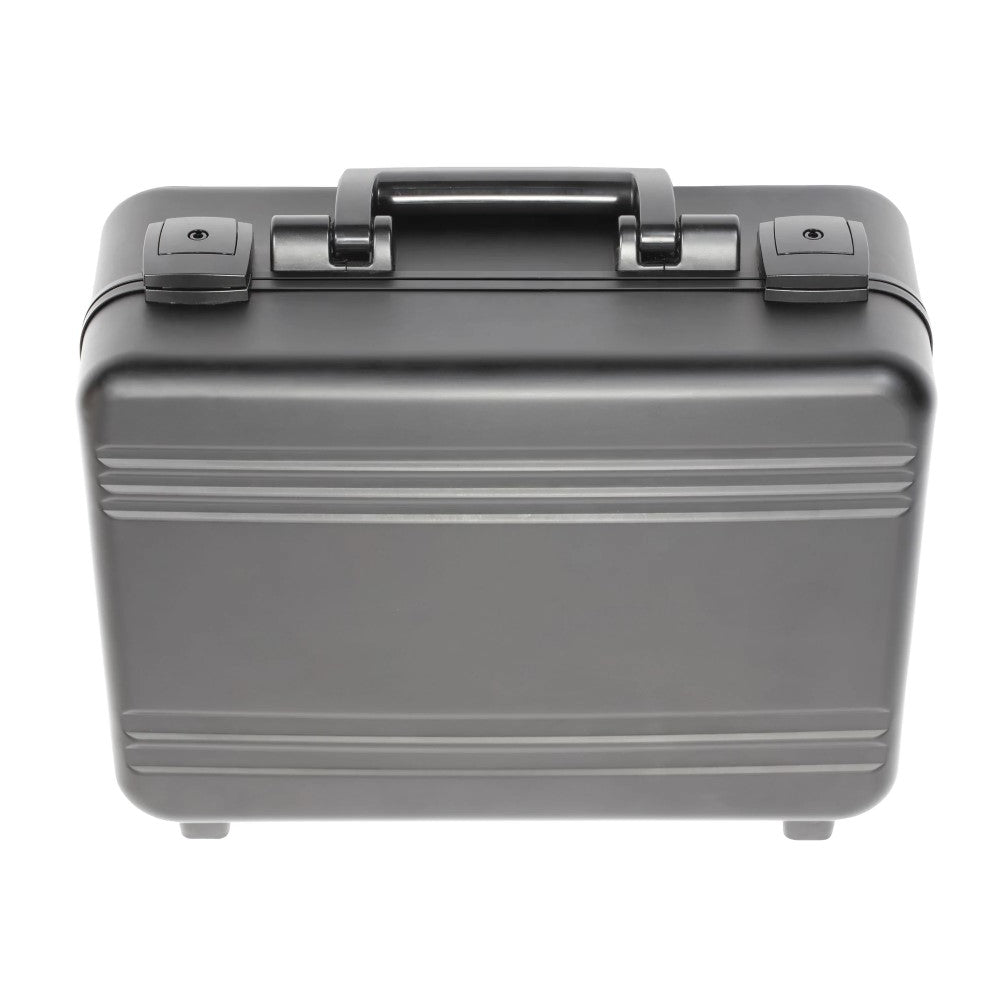

• Case/Bag: Aluminum Travel Case
• Weight: 420g
