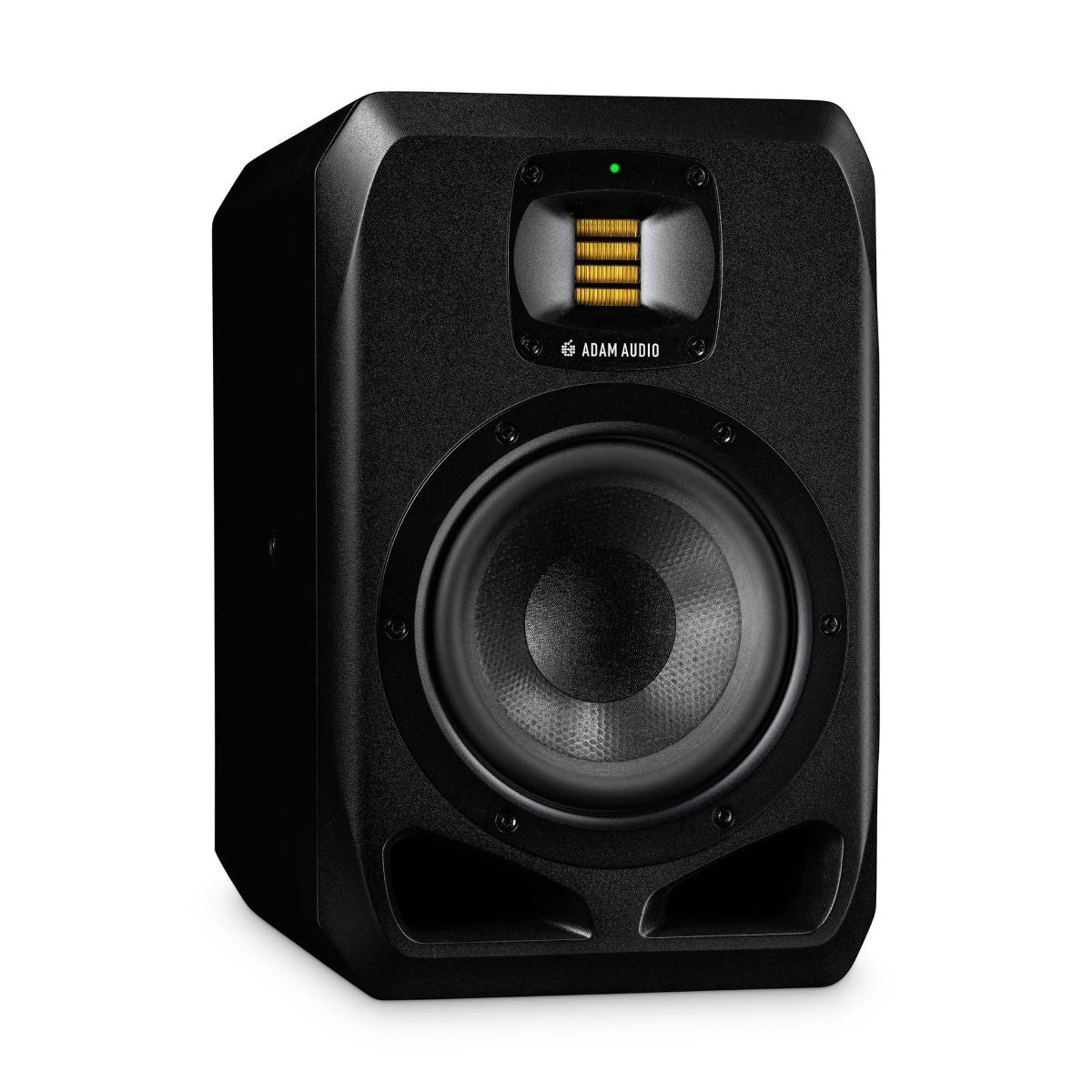

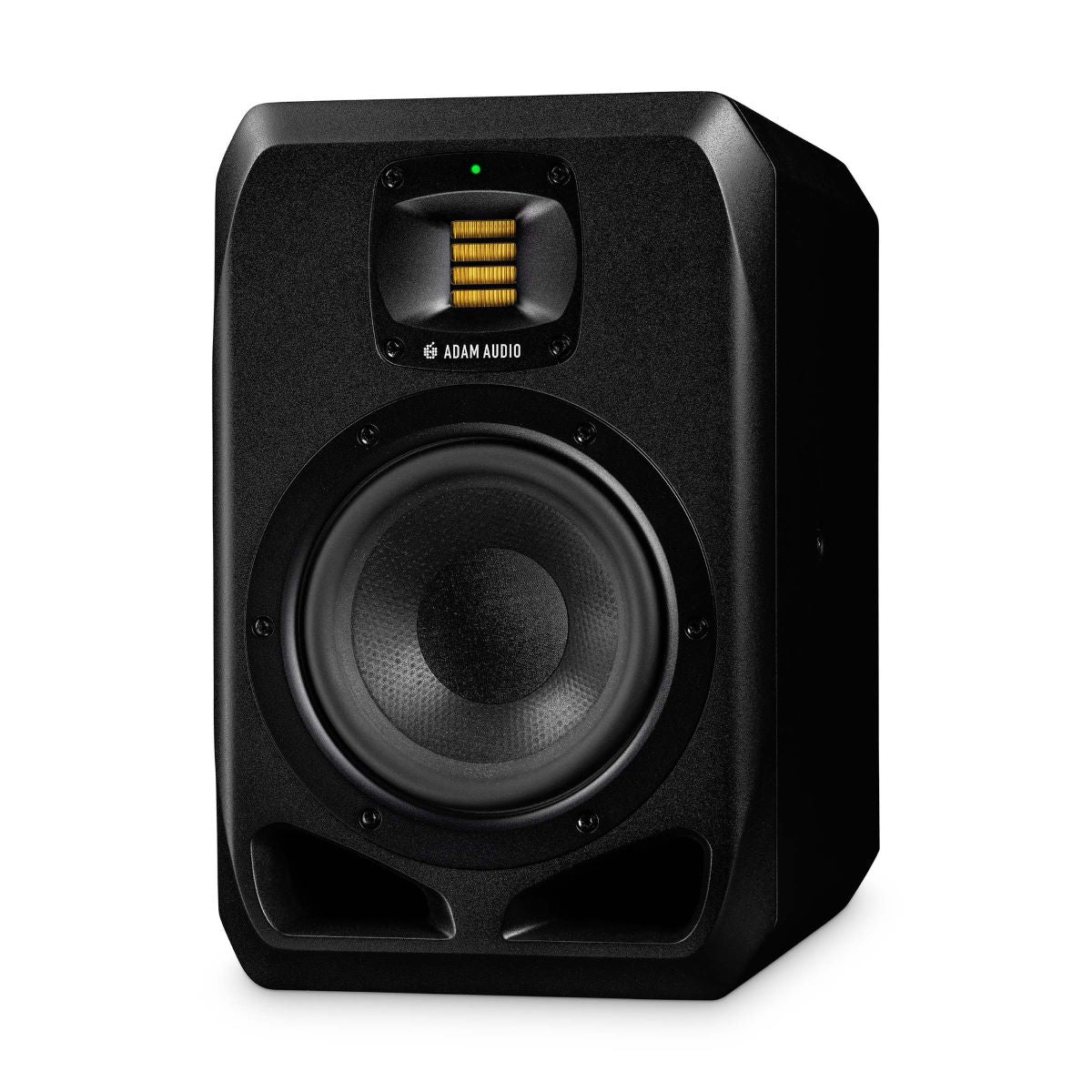

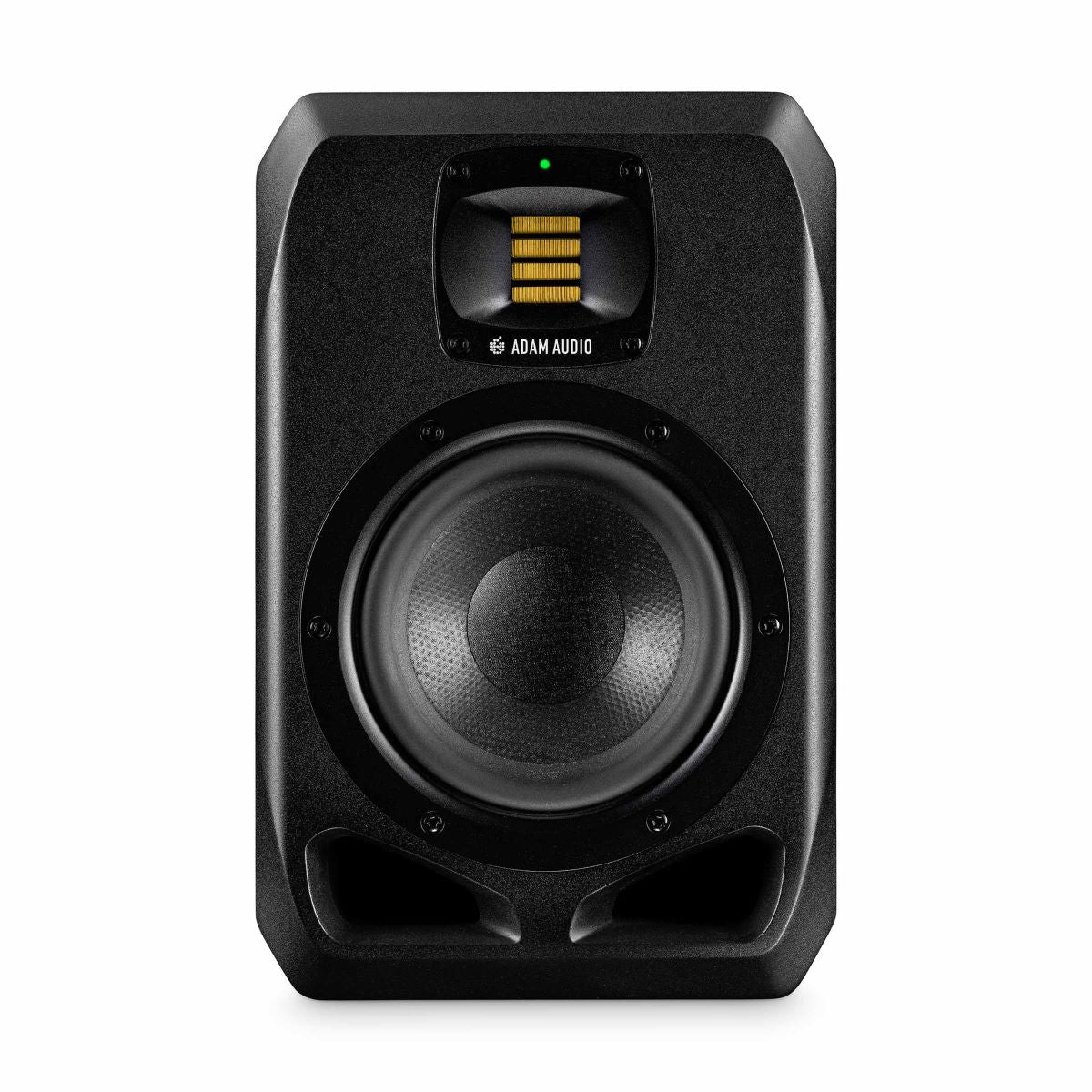

ADAM Audio S2V 7" Powered Studio Monitor (Single)
Tax included.
Description
Premium Precision Studio Monitors
The 7-inch bass driver, designed for the S Series, covers frequencies from 35 Hz to 3 kHz, providing a powerful, distortion-free low-end. The refined S-ART tweeter, hand-built in Berlin, works with the new HPS waveguide for precise imaging within a generous sweet spot. Despite its compact size, the S2V delivers impressive power. A 300 W Class D amplifier drives the woofer, while a 50 W Class A/B amplifier powers the S-ART tweeter, resulting in maximum sound pressure levels of up to 120 dB per pair.
7" ELE low-frequency driver
ADAM Audio's S series monitor speakers feature drivers developed from extensive research and the latest technological advancements. The Extended Linear Excursion (ELE) bass drivers, equipped with a Symmetrical Magnet Assembly (SMA), offer superior low-frequency reproduction, extended dynamic range, and reduced distortion.
Key components include a rigid yet lightweight honeycomb cone, a self-cooling linear magnet assembly, and efficient suspension and damping systems. The S2V model's 7" woofer achieves a frequency response down to 35Hz, making it ideal for nearfield monitoring in control rooms and mastering suites without needing a subwoofer.
S-ART Tweeter
ADAM Audio's S-ART folded-ribbon tweeter differs from traditional loudspeakers by using a pleated diaphragm that moves air four times faster than its folds. This handcrafted component delivers impressive high frequencies up to 50kHz, enriching the sound-field with detailed nuances from the source material. Unlike many mass-produced products, the S-ART high-frequency driver is meticulously crafted and tested in ADAM’s Berlin laboratories, making it a unique offering in today’s market.
Waveguide Technology
The DCH midrange driver and S-ART tweeter feature ADAM Audio’s innovative waveguide technology, enhancing off-axis response with precision. Crafted from solid aluminum, the High-frequency Propagation Systems (HPS) ensure superb stability and dispersion, enabling your entire team to enjoy an optimal experience in the stereo or multi-channel sweet spot, even in larger control rooms.
Main features:
- Vertical 2-way system with 1 x 7" HexaCone woofer and S-ART tweeter
- S-ART tweeter, handmade in Berlin and manufactured to the tightest tolerances
- Newly designed HPS waveguide, milled from a solid block of aluminium
- Custom-built Extended Linear Excursion (ELE) bass driver
- Custom-designed Symmetrical Magnet Assembly (SMA)
- Spacious bass reflex ports on the front baffle
- Highly efficient 350W PWM ICE Power bi-amplification
- Linear frequency response of 35Hz–50kHz
- Maximum peak sound pressure per pair at 1m ≥ 120dB
- Custom DSP engine
- Analog XLR inputs
- AES3 digital I/O
- 2-year warranty; optional extension to 3 years with product registration
- Sold individually
Tech Specs:
- Powered: Yes
- Power Configuration: Bi-amped
- Quantity: Single
- LF Driver Size: 7" woofer
- LF Driver Type: Hexacone
- HF Driver Size: 2.2" S-ART tweeter
- LF Driver Power Amp: 300W
- HF Driver Power Amp: 50W
- Frequency Response: 35Hz-50kHz
- Crossover Frequency: 3000Hz
- Maximum Peak SPL: ≥120dB SPL @ 1m

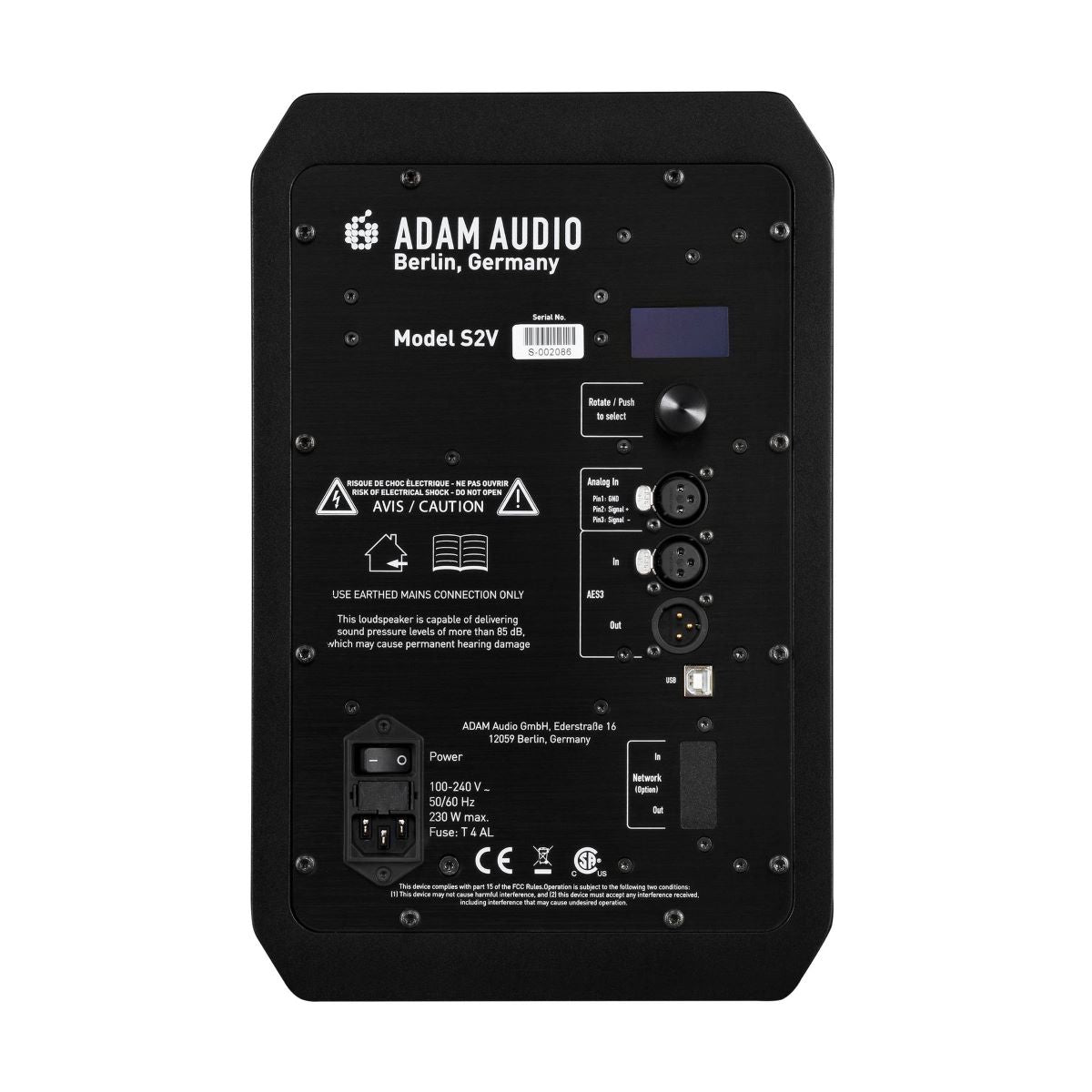

- Input Types: 1 x XLR, 1 x XLR (AES/EBU)
- Output Types: 1 x XLR (AES/EBU)
- USB: 1 x Type B
-
Enclosure Type: Ported
-
Dimensions (HxWxD): 346 x 222 x 338 mm
- Weight: 11 kg
- Warranty: 5-year warranty
- Discover Adam Audio S Series studio monitors [S2V]: https://www.adam-audio.com/en/a-series/s2v/
But If you want to confirm availability first or inquire for possible discounts send us a quick mail or open the chat tab.
