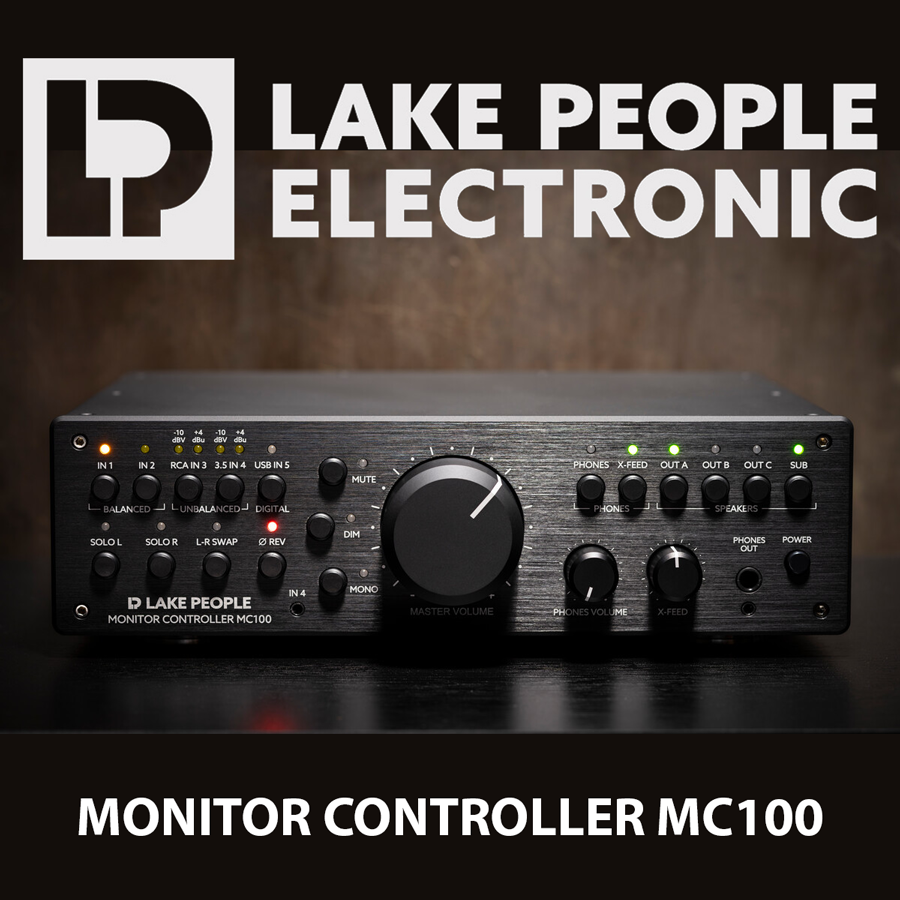

Lake People MC100

High-End Studio Monitoring made in Germany

The Lake People MC100 is a high-quality monitor controller that provides accurate and transparent audio monitoring, with a range of useful features designed to make the monitoring process as efficient and effective as possible.

Precise Volume Control that allows for accurate adjustment of the output level. The high-quality RK27 volume control with 41-detent offers a massive 50 mm button. It serves to attenuate the three stereo output paths plus the subwoofer (mono) output.

Multiple Inputs and Outputs including the complete set of stereo signal manipulation options, Solo L / R, Channel Swap, Phase Reverse, Mono, Mute and Dim function and the high-quality volume control make it stand out from the crowd. In addition, it is as low in noise and distortion as physics allows.

Headphone Amplifier includes button activation and its own volume control. X-Feed is activated separately if desired; this effect minimizes the In-Head-Localization when listening through headphones, which means, it simulates a playback by loudspeakers. The X-Feed effect is adjusted by a turn pot. The headphone amplifier is extremely powerful; headphones with ¼” (6.3 mm) and 3.5 mm jacks can be connected.

High-Quality Audio: The MC100 is designed to maintain the highest level of audio quality throughout the signal chain, with low noise and distortion levels, ensuring that the audio signal remains transparent and faithful to the original source.

Main Features:

Tech Specs:

• Type: Monitor controller with headphone Amp
• Form Factor: Desktop
• Headphone Channels: 2-Channels
• Analogue Inputs: 2x XLR 3-Pin (balanced), 1x Stereo RCA (unbalanced)
• Headphone Outputs: 1x 6.3mm jack (unbalanced), 1x XLR 4-Pin (balanced)
• Nominal input sensitivity: +6 dBu
• Frequency range: 2 Hz ... 150 kHz (-3 dB)
• Headphone Impedance: 16 to 600 Ohms
• Headphone Output Power: 520 mW @ 600 Ohms, 1050 mW @ 200 Ohms, 110 mW @ 100 Ohms, 1200 mW @ 50 Ohms, 500 mW @ 16 Ohms
• Input impedance: 10k Ohms
• THD+N (@ -1 dBFs): -100 dB / < 0.001%
• Noise: >122 dBA
• Crosstalk: <70 dB
• Power Supply: Internal 230 V / 115 V AC
• Height: 49 mm

• Width: 168 mm
• Depth: 154 mm
• Weight: 1.4 kg
