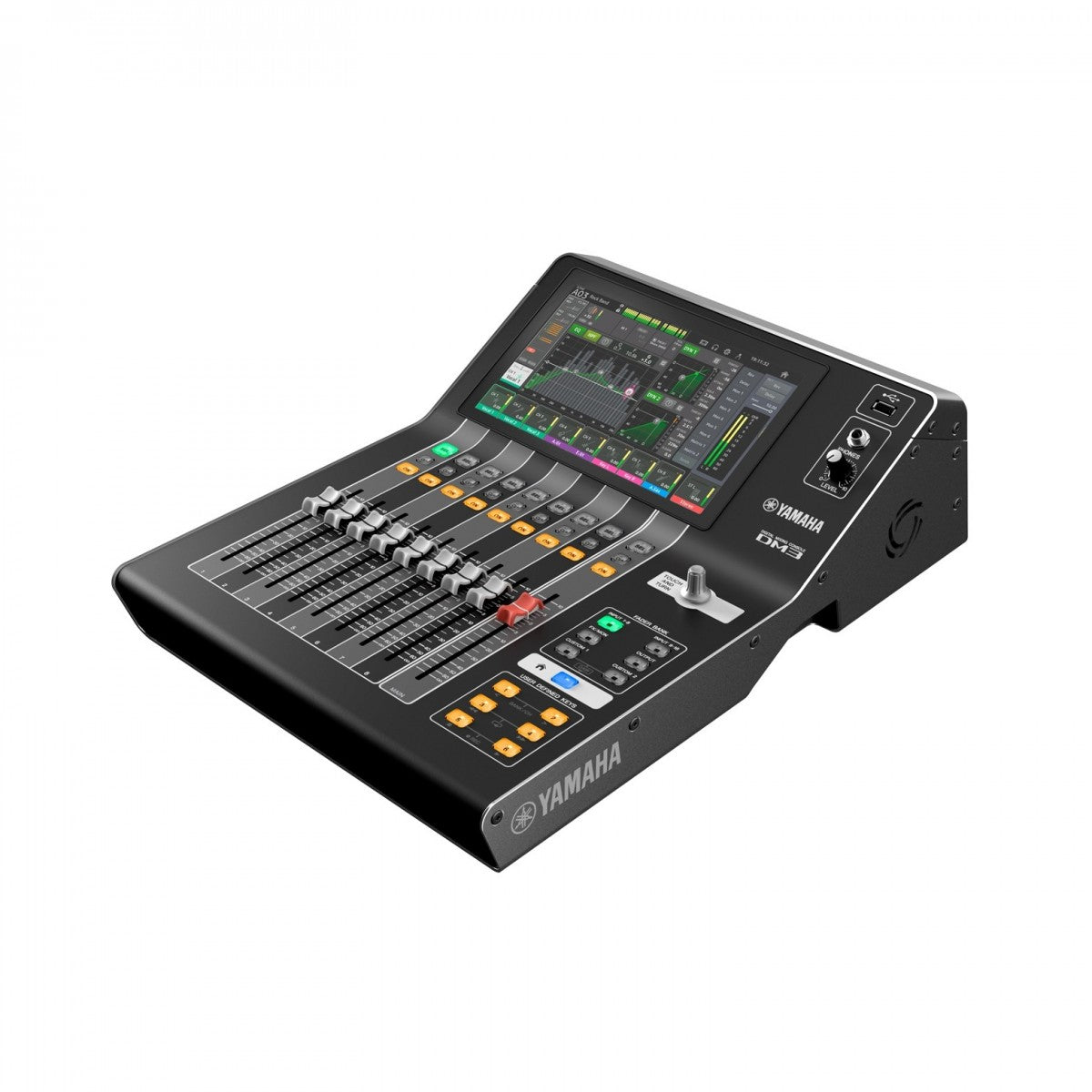

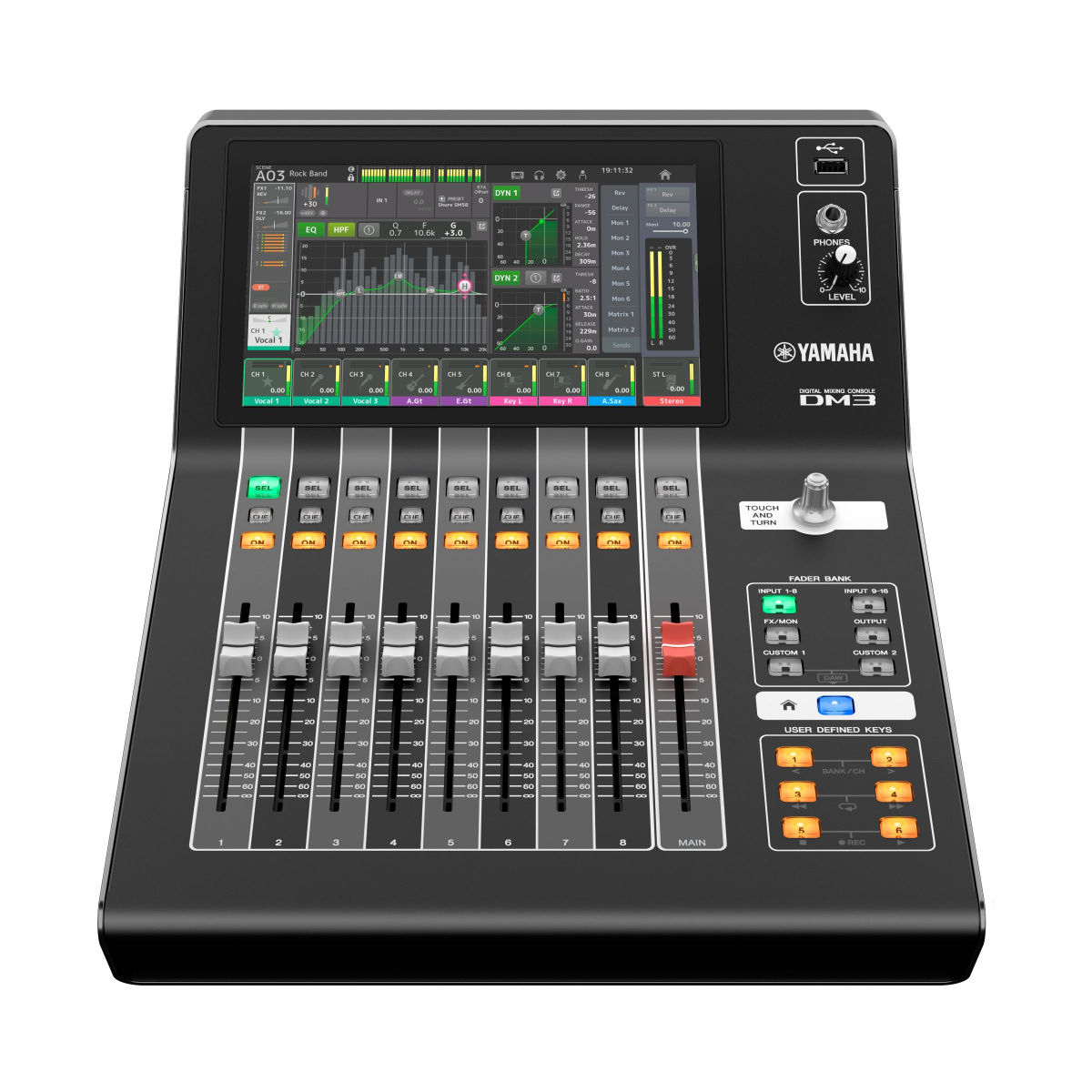

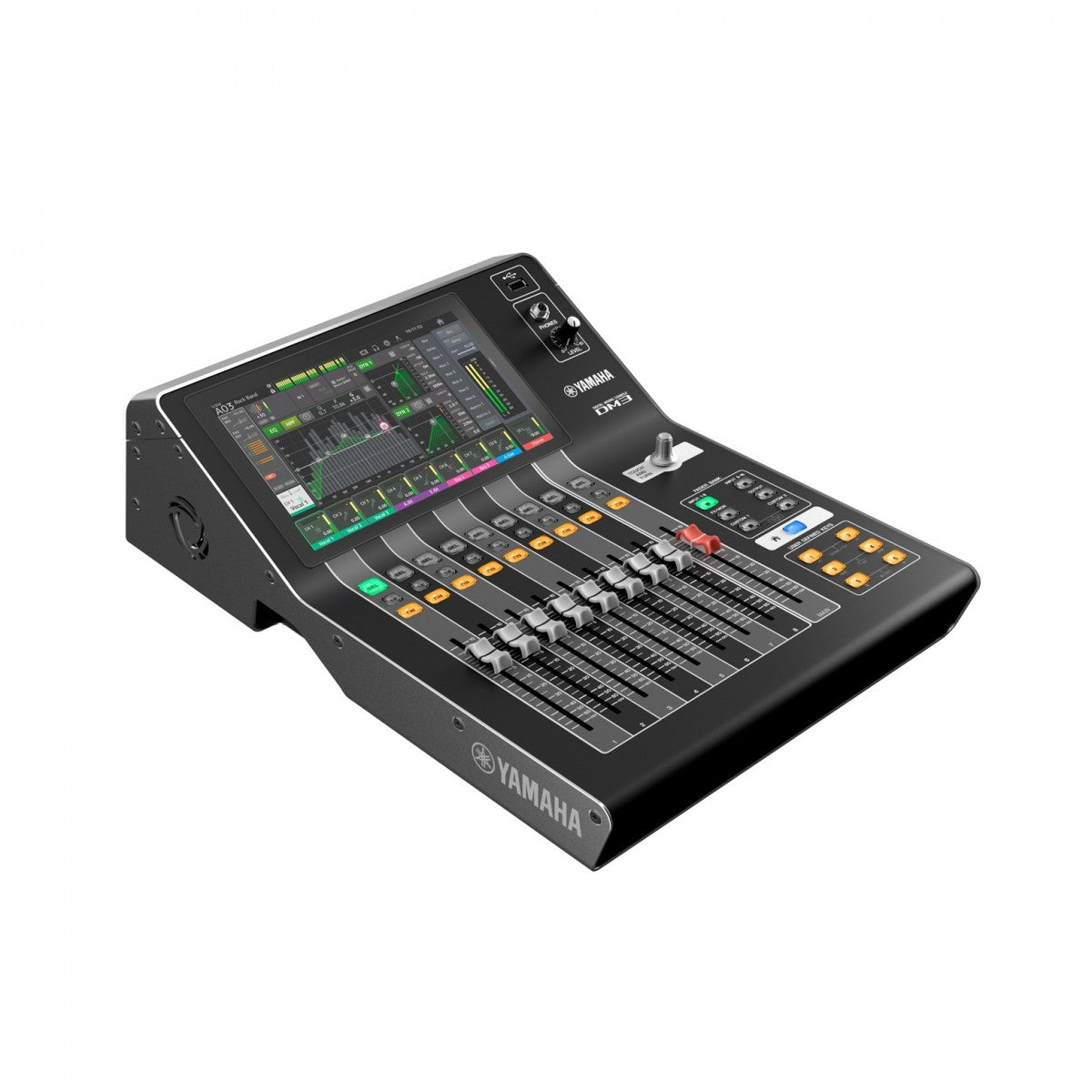

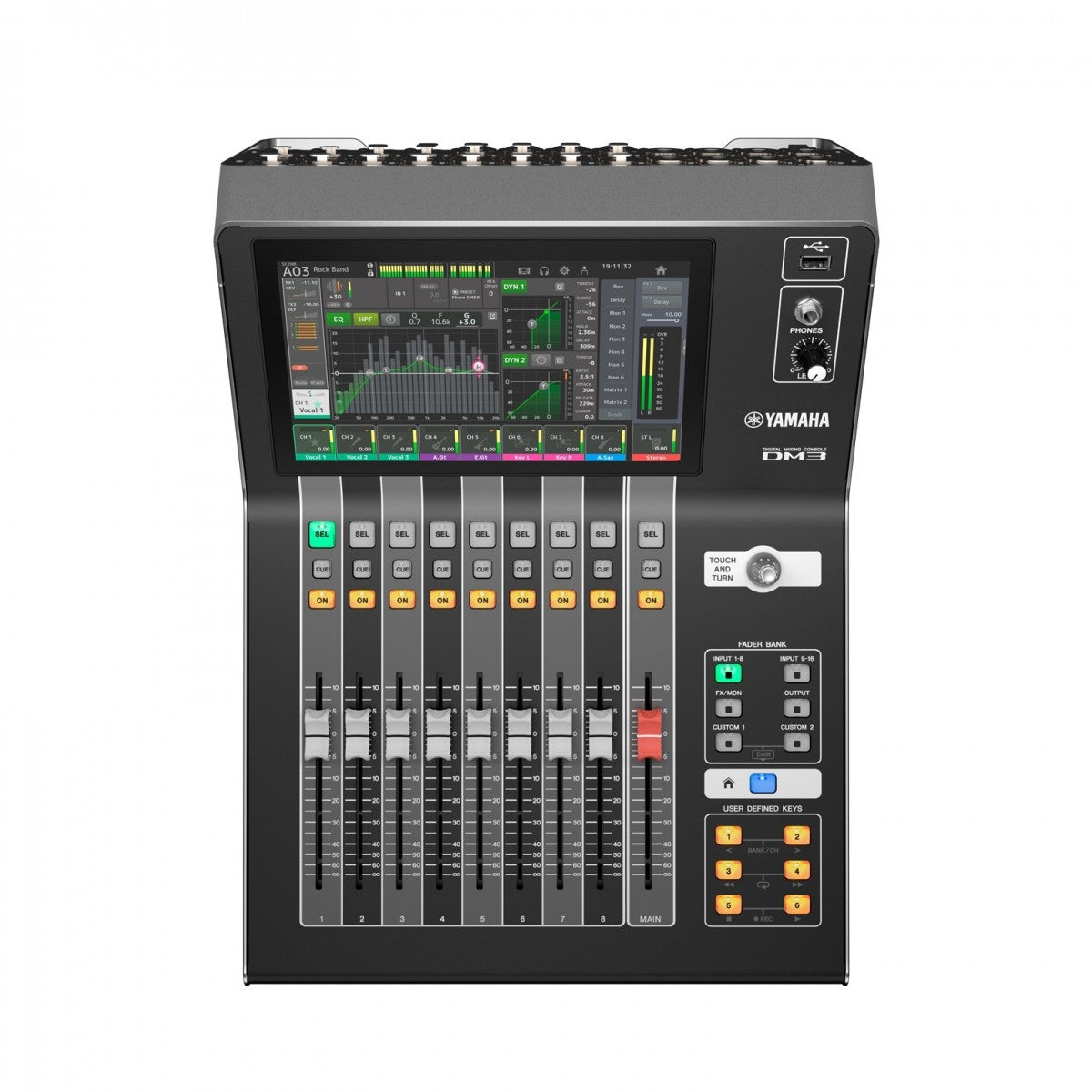

Yamaha DM3 Standard Compact Digital Mixer

Pro-Tier Performance, Subcompact Footprint

The Yamaha DM3S (Standard) shatters the limitations of compact mixing, delivering studio-grade 96kHz resolution and a professional feature set in a mobile 6.5kg chassis. Built for live sound engineers, producers, and high-end streamers, this 22-channel powerhouse offers the flexibility to mix, record, and stream without sacrificing sonic transparency or tactile control.

Precision: 96kHz Sonic Purity
While other compact mixers compromise on resolution, the DM3-D operates at a high-resolution 96kHz sampling rate, ensuring transparent, uncolored "sonic purity". Combined with studio-grade effects units—including the legendary REV HD and REV R3—this console provides the headroom and clarity required for world-class recordings and live mixes.

Smart Workflow, Tactile Control
Navigate complex sessions instantly via the 9-inch multi-touch screen and a single "Touch & Turn" rotary encoder for a user experience as intuitive as a smartphone. Accelerate your setup using 200+ QuickPro Presets™ tailored for leading microphones, and switch seamlessly to DAW Remote mode for hands-on control of your favorite production software.

The Ultimate Hybrid Hub
The DM3 Standard is a full-spec music production tool featuring an 18 x 18 USB audio interface for seamless multitrack recording. With a dedicated DAW Remote mode, you gain hands-on control over your favourite software (Pro Tools, Cubase, Logic) using the console's motorized faders, making it the perfect bridge between the stage and the studio.

Main features:

• 22-channel digital mixing capacity featuring 16 mono, 1 stereo, and 2 FX return channels.

• High-resolution 96kHz sampling rate for superior audio clarity and detailed effects processing.

• Intuitive 9-inch multi-touch screen paired with a single "Touch & Turn" rotary encoder.

• Eight responsive 100mm motorized faders plus one main fader for precise tactile control.

• Versatile 18x18 USB audio interface supporting multitrack recording and playback.

• Extensive bus routing including 1 stereo, 6 mix, 2 FX, and 2 matrix buses.

• Professional effects suite featuring 18 high-grade types including REV HD and REV R3.

• Over 200 QuickPro Presets™ for instant, professional setups with popular microphones and speakers.

• Dedicated DAW Remote mode for hands-on control of major music production software.

• Ultra-portable and robust design weighing only 6.5 kg for easy transport.

• Direct 2-track recording and playback via the front-panel USB Type-A port.

• Support for remote operation through DM3 StageMix, MonitorMix, and Editor applications.

• Bundled professional software including Cubase AI and VST Rack Elements.

• Customizable multi-language user interface for flexible operation in various environments.

Tech Specs:

• Type: Digital Mixer

• Channels: 22

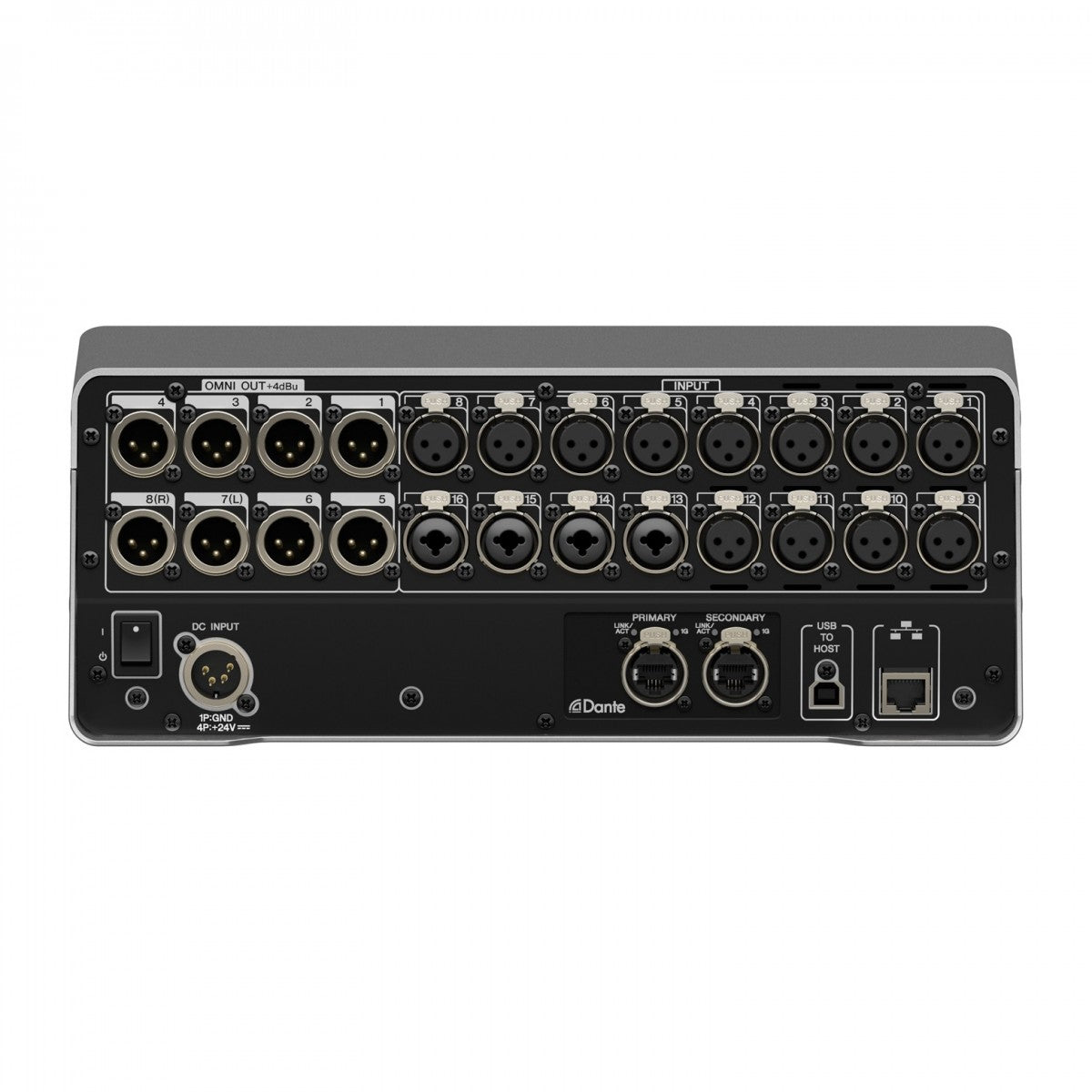

• Inputs - Mic Preamps: 12 x XLR, 4 x XLR-1/4" combo

• Phantom Power: 16 Channels

• Outputs - Main: 8 x XLR

• Busses/Groups: Internal (1 x stereo, 6 x mix, 2 x FX, 2 x matrix)

• Data I/O: 1 x RJ-45 (LAN)

• Headphones: 1 x 1/4"

• USB: 1 x Type A, 1 x Type B

• Computer Connectivity: USB (18 x 18)

• Faders: 9 x 100mm Motorized Faders

• A/D Resolution: Up to 96kHz

• DAW Control: Yes

• Screen: 9" touchscreen

• Storage: USB Slot

• Power Source: 24V DC, 2.5A Power Supply (included)

• Dimensions (WxHxD): 320 x 140 x 455 mm

• Weight: 6.5 kg
• Explore Yamaha Digital Mixing Console [DM3S]: https://usa.yamaha.com/products/proaudio/mixers/dm3/index.html
