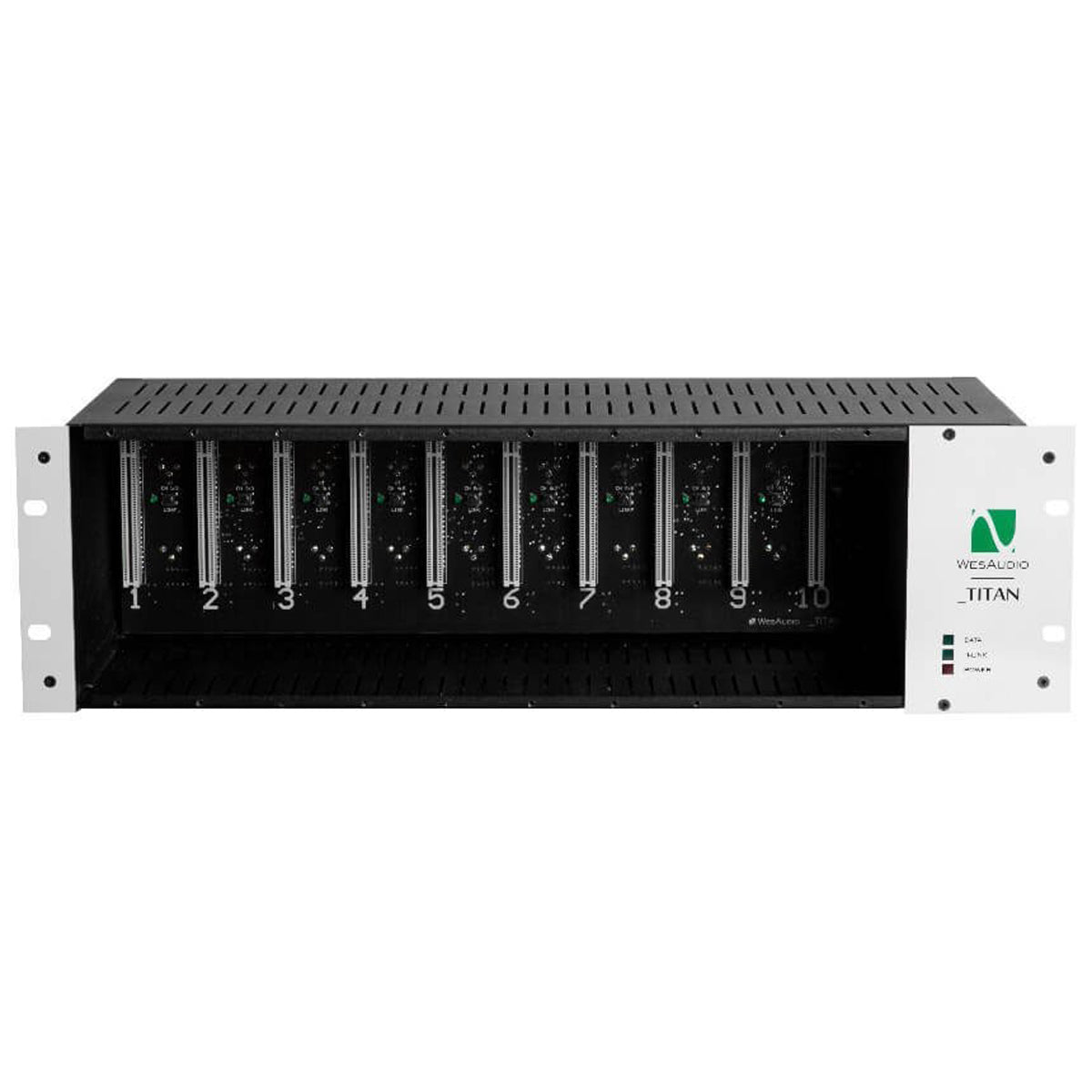

WesAudio _TITAN 10-slot NG500 Recall Chassis

The Central Command for Modern Hybrid Studios

The WesAudio _TITAN is not just another 500-series rack; it is the central nervous system of a modern hybrid studio. Designed for mixing engineers and producers who refuse to choose between the sonic soul of analogue hardware and the efficient workflow of digital plugins, the _TITAN allows you to manage 10 slots of hardware processing through a single USB or Ethernet connection. Whether you are tracking vocals or mastering a film score, _TITAN provides the tactile response of outboard gear with the total recall capabilities of a DAW.

Next-Generation ng500 Compatibility
At the heart of the _TITAN is the ng500 (Next Generation 500 Series) standard. While remaining fully compatible with most standard 500-series modules, _TITAN features a specialised extension connector that facilitates digital communication via the GCon protocol. This allows you to control analogue parameters, save presets, and automate your hardware directly from your DAW using dedicated plugins, bridging the gap between hardware character and digital convenience.

High-End Power and Massive Headroom
Sonic integrity begins with power. The _TITAN is equipped with a robust, high-end linear power supply built around a toroidal transformer, capable of delivering a massive 5A of clean, stable current. This ensures that every module in your rack has the power it needs to perform at its peak, providing the warmth, transparency, and high headroom required for professional-grade audio production.

Streamlined Internal Audio Routing

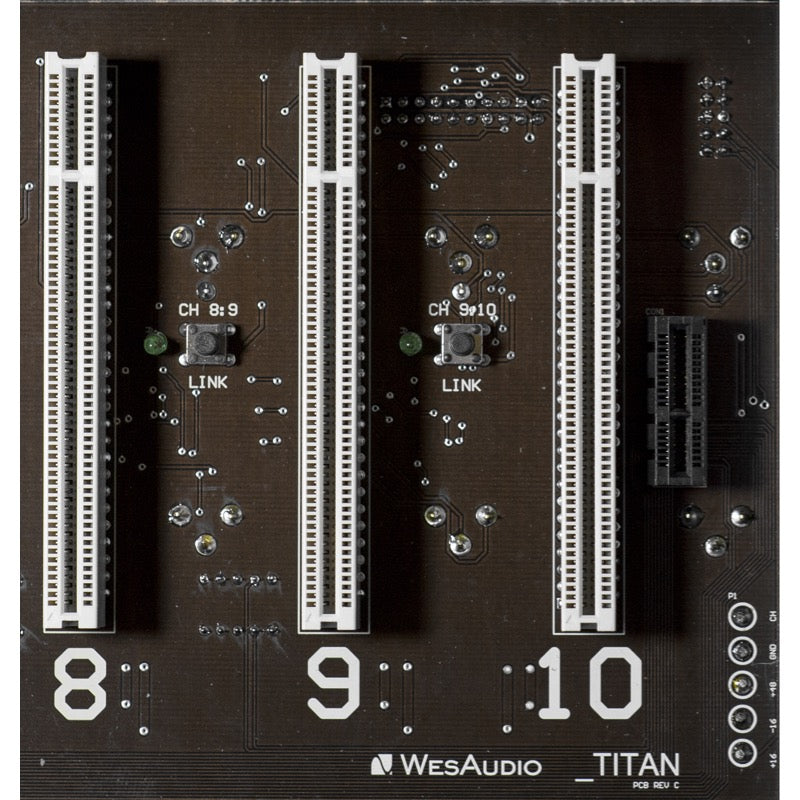

The proprietary I.A.C. (Internal Audio Connector) system revolutionises studio cable management. By utilising a special connector next to slot 10, _TITAN allows you to route audio internally between modules and future-proofed units like the _Calypso digital interface or analogue summing modules. This enables near wire-free operation, allowing you to switch between recording and mixing modes without ever reaching for a patch cable.

Main features:

• 10 slots compatible with standard 500-series and ng500 recallable modules
• Full digital control and recall via high-speed GCon communication protocol
• Single USB or Ethernet connection to manage the entire chassis from your workstation
• Integrated I.A.C. (Internal Audio Connector) for advanced internal signal routing
• Remote-controlled stereo linking via the GConManager standalone application
• Linear 5A power supply ensuring stable, noise-free operation for all modules
• Remote firmware upgradeability for the chassis and all installed WesAudio modules

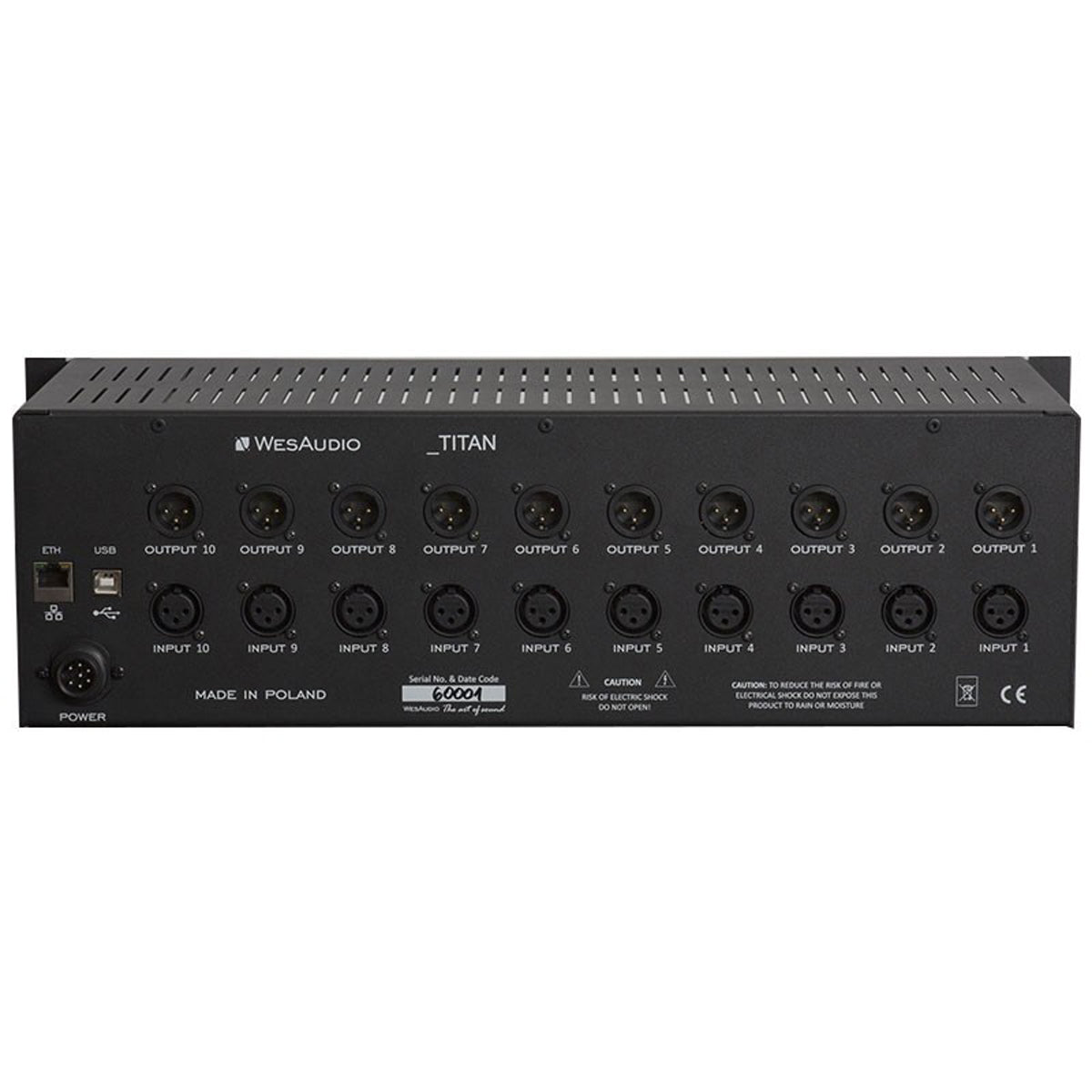

• Individual XLR input and output sockets for every slot on the rear panel

Tech Specs:

• Type: 10-Slot 500-Series Power Rack Chassis
• Slot Capacity: 10 Slots
• Control Connection: USB 2.0+ or Ethernet (UDP)
• Power Supply Type: External Linear with Toroidal Transformer
• Total Power Capacity: 5A
• Power Per Slot: 250mA per rail (500mA total)
• Analogue Input/Output: 10x XLR Balanced Inputs / 10x XLR Balanced Outputs
• Operating Voltage: 115V / 230V (Switchable)
• Dimensions (Unit): 135 x 483 x 190 mm
• Unit Weight: 4.2 kg
• PSU Weight: 1.75 kg
• Warranty: 2 Years
