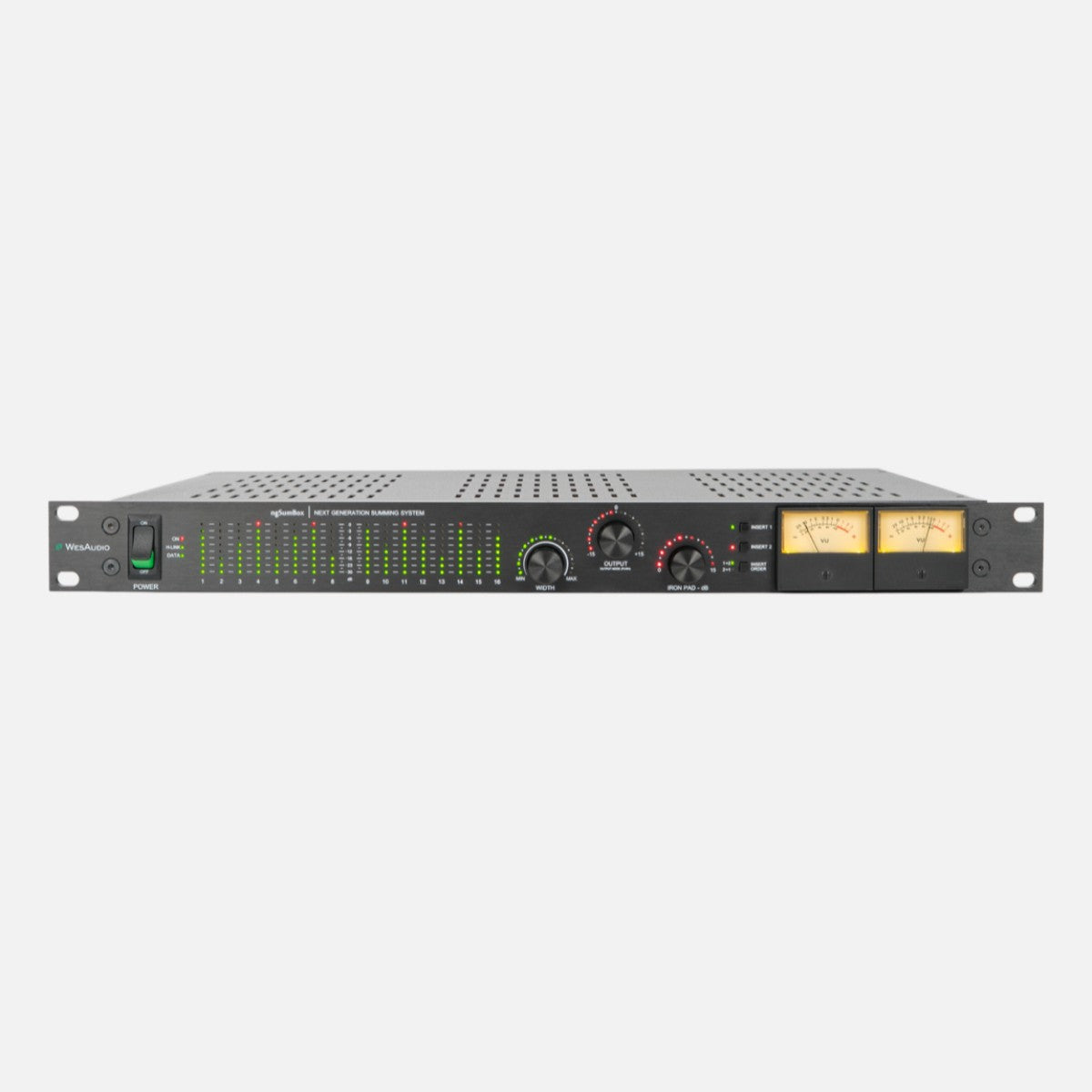

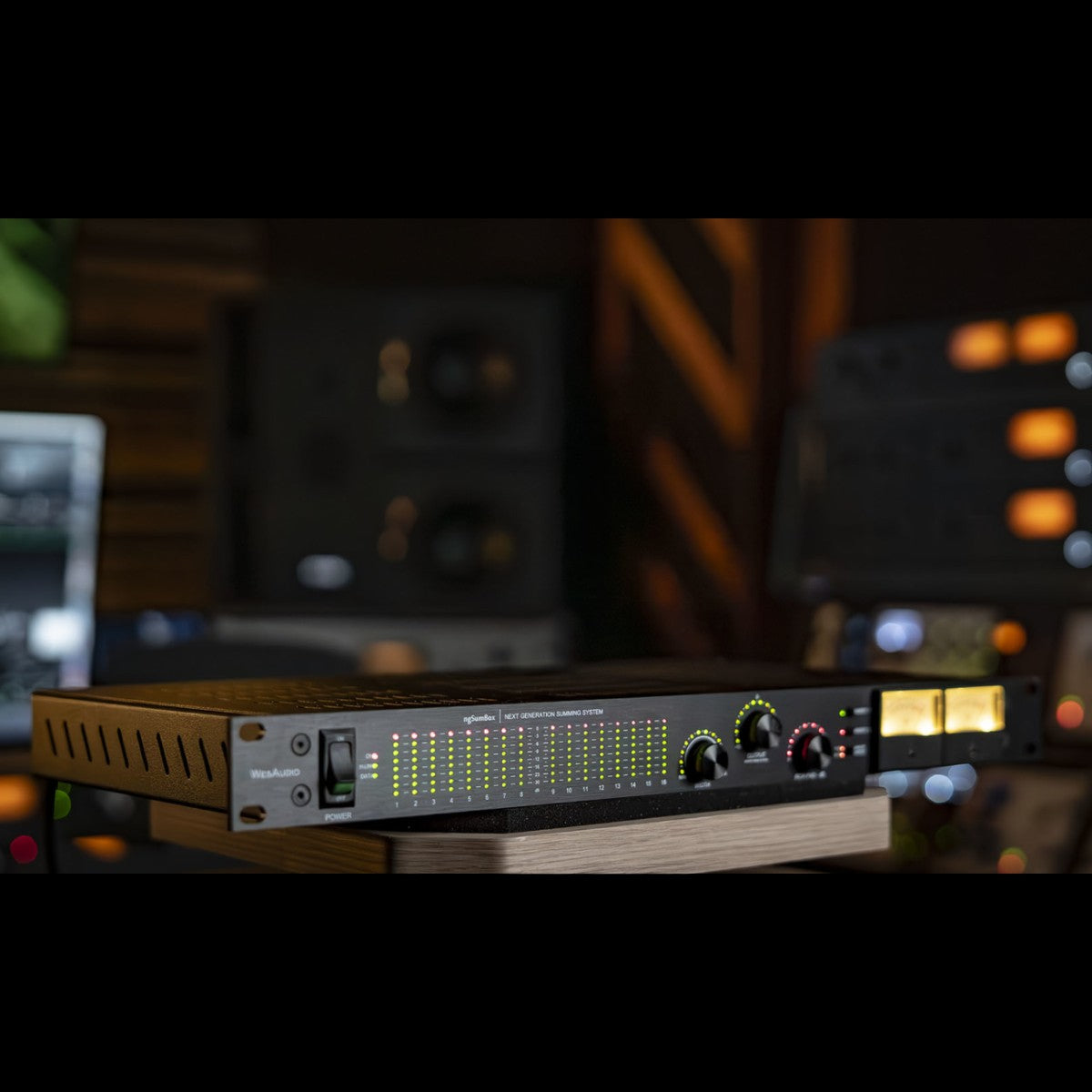

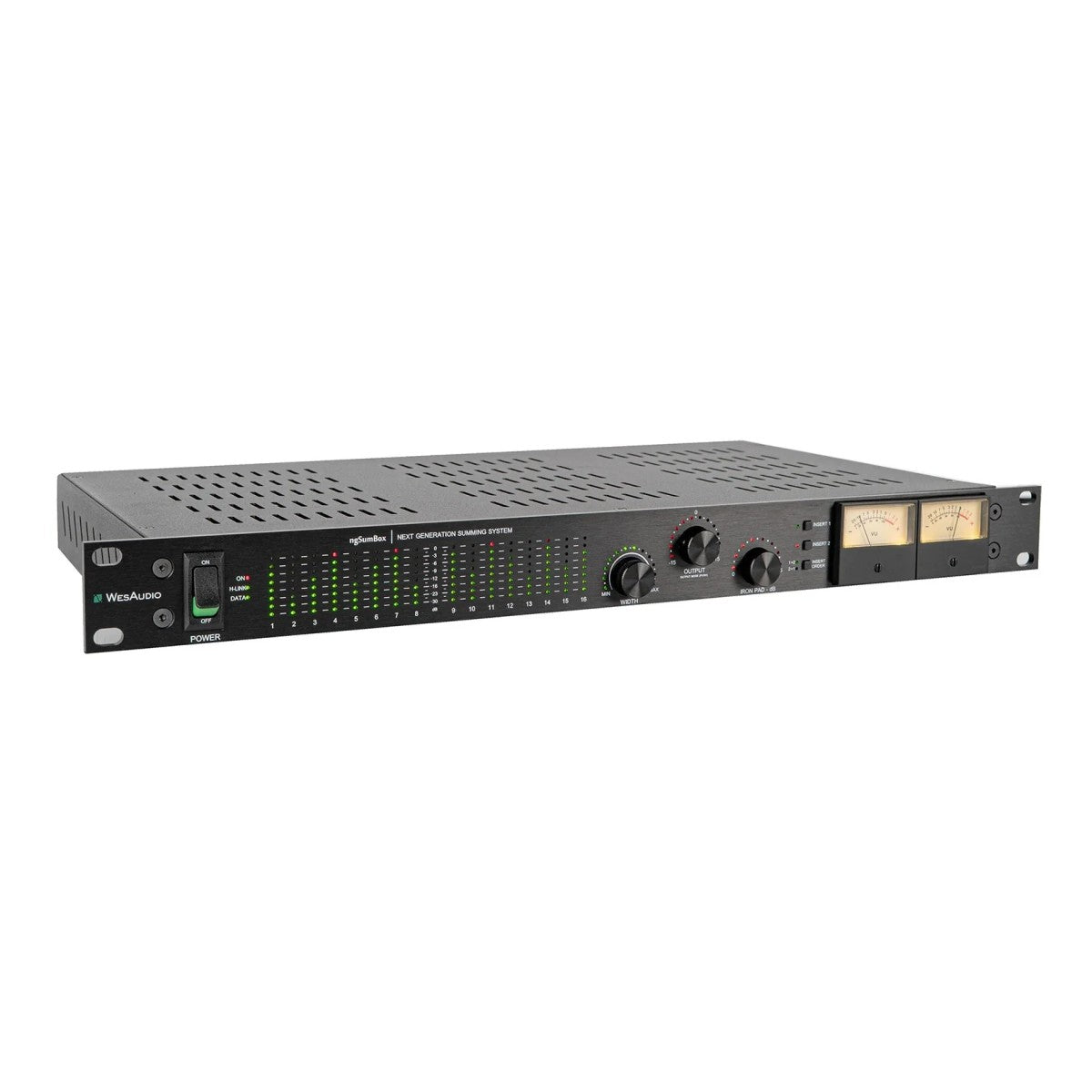

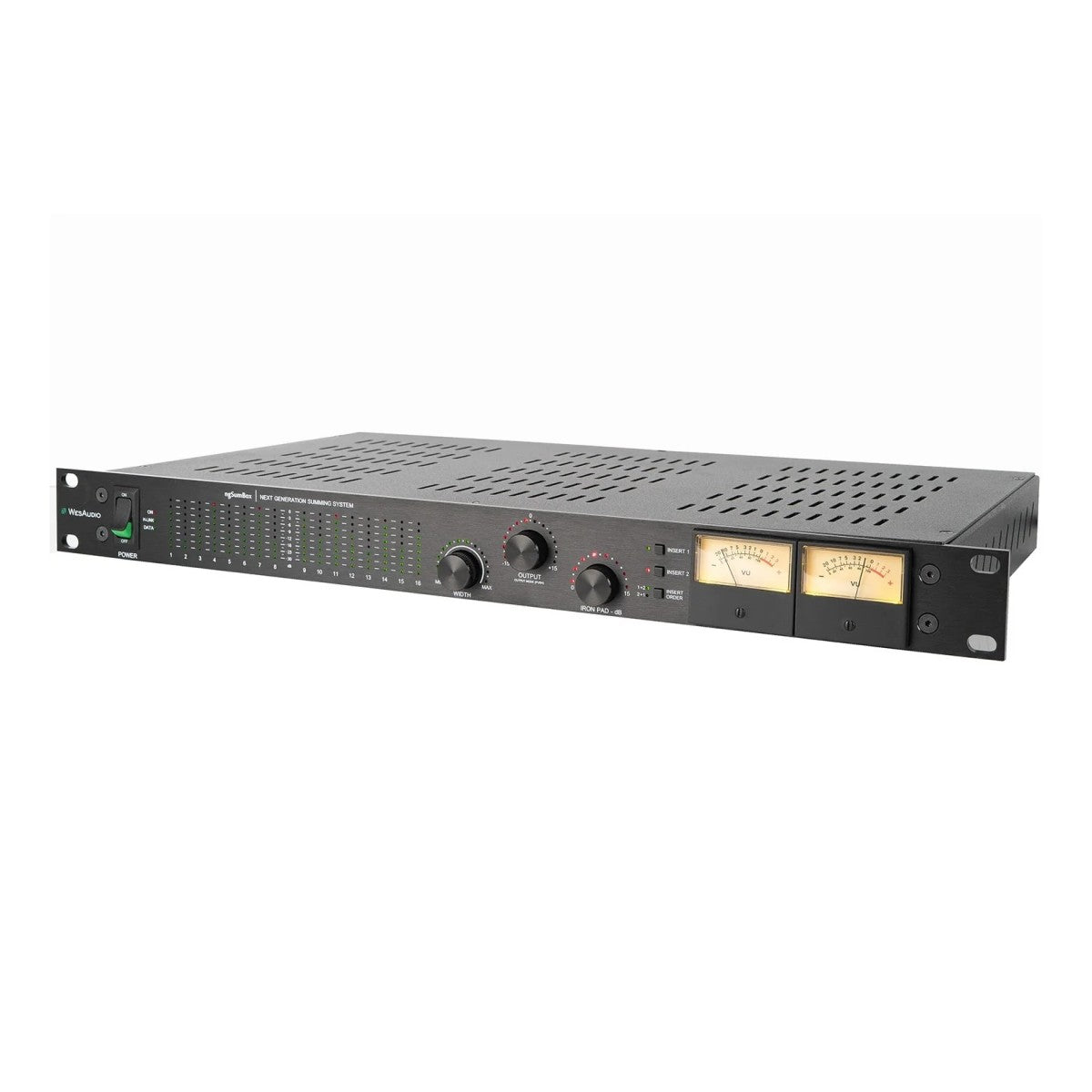

WesAudio ngSumBox Analogue Summing System

Analogue Soul, Digital Precision

The WesAudio ngSumBox is a professional 18x2 analogue summing system designed for mixing engineers who refuse to choose between the sonic richness of hardware and the efficiency of a digital workflow. By combining a high-headroom, pure analogue signal path with a high-speed digital control protocol, the ngSumBox acts as the ultimate centrepiece for the modern hybrid studio, providing the "glue" and depth of a classic console with the convenience of a DAW plug-in.

Total Recall, Zero Compromise
The ngSumBox bridges the gap between analogue warmth and digital speed by allowing you to save and automate every parameter—from individual channel levels to insert routing—directly within your DAW. Utilising WesAudio’s proprietary GCon protocol via USB or Ethernet, your hardware settings are stored within your session files, ensuring that complex analogue mixes can be revisited months later with perfect accuracy.

Custom Harmonic Character
Unlike traditional summing mixers, the ngSumBox offers fully variable THD control on every channel, allowing you to dial in anything from transparent clarity to rich, musical saturation. For added weight, you can engage the 'Iron' output stage, which routes your summed mix through Carnhill transformers and a passive attenuation circuit, delivering the legendary low-end punch and harmonic density found in world-class consoles.

Mastering-Grade Spatial Enhancement
Fine-tune your soundstage with the dedicated Width control, a mastering-grade circuit based on Mid/Side processing that allows you to expand the stereo image naturally. This innovative circuit adds depth and openness without introducing artificial phase artefacts, and it even provides subtle analogue colouration as it is driven, ensuring your final mix sounds cohesive and spacious.

Main features:

• 18x2 analogue summing architecture featuring 16 controllable channels and 2 external inputs

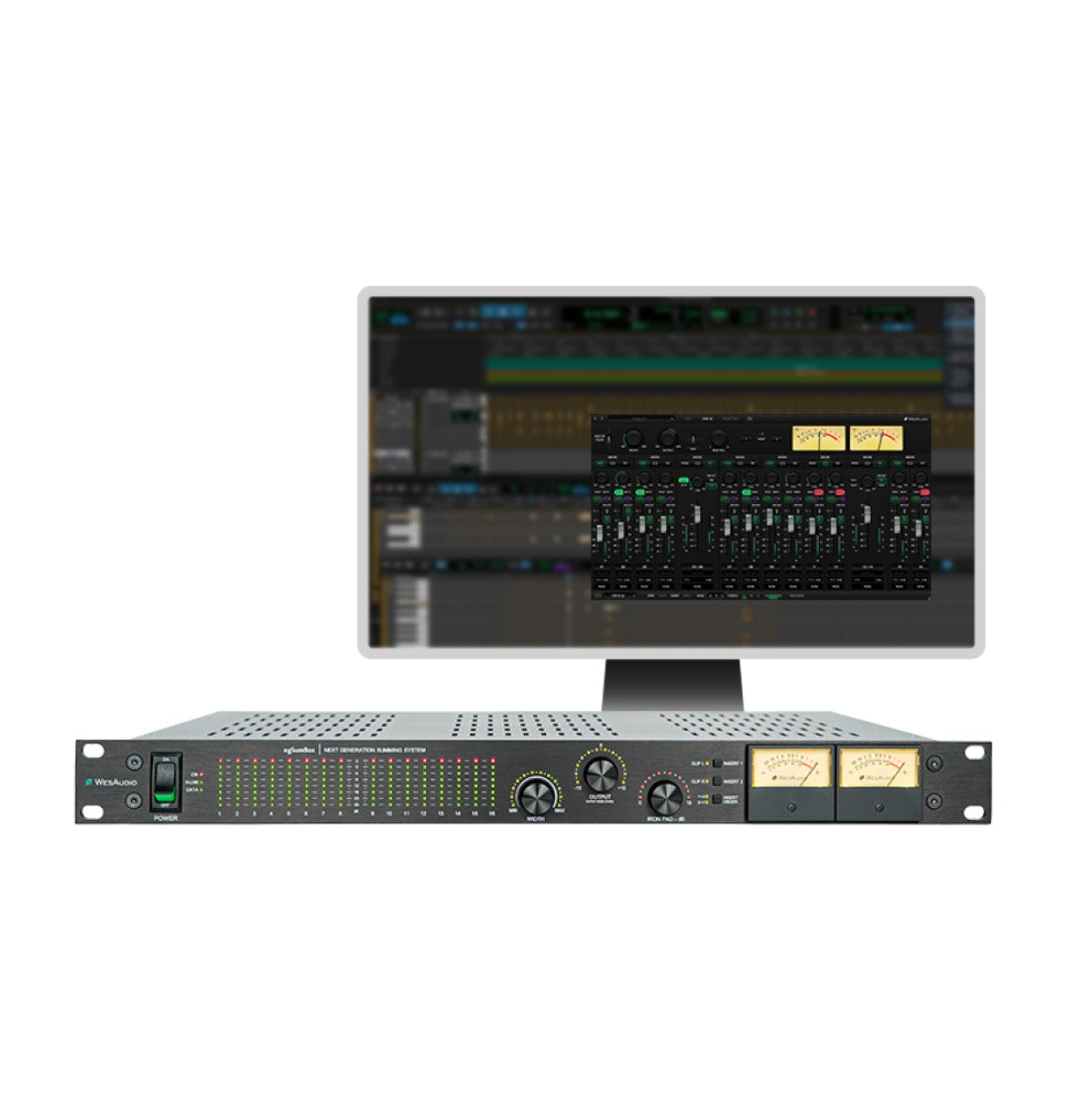

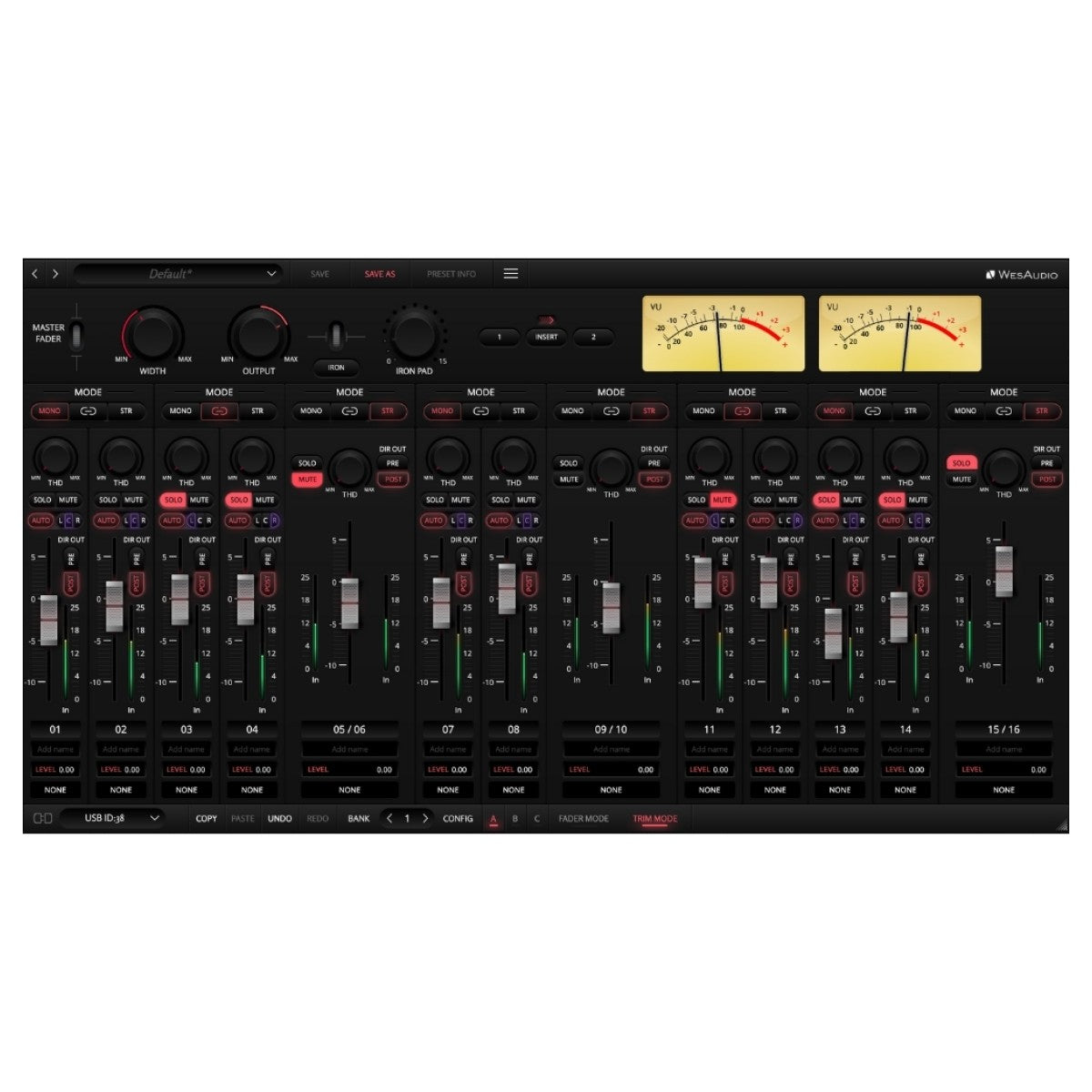

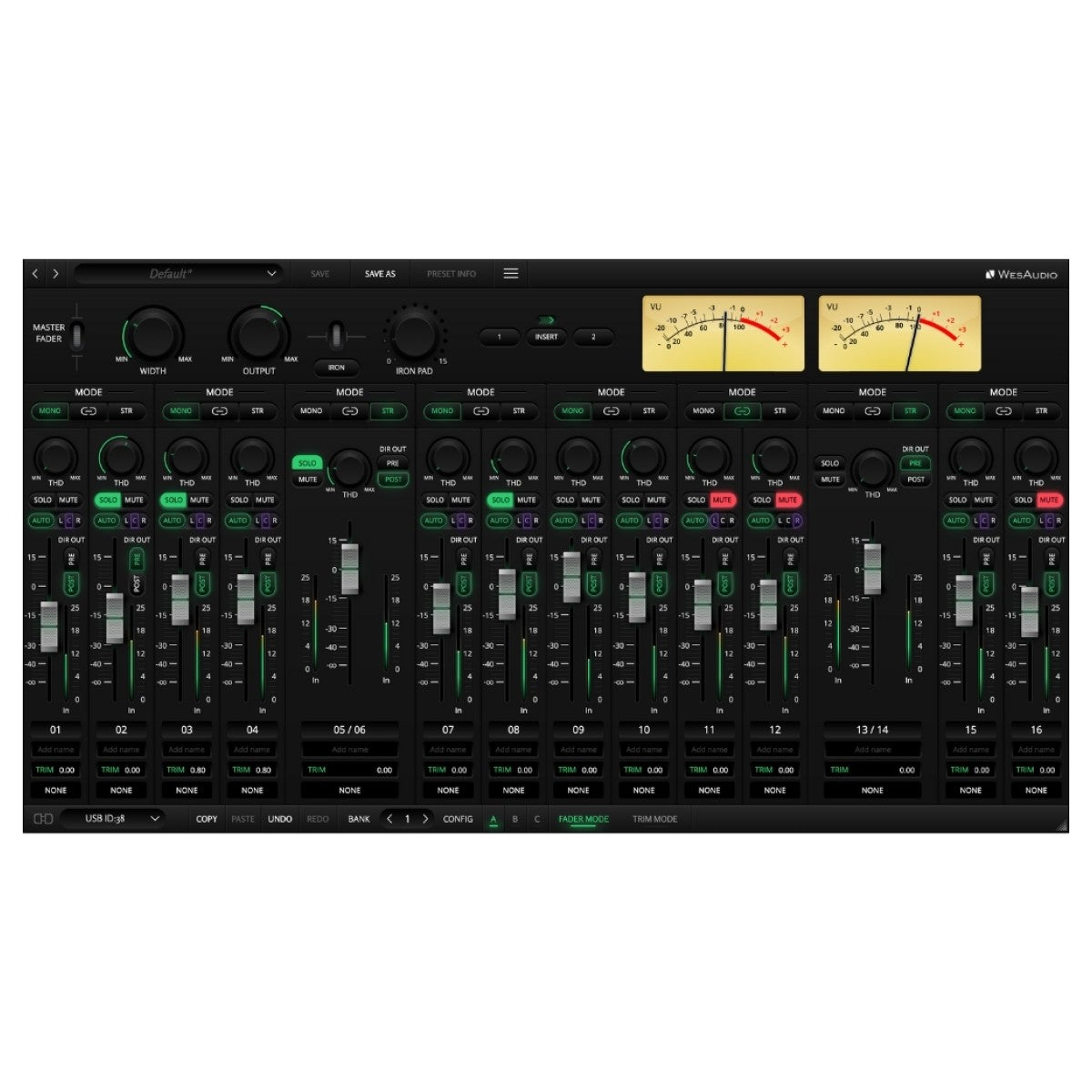

• Pure analogue signal path with full digital recall and automation via VST/AU/AAX plug-ins
• Independent variable THD control per channel for track-by-track harmonic shaping
• Selectable output stages offering a choice between clean electronically balanced or transformer-coupled Iron mode
• Genuine Carnhill transformer-balanced output stage for classic analogue warmth and low-end weight
• Proprietary Mid/Side Width control for natural stereo field enhancement
• Two fully analogue insert points on the main summing bus with recallable routing order
• High-resolution LED metering for all channels and dual illuminated VU meters for the main bus
• 16 direct outputs (pre- or post-fader) available via DB25 for stem recording or parallel processing
• Native support for MC and HUI protocols for tactile integration with external control surfaces
• Flexible digital connectivity via USB 2.0 or Ethernet (UDP) for any studio configuration

Package Includes

1x WesAudio ngSumBox Analogue Summing System
1x USB Connection Cable
1x Mains Power Cable
1x Quick Start Manual

Tech Specs:

• Type: Next-Generation Digitally Controlled Analogue Summing Mixer
• Summing Architecture: 18x2 (16 Controllable Channels + 2 External Inputs)
• Frequency Response: 20 Hz – 20 kHz (+/- 0.15 dB)
• THD+N (+4 dBu): 0.006% per channel
• Maximum Input Level: +26 dBu
• Maximum Output Level: +28 dBu
• Crosstalk: 90 dB (1 kHz)
• Input Impedance: 45 kΩ

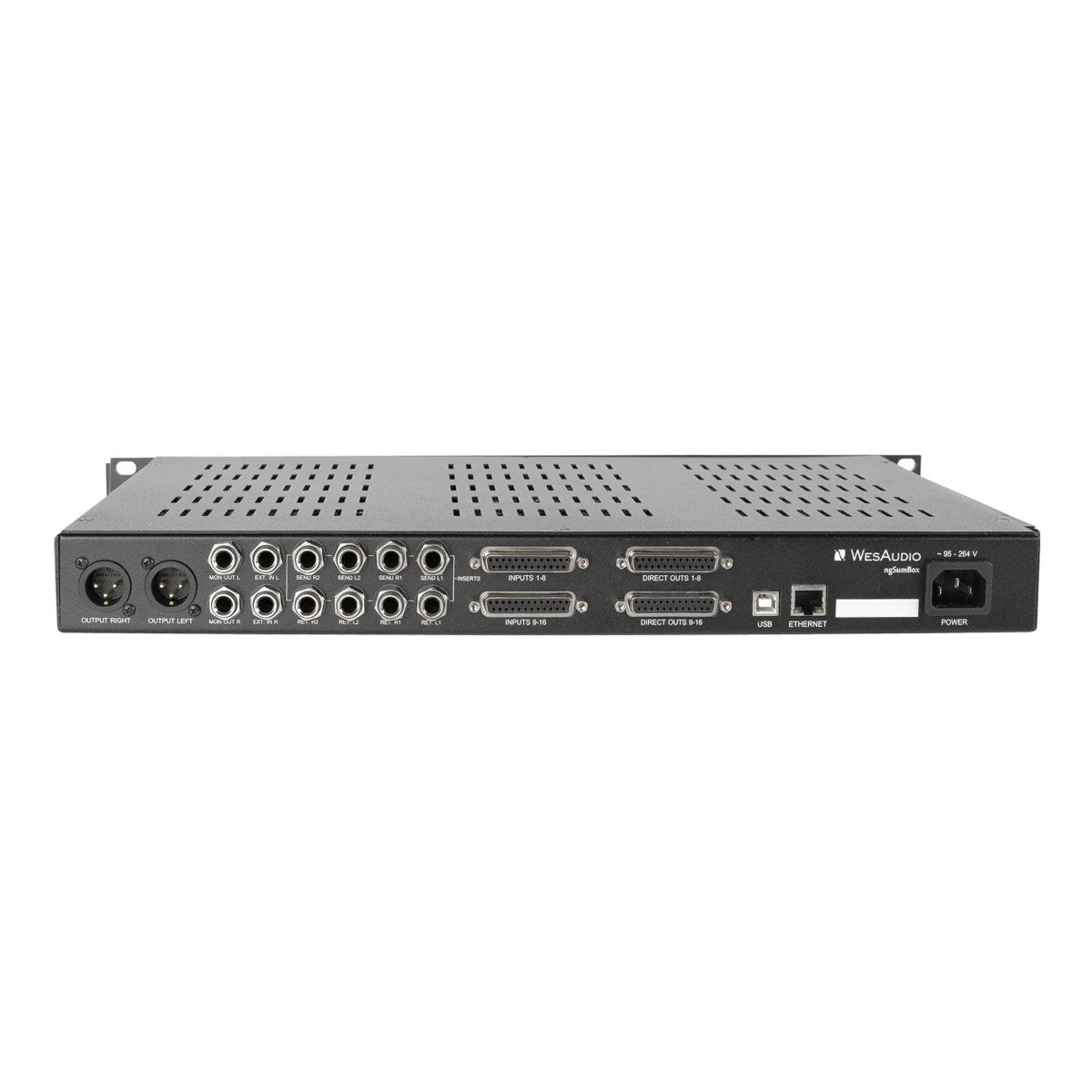

• Analogue Inputs: 16x via DB25 (Tascam pinout)
• External Inputs: 2x via 6.3 mm TRS
• Main Outputs: 2x Balanced XLR
• Monitor Outputs: 2x via 6.3 mm TRS
• Direct Outputs: 16x via DB25 (Tascam pinout, pre- or post-fader)
• Inserts: 2x Stereo Pairs (Send/Return) via 6.3 mm TRS
• Bypass/Mute: Yes, hardware relay-based controls
• Digital Control Interface: USB 2.0 or Ethernet (UDP)
• Format: 19-inch / 1U Rackmount
• Dimensions: 44 x 483 x 267 mm
• Unit Weight: 4.5 kg
• Power Consumption: 23 W (Maximum)
• Warranty: 2 Years
