WesAudio _Calypso 500 Series Audio Interface

Precision You Can Trust

The WesAudio _Calypso is a high-performance 8-channel AD/DA audio interface designed to be the digital heart of your 500-series rack. Engineered for professional mixing and mastering engineers who demand the sonic integrity of analogue hardware alongside the speed of a digital workflow, Calypso provides state-of-the-art 24-bit conversion at sample rates up to 96kHz. Whether you are tracking in a hybrid studio or integrating premium outboard gear into your DAW, Calypso delivers transparent, high-resolution audio with the convenience of total software control.

Revolutionary ng500 Recall Integration
Calypso is more than just a converter; it is a gateway to the WesAudio ng500 ecosystem. When paired with the _Titan chassis, it utilises a proprietary Internal Audio Connector (I.A.C.) that enables a virtually wire-free studio setup. You can manage your entire signal chain- including hardware insert routing and sample rate selection - directly from your DAW session via VST, AU, or AAX plugins. This eliminates the need for manual re-patching and ensures every setting is saved and recalled instantly when you reopen a project.

Pristine Conversion and Clocking
Transparency and timing are the foundations of professional audio, and Calypso excels in both. Featuring an ultra-low jitter clock, it ensures that your digital audio remains free from timing artefacts that can smear stereo imaging and detail. With a dynamic range of 116dB and THD+N as low as 0.0004% on inputs, this interface provides massive headroom and a clinical level of transparency, ensuring your analogue character gear is captured with absolute fidelity.

Versatile Hybrid Connectivity
Designed for the modern studio, Calypso offers unmatched flexibility. While it truly shines in an ng500 environment, it remains fully compatible with standard 500-series racks through front-panel DB25 connectors. You can choose between +4dBu and -10dBV reference levels per channel, allowing you to interface seamlessly with everything from high-end professional consoles to consumer-grade gear. Its Word Clock I/O further ensures that your entire digital system remains locked in perfect synchronisation.

Main features:

• 8 channels of state-of-the-art 24-bit AD/DA conversion
• Supports sample rates of 44.1kHz, 48kHz, 88.2kHz (SMUX), and 96kHz (SMUX)

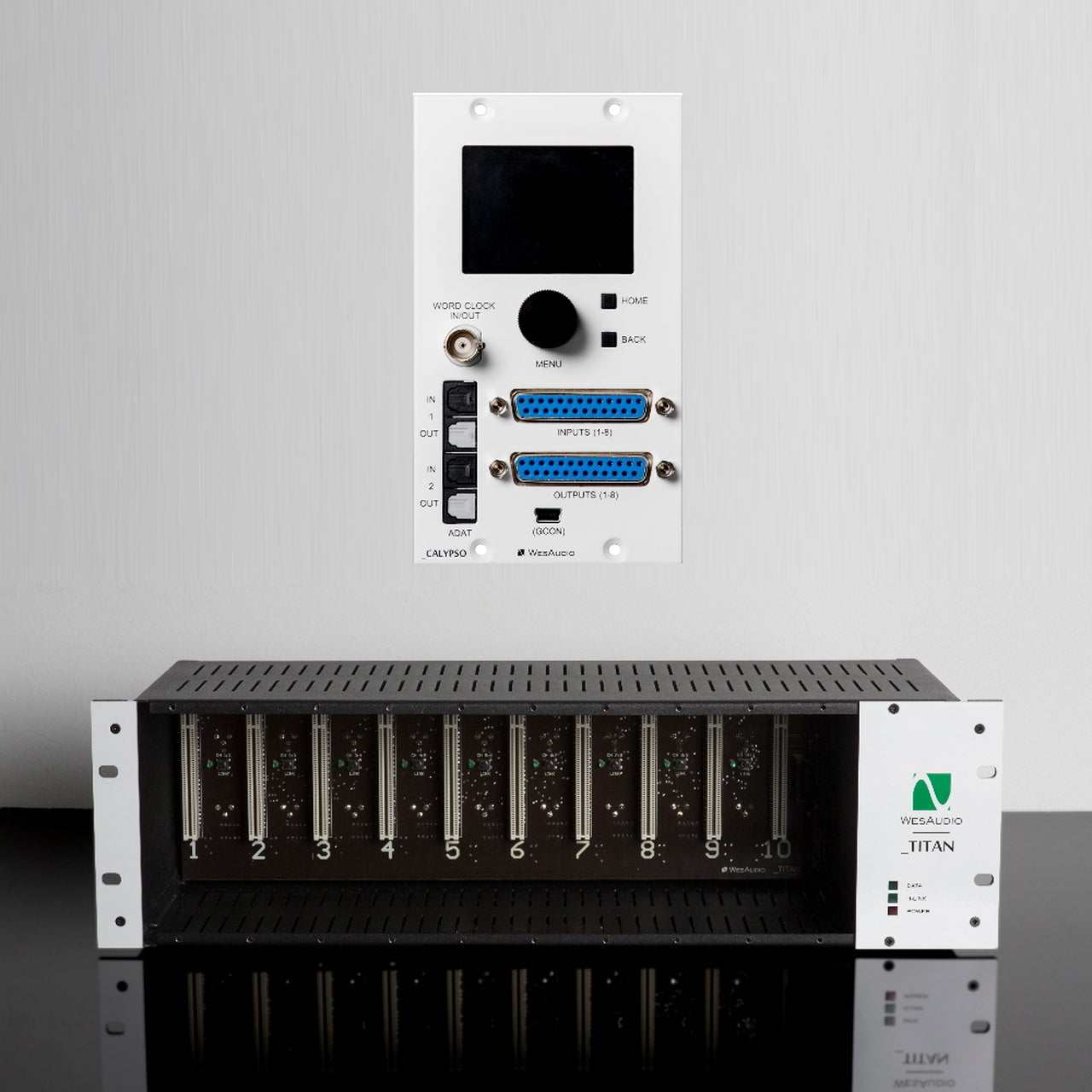

• Full integration with _Titan chassis via I.A.C. for cable-free internal routing
• Total recall and plugin control through VST2, VST3, AU, and AAX formats
• Ultra-low jitter clock for superior digital timing and audio clarity

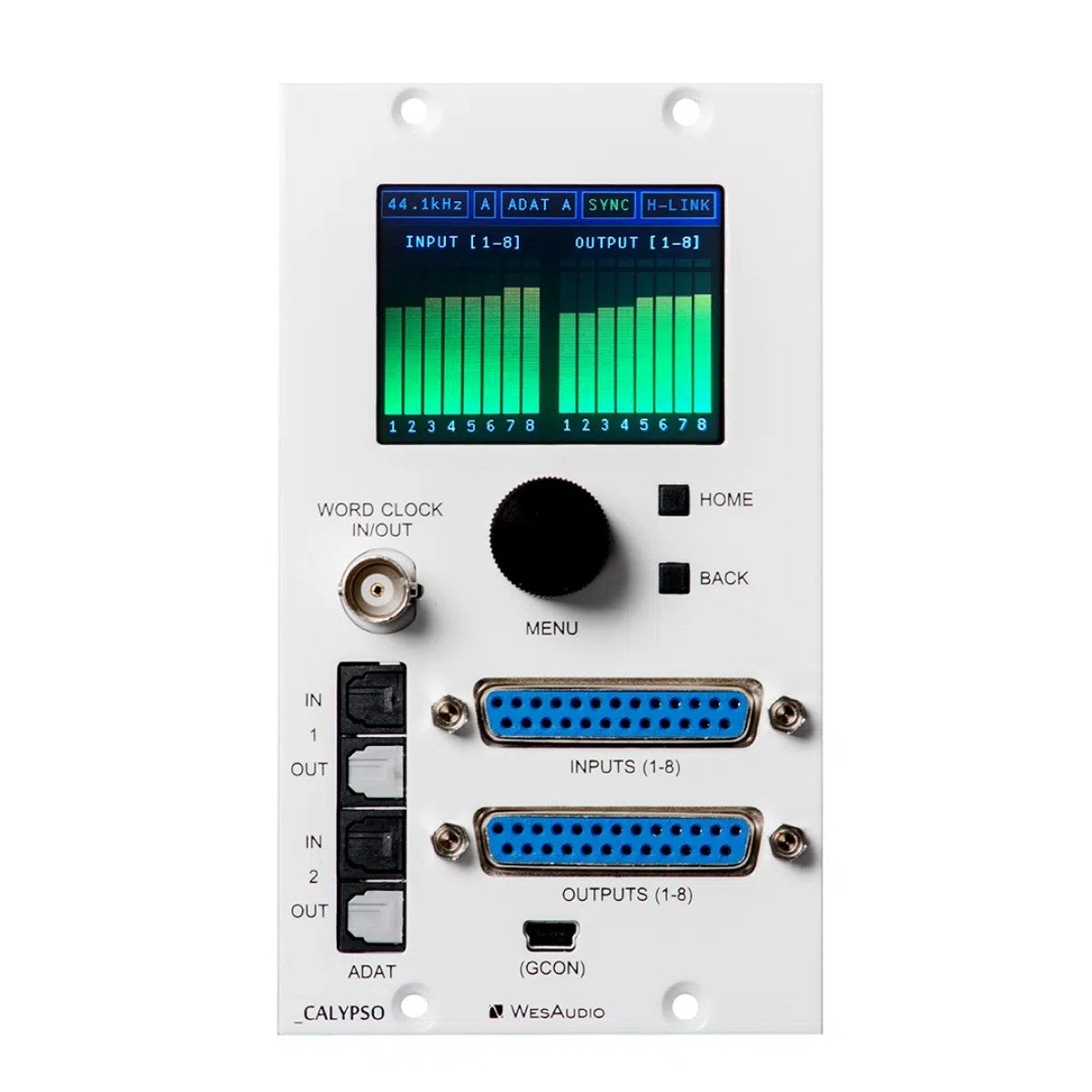

• High-resolution LCD screen with fast, accurate PPM metering and clip indicators
• Two front-panel DB25 connectors for compatibility with standard 500-series racks
• Independently selectable +4dBu or -10dBV reference levels per channel
• BNC Word Clock input and output for external digital synchronisation
• Front-panel USB port for firmware updates and standalone plugin control

Tech Specs:

• Type: 8-Channel AD/DA Audio Interface / ng500 Module
• Bit Depth: 24-bit
• Supported Sample Rates: 44.1 / 48 / 88.2 (SMUX) / 96 kHz (SMUX)
• Dynamic Range (ADC): 116dB (unweighted)
• Dynamic Range (DAC): 115dB (unweighted)
• THD+N (ADC): -108dB (0.0004%)
• THD+N (DAC): -105dB (0.0005%)
• Analogue Input: 8 x Line (via DB25 or IAC)
• Analogue Output: 8 x Line (via DB25 or IAC)
• Digital Input: 2 x ADAT Optical
• Digital Output: 2 x ADAT Optical
• Clock I/O: BNC Word Clock In/Out
• Digital Control: Mini USB or GCon (via _Titan chassis)
• Module Type: 500 Series / ng500 (Double slot format)
• Power Consumption: 150mA per rail
• Dimensions: 76mm x 133mm x 158mm
• Reference Levels: +4dBu / -10dBV (Selectable per channel)
• Warranty: 2 Years
