Violectric HPA V340 Headphone Amplifier with Pre-amp - Special Order
Tax included.
Premium Balanced Headphone Amplifier with Pre-amp functions

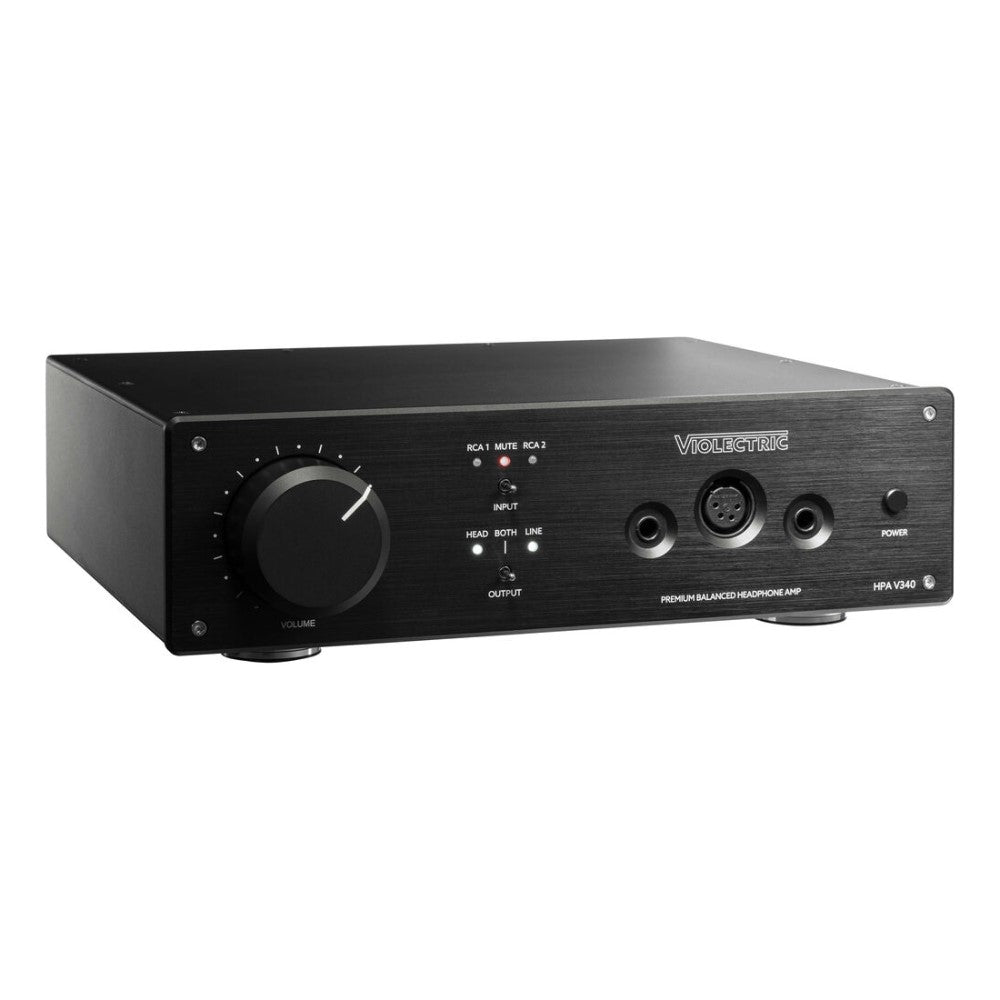

The Violectric HPA V340 is a high-end headphone amplifier designed and manufactured in Germany by Lake People Electronic GmbH. A famous German recording and listening equipment manufacturer with a respected reputation in the recording production industry.
Violectric headphone amplifiers are known for their transparent and detailed sound quality, with super low noise and distortion. The V340 offers a powerful balanced headphone amplifier and a pre-amp function, allowing it to drive a wide range of headphones and provide various input and output options. Violectric amplifiers are designed with a focus on build quality and durability, using high-quality components and sturdy enclosures.
The Violectric HPA V340 is a high-quality headphone amplifier that delivers excellent sound and versatile connectivity options.
Main features:
Tech Specs:
- Type: Headphone Amp
- Form Factor: Desktop
- Headphone Channels: 2-Channles

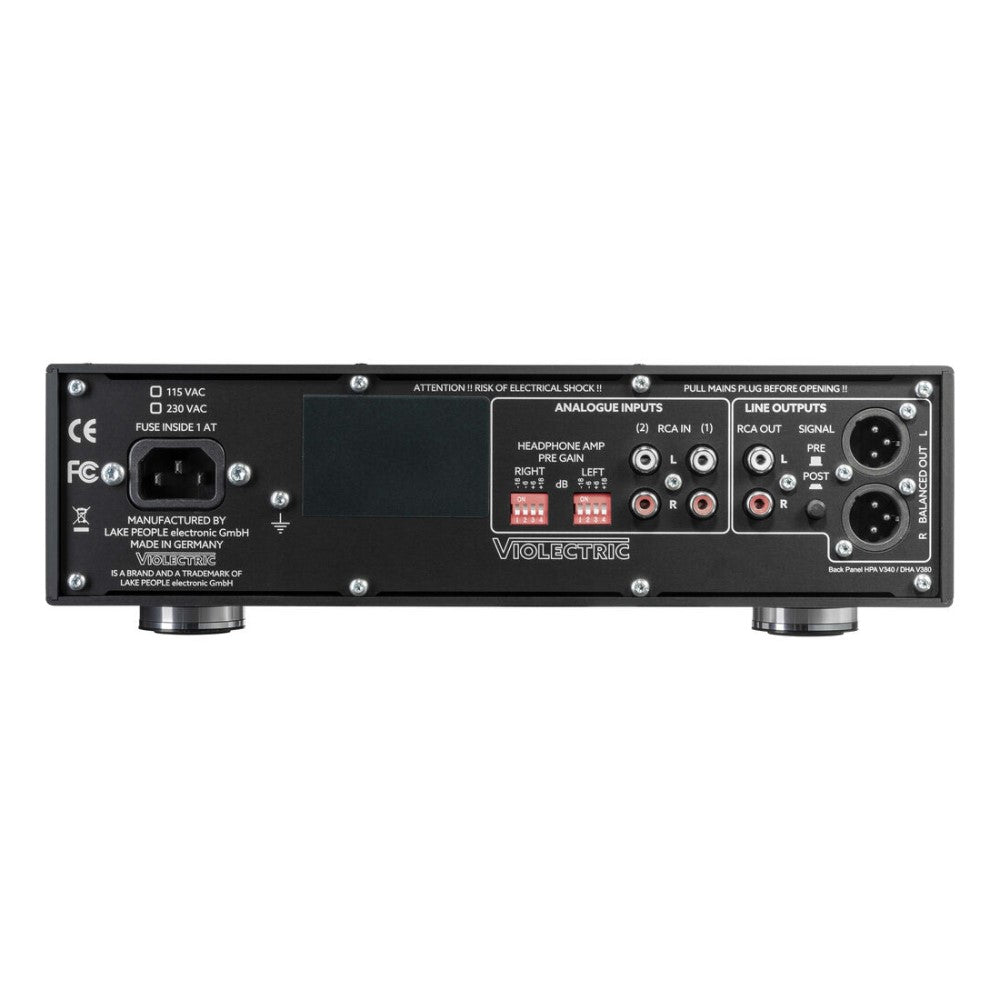

- Analogue Inputs: 4x RCA (unbalanced)
-
Stereo Outputs: 2x XLR 3-Pin (balanced), 2x RCA (unbalanced)

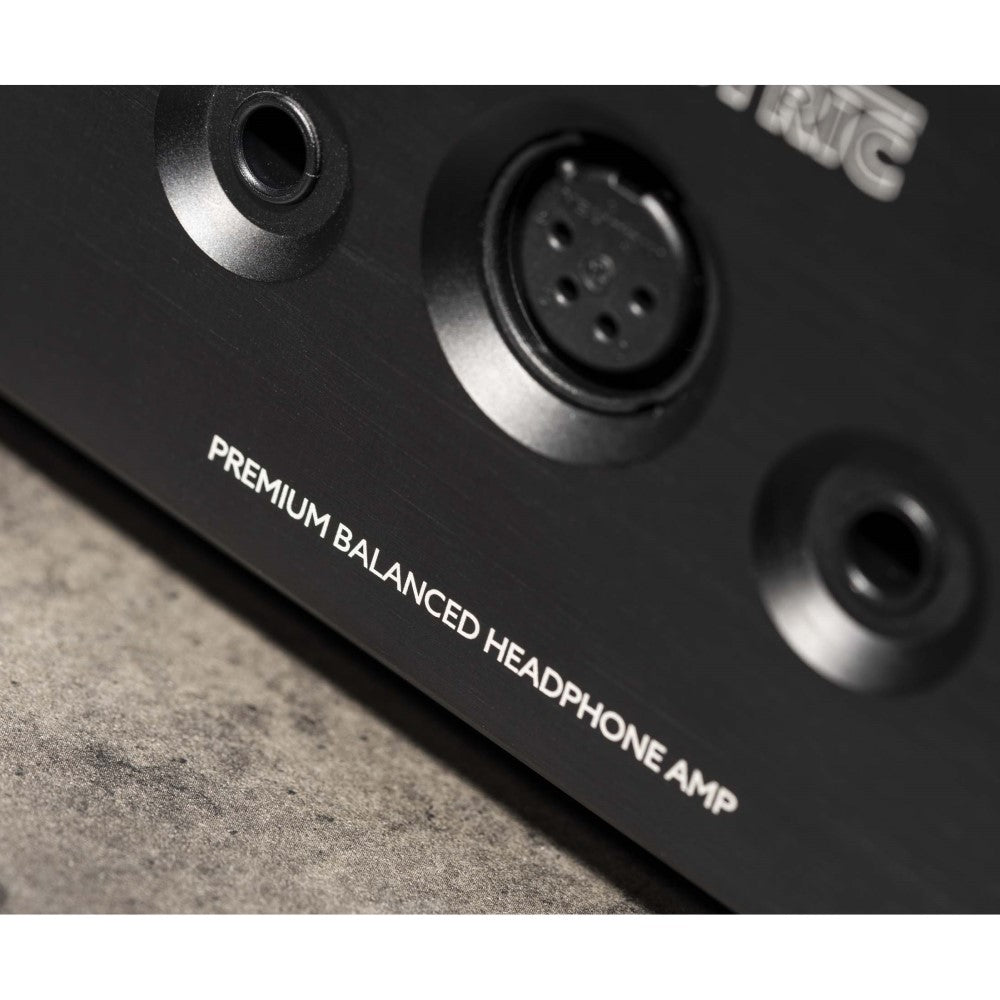

- Headphone Outputs: 2x 6.3mm jack (unbalanced), 1x XLR 4-Pin (balanced)
- Nominal input sensitivity: +6 dBu
- Max. Output voltage: 32 V
- Frequency range: 5 Hz ... 250 kHz (- 0,5 dB)
- Headphone Output Power: 50 mW @ 50 Ohms (Max), 18 mW @ 600 Ohms (Max)
- Input impedance: 10k Ohms
- Output impedance: < 0,2 Ohm
- Damping Factor: > 250 @ 50 Ohms
- Noise: <-100 dBu
- Crosstalk: -105 dB (1 kHz) / -100 dB (15 kHz)
-
Power Supply: Internal 230 V / 115 V AC
- Height: 90 mm
- Width: 290 mm
- Depth: 252 mm
- Weight: 3.4 kg
- Discover more Violectric [HPA V340]: https://www.violectric.de/en/products/headphone-preamps/violectric-hpa-v340
If you would like to confirm availability first or inquire for possible price-matching send us a quick mail.
