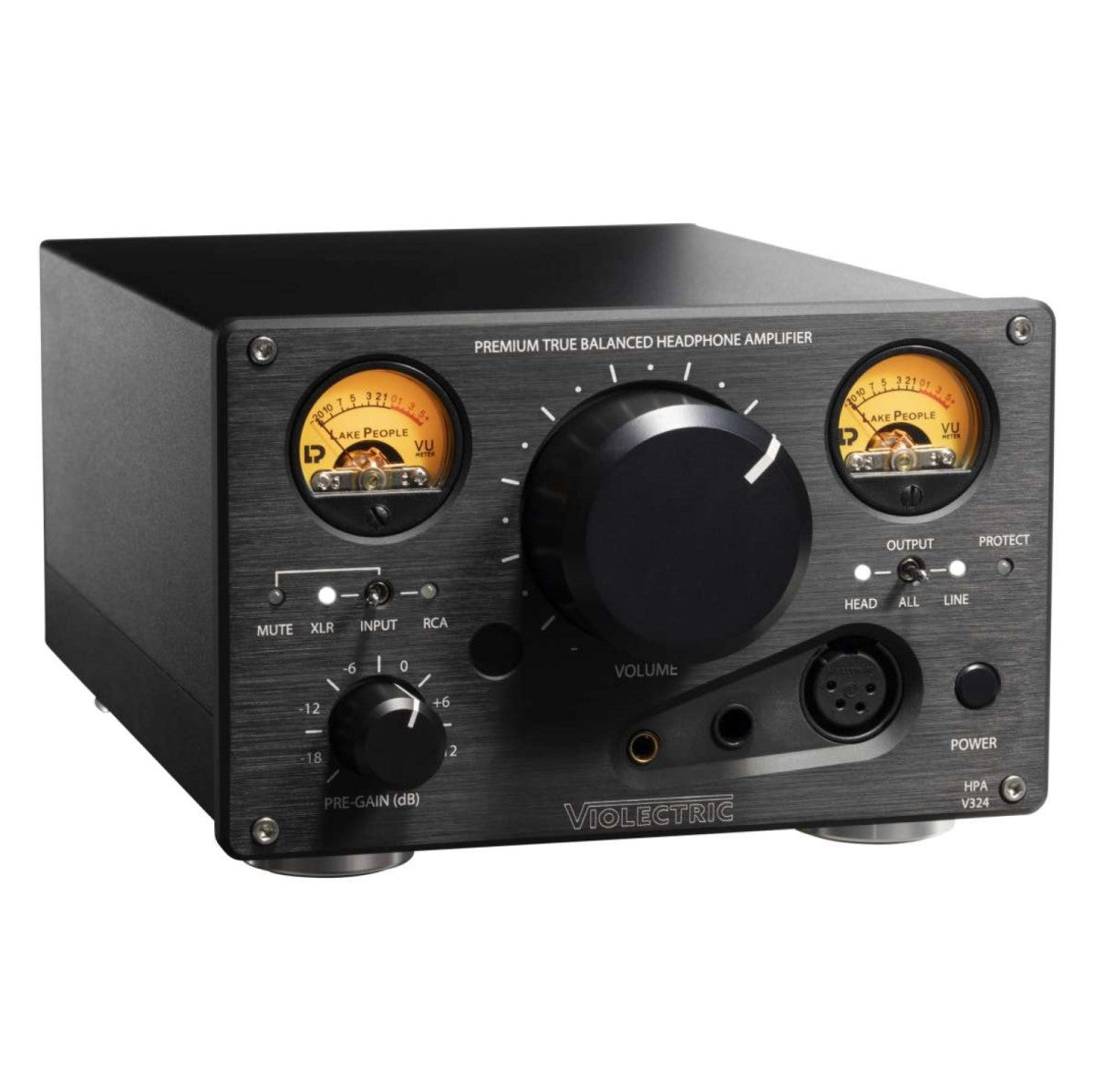

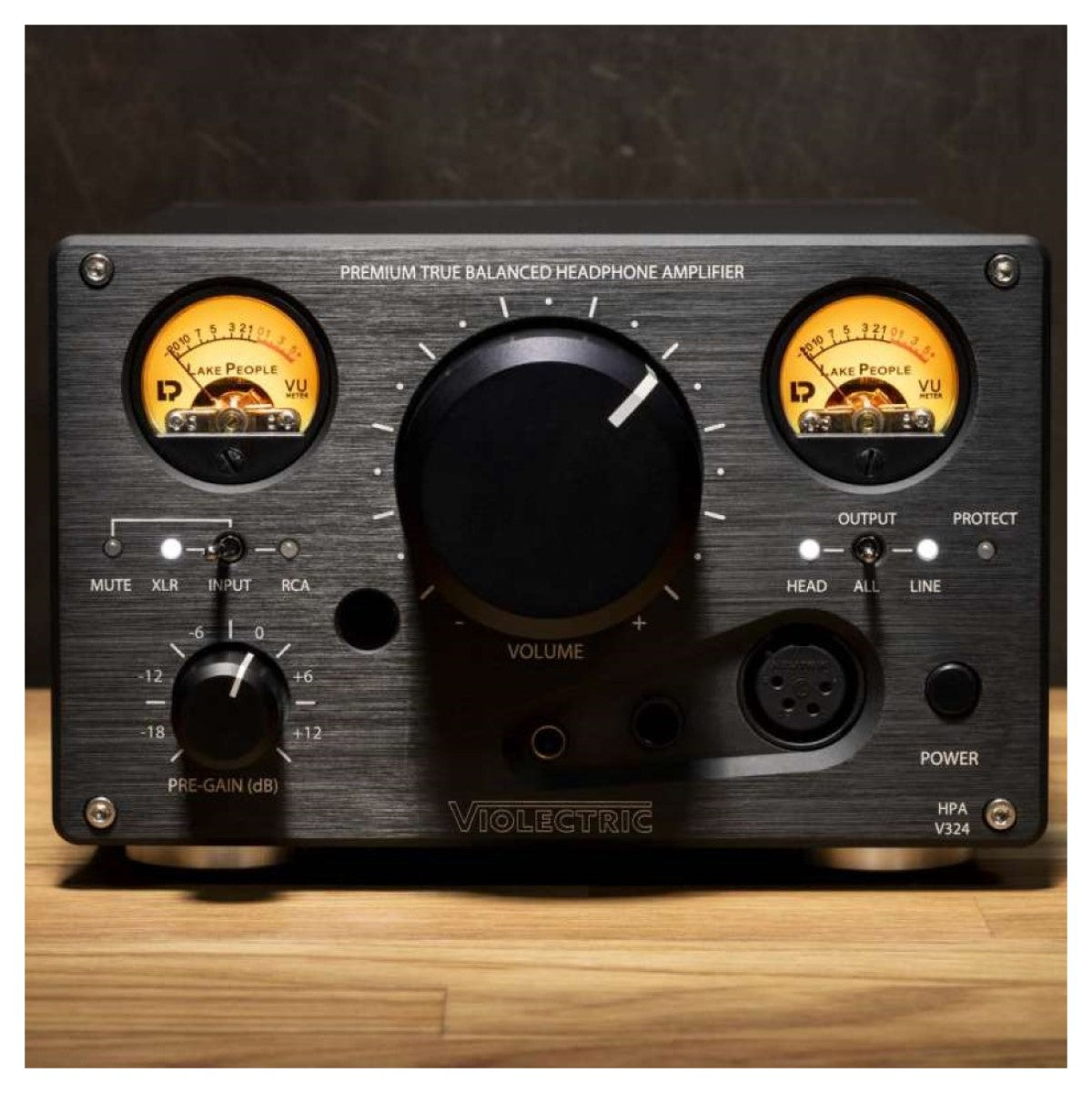

Violectric HPA V324: Premium Headphone Amplifier

Uncompromising Signal Purity

The Violectric HPA V324 is an exceptionally powerful, balanced headphone amplifier with preamplifier function, combining the superior technologies, outstanding strengths, and award-winning features of the test-winning products from Lake People, Violectric, and Niimbus.

With four amplifier stages for true balanced playback (TRUE-BALANCED), two analogue inputs (XLR and RCA), front-panel PRE-GAIN adjustment, remotely controllable motorised volume pot, preamplifier functionality, balanced and unbalanced line outputs, and calibrated VU meters for level display, the HPA V324 offers a unique set of features.

Main features:

• TRUE-BALANCED Technology: Four amplifier stages for true balanced playback – maximum signal fidelity for high-resolution audio experiences.
• 1 balanced XLR input and 1 unbalanced RCA input

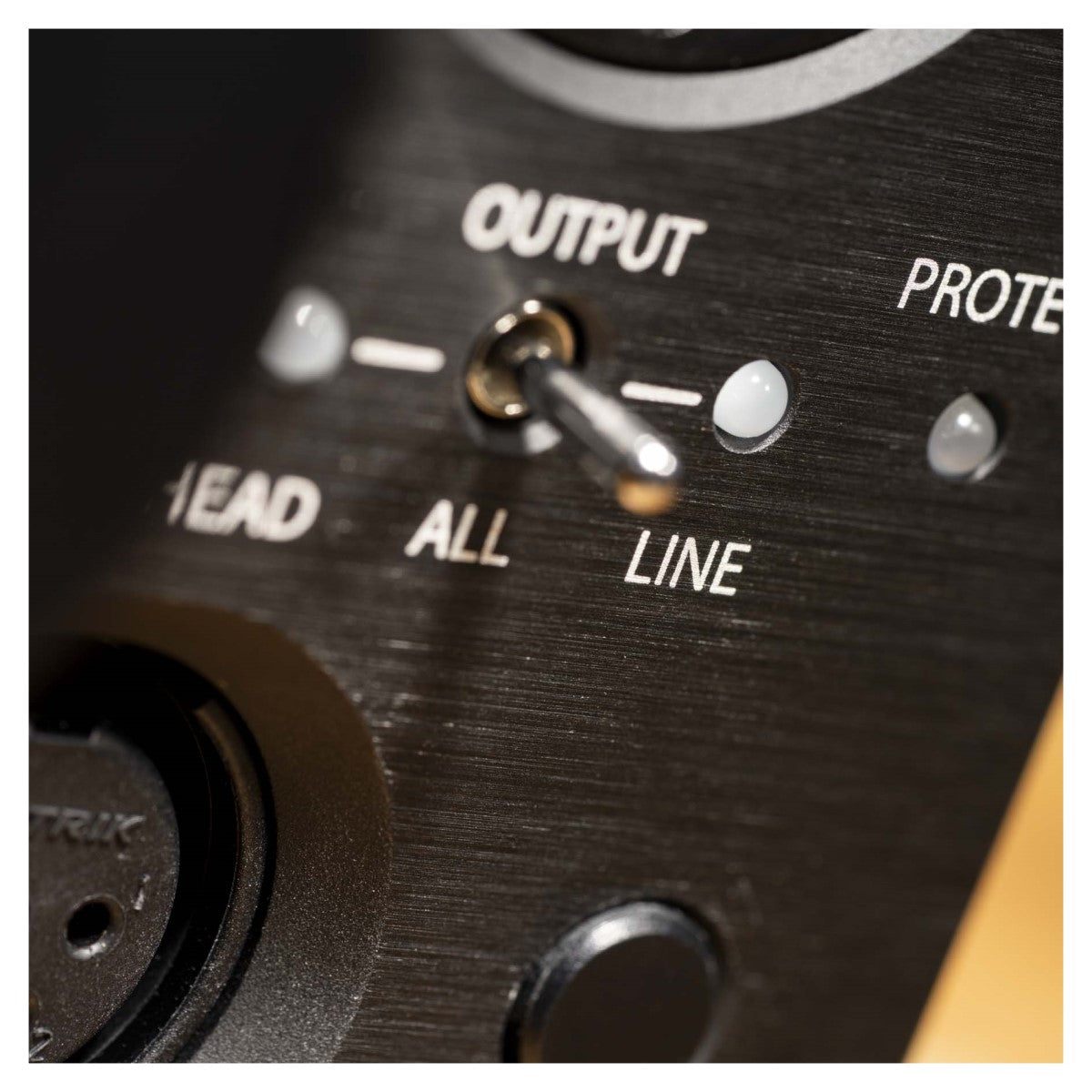

• 2 outputs (balanced XLR, unbalanced RCA): Separately switchable for use as a pure headphone amplifier or preamplifier.
• PRE-GAIN: 6-step adjustable gain

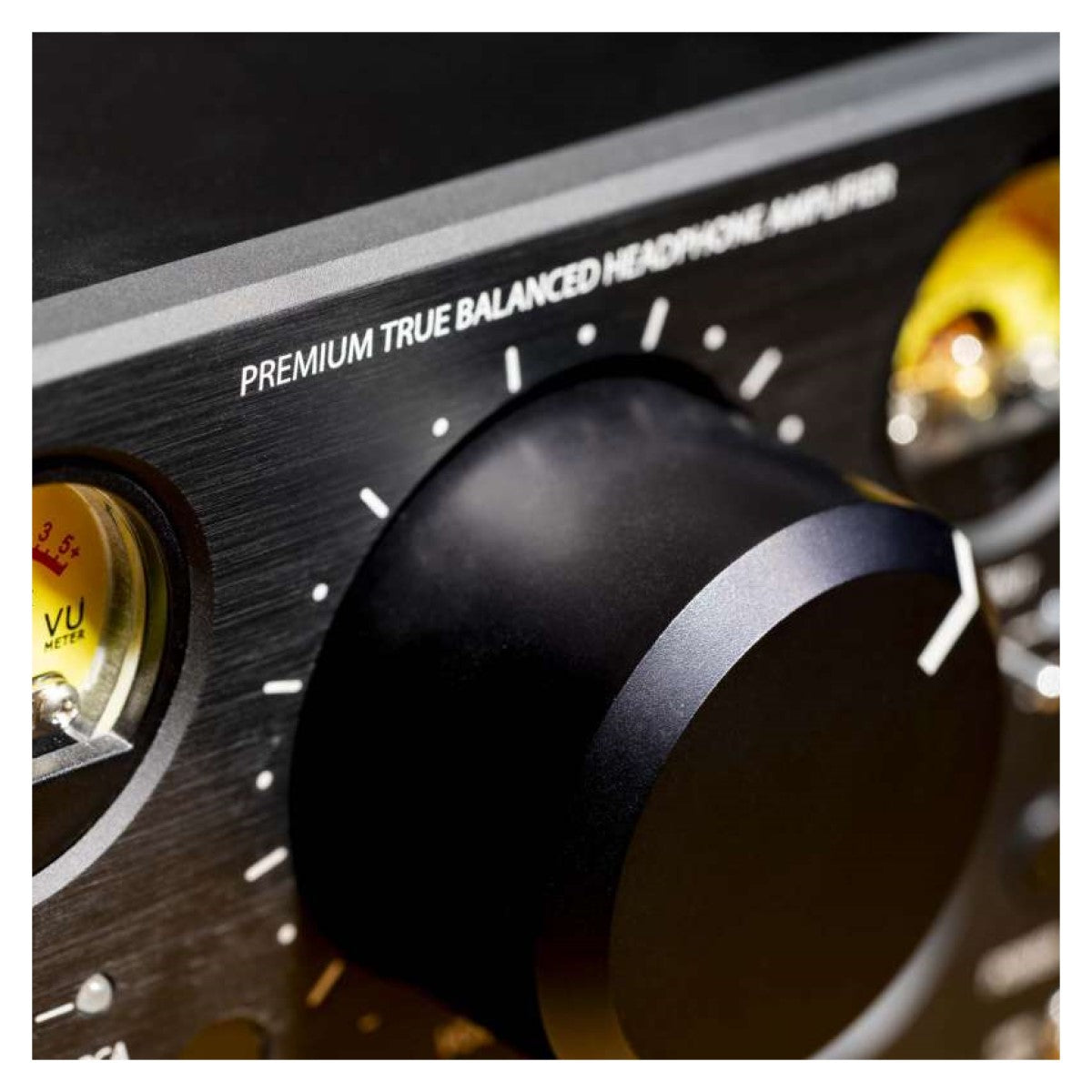

• Motorised potentiometer for remote control
• Precise, continuously dimmable VU meters for visual input level monitoring.
• 5000 mW power at 50 ohms and 21 V RMS at 600 ohms, with an exceptionally low noise level of -102 dBu (A-weighted).


Tech Specs:

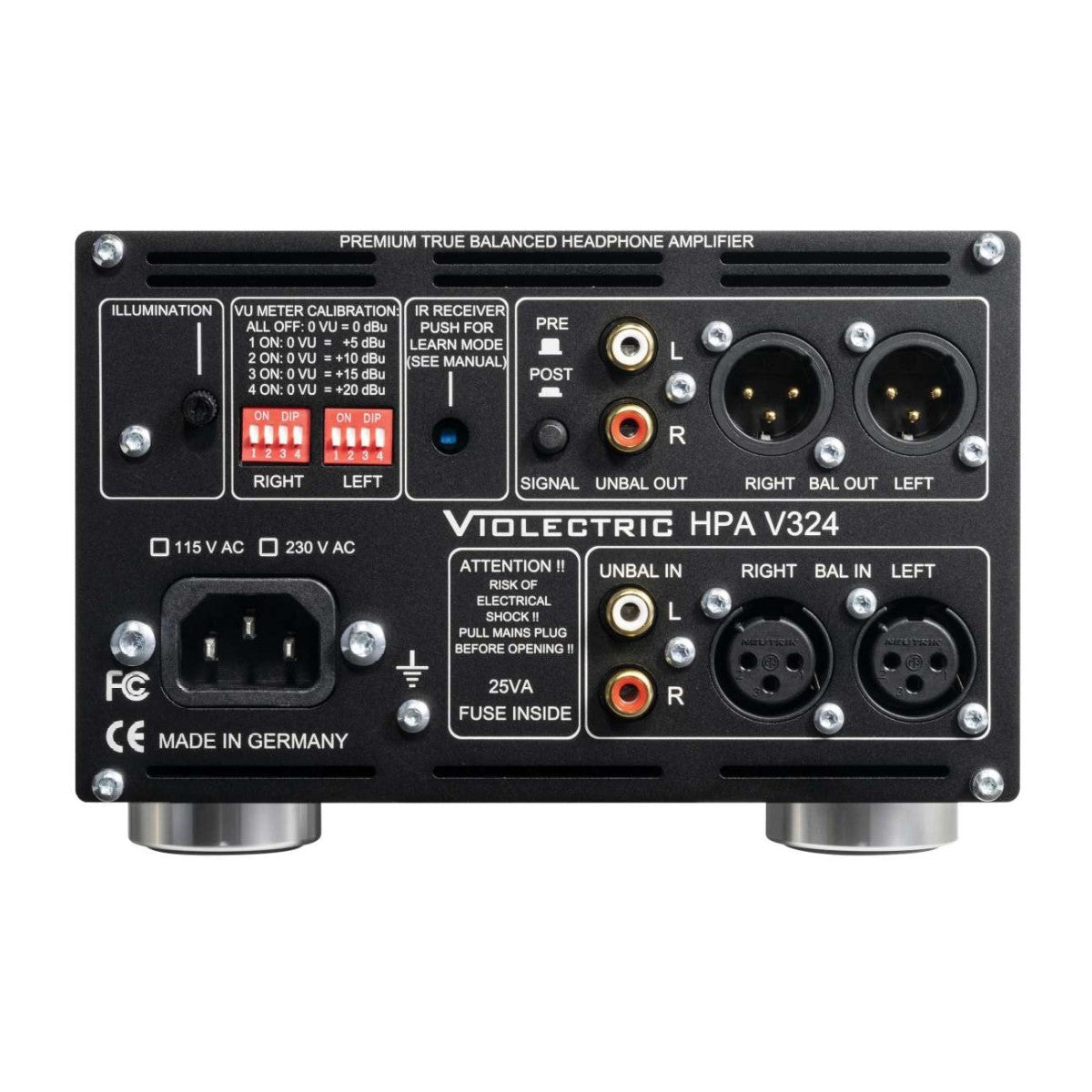

• Inputs: 1x balanced, XLR; 1x unbalanced RCA
• Outputs: 1x balanced, XLR; 1x unbalanced, RCA
• Adjustable gain (Pre-Gain): -18/-12/-6/0/+6/+12 db
• Headphone Outputs: 1x XLR 4-pin, 1x Pentaconn, 1x 6,3mm stereo jack
• Volume Knob: 50mm Aluminum
• Frequency range: 5 Hz - 150 kHz
• Input Impedance: 10 kOhm
• Input Sensitivity: +6 dBu
• Signal-to-noise ratio (SNR): < 102 dBu (A-bew.)
• Crosstalk: -105 / -100 dB (1 kHz/15 kHz)
• Dimensions (WxHxD): 170 x 113 x 250mm
• Power supply: Internal 230 V / 115 V AC
