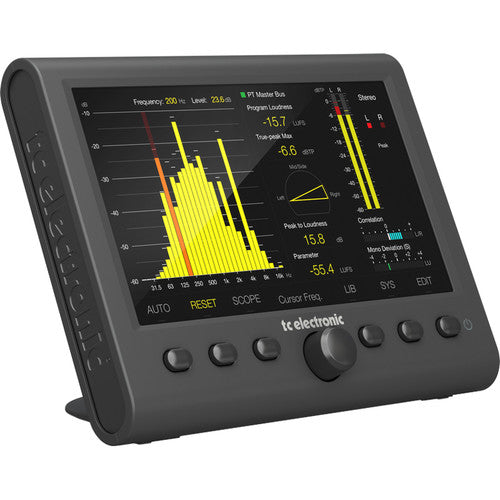

TC Electronic CLARITY M STEREO - Special Order

Thee Desktop Audio Meter for Stereo Applications. Stereo Audio Meter with 7" High-resolution Display and USB Connection for Plug-in Metering for Mixing, Mastering and Post Production.

TC Electronic's CLARITY M STEREO provides precise visual metering that helps you make crucial decisions during audio production, mixing, and mastering, and also works in stereo post-production applications. The 7" high-resolution display can show a quick overview or the important fine points at a glance. Aside from standalone operation, the unit supports plug-in metering via all modern plug-in standards, allowing a user to work with any preferred DAW.

Digital connectivity via the included custom breakout cable hosts two channels of unbalanced AES3 digital audio, connecting the meter to an external mixing desk, console, or audio interface for broadcast-grade metering. Also available is a stereo optical input that can connect to an audio interface through TOSLINK for maximum flexibility. One of the breakout cables allows you to hook up a two-button footswitch and easily reset the meter, as well as for triggering play and pause.

TC Electronic Clarity M Stereo Features:

• Professional stereo audio meter for mixing, mastering, and post production

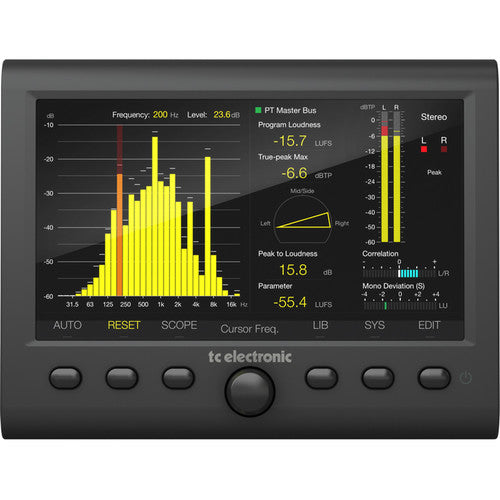

• 7" high-resolution LCD display for precision metering in all studio environments
• USB connection for hassle-free VST, Audio Units, and AAX plug-in metering
• Stereo 96kHz AES3 digital audio on 75-ohm BNC connectors for broadcast-grade metering
• Ultimate metering tool to check your mix for phase, balance, frequency distribution, loudness, clipping, channel weighting, and mono compatibility
• Vector scope for detailed left-right analysis
• High-accuracy real-time analyzer with 1/3-octave resolution
• Easy-to-read Balance-O-Meter to quickly check left-right and mid-side balances
• Precision correlation meter alerts you to phase issues
• State-of-the-art scalable true-peak meter identifies clipping in DACs, CODECs, and downstream filters
• Renowned LM6 loudness radar meter gives you all essential loudness monitoring information on a single screen
• Detailed statistics overview for all key loudness measuring parameters
• Allows for your custom logo on LCD display
• Compliant with all major broadcast standards, including ITU BS.1770-4, ATSC A/85, EBU R128, TR-B32, and OP-59
• RAM-mount compatible for wall or ceiling mounting (mounting hardware not included)
• Stereo optical input for TOSlink source
• General purpose input (GPI) for meter reset

Tech Specs

• Processor Type:Metering Toolbox
• Number of Channels:Stereo
• Digital Inputs:1 x Optical Toslink, 1 x DB-15 (AES3, S/PDIF)
• USB:1 x USB Micro-B
• Features:Metering Analysis, RTA, Vector Scope, Balance Check, Loudness Monitoring
• Software:Clarity M Plug-in App
• Power Supply:12V DC power supply (included)
