Tascam DR-70D 4 Channel Portable Field Recorder

Tascam DR-70D 4 Channel Portable Field Recorder

Portable Recorder for DSLR Cameras and more The Tascam DR-70D is a compact HQ audio recorder that allows the aspiring DSLR user to create audio recordings in...

Vendor :TASCAM

Type :Field Recorder

R7,395.00

Add to wishlist

Portable Recorder for DSLR Cameras and more

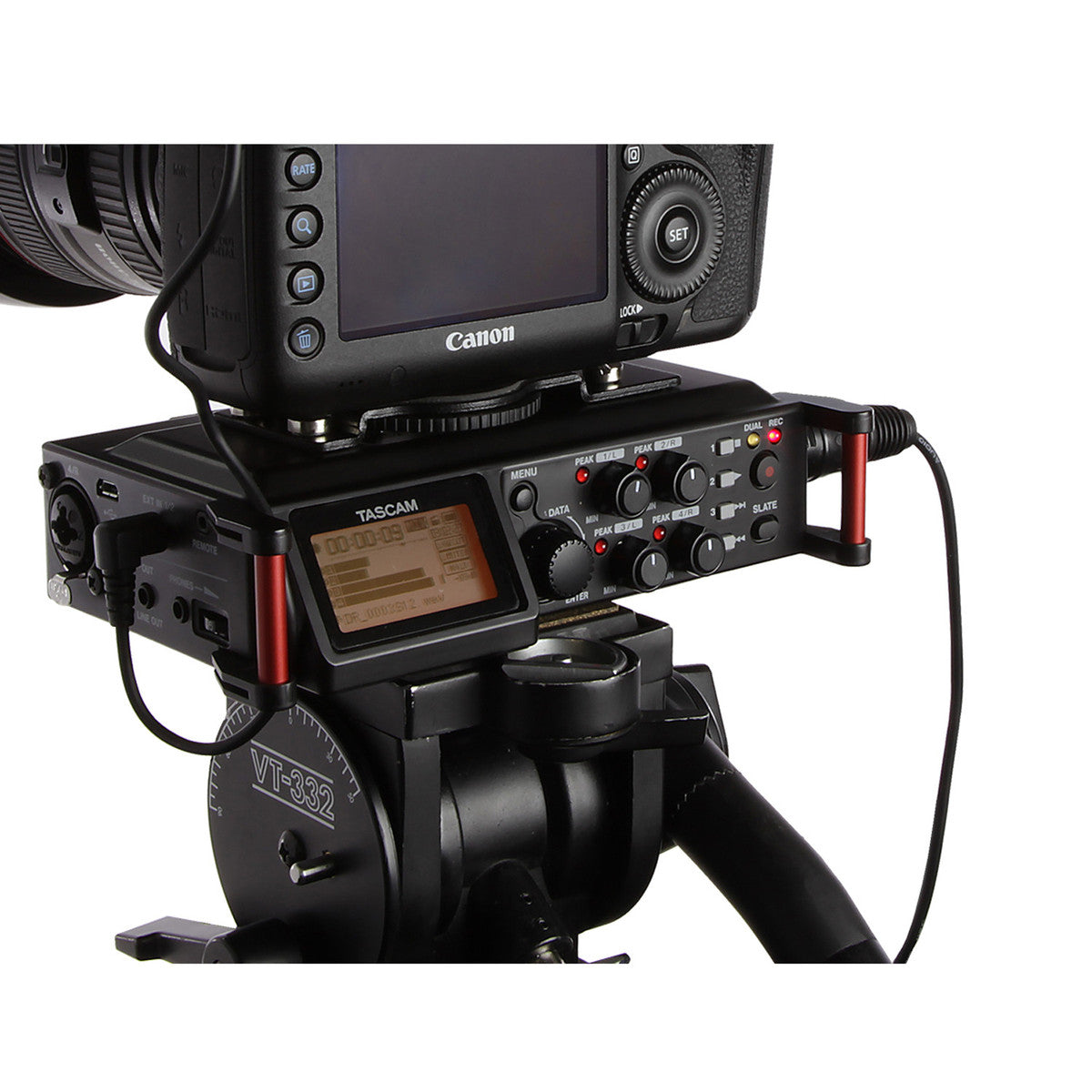

The Tascam DR-70D is a compact HQ audio recorder that allows the aspiring DSLR user to create audio recordings in very high quality in parallel to their film or video shots. The recorder can be mounted directly between a tripod and the camera or on top of the camera, resulting in a very nice portable and compact package.

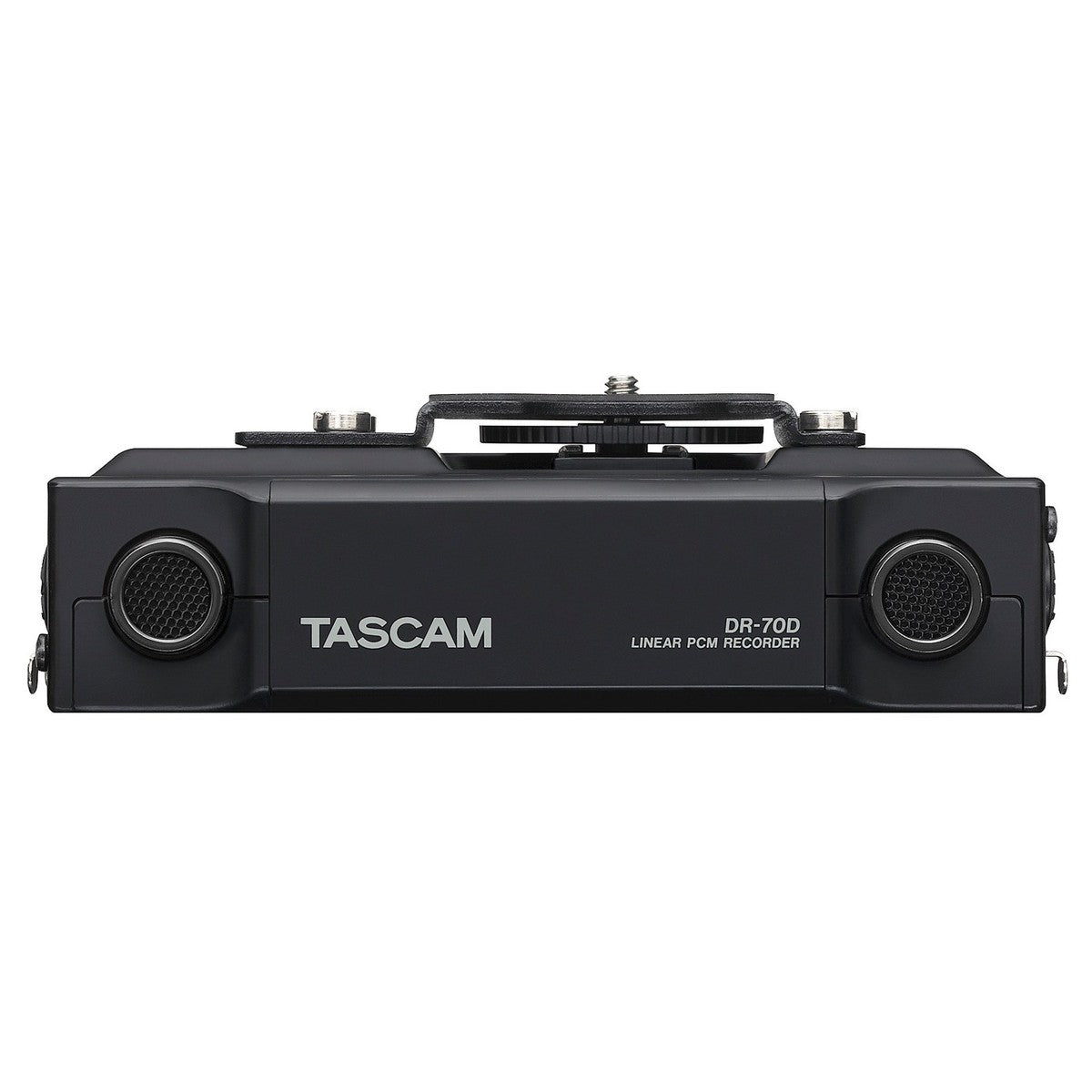

Two Built-in Microphones
The two omnidirectional microphones allow you to easily record natural stereo sound with just this unit. Used together with small shotgun mics, you can even record audio from people speaking in an interview and the ambient sound at the same time (on different tracks), for example, with a compact set up.

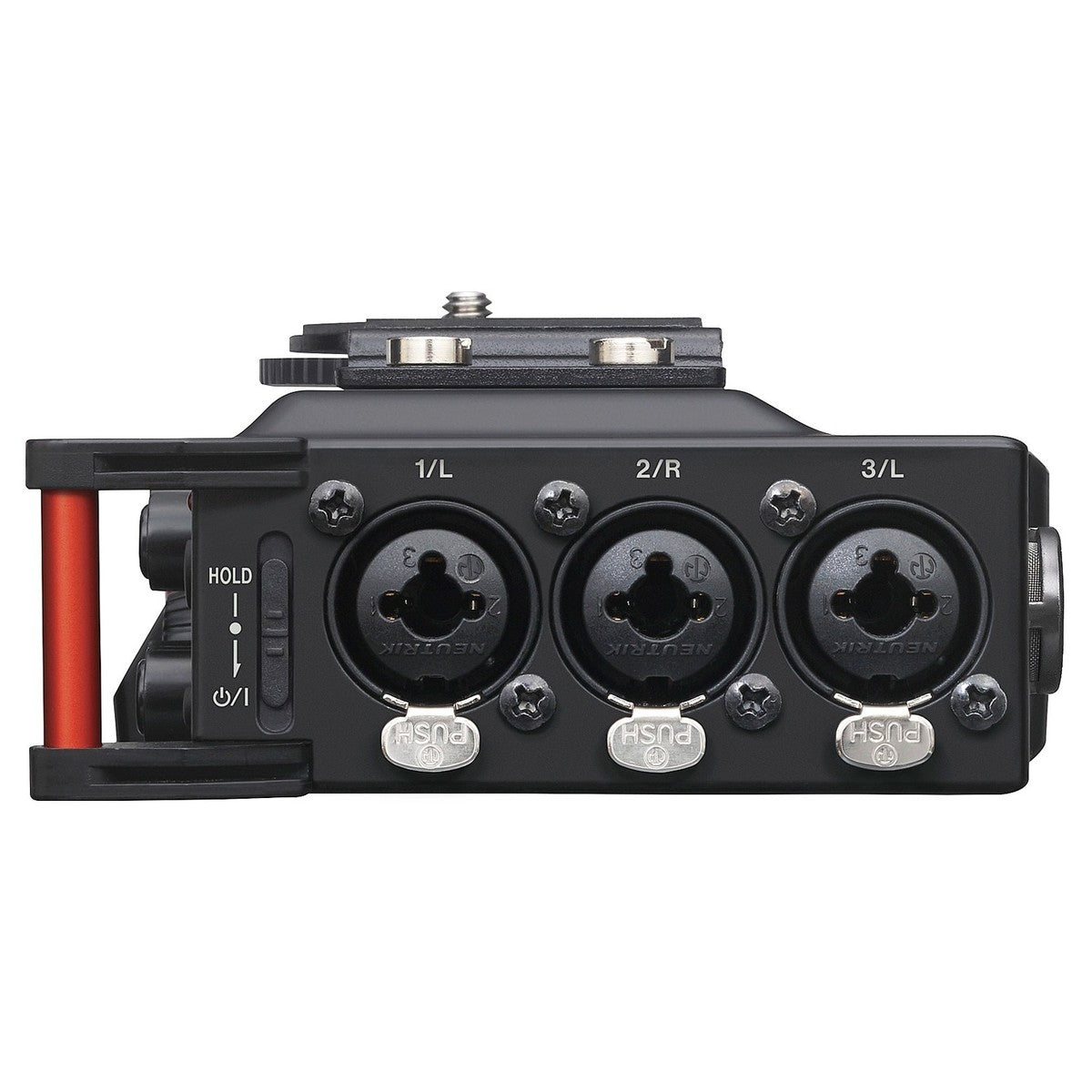

4 XLR/TRS Combo jacks allow a wide range of seupts
The four-channel design enables use of two shotgun mics and the stereo mic to record ambiance and each speaker individually. Since channels 1 and 2 can be set to the stereo input and channels 3 and 4 can be set to the built-in mic, a large variety of microphone setups is possible.

MONO/DUAL MONO mode: This is best for recording the audio of a single performer.
STEREO/DUAL STEREO mode: This is best for recording with the built-in microphone or a stereo mic.
2MIX/DUAL 2MIX mode: This creates stereo files of the signals of multiple inputs that have been mixed.

Built-in Mixer 4 inputs & 2 outpuuts
The mixer can take a total of 4 channels from among the four XLR inputs that support phantom power, the stereo mini-jack input and the built-in stereo mic. In addition to adjust pan and input level, this unit also offers a limiter, a five-setting low-cut filter and a delay that can compensate for distances between mics. Moreover, a mid-side decoding function allows the use of two microphones in mid-side configuration.

Quality Audio with HDDA Microphone Preamps
Mic preamps,  have a large impact on the quality of the recorded audio material. The DR-70D uses Tascam original HDDA (High Definition Discrete Architecture) microphone preamps that we created through careful selection of parts. With a mic amp circuit that uses discrete architecture comprised of meticulously-chosen parts, we have achieved an equivalent input noise of −120 dBu.
The A/D converter that converts analogue signals to digital is made by Cirrus Logic and is equivalent to those used in our successful DR series of linear PCM recorders. Recording at resolutions up to 96 kHz/24 bit is supported.

Main feauters:

  • 4-track 24-bit/96kHz portable audio recorder
  • Tailored for DSLRs and single-shooter cameras
  • Small form factor — mounts directly under/over your camera
  • Records audio onto SD/SDHC/SDXC cards up to 128GB
  • Power by 4 AA batteries, optional BP-6AA battery pack (not included), or included USB cable
  • 4 x low-noise HDDA mic preamps with phantom power, plug-in power, and +63dB of gain
  • Onboard stereo microphone for point-and-shoot operation
  • Rugged Neutrik combo XLR/TRS inputs

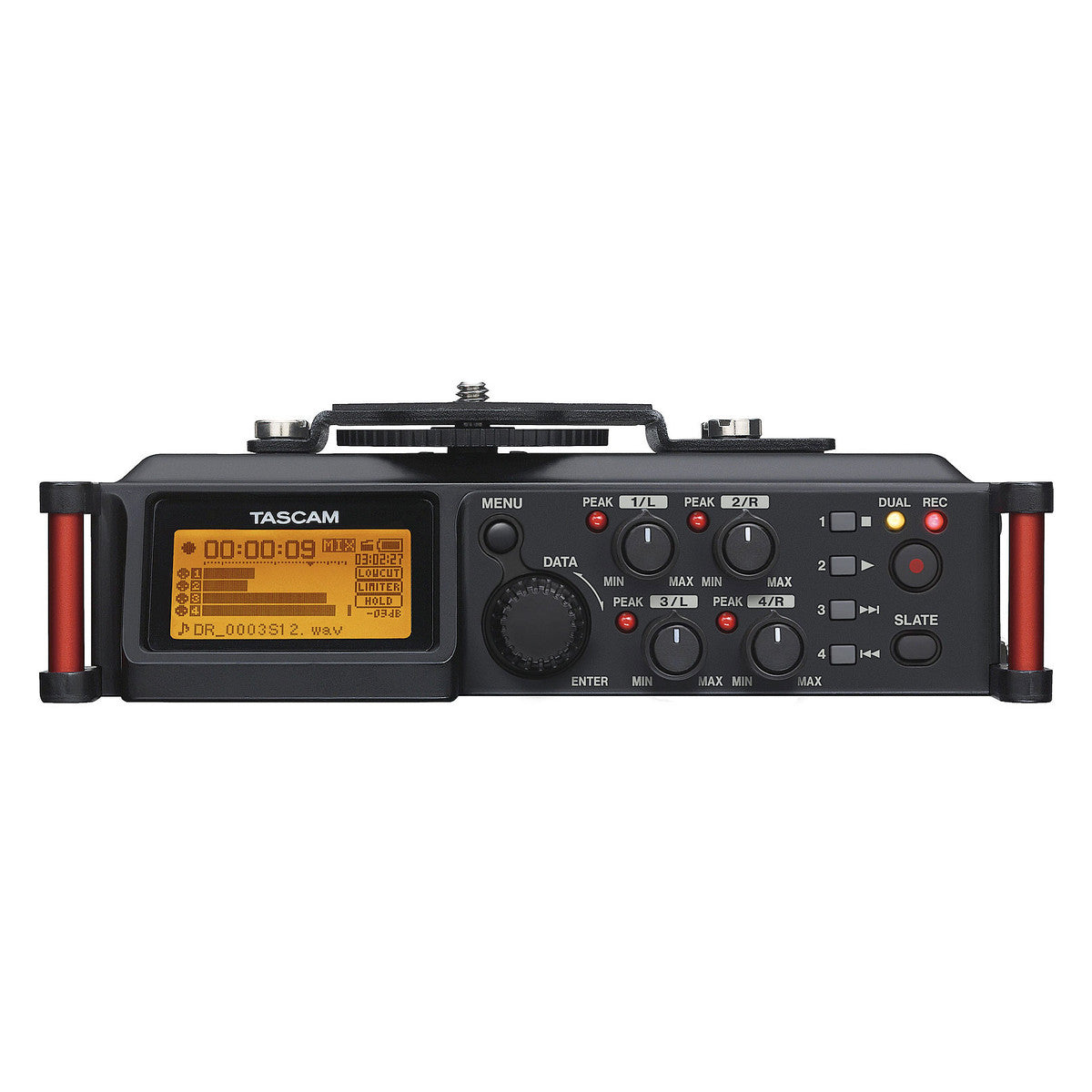

  • Hands-on level controls for all audio inputs
  • Dual recording can capture the same sound source at different levels
  • 1/8-inch camera audio in and out
  • 1/8-inch headphone jack for monitoring
  • Slate and transport controls
  • Onboard low-cut and limiter functions
  • USB 2.0 connection for file transfer
  • Backlit 128 x 64 LCD is easy to read in dim lighting conditions
  • RC-3F footswitch and RC-10 wired remote support

  • Tech Specs:

    • Audio Interface: Portable Audio Recorder
    • A/D Resolution: 24-bit/96kHz
    • Simultaneous Rec Tracks: 4
    • Built-in Mic(s): 1

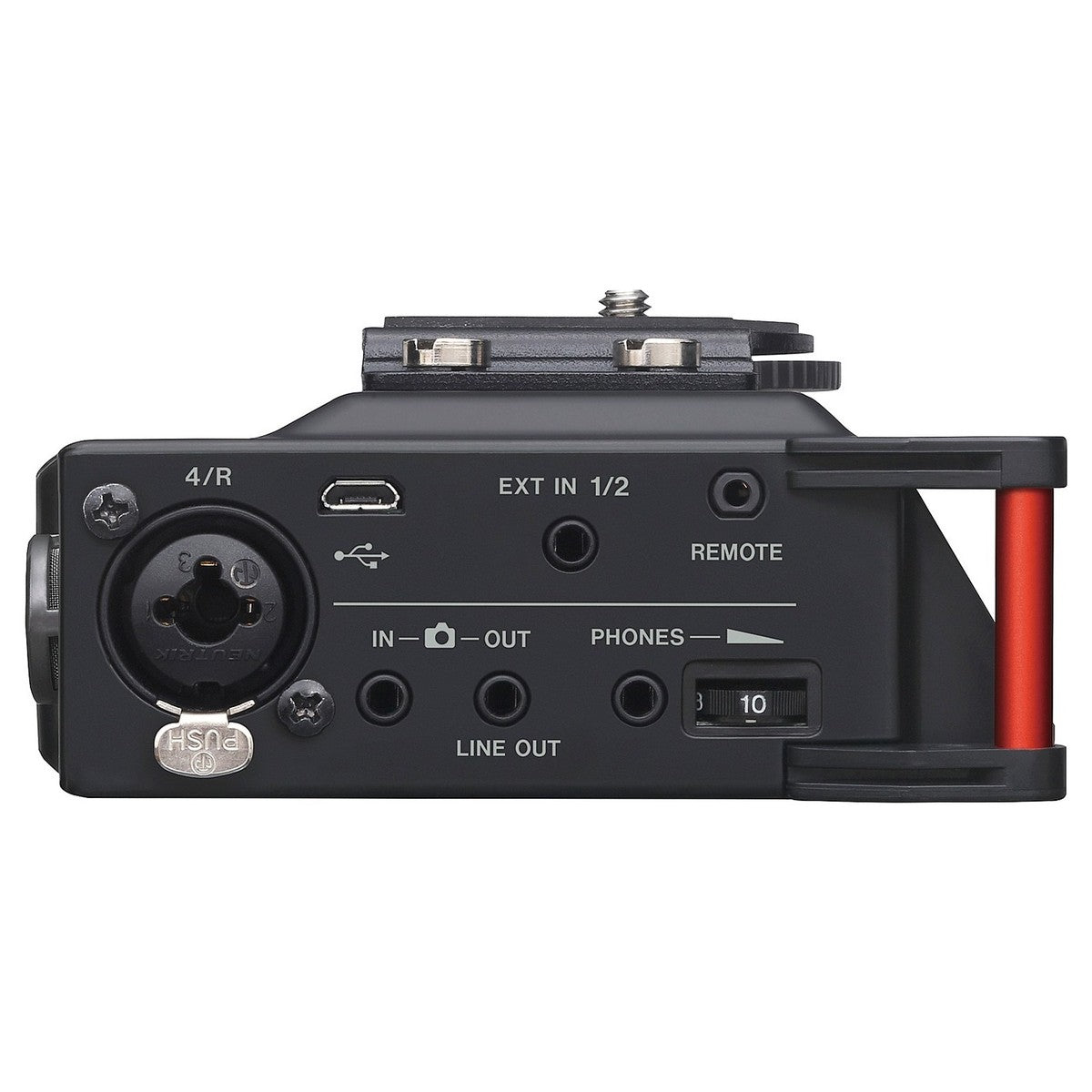

    • Analog Inputs: 4 x XLR-1/4" TRS combo, 1 x 1/8" (stereo 1/2), 1 x 1/8" (stereo camera)
    • Analog Outputs: 1 x 1/8" (stereo line), 1 x 1/8" (stereo camera)
    • Headphones: 1 x 1/8" (stereo)
    • Memory (removable): SDHC (up to 32GB), SDXC (up to 128GB)
    • File Format: WAV, BWF
    • USB: 1 x Type Micro-B
    • Other I/O: 1 x 2.5mm TRS (remote)
    • Additional Features: 48V Phantom Power
    • Power Supply: 4 x AA batteries (alkaline/NiMH), USB bus power, AC adapter (sold separately), External battery pack (sold separately)
    • Stand Mountable: 1/4" Thread
    • Height: 2.17" || 55 mm
    • Width: 6.65" || 169 mm
    • Depth: 4.19" || 107 mm
    • Weight: 1.16 lbs. || 530g
