TASCAM DR-40XP 4-Channel 32-Bit-Float Portable Field Recorder

Precision Audio, Absolute Headroom

The TASCAM DR-40XP is a professional 4-channel portable field recorder and USB-C audio interface for creators demanding studio-quality audio in the field. Perfect for location sound, live rehearsals, or on-the-move podcasting, this compact unit delivers world-class performance with versatile inputs and robust construction.

Infinite Headroom with 32-Bit Float
32-bit float recording eliminates clipping in high-stakes environments. Capture audio with virtually unlimited headroom - sudden peaks from live performances or unpredictable field sounds are easily recovered in post-production, giving you the security and transparency needed when there's no second take.

Ultra-Low Noise HDDA Preamplification
Tascam's proprietary HDDA preamps deliver exceptionally low noise at –126 dBu, ensuring pristine, detailed recordings even with demanding microphones. Your source remains clean and hiss-free, letting natural character shine through.

Versatile Capture with Adjustable Microphones
RF-resistant stereo condenser mics switch between X-Y (tight, focused) and A-B (wide, immersive) modes, handling up to 125 dB SPL. Enhanced shielding blocks mobile device interference for clean, high-fidelity capture in any environment.

Main features:

• 4-channel multi-track recording for capturing internal and external sources simultaneously
• Integrated 2-in/2-out USB-C audio interface for direct tracking to DAWs or iOS devices
• Support for high-capacity microSDXC cards up to 512 GB

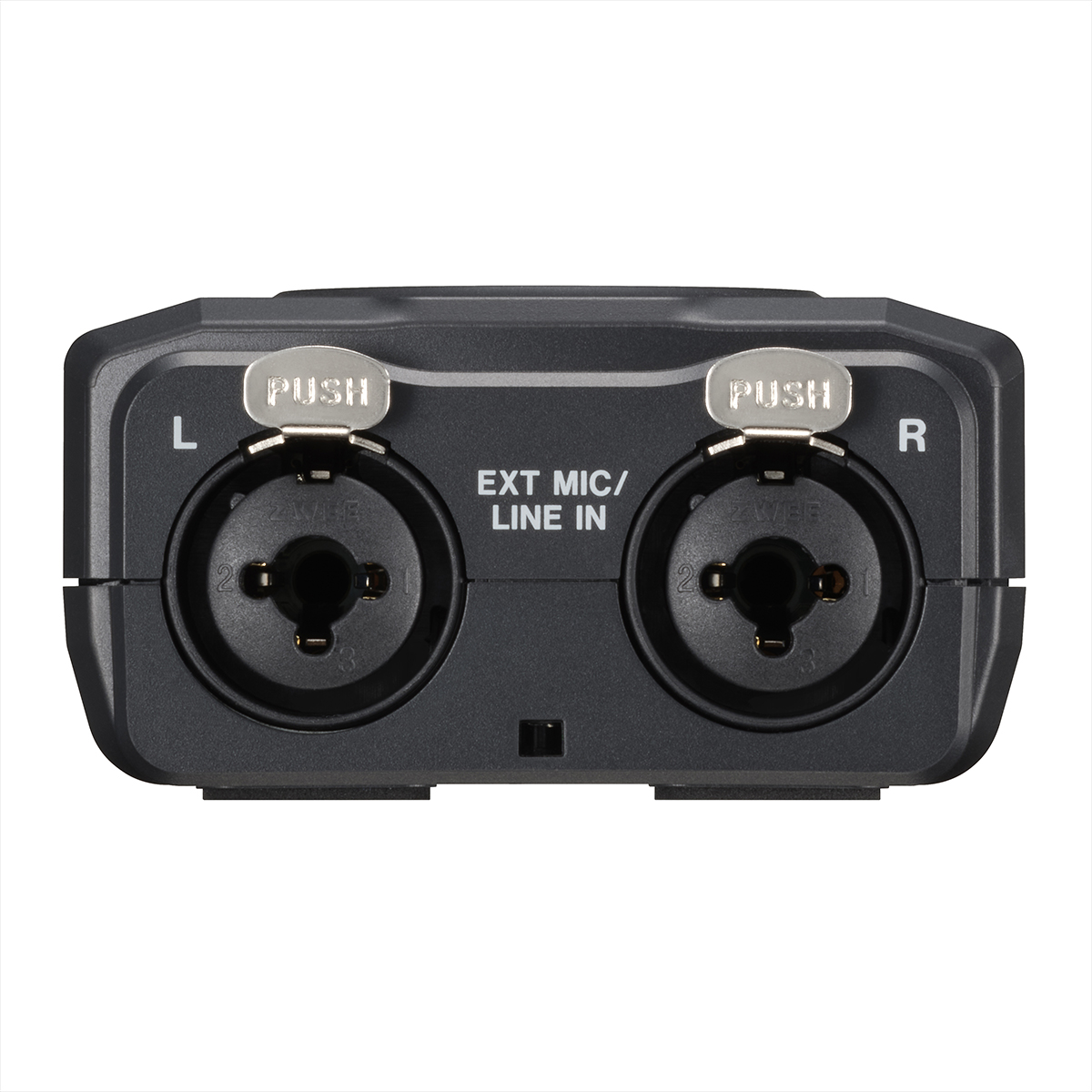

• Two XLR/TRS combo inputs with +48 V phantom power for professional external microphones
• Non-destructive overdubbing and punch-in overwrite functions for versatile music production
• Dedicated slate tone generator for seamless audio-video synchronisation
• Extended battery operation reaching up to 30 hours using lithium cells
• Built-in chromatic tuner and reverb effects for polished vocal and instrument resonance

Package Includes

1x Tascam DR-40XP
1x Safety guide (including warranty)
1x TASCAM ID registration guide

Tech Specs:

• Type: 4-Channel Portable Field Recorder & USB-C Audio Interface
• Recording Media: microSD, microSDHC, microSDXC (up to 512 GB)
• File Formats: WAV (BWF) 16/24-bit/32-bit float; MP3 32–320 kbps
• Sampling Rates: 44.1 kHz, 48 kHz, 96 kHz
• Quantisation Bit Depth: 16-bit / 24-bit / 32-bit float
• Equivalent Input Noise: –126 dBu or lower
• Dynamic Range: 112 dB or higher
• Total Harmonic Distortion: 0.008% or lower
• Analogue Inputs: 2x XLR/TRS combo (balanced Mic/Line)
• Phantom Power: +24 V, +48 V (XLR inputs only)
• Max Input Level (Line): +24 dBu
• Analogue Output: 3.5 mm stereo mini jack (Line/Phones)
• USB Port: USB-C (USB 2.0 High Speed)
• USB Audio Interface: 2-in / 2-out; 44.1 / 48 kHz
• Built-in Speaker: 0.3 W monaural
• Power Requirements: 3 AA batteries, USB bus power, or AC adapter
• Max Power Consumption: 1.7 W
• Dimensions (W x H x D): 90 x 155 x 35 mm (mics open)
• Weight: 285 g (with batteries); 213 g (without batteries)
• Discover Tascam Premium Portable Recording: https://tascam.jp/int/product/dr-40xp
