SPL BiG Studio Stereo Image Processor - Special Order

The SPL BiG Studio redefines what’s possible in stereo enhancement, expanding your mix with greater width, depth, and presence, all while maintaining perfect mono compatibility. Housed in the sleek black design of the SPL Studio Series, this 19" rackmount processor offers both innovation and analog warmth through a completely new stereo-processing architecture powered by ±18V high-voltage rails for maximum headroom and clarity.

SPL BiG Studio Features:

• Stereo image processor and tube harmonics generator
• Range control selects frequency range
• Stage control moves selected frequency range forward or backward in the soundstage
• Harmonics button activates harmonics generation in the tube circuit
• Tube Harmonics control adjusts the intensity of the tube harmonics
• Bigness control sets overall processing intensity
• Bass button switches in a passive bass boost
• Bypass toggle for easy wet/dry comparison
• Frequency response (-3dB): 10Hz–200kHz
• THD+N (0dBu, 10Hz–22kHz): 0.0035%
• Noise (A-weighted): -97.5dBu
• Dynamic range: 120dB
• Bass frequency: 42Hz; Bass boost: 2dB
• Harmonics frequency: 6kHz; Harmonics boost (max.): 9dB

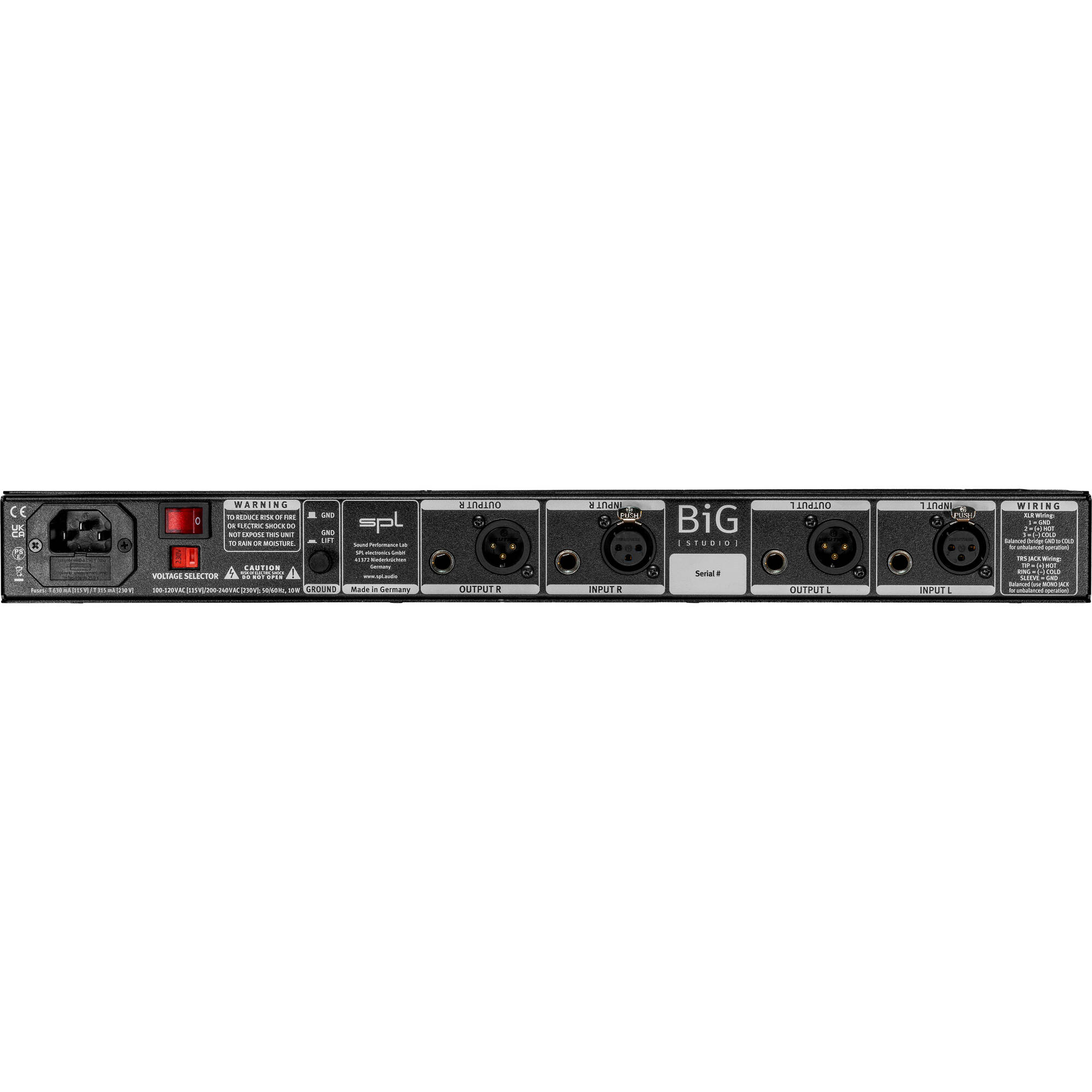

• I/O: gold-plated Neutrik XLRs and TRS jacks (connected in parallel)
• Internal linear power supply with a shielded toroidal transformer
• Mains (selectable): 115VAC/60Hz, 230VAC/50Hz
• Crafted in SPL’s production facility in Niederkrüchten, Germany

Tech Specs

• Type: Stereo Stage Processor
• Effects: Range, Stage, Harmonics, Bigness, Bass
• EQ: Yes
• Channels: 2
• Inputs: 2 x XLR, 2 x 1/4" TRS
• Outputs: 2 x XLR, 2 x 1/4" TRS
• Form Factor: Rackmount
• Power Supply:  Standard IEC AC Cable
