SPL BIG 500 Series Stereo Image Processor
Tax included.
Description
Stereo Image Made Bigger

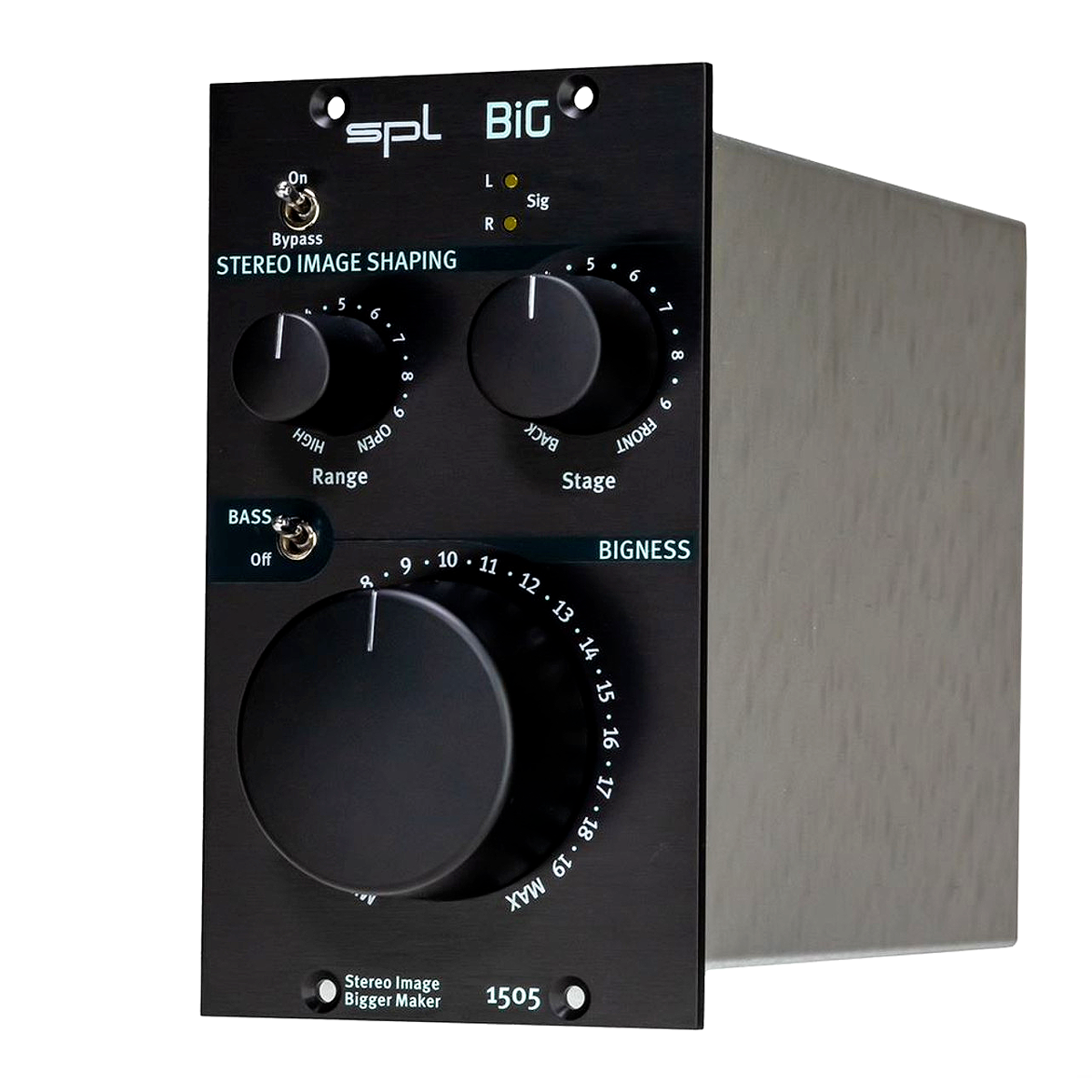

The BIG 500 Series Module from SPL (Sound Performance Lab) enlarges the stereo image in a new manner and opens up new creative ways of sound shaping. The SPL BIG is a double-slot module compatible with any 500 Series chassis and features just three controls making BIG simple and intuitive when it comes to adjusting the intensity of your mixes.

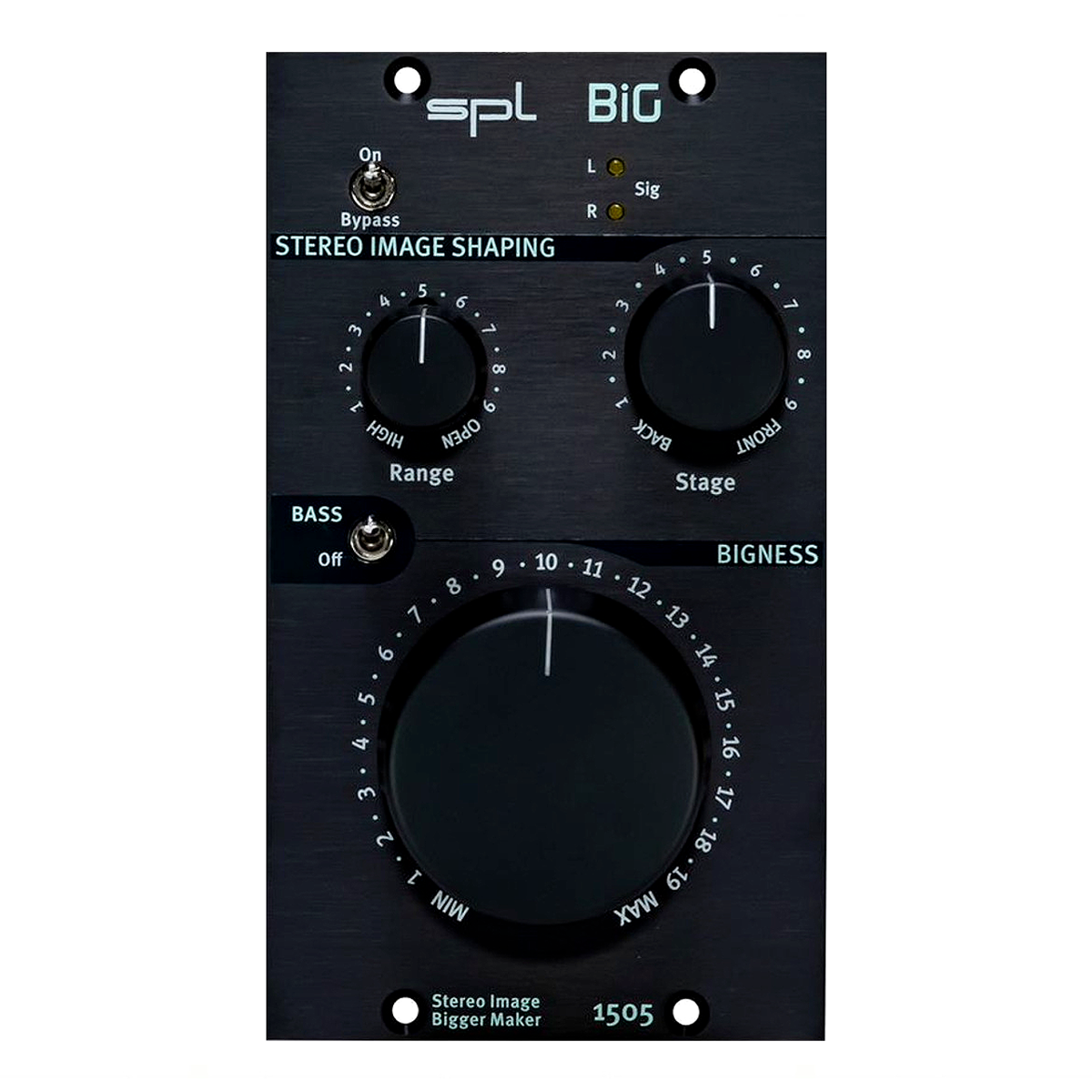

Stereo Image Shaping
Range - With the Range control, the frequency Range which should be processed can be selected.
Stage- With the Stage control, the frequency range previously selected with the Range control can be moved backwards or forwards on the stereo stage.
BASS - The BASS/Off switch can be used to activate (BASS) or deactivate (Off) an additional bass boost following the BIGNESS section. The bass boost is performed by a passive filter implemented in a similar circuit to the one used in the AirBass function of the SPL IRON Mastering Compressor.
On/Bypass
The On/Bypass switch activates (On) or deactivates (Bypass) the module. This allows you to quickly switch between processed and unprocessed signal.
Signal LEDs
The signal LEDs (Sig) indicate whether an audio signal is present at the input of the respective channel. (With a level higher than -20 dBu).
Main features:
Tech Specs
- Type: Stereo Stage Processor
- Controls: Range, Stage, Bigness
- Bypass: Yes
- Module Slot Size: Double
-
Frequency Range (-3 dB): 10 Hz – 100 kHz
-
THD +N (0 dBu, 10 Hz – 22 kHz): 0.03 %
- Noise (A-weighted): -92.3 dBu
- Warranty: Limited 2-Years
- Weight: 0.9 Kg
- Discover more SPL 500 Series [BIG]: https://spl.audio/en/spl-produkt/big/
But If you want to confirm availability first or inquire for possible discounts send us a quick mail or open the chat tab.
