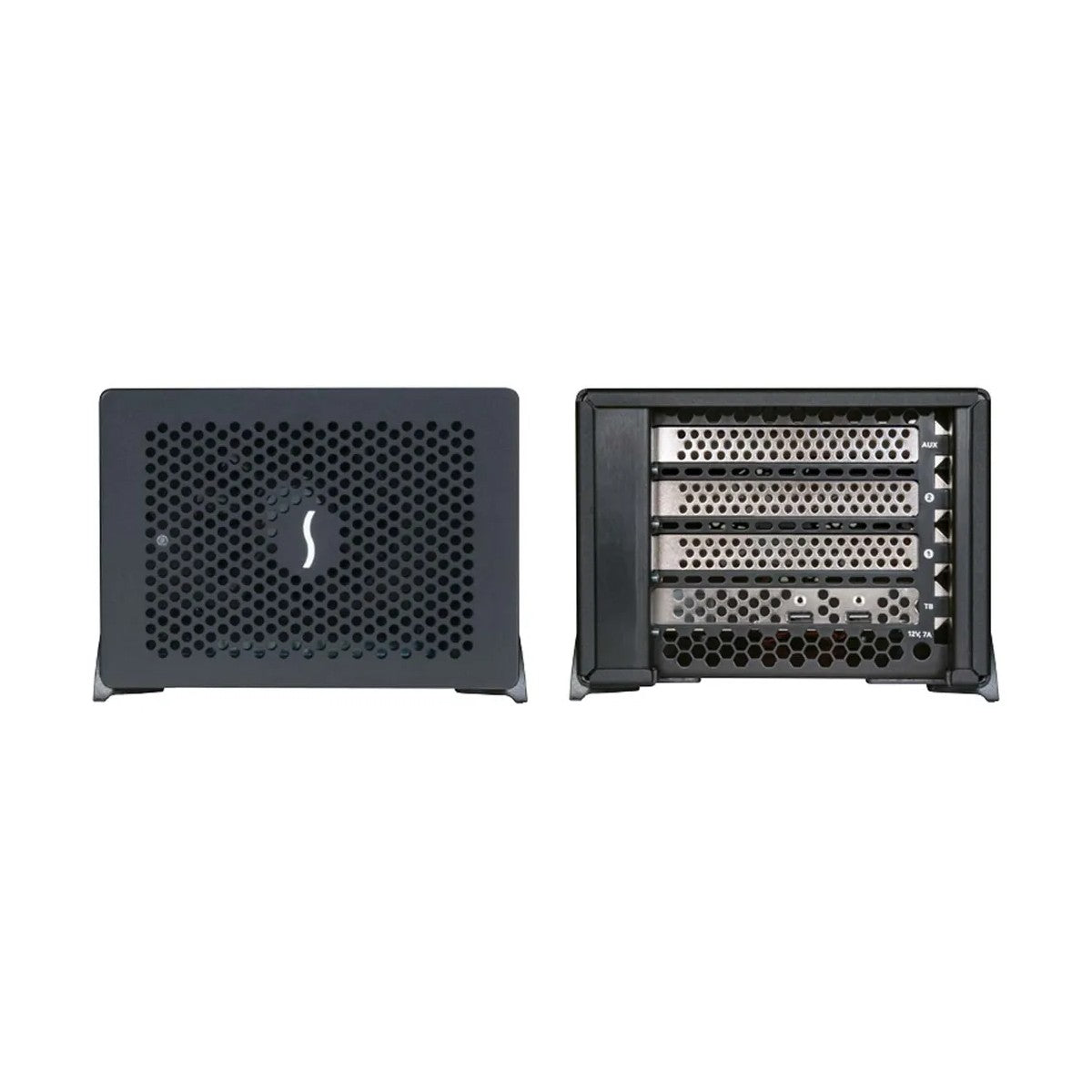

Sonnet Echo Express SE IIIe Thunderbolt 3 Edition - 3-Slot PCIe Card Expansion System
Tax included.
Welcome to Thunderbolt 3: Echo Express SE IIIe
The Sonnet Echo Express SE IIIe Thunderbolt 3 Edition is the ultimate compact desktop expansion system, delivering essential PCIe slot connectivity for your Mac, Windows, or Linux computer. It transforms a single Thunderbolt port on your computer into a powerful workstation hub, providing the I/O expansion you need for professional workflows. Although Mac and PCs with Thunderbolt ports offer processing power to spare, they often lack the PCIe slots required for specialty cards that add video/audio inputs, transcode data, and connect to high-speed networks and storage.
The Echo Express SE IIIe is designed for professionals who demand flexibility and full-speed performance from their PCIe cards
- Three PCIe 3.0 x8 Slots: Connect up to three professional cards simultaneously.
- Full Bandwidth: Offers full PCIe bandwidth to the installed cards via the Thunderbolt interface.
- Connecting Video Capture/Playback Cards (e.g., AJA, Blackmagic Design)
- Adding High-Speed Network Cards (e.g., 10GbE, Fibre Channel)
- Using Professional Audio DSP and Interface Cards
- Installing SAS/SATA RAID Controllers
The Thunderbolt 3 interface provides the high-speed bandwidth needed to support demanding professional cards at their full potential.
- Up to 40 Gb/s Data Speed: Provides the PCIe bandwidth required for three high-performance cards.
- Daisy-Chain Support: Connect additional Thunderbolt peripheral devices through the second port.
- Single-Cable Simplicity: Power and data flow all through one included cable.
No internal slots. No compromise. Just essential I/O. The SE IIIe supports nearly every Thunderbolt-compatible, non-GPU PCIe card available, ensuring your specialized hardware works at peak performance.
- Universal Compatibility: Works with macOS, Windows, Chromebook, and iPad Pro (M-series).
- High-Speed NVMe SSD: Pre-installed 1TB / 2TB / 4TB Kingston drive.
- Ultimate Power: 140W PD charging keeps your laptop fully powered.
- Comprehensive I/O: 4x Thunderbolt 5, 4x USB-A, 2.5Gb Ethernet, SD/microSD, and audio.
- Professional Build: Sleek aluminum design with dual security slots.
- Extreme Performance: Up to 6000 MB/s read and 5000 MB/s write.
- Form Factor: Desktop Thunderbolt to PCIe Expansion System
- Host Connection: Thunderbolt 3
- Peripheral Ports::1 × Thunderbolt 3 (for daisy-chain)

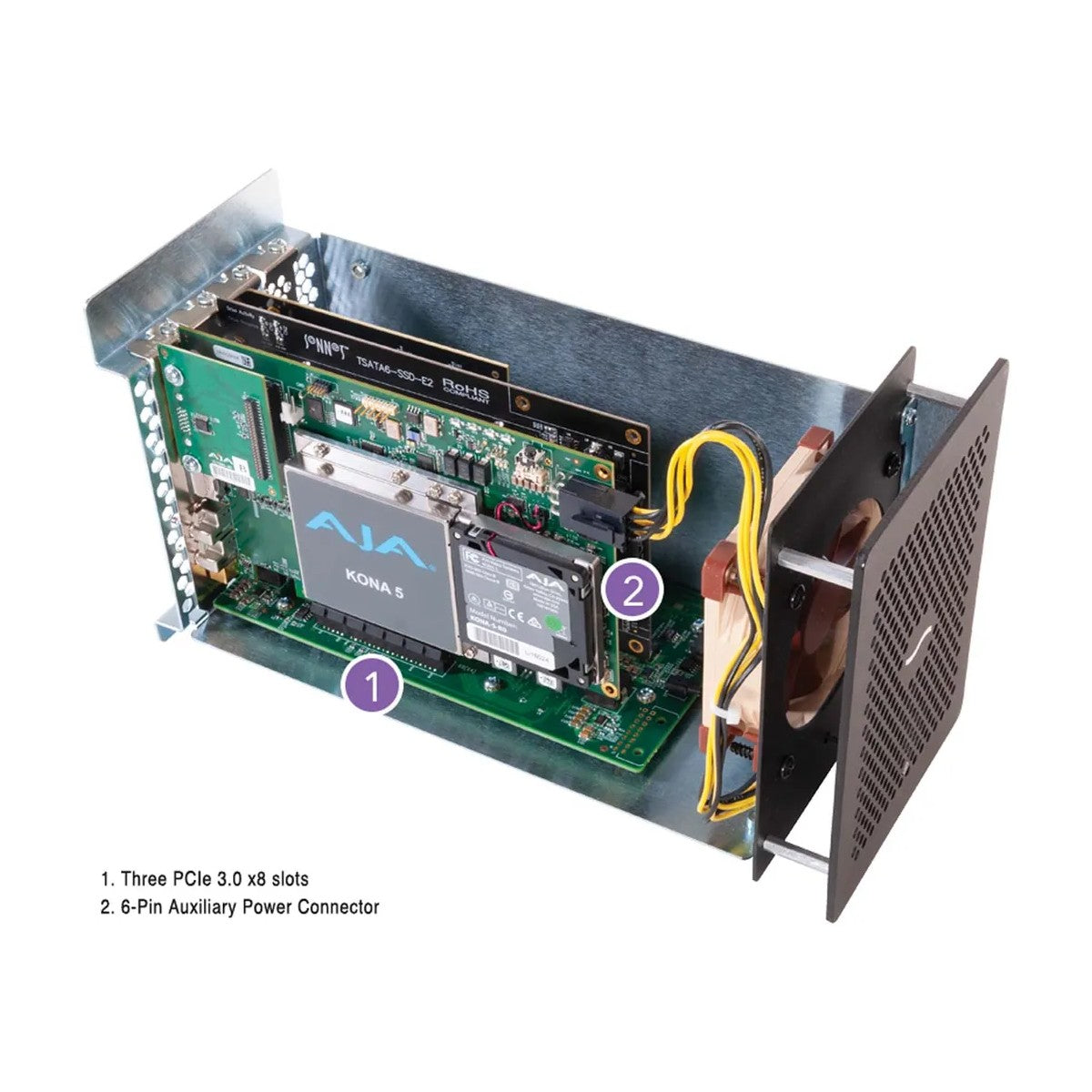

- Expansion Slots: 3 × PCIe 3.0 x8 slots
- Card Type Support: Full-height, Half-length+ (up to 7.75 in / 197 mm long)
- Auxiliary Power: 1 × 6-pin auxiliary PCIe power connector
- Power Delivery: Up to 15 W to bus-powered peripherals
- Display Support: Supports one 8K display
- Included Accessories: Thunderbolt 3 Cable, ThunderLok Connector Retainer
- Chassis: Compact, precision-crafted aluminum desktop enclosure
-
Warranty: 2 Years Limited Warranty
- Discover Sonnet Technologies with PCIe Card Expansion System [Echo SE3E]: https://www.sonnettech.com/product/echo-express-se3e/overview.html
If you would like to confirm availability first or inquire for possible price-matching send us a quick mail.
