Solid State Logic Pure Drive Quad 4-channel Preamplifier

Solid State Logic

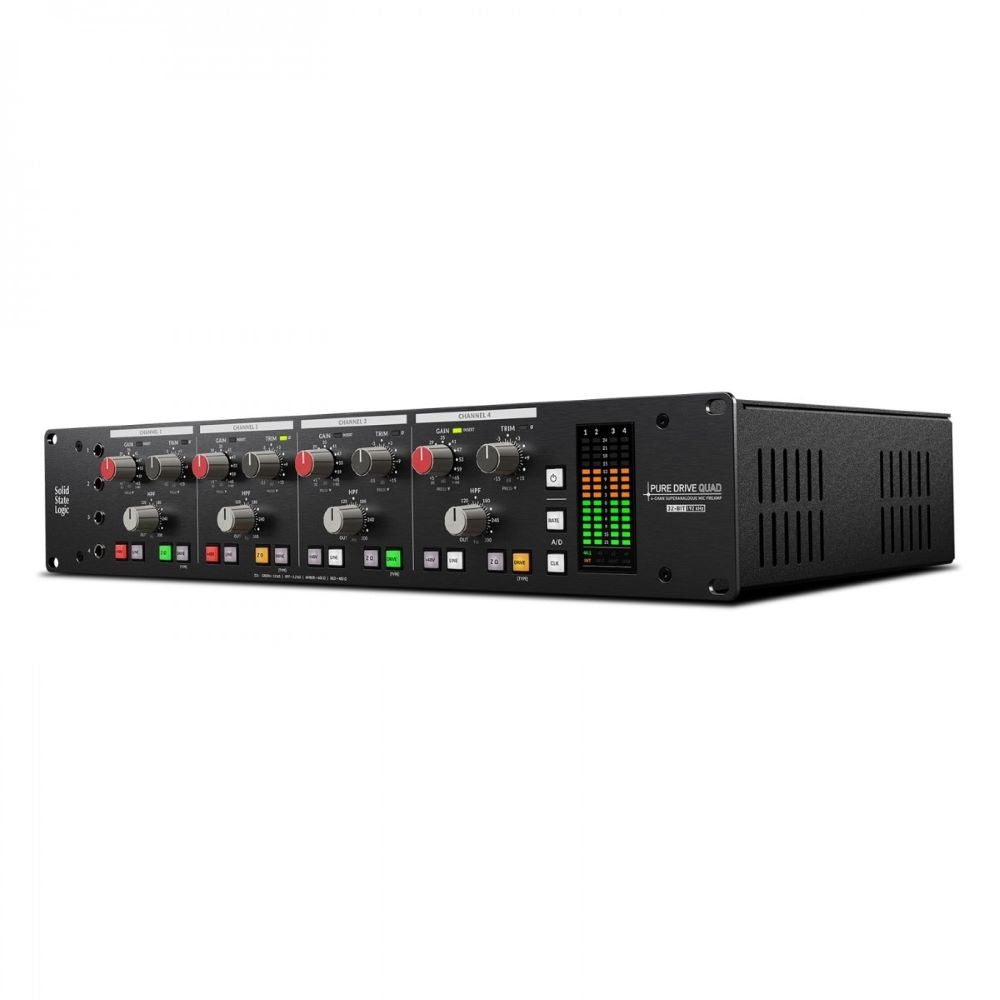

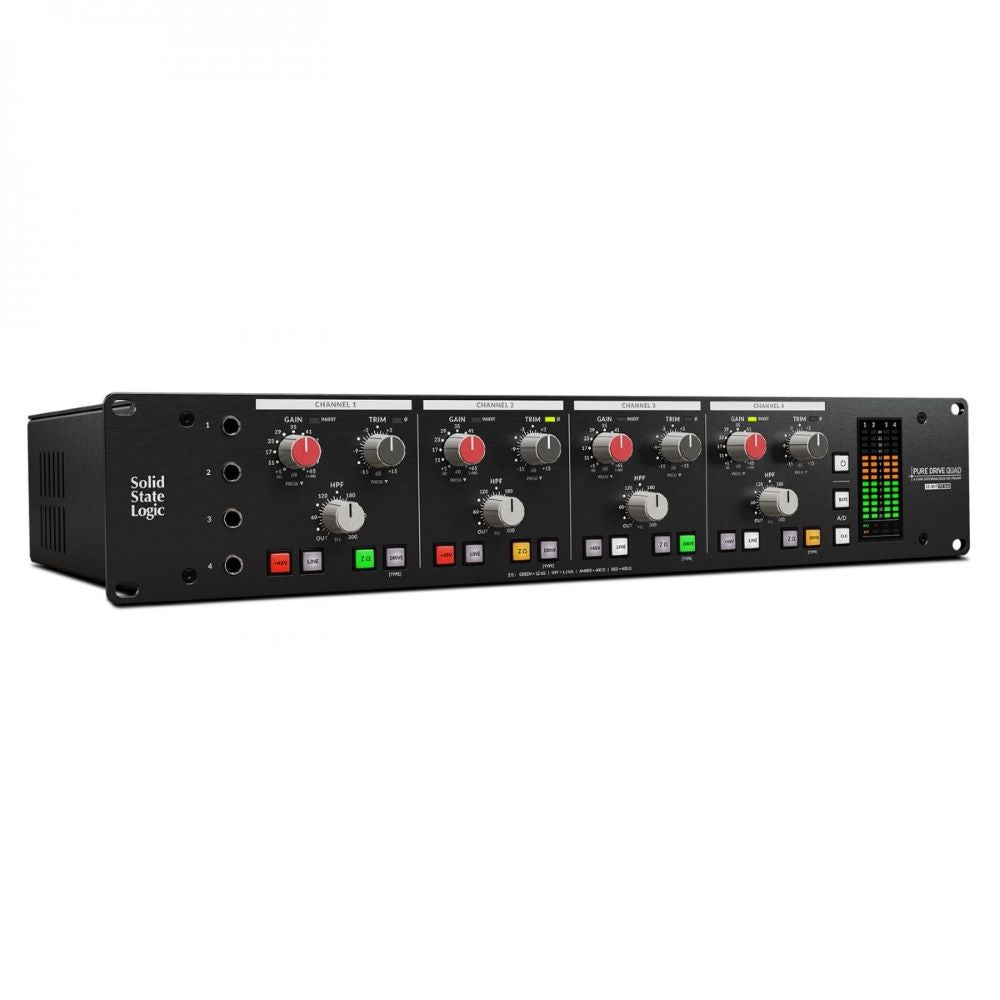

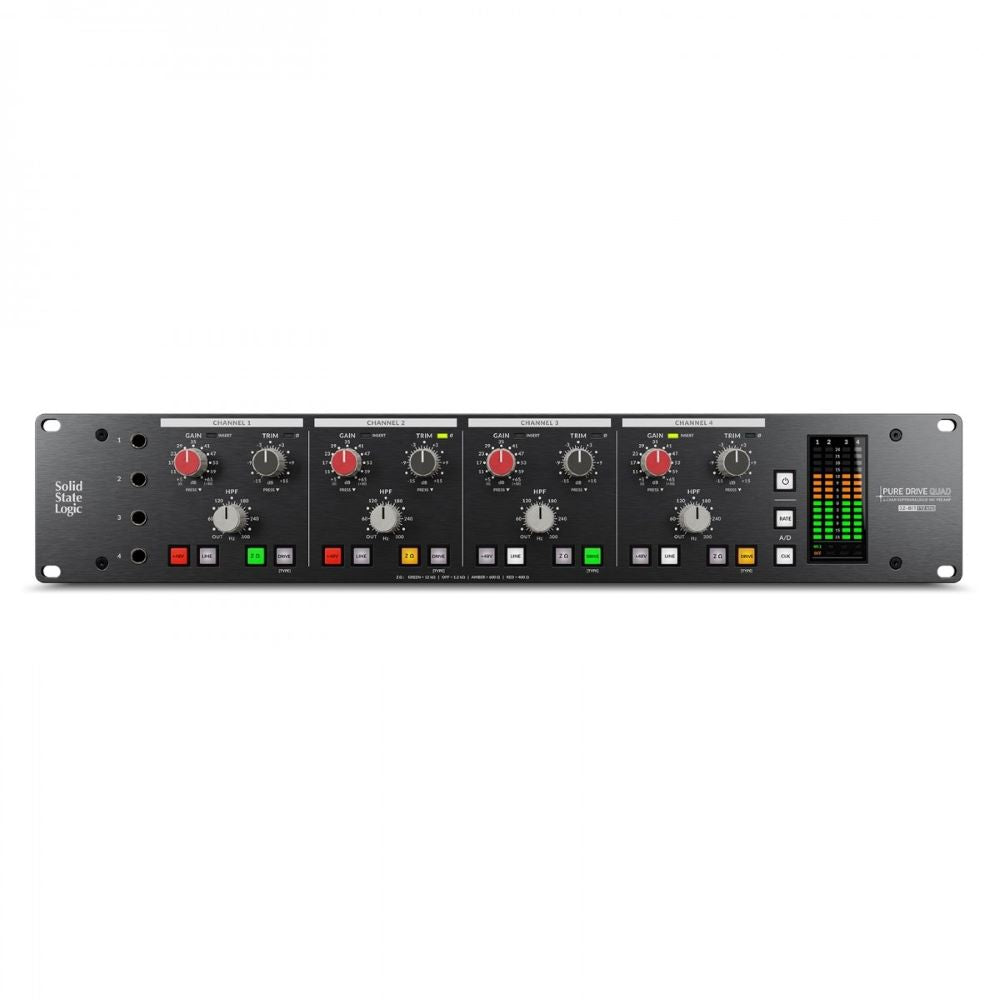

Solid State Logic Pure Drive Quad 4-channel Preamplifier

Name: Solid State Logic Pure Drive Quad 4-channel Preamplifier
Brand: Solid State Logic
SKU: ADS_SSL-QUAD
Price: 30195.00 ZAR
Availability: InStock

R30,195.00

Tax included.

Description

Obsessed with Analogue

The Pure Drive QUAD harnesses Solid State Logic's renowned SuperAnalogue PureDrive™ microphone preamp technology, originally featured in the ORIGIN console. This advanced unit introduces a new DRIVE mode, comprehensive connectivity, and state-of-the-art digital conversion, all within a compact 4-channel 2U rackmount format. The ORIGIN recording console, a contemporary-classic from SSL, first introduced the groundbreaking PureDrive™ microphone preamplifier. This innovative preamp maintains the clarity and punch of SSL's previous designs while also offering the flexibility to switch its character to a warm, harmonically rich, and driven tone that varies with gain.

Analogue Obsession
Pure Drive QUAD continues the legacy into rack format, delivering four microphone preamps with ORIGIN’s renowned PURE and DRIVE modes, but takes it further, adding a new ‘Asymmetric’ DRIVE, advanced digital connectivity, and an onboard USB interface.
The SSL Pure Drive QUAD offers four mic preamp input impedance options, enabling engineers to explore various tonal possibilities or match the mic pre's impedance closely to the microphone. Additionally, each mic pre includes independent +48V phantom power, polarity inversion and a sweepable High Pass Filter.
Also, the Pure Drive QUAD stands as one of the most capable and feature-rich outboard microphone preamplifiers available, introducing a host of new sonic possibilities and workflows for the discerning producer and recording engineer.

Mic Impedance Input
Pure Drive QUAD offers four mic preamp input impedance options, enabling engineers to match the mic pre's impedance closely to the microphone or even change the tonality of the input signal (on ribbon and dynamic mics), giving further creative control when recording with the PURE DRIVE preamps.

Three Independent Gain, Trim and HPF Controls
GAIN - Stepped Gain control up to +65 dB Gain
TRIM - 31-step Trim control, with precise 1 dB increments – overdrive the signal with the Gain control and then reduce to a suitable level using Trim.
HPF - Variable High Pass filter going up to 300Hz.

Main Features:

4 high-performance PureDrive microphone preamps

3 modes for each preamp: Clean, Classic Drive, and Asymmetric Drive

4 mic preamp input impedance options

4 front-panel hi-Z DI inputs with automatic input detection

48V phantom power, polarity invert, and 3rd-order highpass filter

Stepped Gain control with up to 65dB Gain

31-step Trim control, with precise 1dB increments

Mic/Line input switching

12 in / 12 out (@44.1/48 kHz)

4 analog + 8 ADAT in (via Link in) / 4 AES + 8 ADAT outs

Mic inputs via XLR; Line via TRS or D-sub

Balanced analogue outputs/insert sends for external processing

+24dBu line-level insert returns/ADC inputs

Digital connectivity via ADAT, AES, and USB

Ability to switch ADAT and AES connections to source audio from DAW outputs (USB) instead of A/D converter

Cascade 2 PureDrive Quad units via ADAT Link In connection

USB soundcard mode

Stepped pots and digitally controlled analogue electronics for precision, stereo matching, and easy recall

Up to 192kHz and 32-bit conversion, professional I/O levels (+24dBu = 0dBFS)

Auto-ranging word clock I/O

Selectable Auto-Sleep mode

Tech Specs:

Preamp Type: Solid State
Number of Channels: 4
Phantom Power: Yes
Polarity Switch: Yes
Sample Rate: Up to 192kHz
Bit Depth: 32-bit

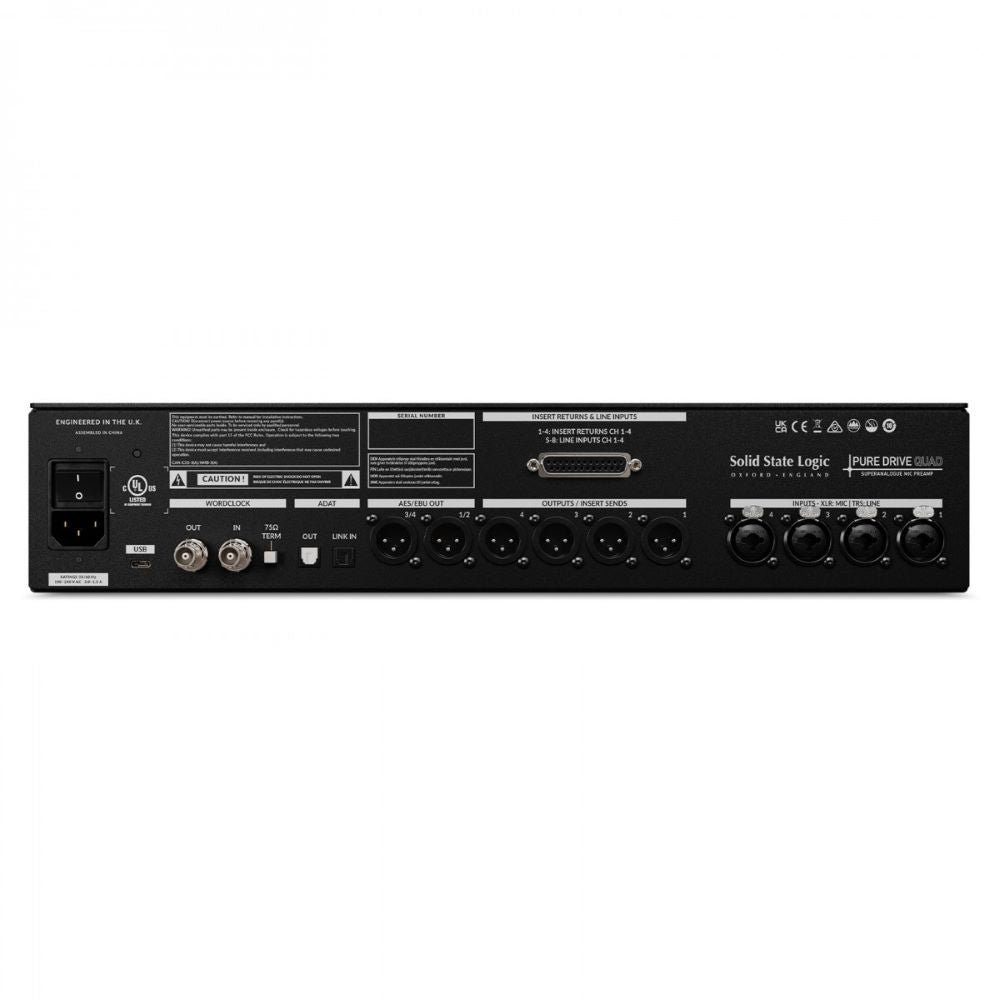

Analogue Inputs: 4 x XLR-1/4" Combo, 4 x 1/4" (Hi-Z/DI), 1 x DB-25 (insert returns, line)
Digital Inputs: 1 x Optical Toslink (ADAT/link)
Digital Outputs: 2 x XLR (AES/EBU), 1 x Optical Toslink (ADAT)
Channel Inserts: Yes
Clock I/O: 2 x BNC (in, out)
USB: 1 x USB-C
Computer Connectivity: USB
Frequency Response: 20Hz-20kHz (±0.2dB)
Rack Spaces: 2U
Power Source: Standard IEC AC Cable
Dimensions (WxHxD): 483 x 88 x 303 (338 incl. panels) mm
Weight: 5.9 kg
Explore Solid State Logic [PURE DRIVE QUAD]: https://solidstatelogic.com/products/puredrivequad
