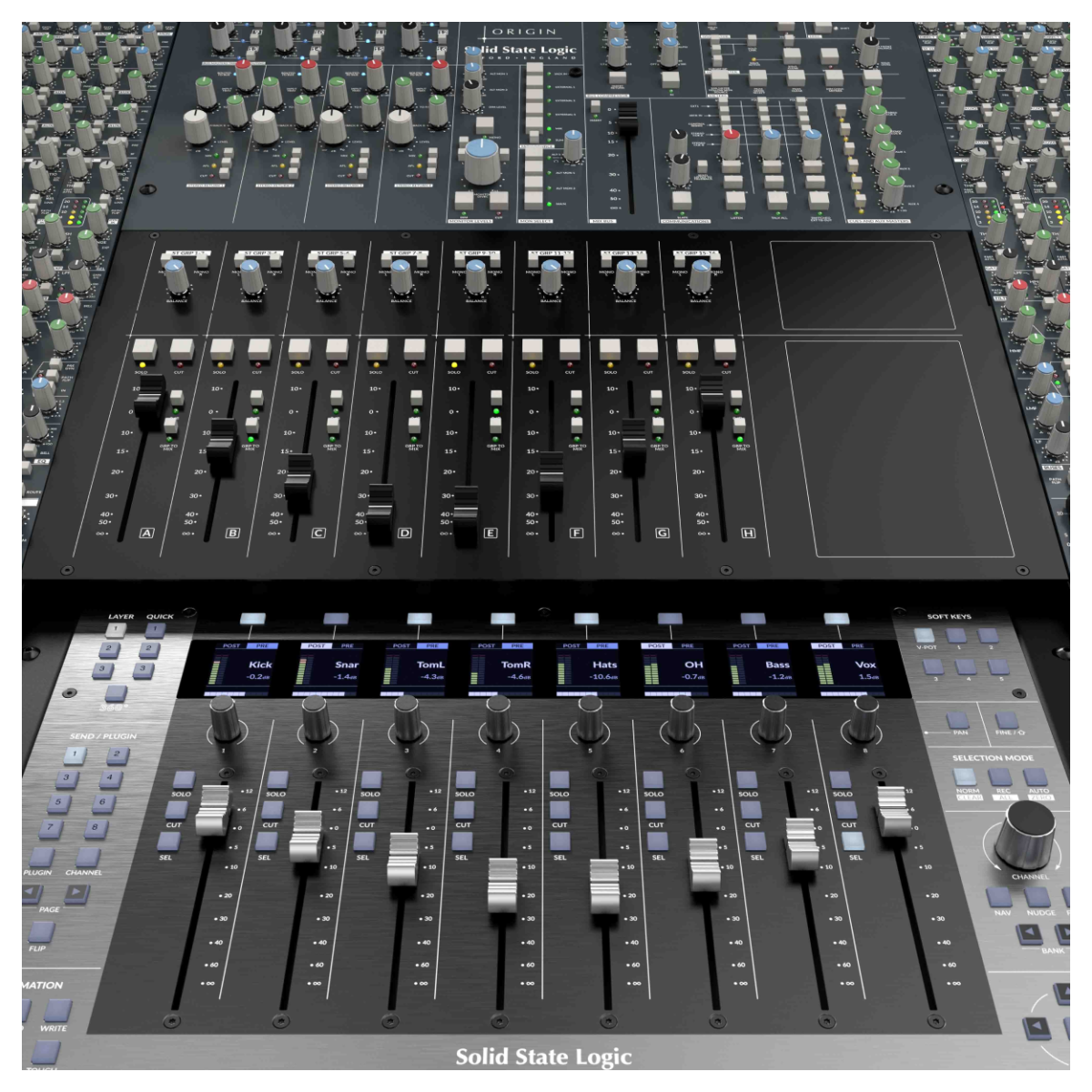

Large audio mixing console on a stand with UF1 DAW Controller

Large audio mixing console with multiple controls and Monitor Centre Section

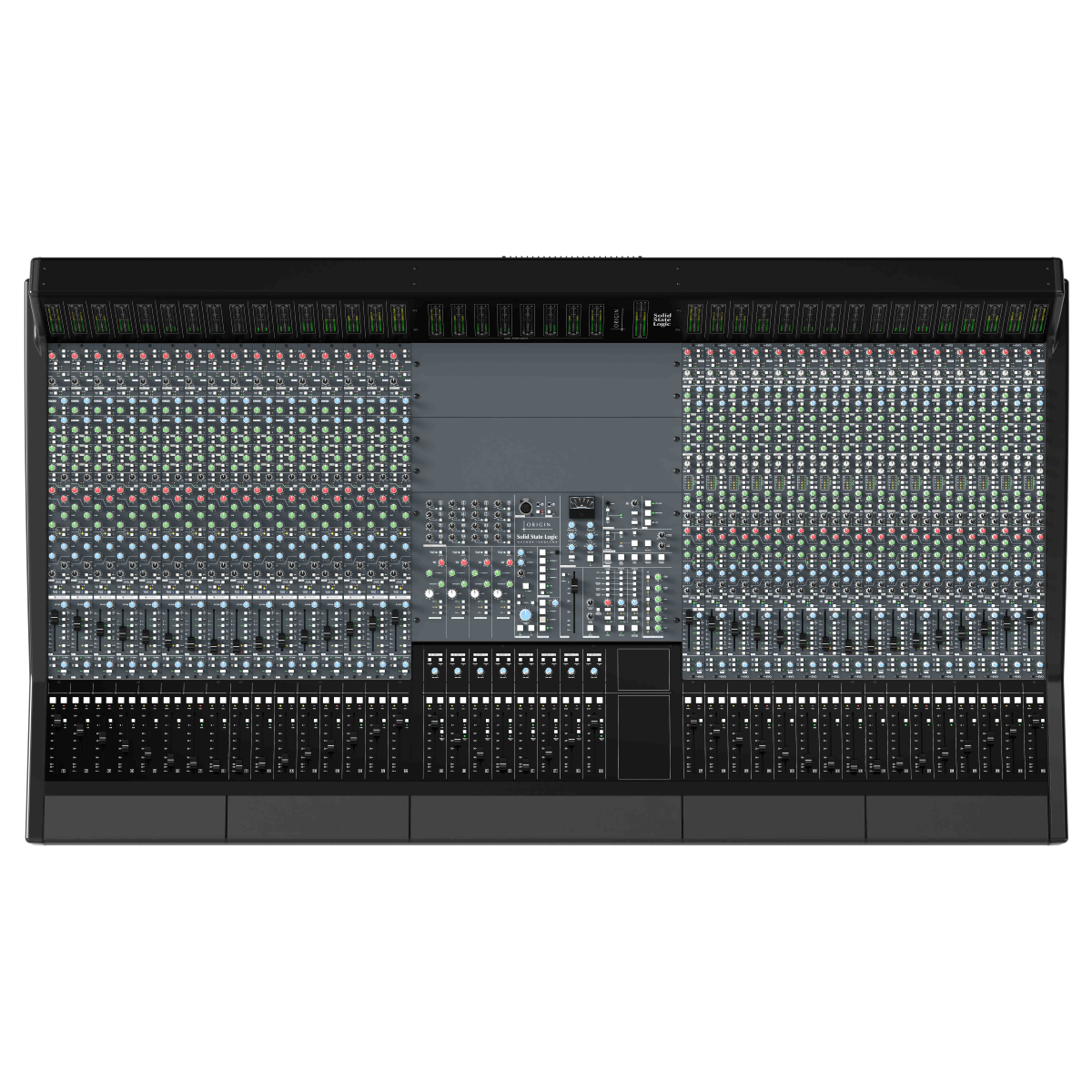

Large audio mixing console with Standard Channel Strips

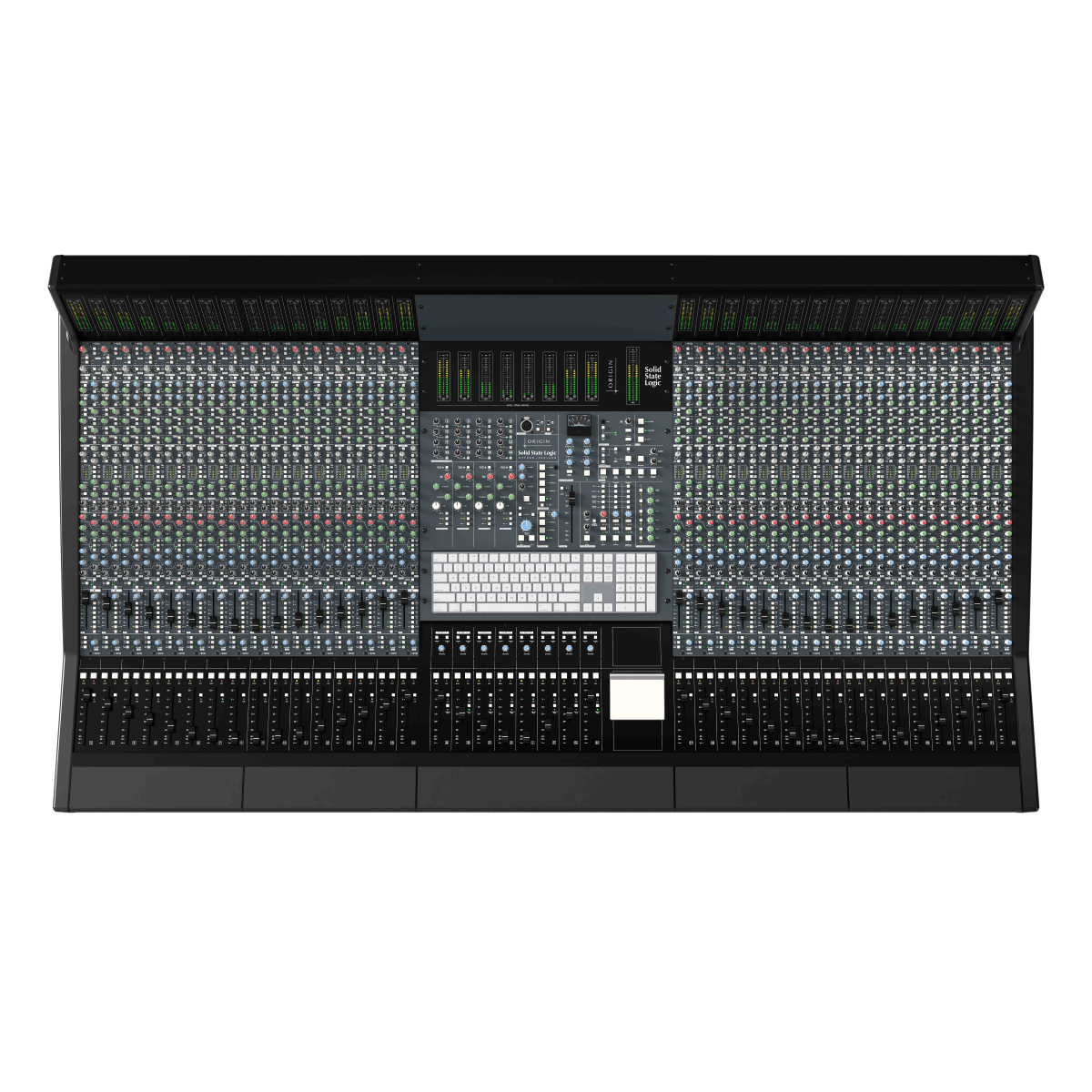

Large audio mixing console with ALT Meter Configuration

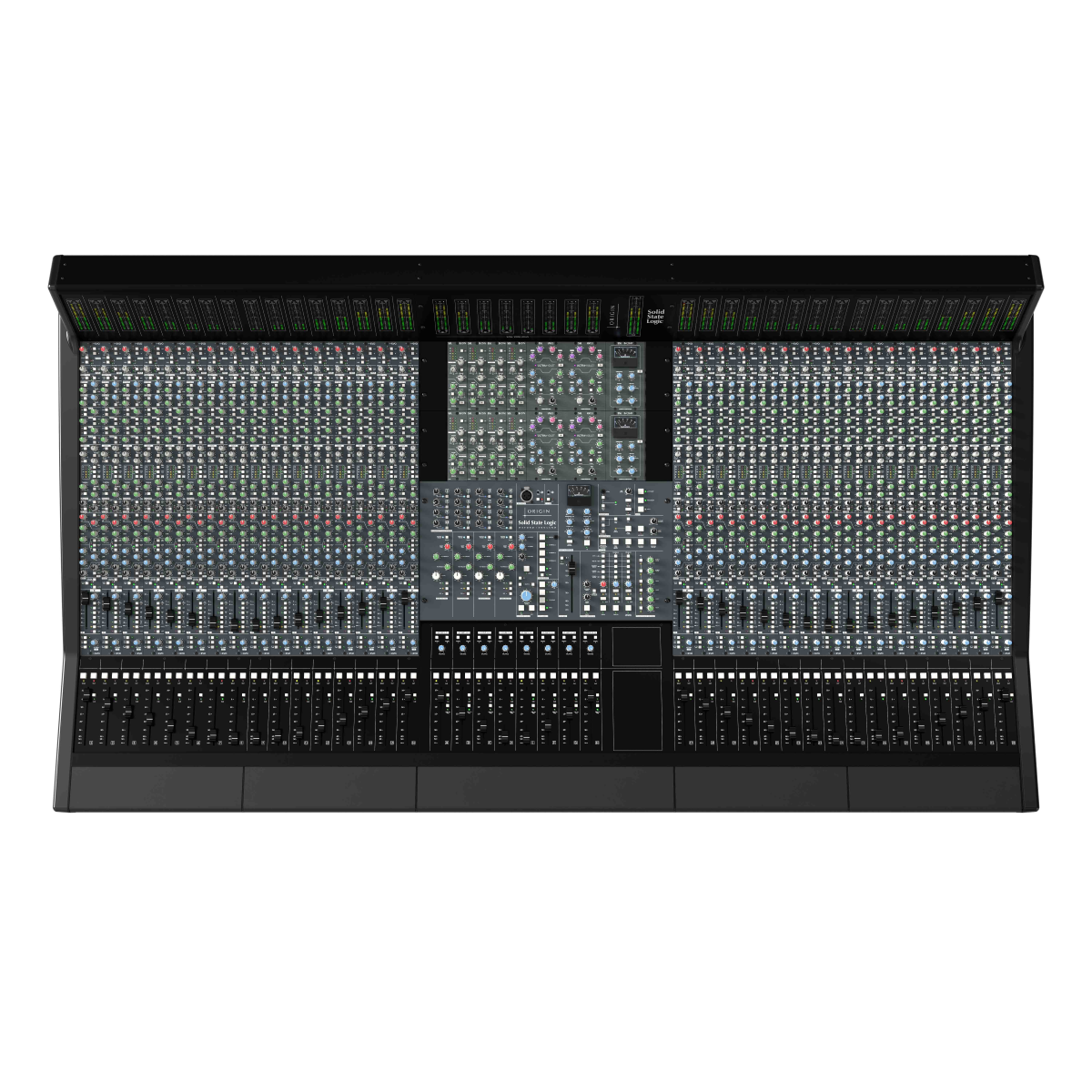

Large audio mixing console with 500 Series Rack Centre Section

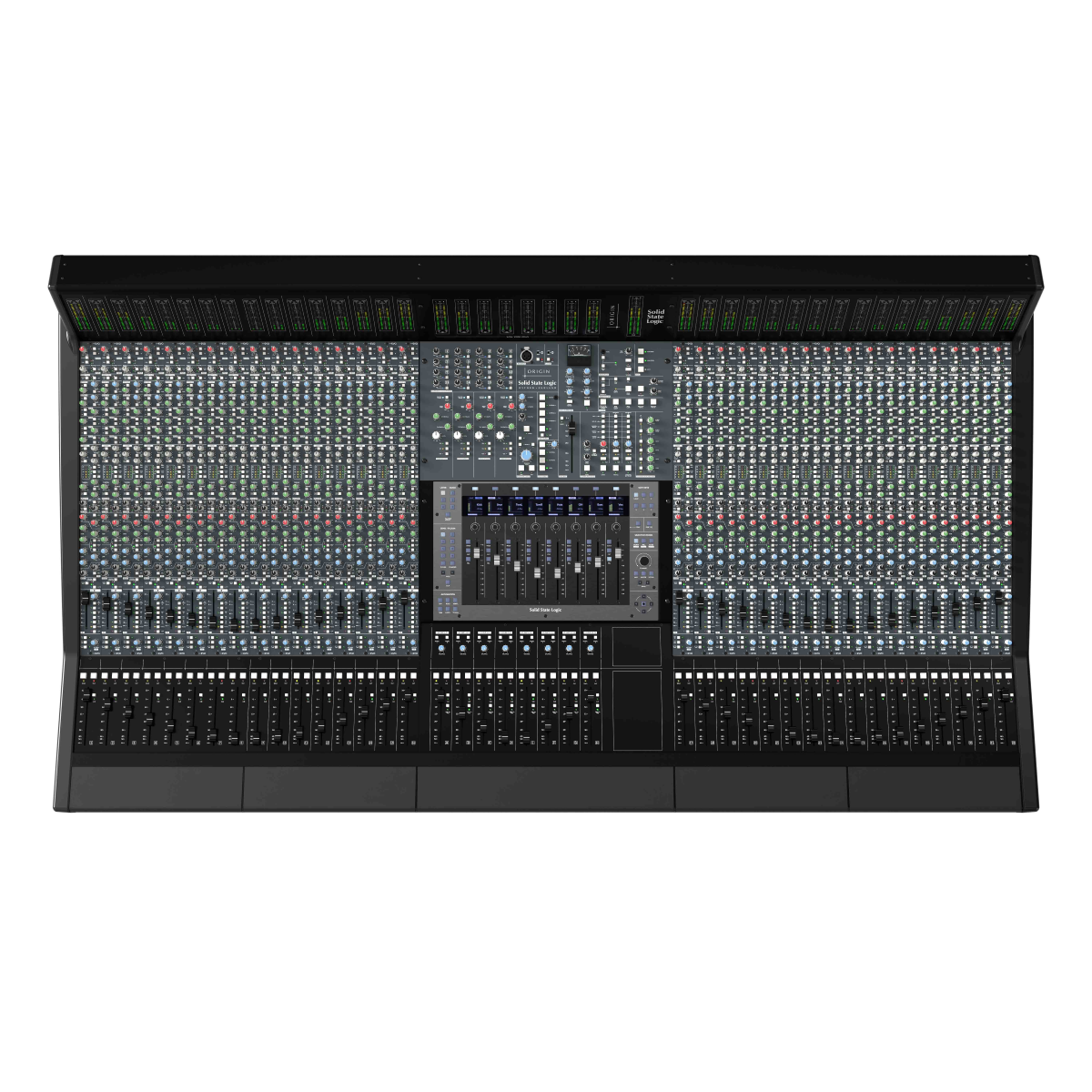

Large audio mixing console with UF8 DAW Controller

Solid State Logic

Solid State Logic Origin EVO 32 Analogue Recording Console - Price on Request

Name: Solid State Logic Origin EVO 32 Analogue Recording Console - Price on Request
Brand: Solid State Logic
SKU: ADSRS_SSLOriginEVO32
Availability: InStock

R0.00

Tax included.

Description

The Ultimate Heart of Your Hybrid Masterpiece

The Solid State Logic ORIGIN EVO 32 is a professional 32-channel in-line analogue recording console that represents the pinnacle of the iconic 4000 Series lineage. Designed specifically for high-end mixing engineers, world-class production houses, and elite recording studios, this console bridges the gap between legendary analogue headroom and modern digital precision. Whether you are tracking large-scale sessions or mixing complex hybrid projects, the ORIGIN EVO 32 delivers the "unmistakable SSL sound" with the ergonomic freedom required to inspire world-class creativity.

PureDrive™: Two Distinct Personalities The ORIGIN EVO 32 features the acclaimed PureDrive™ mic preamps, offering engineers a complete sonic palette from ultra-clean, high-resolution transparency to rich, driven character. By engaging the DRIVE circuit - a sophisticated evolution of SSL’s VHD technology - you can introduce warm, harmonically rich saturation that adds depth and energy to any tracking or printing session. This discrete transistor design provides over 70 dB of clean gain, ensuring you have the flexibility to choose between pristine purity and vintage-inspired grit in a single preamp.

Authentic E Series Processing on Every Channel

Every channel strip is a powerhouse of processing, featuring the legendary E Series 242 ‘Black Knob’ four-band parametric EQ, originally developed in collaboration with Sir George Martin. For the first time, this is paired with a faithful recreation of the original E Series dynamics, including punchy, aggressive compression and ultra-fast gating driven by original-spec Class-A VCA chips. This combination delivers the classic ‘80s SSL "glue" and punch, allowing you to sculpt professional mixes with the same precision that has defined four decades of hit records.

Engineered for the Sweet Spot

Built for the modern hybrid workflow, the ORIGIN EVO 32 features a modular 19-inch rackmount centre section that can be configured to put your most essential tools directly in front of you. This design allows for the seamless integration of SSL UF8 or UF1 DAW controllers, while the movable 3U centre meter panel ensures your workstation monitors never obscure your essential analogue metering. With features like a 0 dB fader bypass for high-speed stem printing and advanced electronic routing that replaces heat-sensitive traditional switches, this console is as reliable as it is sonically superior.

Main features:

32-ch. analog recording and mixing console
32 mono in-line channels
SuperAnalogue preamps with preset Drive/4K switch
In-line architecture with 2 paths per channel
60mm small fader and 100mm large fader with balanced inputs in each path, and
independent pan, solo, cut, and 0dB switch to set unity gain
Channel inserts: 2 (1 per path)
8 stereo sub groups
E-Series 4-band parametric EQ
Sweepable highpass and lowpass filters
E-Series channel dynamics
SSL’s iconic stereo VCA bus compressor with sidechain HPF
1 stereo mix bus; 8 track buses
Comprehensive master control section
Monitor outputs: main (12 wide) + 1 alternate + headphone
Aux sends: 2 stereo, 4 mono
3 foldback outputs
Auto Sleep mode
Designed and crafted in England

Tech Specs:

I/O & Routing: 32-Channel In-Line Design; Up to 88 inputs at mixdown; 16 Track Buses; 4 Mono Buses; 2 Stereo Cues.
Preamplification: PureDrive™ Mic Pres; +70 dB clean gain; Discrete transistor design; Variable harmonic DRIVE circuit.
Equalisation: Iconic ‘242’ E Series Black Knob 4-band parametric EQ; HF/LF bell/shelf switches; Dedicated HMF and LMF Q controls.
Dynamics: E Series Compressor/Limiter & Expander/Gate; Authentic Class-A VCA chip; True RMS sidechain detector; Sidechain channel link.
Filtering: 18dB/octave High-Pass Filter; 12dB/octave Low-Pass Filter; Path routing via SF/LF; Filter to dynamics sidechain.
Master Section: Enhanced SSL Bus Compressor with new ratios; Sidechain HPF & Insert Return; 100mm main mix fader; 4 Stereo Returns.
Workflow Tools: 0 dB fader bypass; Direct channel outputs; Balanced insert points on every path; Movable 3U centre meter panel.
Power & Efficiency: Unique Auto Sleep mode for power efficiency; Global power supply (100V to 240V AC); Max power consumption 1200W.
Discover Solid State Logic's Analogue Recording Console [EVO 32]: https://solidstatelogic.com/products/origin-evo
