Shure SLXD24/SM58 Digital Wireless Handheld Microphone System with SM58 Capsule

The Shure SLXD24/SM58 (G58 Band - 470-514 MHz) offers presenters and performers a wireless handheld microphone system that's dependable, easy to set up, and features crystal-clear, digital sound quality. Built around a rugged, single-channel, half-rack receiver with removable antennas, the system is ideally suited for portable rigs or long-term installations in small- to medium-sized venues, event spaces, conference rooms, houses of worship, and education facilities.

The SLX-D operates in the UHF band to transmit high-quality, 24-bit digital audio with over 120 dB of dynamic range for crisp, detailed sound. It utilizes Digital Predictive Switching Diversity to protect the transmission from interference and deliver a solid, reliable RF signal without dropouts.

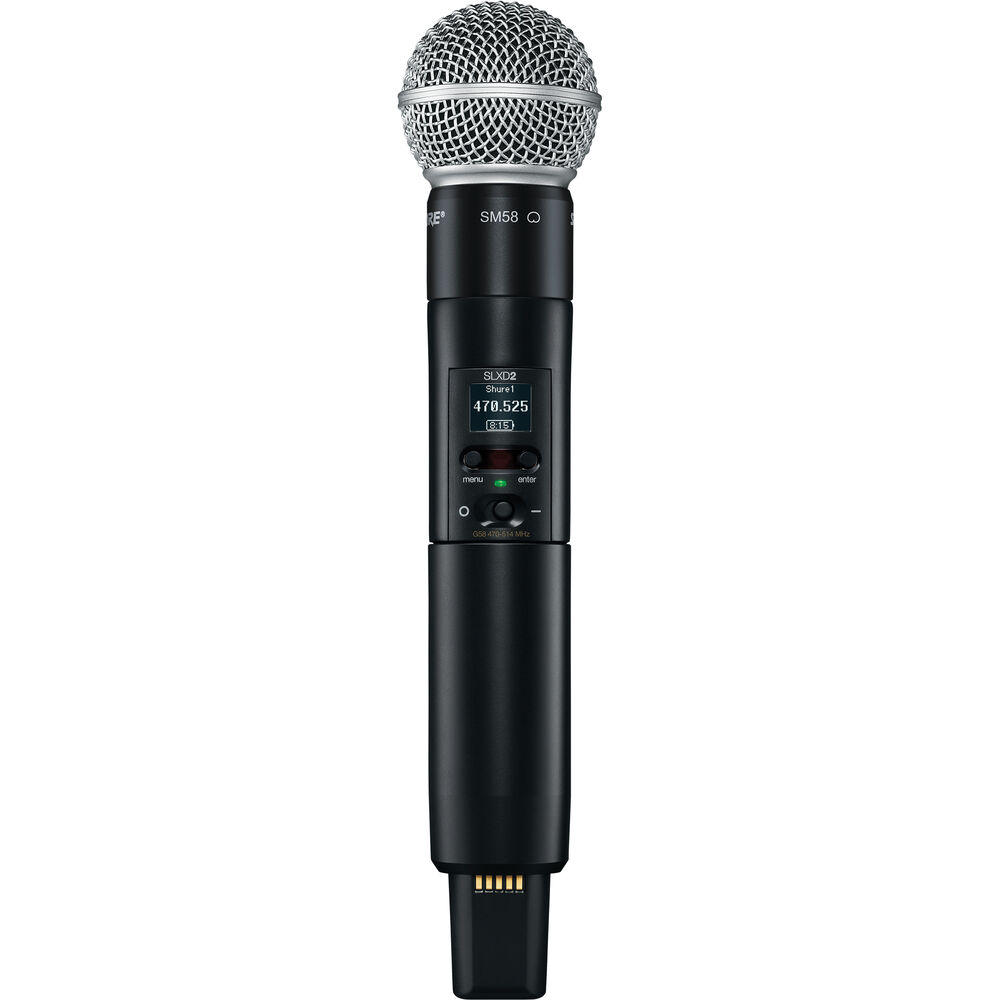

This configuration includes the SLXD2 handheld transmitter featuring an interchangeable microphone capsule design and equipped with the SM58 cardioid dynamic capsule, an industry standard for vocalists and presenters. The lightweight metal transmitter features a selectable 1/10mW RF power output and a transmission range up to 330'. It provides up to 8 hours of operation on two AA batteries or an SB903 rechargeable battery (available separately).

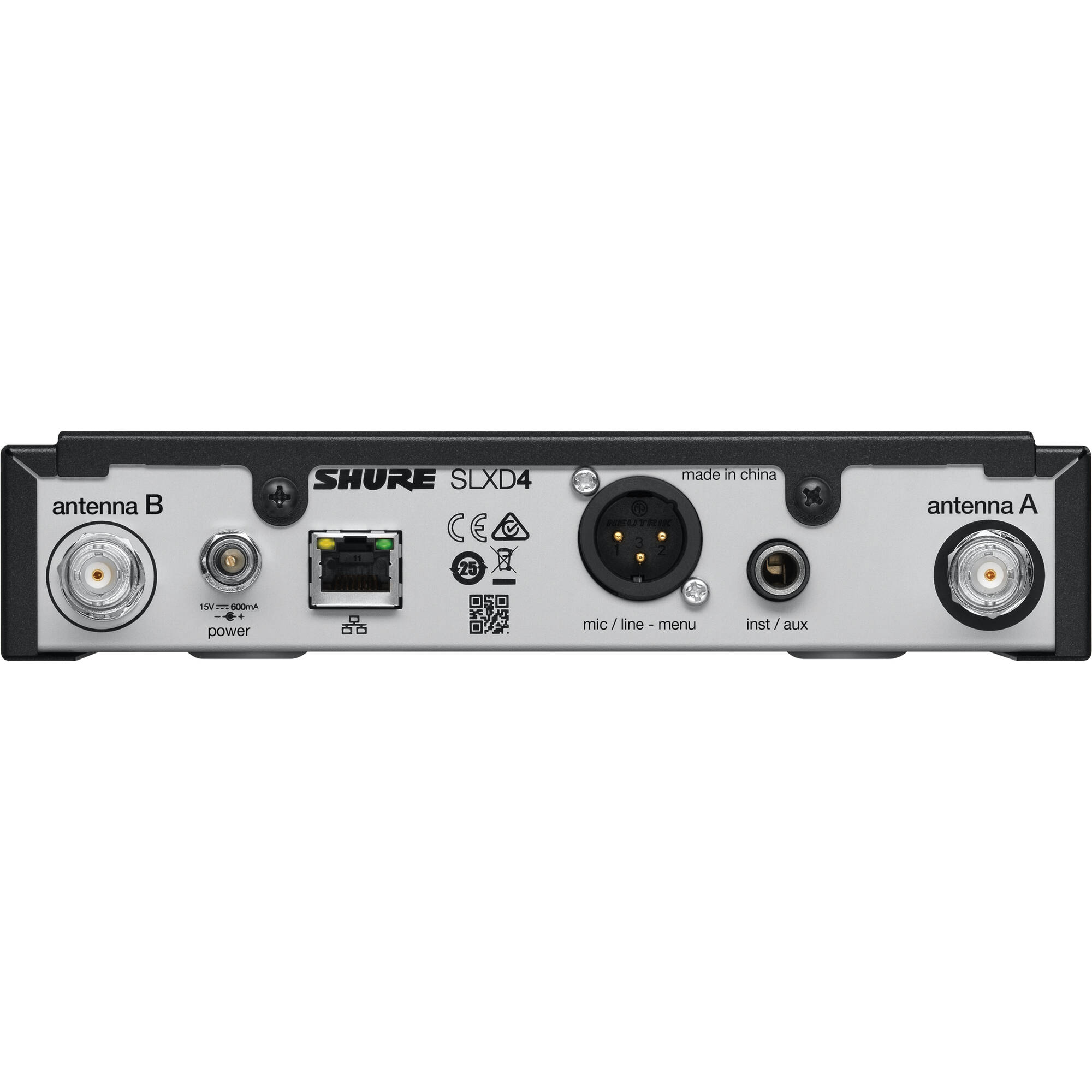

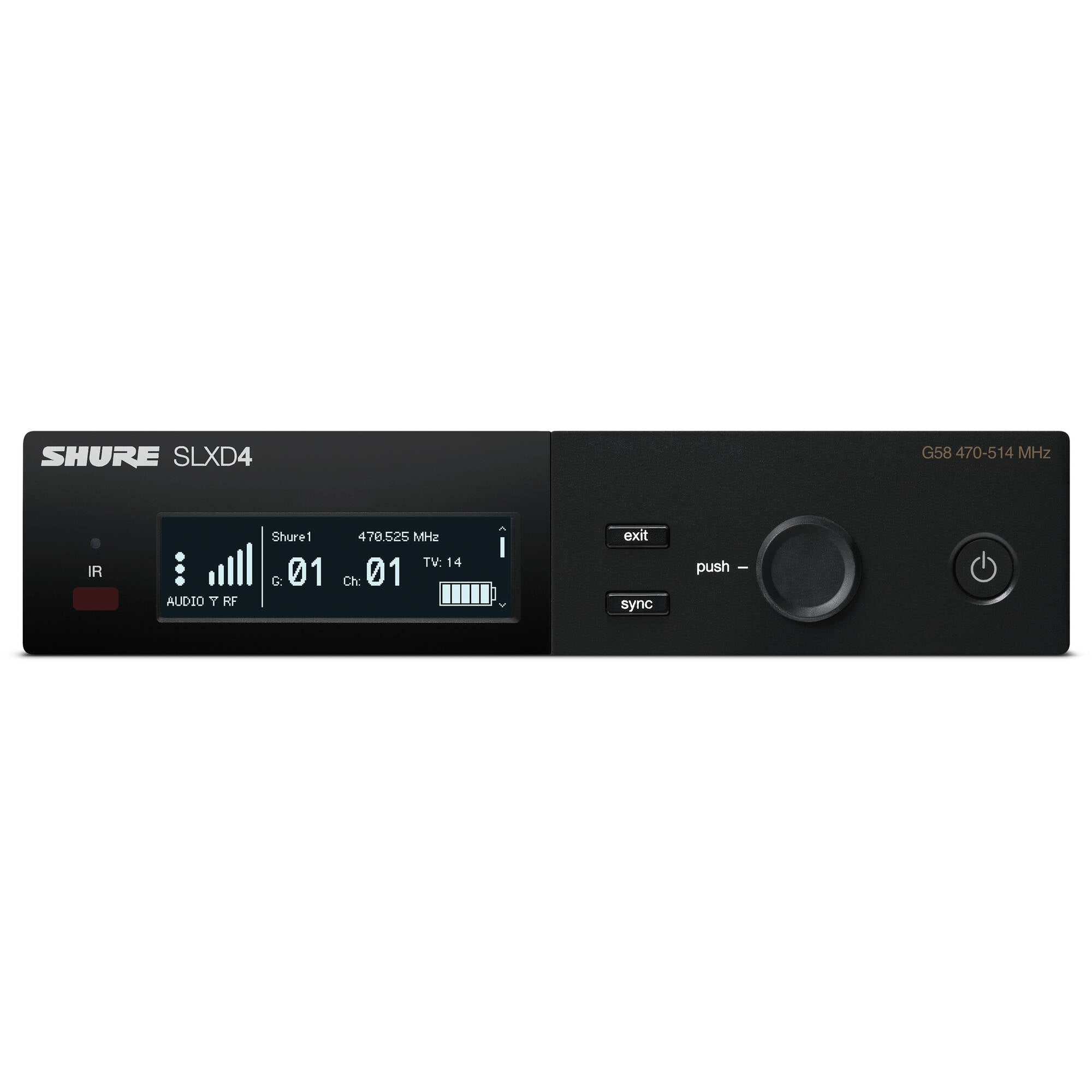

The all-metal, rackmount SLXD4 receiver features an intuitive LCD interface with meters for RF, battery status, and audio output. It also offers 60 dB of gain control, and both mic/line XLR and 1/4" instrument outputs. Additional features include automatic frequency scanning and IR sync to easily link the transmitter and receiver to the same frequency.

With up to 32 mic channels available at the same time, the SLX-D is ready to expand as your needs grow. What’s more, setting up multiple systems is made fast and easy via the Ethernet port, which links the them together for quick, coordinated frequency scans from a single receiver.

• For Performers and Presenters
• SM58 Dynamic Cardioid Capsule
• Handheld Transmitter
• Digital Predictive Diversity Receiver
• 1760 Auto-Scan Frequencies
• 1/10mW RF Power
• LCD Screen, Ethernet for Group Scans
• Interchangeable Mic Capsule Design
• Compatible with 8-Hr Rechargeable SB903
• Expandable to 32 Mic Channels/330' Range

Tech Specs

Simultaneous Systems Per Band:    32
System: Analog/Digital:    Digital
System: Frequency Range:    470-514 MHz
System: Operating Range:    328 ft. Line-of-sight
System: Frequency Response:    20Hz-20kHz
System: Microphone Included:    SLXD2 Transmitter with SM58 Capsule
System: Channel Selection:    Auto
Microphone: Type:    Dynamic
Microphone: Polar Pattern:    Cardioid
Microphone: Frequency Response:    50Hz-15kHz
Transmitter: Form Factor:    Handheld with Mic Capsule
Transmitter: Dynamic Range:    120dB (A-weighted)
Transmitter: Battery Type:    2 x AA, SB903 Rechargeable Li-ion
Transmitter: Battery Life:    8 hours
Transmitter: Dimensions:    6.9" x 1.4"
Transmitter: Weight:    0.32 lbs.
Receiver: Antenna Type:    Detachable
Receiver: Type:    Rackmount, Table Top
Receiver: Rackmountable:    Yes
Receiver: Rack Spaces:    Half-rack
Receiver: Displays:    LCD
Receiver: Outputs:    1 x XLR, 1 x 1/4
Receiver: Data I/O:    1 x Ethernet
Receiver: Power Source:    15V DC power supply
Receiver: Dimensions:    1.65" x 7.7" x 5.9"
Receiver: Weight:    1.8 lbs.
