Shure SLXD14/153T Digital Wireless Omni Earset Microphone System

The Shure SLXD14/153T offers presenters, instructors, clergy, and performers a wireless earset microphone system that's dependable, easy to set up, and features crystal-clear digital sound quality. Built around a rugged, single-channel, half-rack receiver with removable antennas, the system is ideally suited for portable rigs and long-term installations in small- to medium-sized venues, event spaces, conference rooms, houses of worship, and education facilities.

The SLX-D operates in the UHF band to transmit high-quality 24-bit digital audio with over 120 dB of dynamic range for crisp, detailed sound. It utilizes Digital Predictive Switching Diversity to protect the transmission from interference and deliver a solid, reliable RF signal without dropouts.

This configuration comes with a tan MX153 omnidirectional subminiature earset microphone. The earset's ultralightweight, comfortable, and flexible design is discreet, stable, and easy to place over either ear, while the mic delivers natural vocal reproduction for a wide variety of applications. The compact bodypack transmitter features a selectable 1/10mW RF power output and a transmission range up to 330'. It provides up to 8 hours of operation on two AA batteries or an SB903 rechargeable battery (available separately).

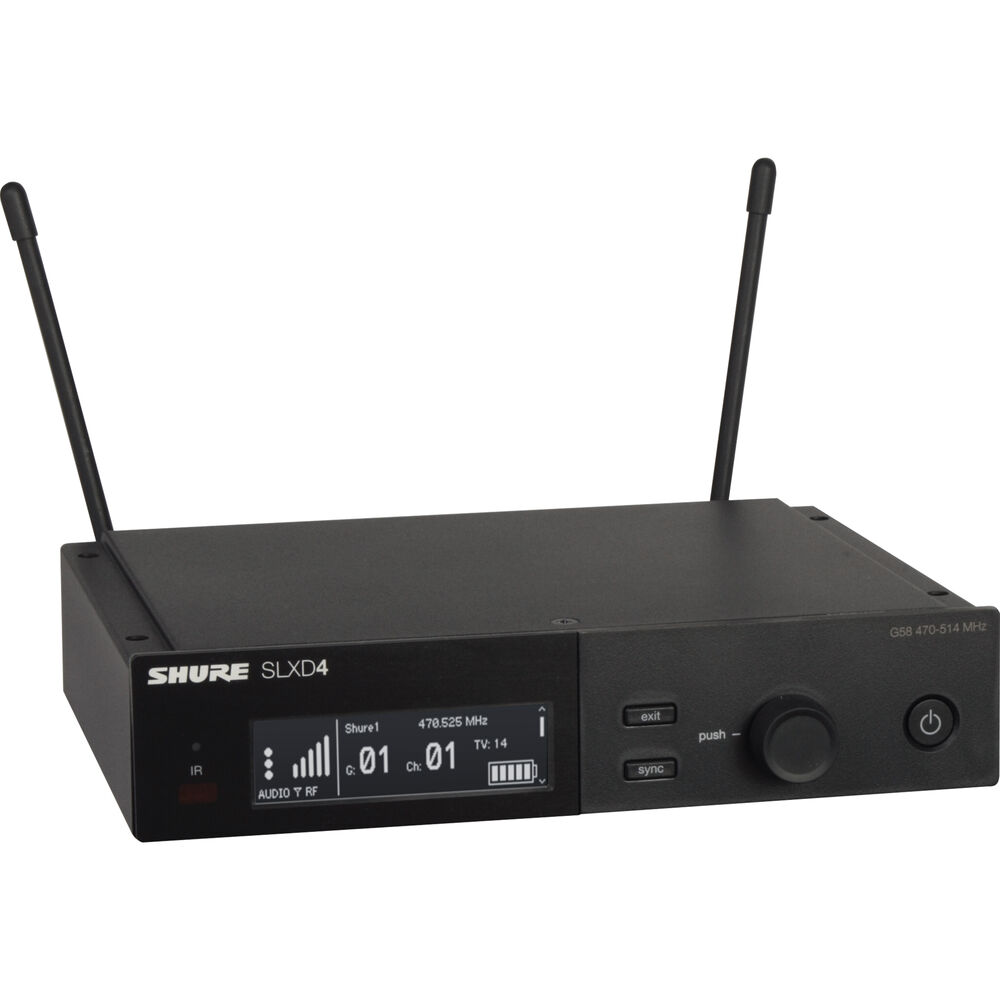

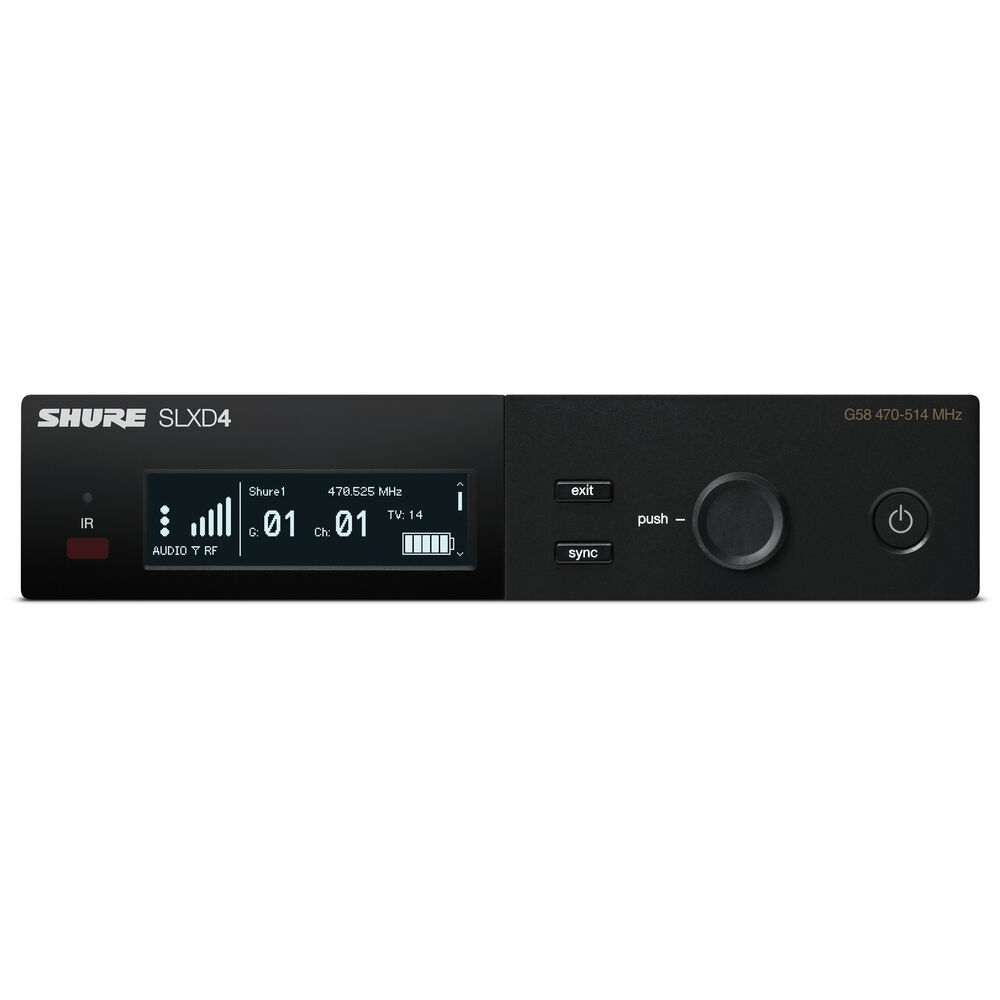

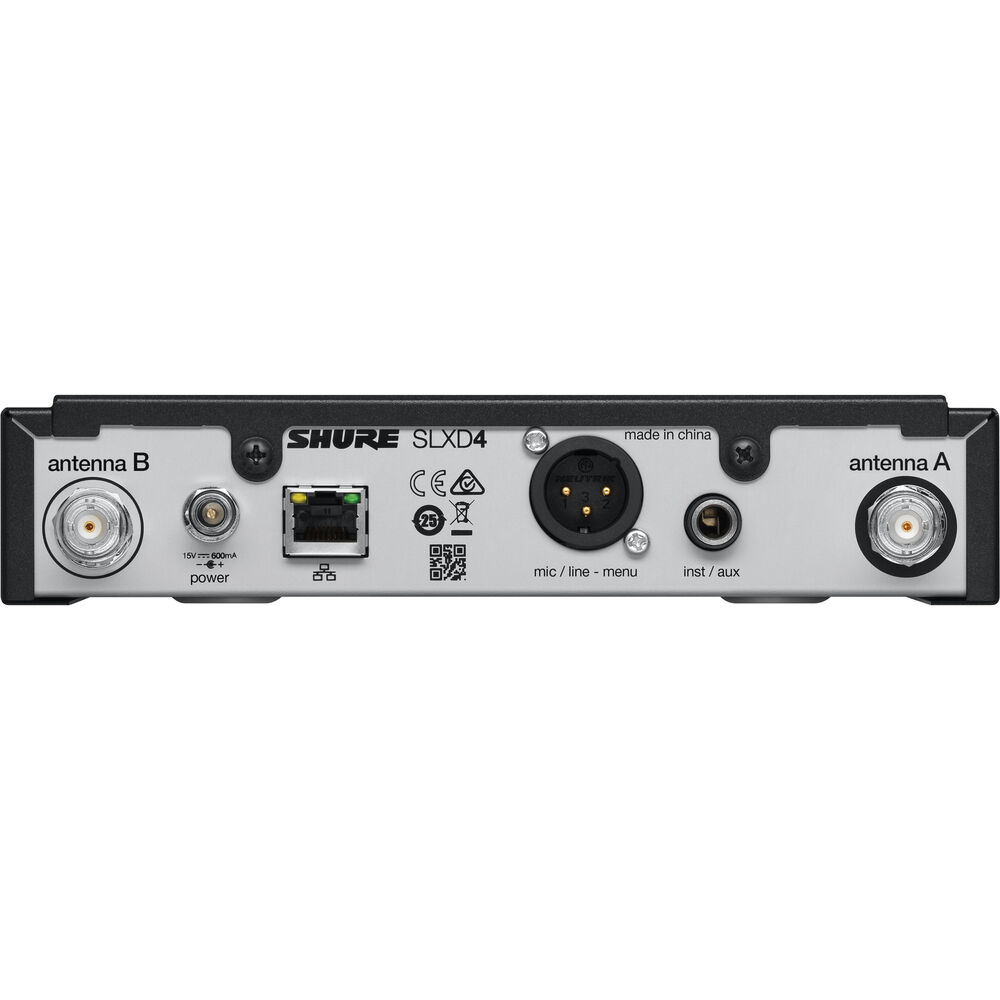

The all-metal, rackmount SLXD4 receiver offers an intuitive LCD interface with meters for RF, battery status, and audio output. It also offers 60 dB of gain control, and both mic/line XLR and 1/4" instrument outputs. Additional features include automatic frequency scanning and IR sync to easily link the transmitter and receiver to the same frequency.

With up to 32 mic channels available at the same time, the SLX-D is ready to expand as your needs grow. What’s more, setting up multiple systems is made fast and easy via the Ethernet port, which links them together for quick, coordinated frequency scans from a single receiver.

• For Presenters and Performers
• MX153 Omni Subminiature Earset Mic (Tan)
• Lightweight Bodypack Transmitter
• Digital Predictive-Diversity Receiver
• 1760 Auto-Scan Frequencies
• 1/10mW RF Power
• High-Contrast LCD Screen
• Ethernet for Group Scans & Local Control
• Compatible with 8-Hr Rechargeable SB903
• Expandable to 32 Mic Channels/330' Range

Tech Specs

• System: Simultaneous Channels:32
• System: Analog/Digital:Digital
• System: Frequency Range:470-514 MHz
• System: Operating Range:328 ft. Line-of-sight
• System: Frequency Response:20Hz-20kHz
• System: Microphone Included:Yes
• System: Channel Selection:Auto
• Microphone: Color:Tan
• Microphone: Type:Electret Condenser
• Microphone: Polar Pattern:Omnidirectional
• Microphone: Max SPL:107dB SPL
• Microphone: Connector:TA4F
• Microphone: Frequency Response:20Hz-20kHz
• Microphone: Cable Length:4 ft.
• Microphone: Self Noise:34dB
• Transmitter: Form Factor:Bodypack
• Transmitter: Dynamic Range:120dB (A weighted)
• Transmitter: Battery Type:2 x AA or SB903 Rechargeable Battery
• Transmitter: Battery Life:8 hours
• Transmitter: Connector:TA4M
• Transmitter: Dimensions:3.8" x 2.6" x 1"
• Transmitter: Weight:0.19 lbs.
• Receiver: Antenna Type:Detachable
• Receiver: Signal/Noise Ratio:34dB
• Receiver: Type:Table Top, Rackmount (if kit included)
• Receiver: Rackmountable:Yes
• Receiver: Rack Spaces:Half-rack
• Receiver: Front Panel Display:Yes
• Receiver: Displays:LCD
• Receiver: Outputs:1 x XLR, 1 x 1/4"
• Receiver: Data I/O:1 x Ethernet
• Receiver: Dimensions:1.6" x 7.7" x 5.9"
• Receiver: Weight:1.8 lbs.
