Sennheiser EW IEM G4-C In ear monitoring set

Sennheiser EW IEM G4-C In ear monitoring set

EW IEM G4 Engineered for professional live sound. Rugged all-in-one wireless monitoring system for in-ear applications. Overview Full control over your performance – your direct...

Vendor :Sennheiser

Type :In Ears

R16,799.00

Add to wishlist

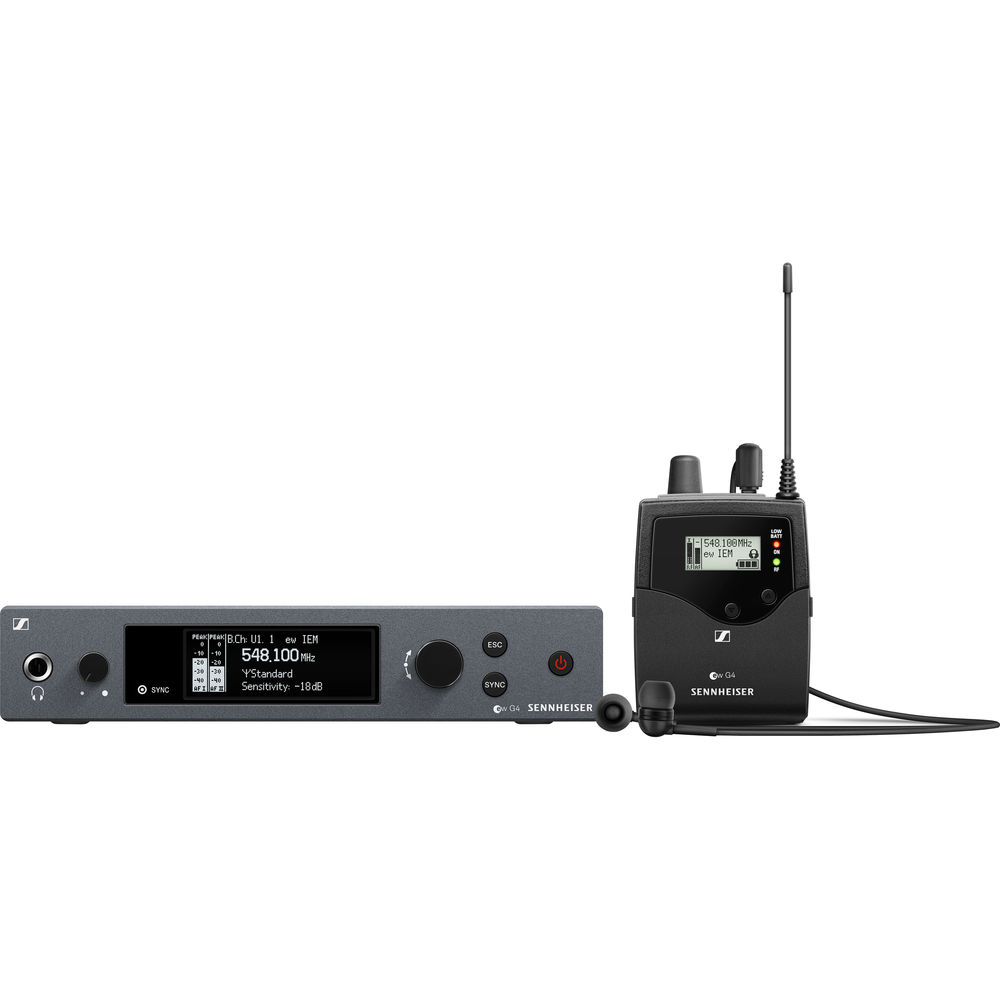

EW IEM G4 Engineered for professional live sound.

Rugged all-in-one wireless monitoring system for in-ear applications.

Overview

Full control over your performance – your direct link, everywhere, everyday. The G4 In-Ear Monitoring Sets make your gig an extraordinary experience – not just for your audience, but also for you.
Robust bodypack receiver and reliable in-ear monitoring IE 4 headphones delivering clarity along the whole frequency spectrum for daily use on stage.

Features

  • Engineered for professional live sound: Rugged all-in-one wireless AudiosaurusSenmonitoring system for in-ear applications.
  • Robust bodypack receiver and reliable in-ear monitoring IE 4 headphones delivering clarity along the whole frequency spectrum for daily use on stage

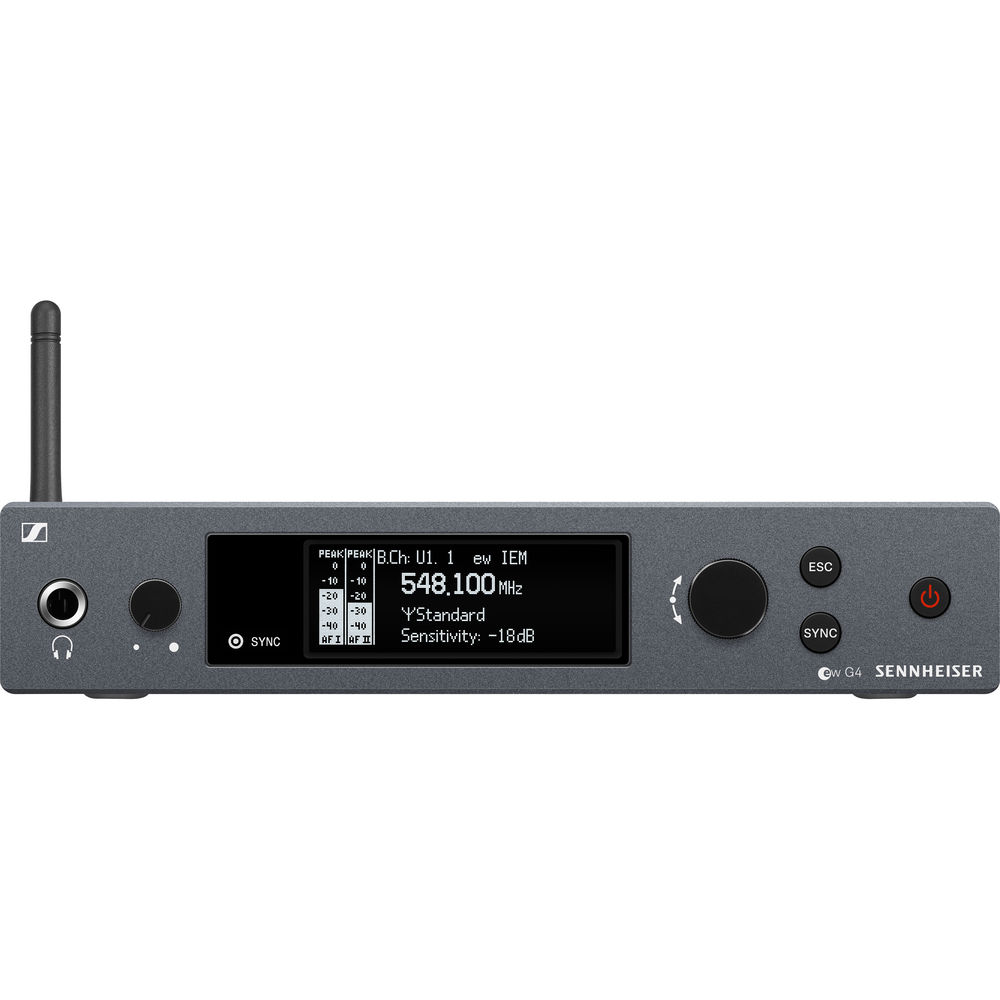

  • Half-rack stereo transmitter in a full-metal housing with OLED display for full control
  • Easy and flexible wireless synchronization between transmitter and receiver via infrared
  • Compatible with Sennheiser WSM control software for flexible frequency allocation
  • Up to 16 compatible channels
  • Up to 42 MHz bandwidth with 1680 selectable frequencies, fully tunable in a stable UHF range
  • Transmission Range: up to 100 meters / 300 feet
  • High RF output power (up to 50 mW) depending on country regulations



What's in the box?

  • SR IEM G4 stereo transmitter

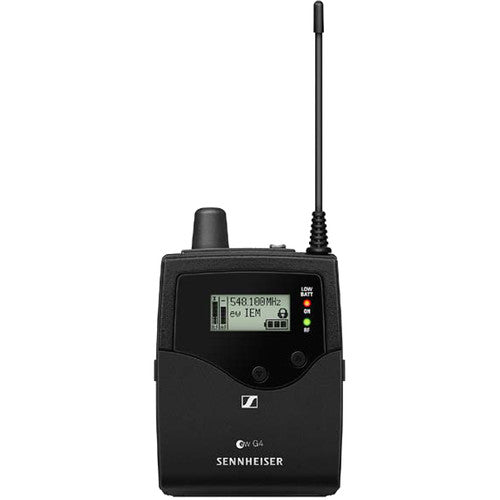

  • EK IEM G4 stereo receiver

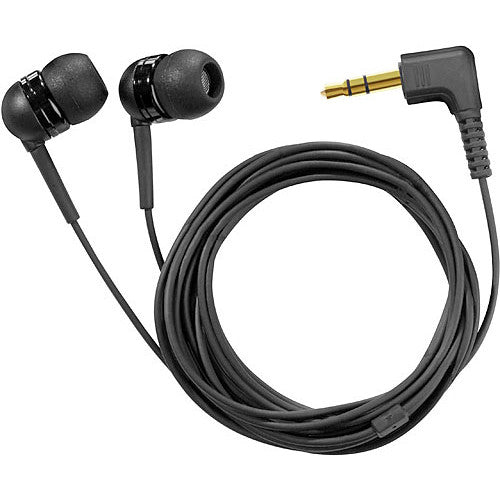

  • IE 4 earphones
  • 2 AA batteries
  • rod antenna
  • GA 3 rackmount set
  • quick guide
  • safety guide
  • manufacturer declaration sheet
  • power supply



Technical Data

SR IEM G4

  • Frequency range

A1: 470 - 516 MHz
A: 516 - 558 MHz
AS: 520 - 558 MHz
GB: 606 - 648 MHz
G: 566 - 608 MHz
B: 626 - 668 MHz
C: 734 - 776 MHz
D: 780 - 822 MHz
E: 823 - 865 MHz

  • Dimensions

Approx. 202 x 212 x 43 mm

  • Compander

Sennheiser HDX

    • THD, total harmonic distortion

<0.9 %

  • Weight

Approx. 980 g

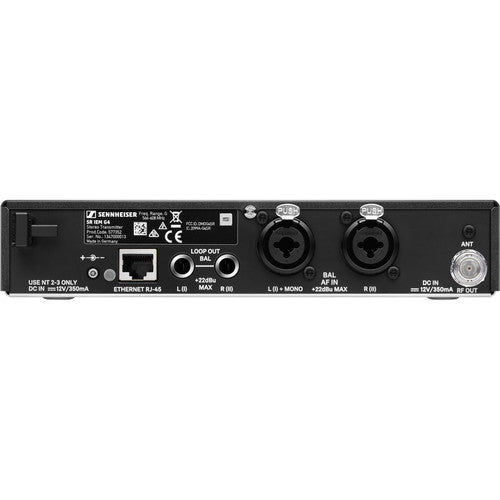

  • Audio input

2x XLR-3/¼" (6.3 mm) jack combo socket, electronically balanced

  • Audio output

¼" (6.3 mm) stereo jack socket, balanced

  • Signal-to-noise ratio

>90 dB

  • RF output power

switchable: Low: typ. 10 mW, Standard: typ. 30 mW, High: typ. 50 mW

  • Switching bandwidth

up to 42 MHz

  • Peak deviation

±48 kHz

  • Nominal deviation

±24 kHz

  • Modulation

Wideband FM stereo (MPX pilot tone)

  • Power supply

12 V DC

  • Current consumption

max. 350 mA

  • Input voltage

+22 dBu

  • Transmission frequency

Max. 1680 frequencies, adjustable in 25 kHz steps, 20 frequency banks, each with up to 16 factory-preset channels, no intermodulation, 6 frequency banks with up to 16 programmable channels

  • AF frequency response

25 Hz to 15 kHz

  • Temperature Range

-10 °C to +55 °C

  • Frequency stability

±10 ppm

  • Antenna Output

BNC socket, 50 Ω

Show less

EK IEM G4

  • Dimensions

Approx. 82 x 64 x 24 mm

  • Compander

Sennheiser HDX

  • THD, total harmonic distortion

≤ 0.9 %

    • Weight

(incl. batteries) approx. 125 g

  • Signal-to-noise ratio

approx. 90 dBA

  • Switching bandwidth

up to 42 MHz

  • Peak deviation

±48 kHz

  • Nominal deviation

±24 kHz

  • Operating time

approx. 4 to 6 hours (depending on volume level)

  • Modulation

Wideband FM

  • Power supply

2 AA batteries, 1.5 V or BA 2015 accupack

  • Current consumption

at nominal voltage: approx. 140 mA
with transmitter switched off: ≤ 25 µA

  • Adjacent channel rejection

Typically ≥ 65 dB

  • Audio-Output-Power

2 x 100 mW at 32 Ω

  • Intermodulation attenuation

Typically ≥ 70 dB

  • Limiter

–18 dB to –6 dB, adjustable in steps of 6 dB, can be switched off

  • Powering

3 V battery / 2.4 V rechargeable battery

  • Receiving frequency

Max. 1680 receiving frequencies, adjustable in 25 kHz steps, 20 frequency banks, each with up to 16 factory-preset channels, no intermodulation, 6 frequency banks with up to 16 programmable channels

  • RF sensitivity

< 4 μV, typ. 1.6 μV for 52 dBA rms S/N

  • Squelch

5 to 25 dBµV, adjustable in steps of 2 dB

  • Bass Boost

+8 dB at 80 kHz

  • Temperature Range

-10 °C to +55 °C

  • Receiver Principle

Adaptive diversity

  • Blocking

≥ 80 dB
