RME Fireface UCX II USB Audio Interface (Price on request)

Professional Standard in a Half-Rack Frame

The RME Fireface UCX II is a power-dense 40-channel interface designed for elite audio performance in any environment. It integrates flagship features—like reference-grade conversion and standalone recording—into a portable, rugged housing. This is the definitive choice for mixing engineers, mobile recording artists, and modular synth enthusiasts who demand RME's legendary stability without the full-rack footprint.

Femtosecond Precision Clocking
The UCX II features SteadyClock FS, the same reference-class technology found in RME’s ADI-2 Pro converter. It reduces jitter to a femtosecond level—a quadrillionth of a second—ensuring your recordings possess incredible depth and a perfectly defined soundstage. This means your AD/DA conversion remains transparent and artifact-free across all digital formats.

Hardware-Based Standalone Recording
Integrated DURec (Direct USB Recording) allows you to capture all 40 channels directly to a USB thumb drive or hard drive up to 2TB. Because it is powered by internal DSP, it operates independently of a computer, making it a reliable field recorder or a redundant backup for live performances. You can even use it for virtual soundchecks or mobile jam sessions without a laptop in sight.

Modular Synergy via DC-Coupling
This interface serves as a bridge for hybrid studios by featuring fully DC-coupled outputs. Unlike traditional interfaces that filter out extreme low frequencies, the UCX II can send stable control voltages (CV) or Gate information to modular synthesizers like Eurorack. This allows you to automate hardware pitch, filters, and LFOs directly from your DAW.

Main features:

• 40-channel USB 2.0 audio interface with 20 inputs and 20 outputs.

• Two digitally controlled microphone preamps providing reference-quality recordings.

• SteadyClock FS technology for ultra-stable, femtosecond-level clocking.

• Direct USB Recording (DURec) for capturing audio to external drives without a computer.

• TotalMix FX dual-DSP engine for latency-free routing, EQ, and effects on every channel.

• Fully DC-coupled outputs for sending CV/gate control signals to modular synthesizers.

• Six internal memory slots to store user presets for standalone operation.

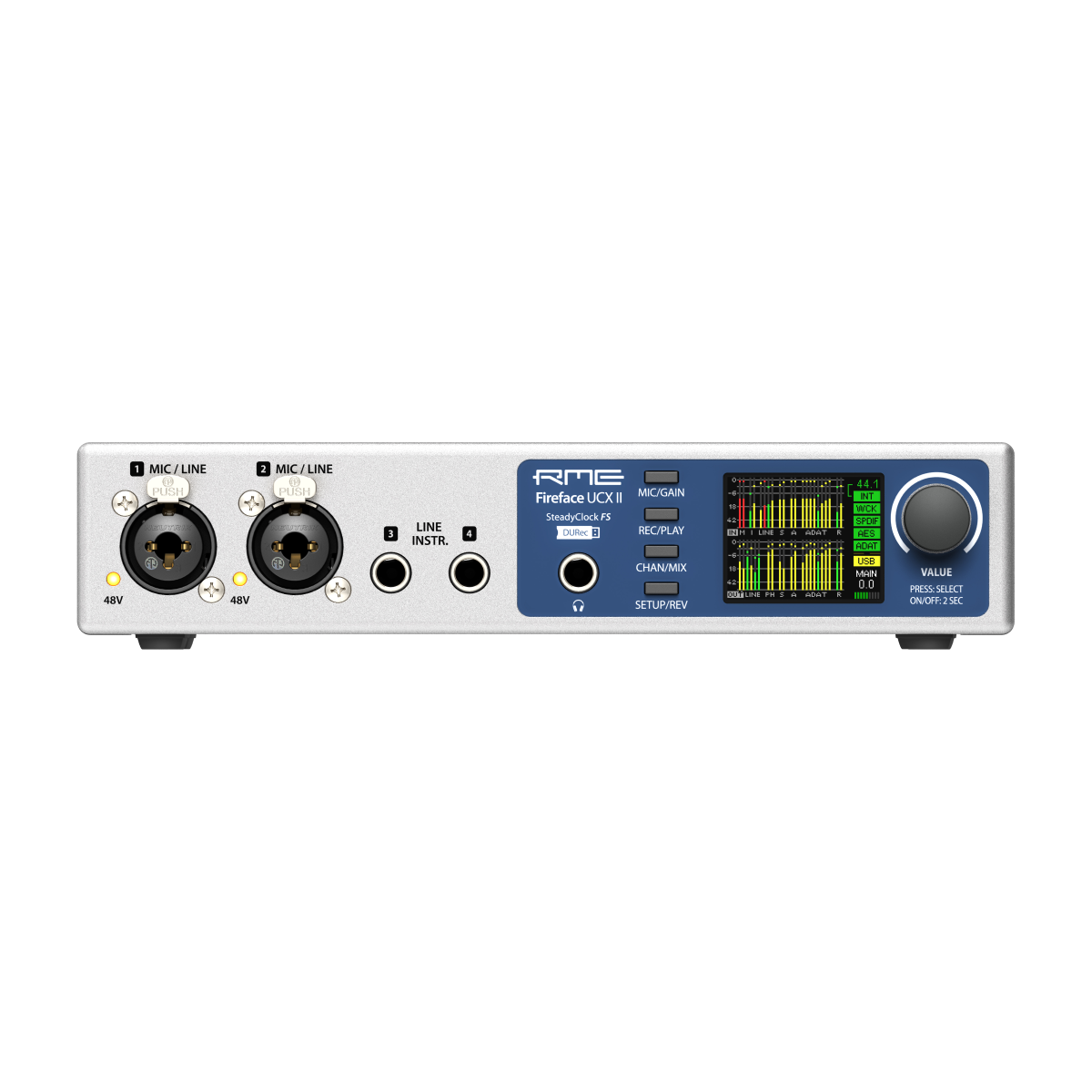

• High-resolution color display for front-panel monitoring and parameter control.

• Integrated DIGICheck analyzer for professional metering and audio measurement.

• Rugged half-rack design ideal for both high-end studios and mobile rigs.


Tech Specs:

• Computer Connectivity: USB 2.0

• Form Factor: Rackmount

• Simultaneous I/O: 20 x 20

• Preamps: 2

• Phantom Power: Yes

• A/D Resolution: Up to 24-bit/192kHz

• Effects: 3-band EQ, Low-cut Filter, Reverb, Compressor, Expander, Auto Level

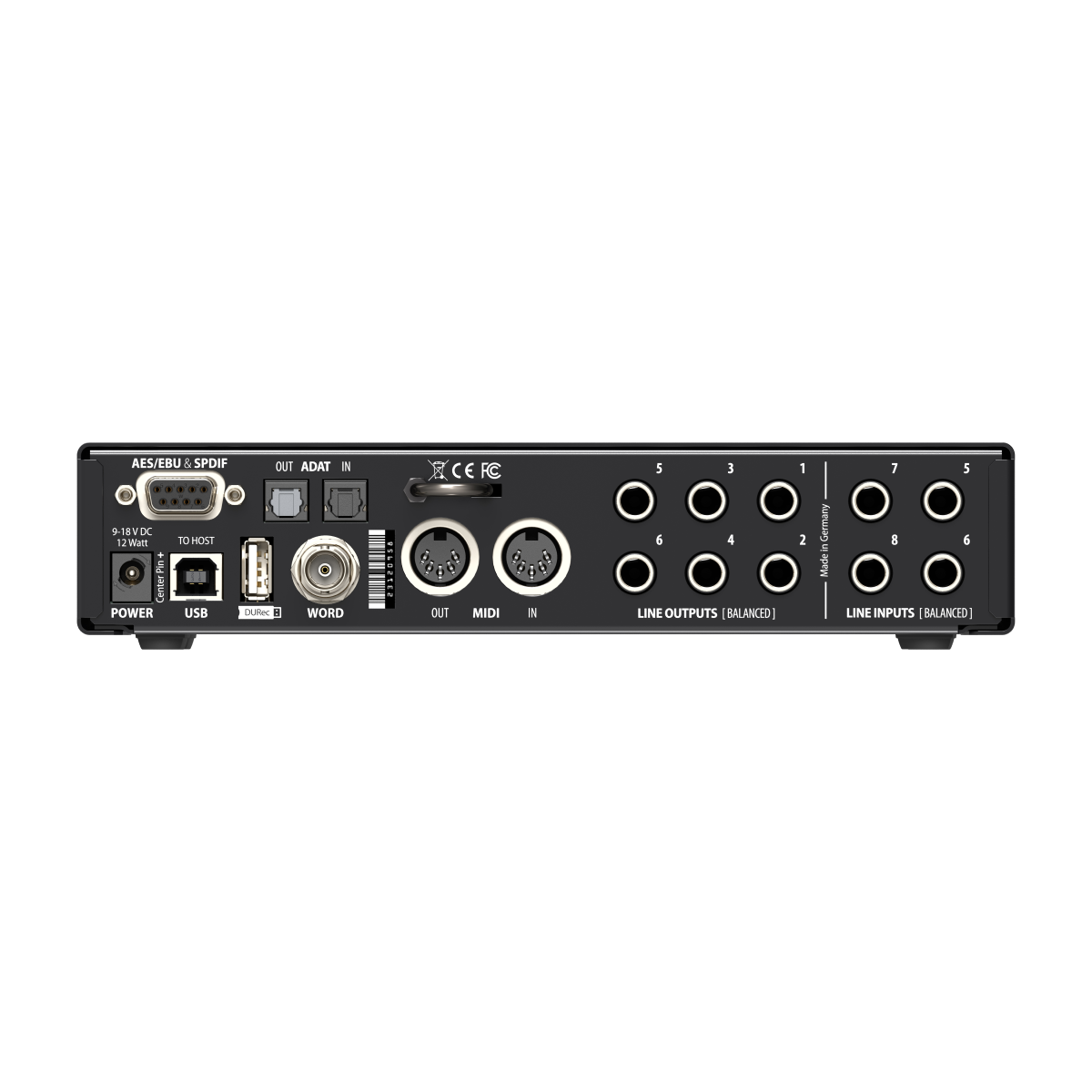

• Analogue Inputs: 2 x XLR/TRS Combo (Mic/Line), 2 x 1/4" Line/Hi-Z, 4 x 1/4" Line

• Analogue Outputs: 6 x 1/4" TRS, 1 x 1/4" Headphone

• Digital Inputs: 1 x Optical Toslink (ADAT)

• Digital Outputs: 1 x Optical Toslink (ADAT)

• Headphones: 1 x 1/4"

• MIDI I/O: In/Out

• USB: 1 x Type A, 1 x Type B

• Clock I/O: 1 x Word Clock

• Other I/O: 1 x 9-pin (AES/EBU, S/PDIF)

• OS Requirements: Mac - OS X 10.9.5 or later | PC - Windows 7 SP1 or later

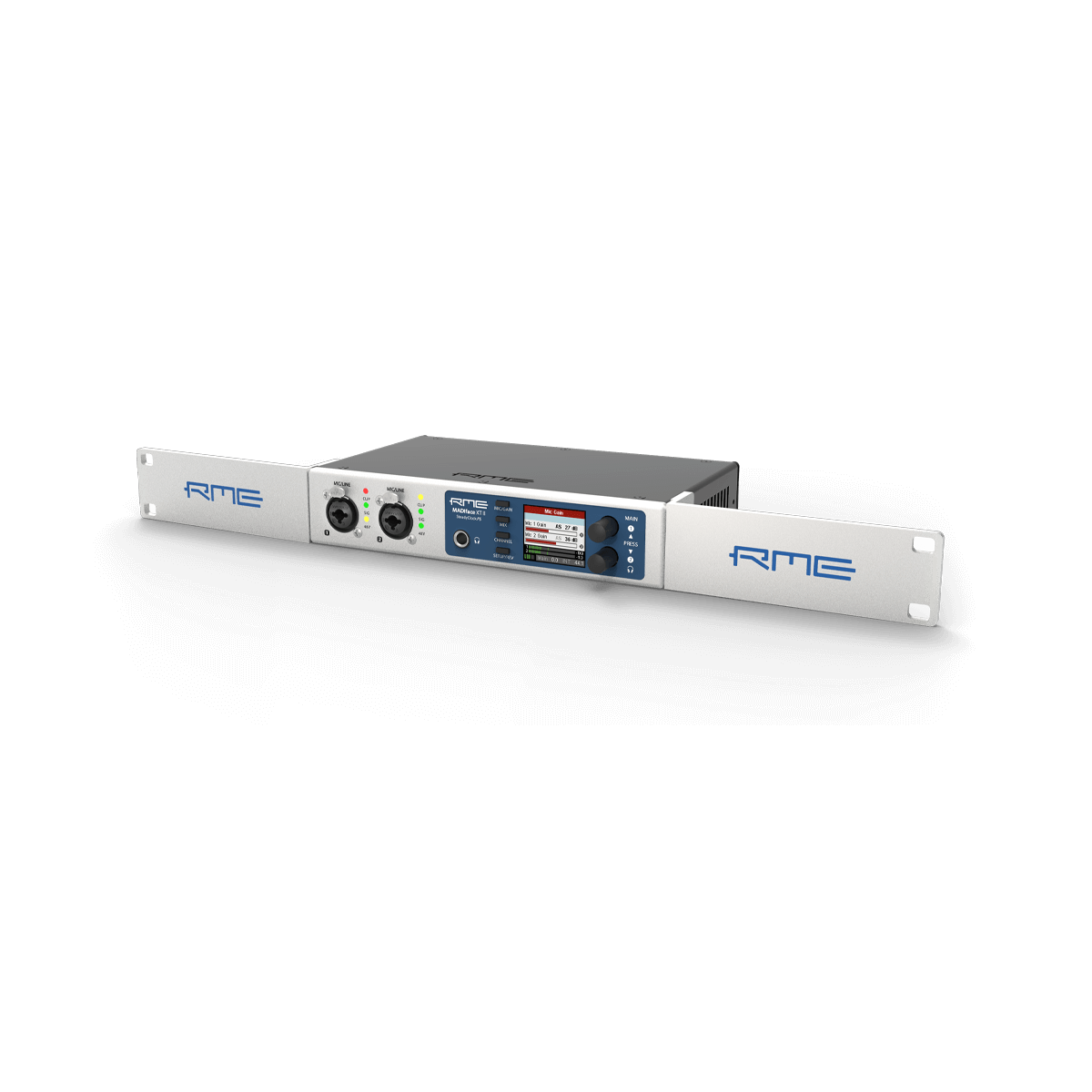

• Rack Spaces: 1U

• Power Supply: 12V DC power supply (incl.)

• Dimensions: 215 x 44 x 130 mm (excl. rack ears)

• Weight: 910 g

• Explore RME Advanced USB Audio Interfaces [Fireface UCX II]: https://www.rme-usa.com/fireface-ucx-ii.html
