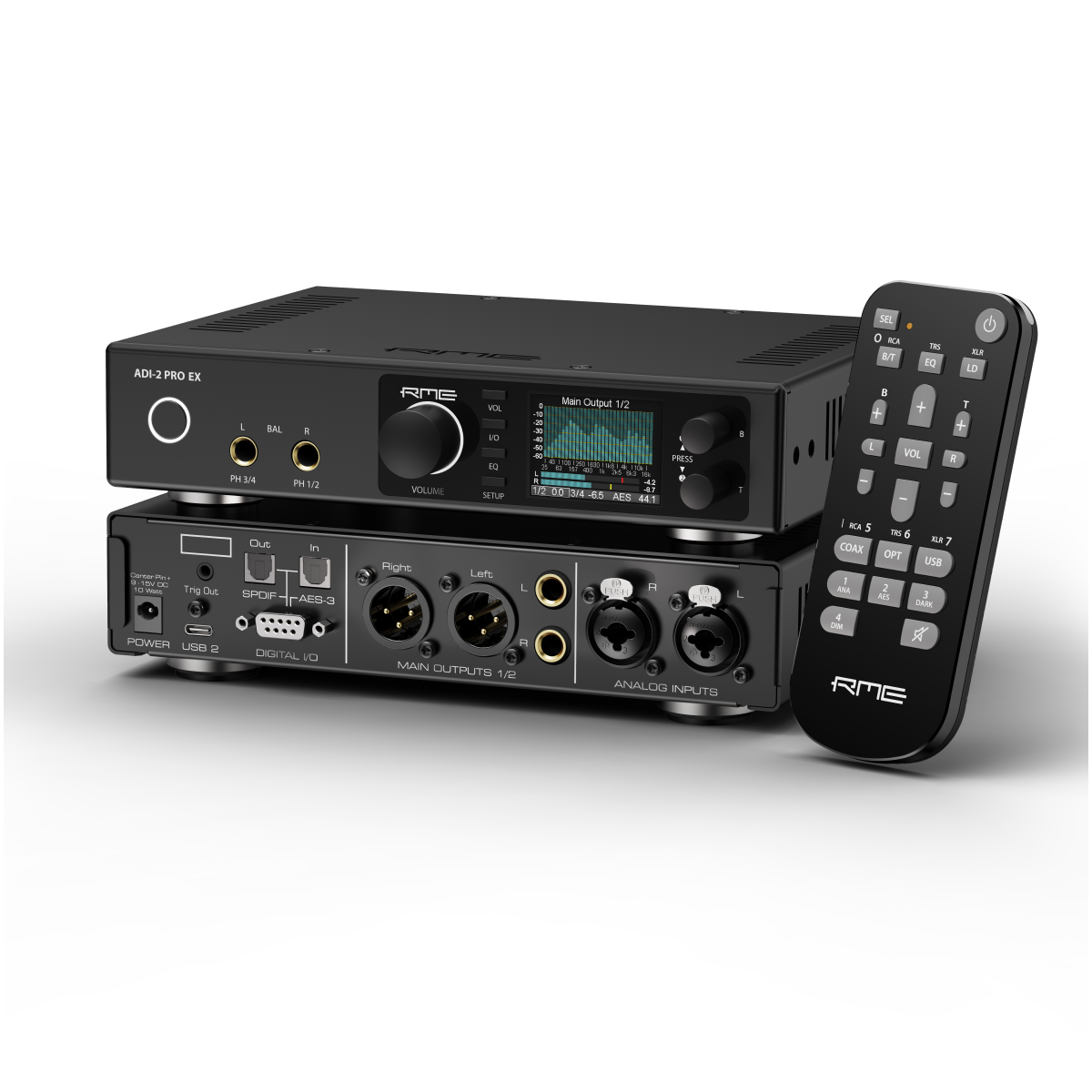

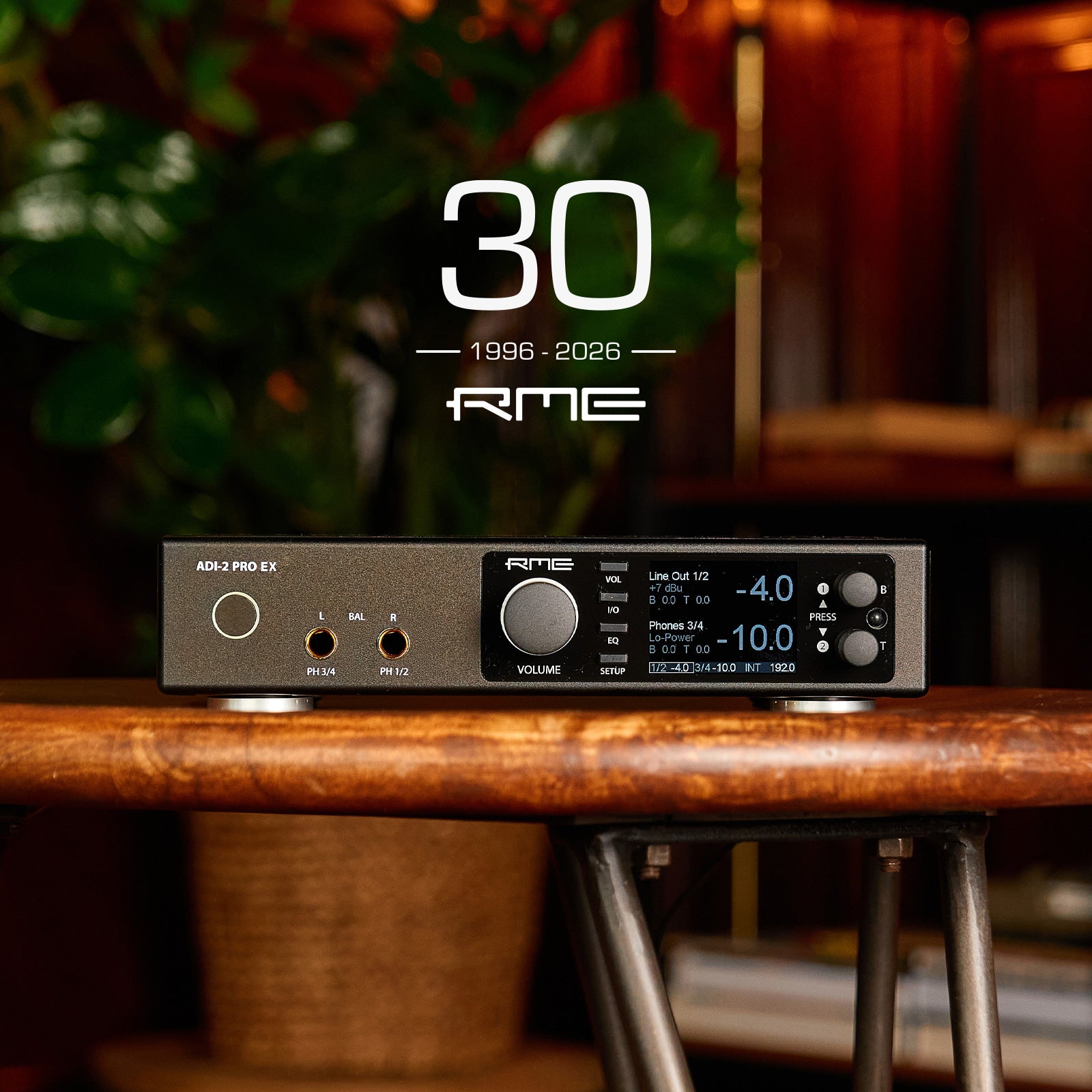

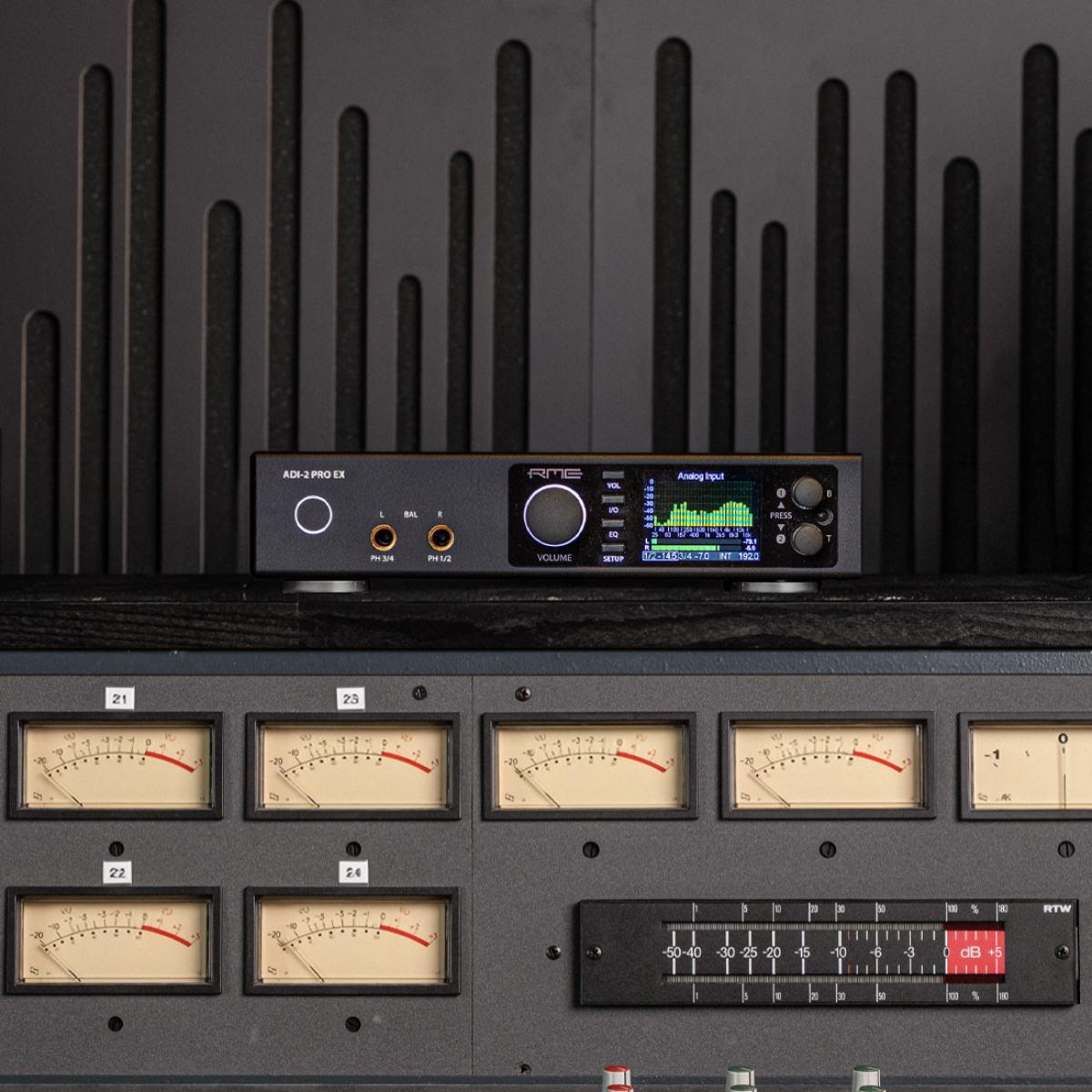

RME ADI-2 Pro EX AD/DA Converter - Special Order
Tax included.
Precision You Can Trust: The Next Evolution of Reference Conversion
The RME ADI-2 Pro EX is the ultimate reference converter for mastering engineers and studio professionals. This sophisticated all-in-one toolbox combines a high-end AD/DA converter, dual Extreme Power headphone amplifier, and multi-format converter in a single chassis. Designed for those who demand honest, uncolored audio representation, it delivers studio-quality conversion with exceptional fidelity and precision.
Extreme Power with Unmatched Fidelity
The EX version features a redesigned headphone output stage with increased power in both unbalanced and balanced modes. The Extreme Power driver circuits deliver crystal-clear sound with a 120 dBA signal-to-noise ratio, ensuring full DAC performance at the headphone jack. This design reveals every micro-detail in your mix.
Innovative Hardware Protection and Cooling
Built for longevity with a larger, ventilated chassis for superior cooling. Innovative fuseless active protection prevents overvoltage and reverse polarity damage, while channel-independent DC protection safeguards your headphones. These features ensure reliable performance during demanding production sessions.
SteadyClock FS for Absolute Transparency
RME's proprietary SteadyClock FS technology reduces digital jitter to the femtosecond range, ensuring AD and DA conversion is independent from incoming clock quality. This delivers extended frequency response up to 180 kHz and a deep, holographic soundstage without the flattening effect of poor clocking.
Main features:
- Ultra-fidelity PCM conversion up to 768 kHz and Direct DSD256 record/playback
- High-performance AK5574 ADC and AK4493 DAC architecture
- Dual Extreme Power headphone outputs with dedicated low and high-power modes
- Proprietary Advanced Balanced mode for optimized fidelity and 3 dB SNR gain in balanced headphones
- Modern lockable USB-C connection for robust digital stability (Class Compliant USB 2.0)

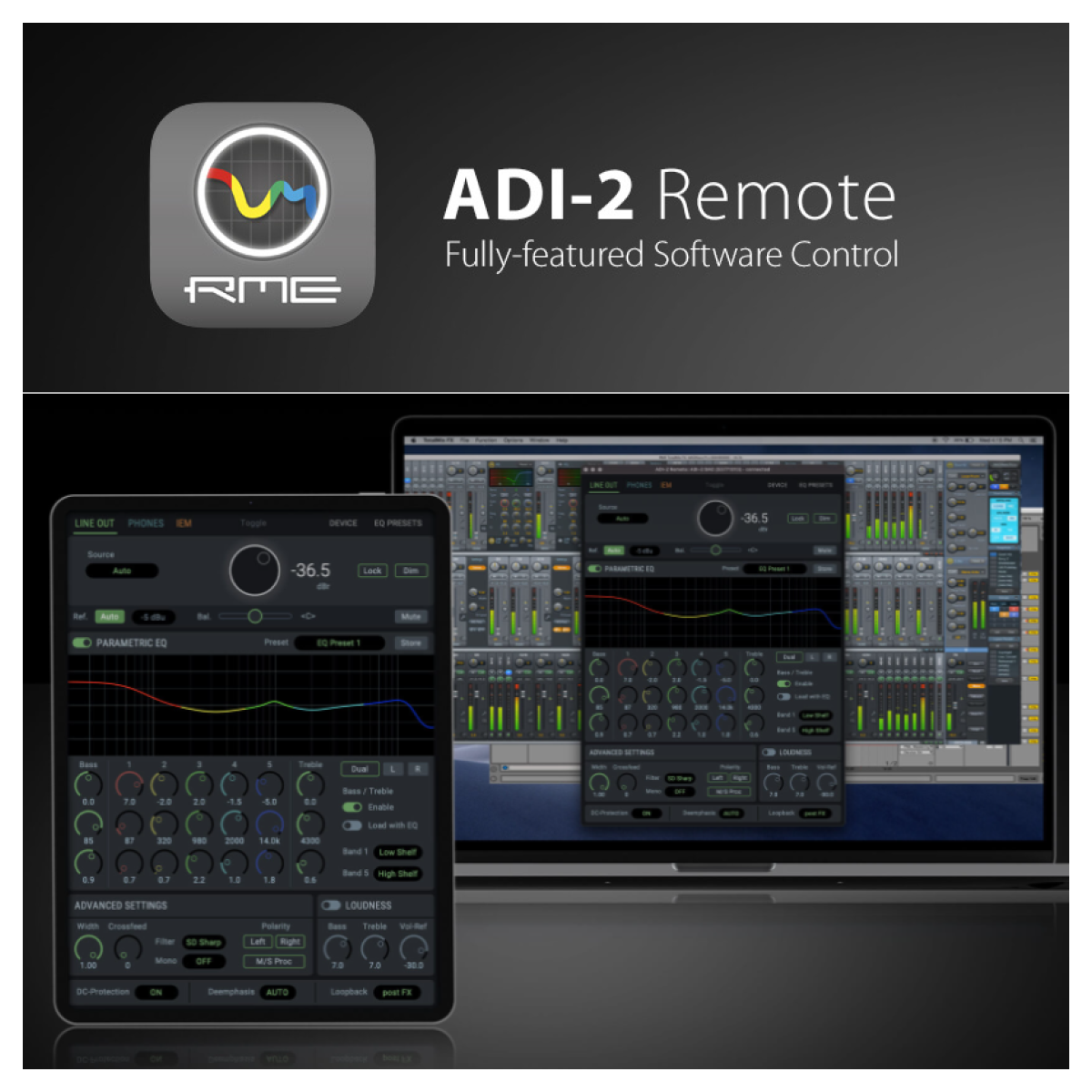

- Integrated DSP featuring a 5-band parametric EQ, Crossfeed, and adjustable Loudness control
- New 12V Trigger Output for synchronized power control of external amplifiers
- High-resolution IPS display with RME’s famous 30-band Spectral Analyzer
- Included Multi-Remote Control (MRC) with 52 programmable functions for flexible workflow
- Comprehensive I/O including AES, SPDIF, ADAT, and servo-balanced analog connections
Tech Specs:
- Product Type: High-End Reference AD/DA Converter, USB DAC, Audio Interface & Headphone Amp
- Conversion & Formats: Ultra-fidelity PCM up to 768 kHz, Native DSD256 (11.2 MHz), and DXD support
- Converter Architecture: Premium Asahi Kasei AK5574 (ADC) and AK4493 (DAC) dual-mono configurations
- Clocking Technology: SteadyClock FS (Femtosecond jitter suppression architecture)

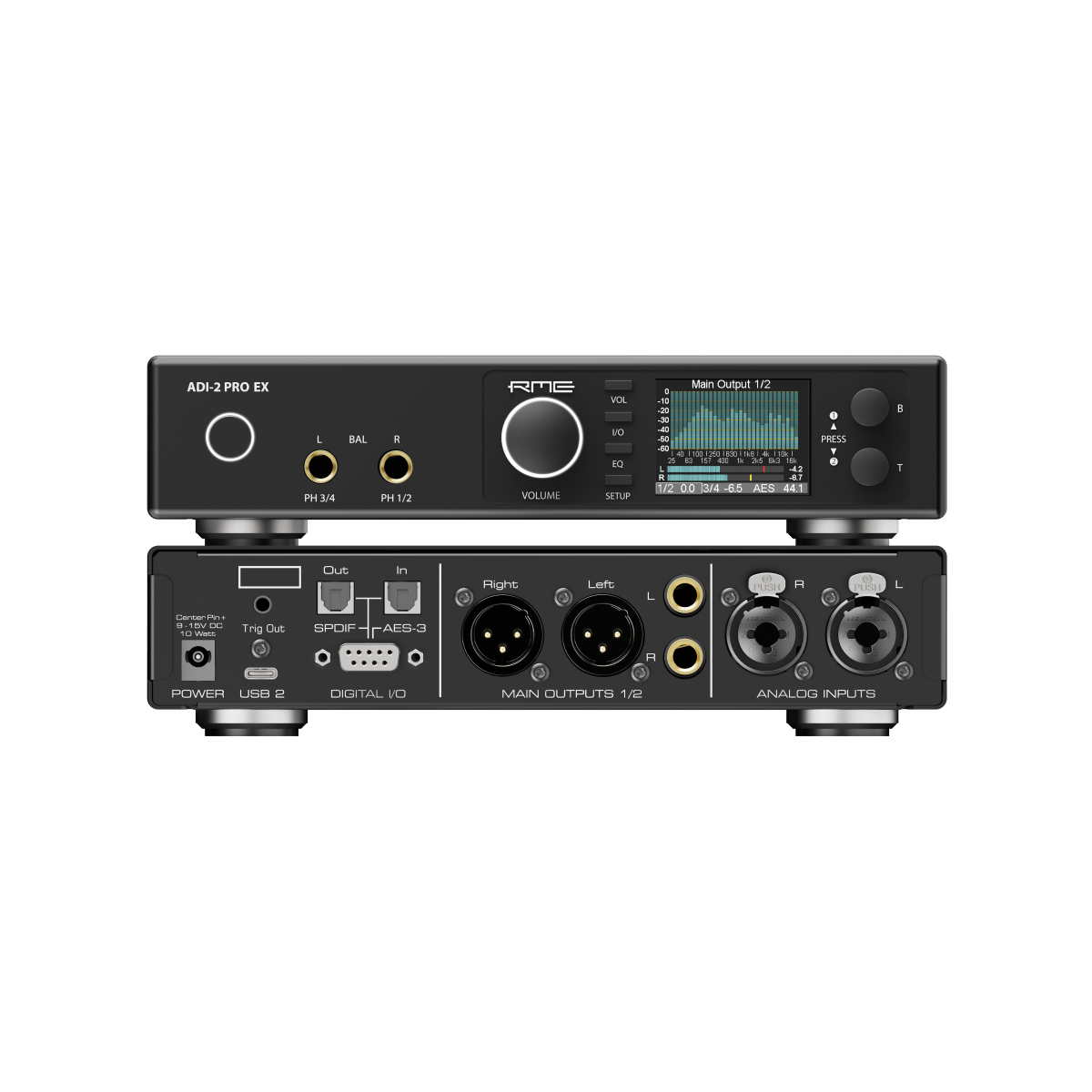

- Analogue Connectivity: 2 x Servo-balanced XLR/TRS Combo Inputs, 2 x XLR Balanced Outputs, 2 x TRS Unbalanced Outputs, 2 x Extreme Power Stereo Headphone Outputs (Front Panel)
- Digital Connectivity: 1 x Optical SPDIF/ADAT I/O (up to 192 kHz), 1 x Coaxial SPDIF I/O, 1 x Transformer-balanced AES/EBU I/O via included breakout cable
- USB Interface: Modern lockable USB-C connection (Class Compliant USB 2.0; supports 2-ch stereo or 6-in/8-out multichannel modes)
- Signal-to-Noise Ratio (SNR): 120 dB RMS unweighted, 124 dBA
- Total Harmonic Distortion (THD+N): -115 dB (0.00018 %) @ 0 dBFS
- Headphone Output Stages: +22 dBu (Unbalanced) / +28 dBu (Advanced Balanced Mode) with built-in DC protection circuitry
- Hardware Safety Features: Fuse-less active surge and reverse-polarity protection circuitry; channel-independent DC protection
- Power Management Sync: Dedicated 12V TS Trigger Output for synchronized power sequencing with external amplifiers
- Display Interface: High-resolution IPS display featuring RME's signature 30-band Spectral Analyzer and AutoDark mode
- Included Accessories: Multi-Remote Control (MRC) with 52 programmable functions, Lockable NT-RME-13 universal power supply, breakout cable
- Chassis Design: Expanded, ventilated desktop enclosure with integrated premium chrome feet for superior thermal dissipation
- Dimensions (WxHxD): 215 x 44 x 130 mm
- Physical Weight: 1.0 kg
- Explore RME Reference Conversion Solutions [ADI-2 Pro EX]: https://rme-audio.de/converter/adi-2-pro-ex.html
