Radial StageBug SB-1 1-channel Active Direct Box

Ultra-Compact Active Instrument DI BOX

The StageBug SB-1 is a compact active direct box designed to fit inside a guitar case for artists who prefer to travel light.

The design begins with standard ¼ instrument input with a thru-put to feed your tuner or your on-stage amp. The ultra-quiet active circuit at once converts the signal from high to low impedance to reduce susceptibility to noise. The signal is then buffered and balanced for long cable runs to the PA system. 48-volt phantom provides the power, so the SB-1 does not require batteries or external supply to make it work. You simply plug in and you are ready to go!

Main features:

• Active DI for bass, keyboards, and acoustic guitar
• 48V phantom powered, no batteries required
• 800k-ohm input impedance eliminates loading issues
• Ultra-compact fits in your gig bag
• Easy-to-use, plug-and-play feature set

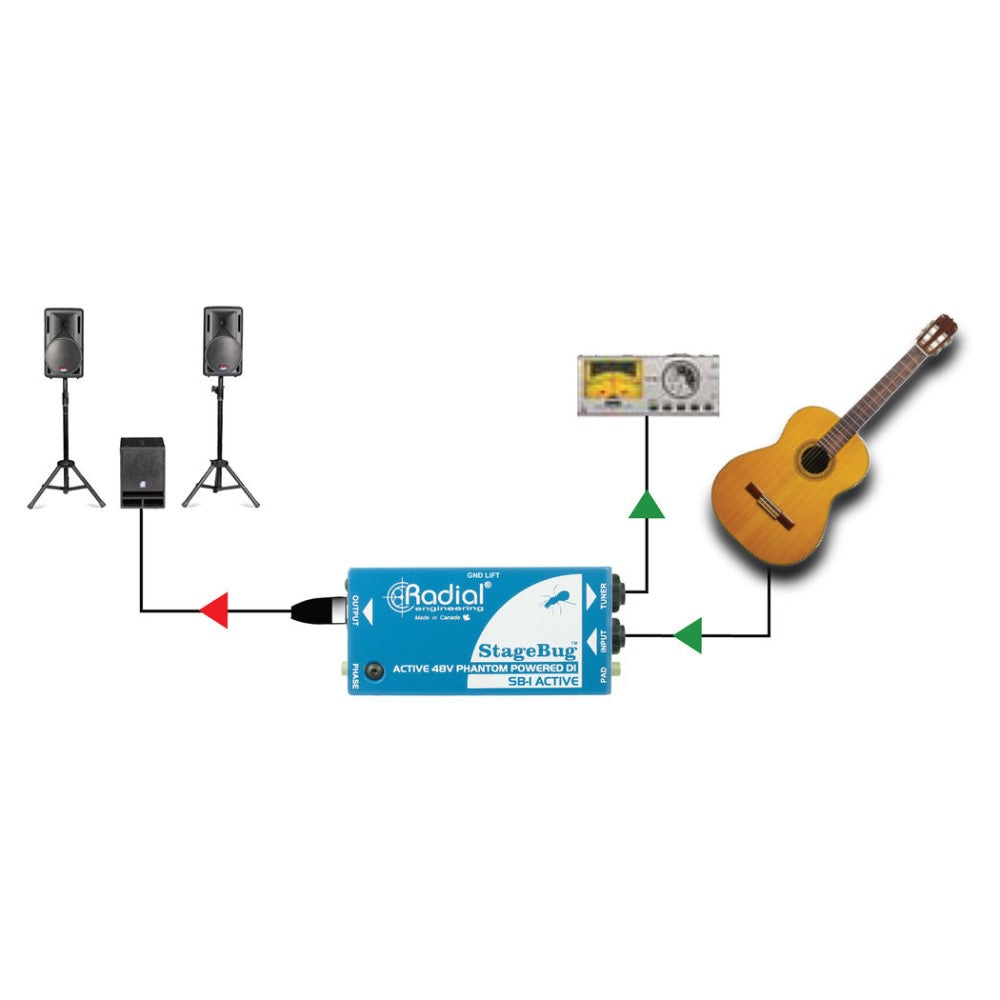

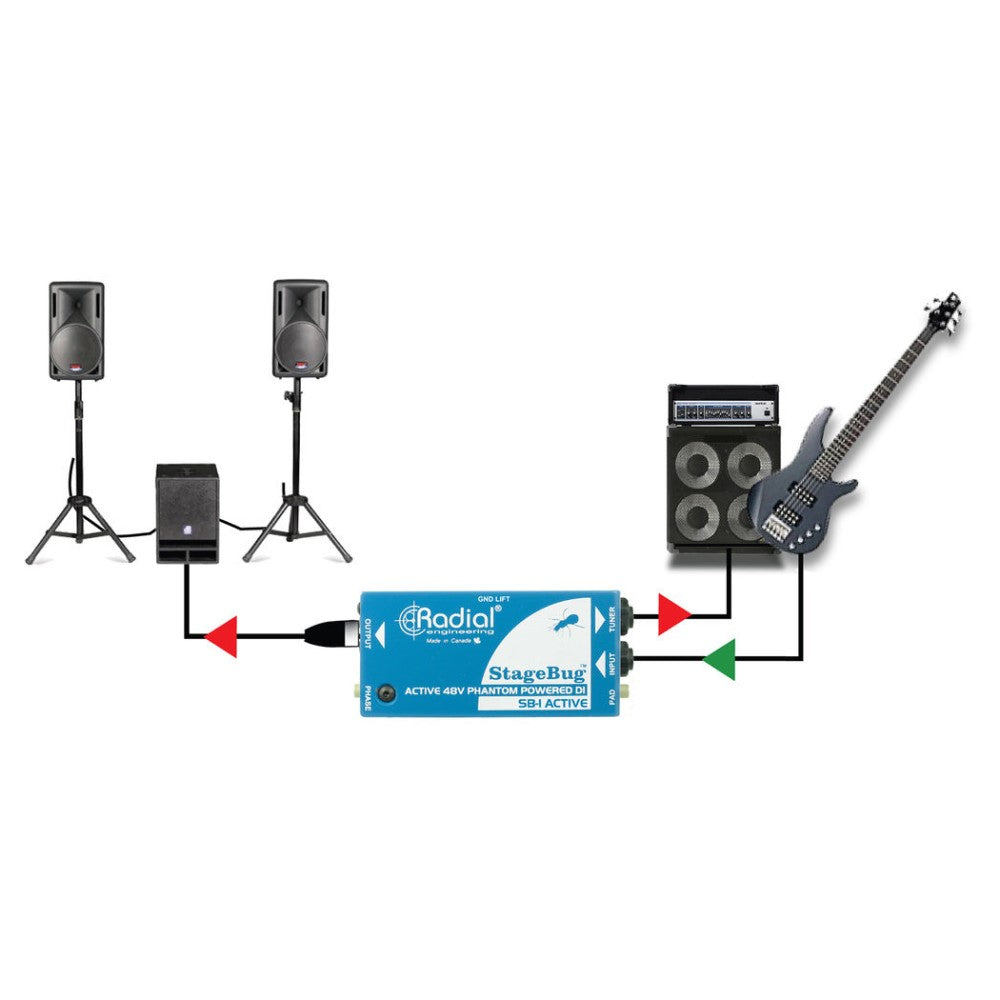

• 1/4" input, throughput to feed your amp
• 15dB pad for extra-hot signals
• 180-degree polarity switch helps eliminate LF resonance due to onstage hot spots

Tech Specs:

• Type: Acoustic/Bass/Keyboard Active Box
• Channels: 1
• Pads: -15dB
• Polarity Switch: Yes
• Ground Lift: Yes
• Inputs: 1 x 1/4"
• Outputs: 1 x XLR, 1 x 1/4" (thru)
• Power Source: 48V Phantom Power
• Dimensions: 114mm x 47mm x 34mm (L x W x D)
• Weight: 365 g
