PSI Audio A 14 M Broadcast Monitor - Single

Swiss Precision. Deployed Anywhere.

The A 14 M Broadcast is the definitive audio tool for professionals who demand Swiss precision in the field. It is engineered specifically for the rigors of on-location recording, outside broadcast (OB) vans, and mobile production environments where space is at a premium but audio accuracy is non-negotiable. Unlike its studio counterpart, the Broadcast version is equipped with a robust metal grill for driver protection, an included bracket for rapid and secure mounting, and a front-panel level control for immediate access—a critical feature for engineers who need to make adjustments in cramped or dynamic field situations.

Compensated Phase Response (CPR): Coherent Imaging, Anywhere
In the compromised acoustic spaces of a broadcast van, a precise, phase-coherent sound source is essential. The A 14 M Broadcast features the proprietary Compensated Phase Response (CPR) system, which uses all-analog filters to deliver a stable, focused stereo image that is less dependent on the room. This ensures the monitor is perfectly phase-compatible with larger PSI Audio monitors, making it an ideal component for mobile multi-channel or immersive setups.

Engineered for the Field: Grill, Bracket, and Frontal Access

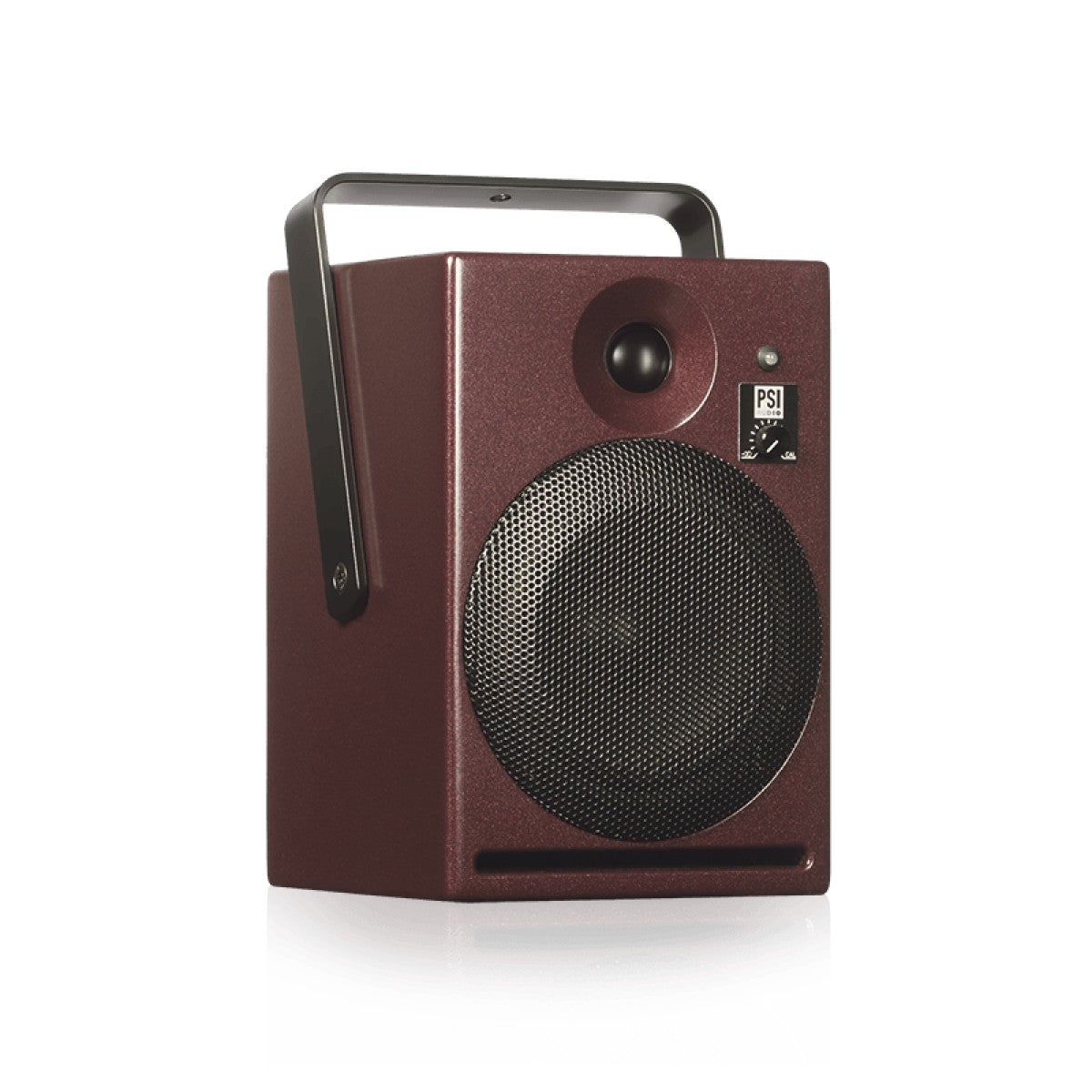

The engineering of the A 14 M Broadcast is an achievement in purposeful design. It is built to be "transported or mounted wherever needed". This is evidenced by three critical features: a heavy-duty metal grill that protects the handmade tweeter and woofer from the hazards of field use; a pre-installed mounting bracket for fast, secure rigging on walls or in vans; and a front-panel level control, which provides the immediate, tactile access required for on-the-fly gain staging.

100% Analog Reliability
In broadcasting, reliability is paramount. The A 14 M Broadcast’s "100% Analog – No DSP"  design is the ultimate in reliability. It offers zero digital boot-up time, eliminates the risk of software crashes, and features absolutely no latency. The robust Class A/B amplifiers are individually calibrated to perform consistently, ensuring this monitor delivers the same reference-quality sound day in and day out, from the studio to the field.

Main Features

Tech Specs:

• Type: Active 2-Way Broadcast Monitor
• Amplification: 110 + 45 W (Bi-amplified, Class A/B)
• Frequency Range: 56 Hz – 23 kHz (-6dB)

• Technology: 100% Analogue (CPR, AOI)

• Power Consumption: 1.3W (Standby), 8W (Quiescent), 100W (Max continuous)

• Finish Options: High-durability paint, Metal Grill, Mounting Bracket

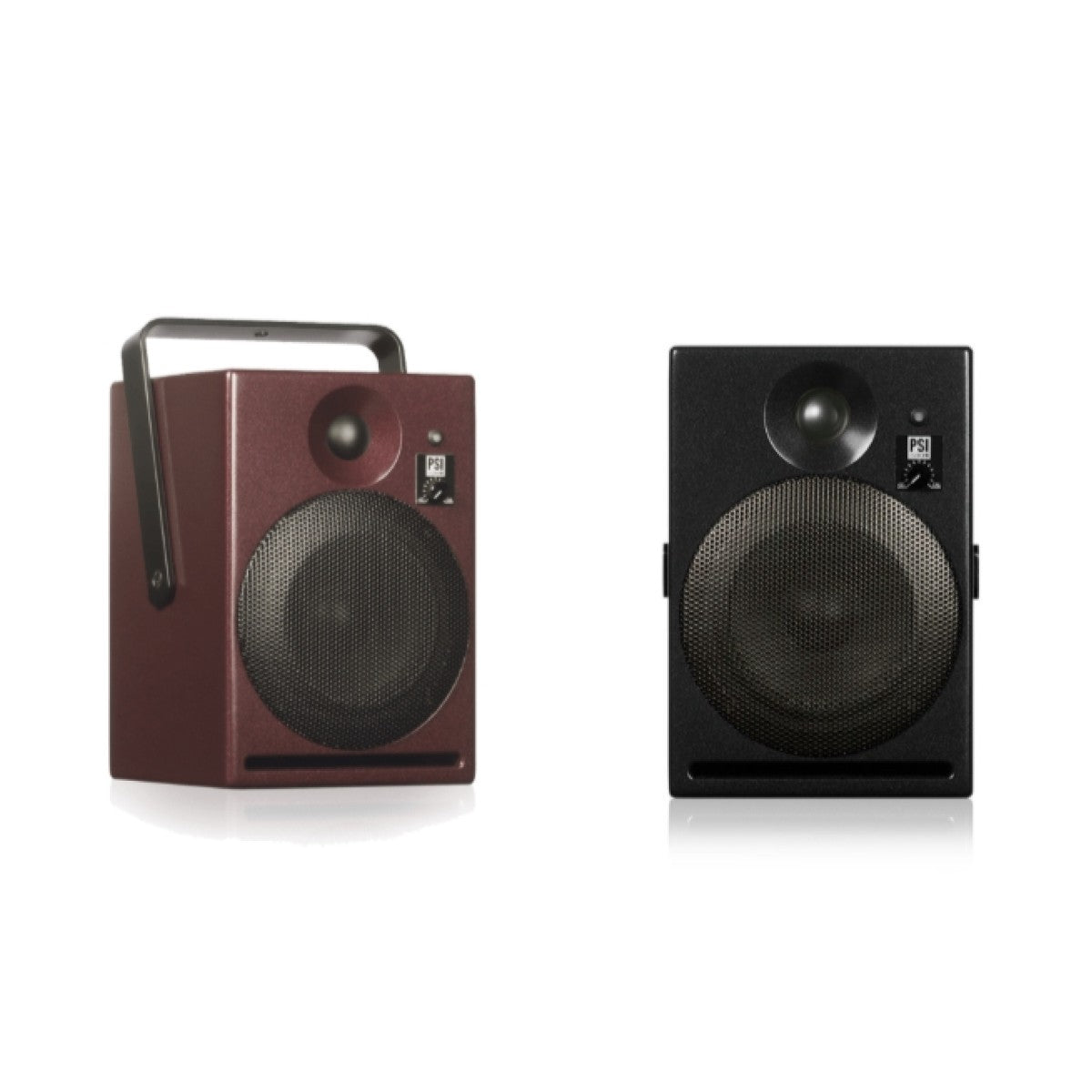

• Colour(s): Studio Red, Metal Black

• Manufactured: Handmade in Switzerland

• Warranty: 5 Years (+1 additional year with registration)

• Dimensions (WxDxH): 163 x 170 x 243 mm

• Weight: 4.9 kg
• Discover PSI Audio Studio Monitor Technology [A 14 M Broadcast]: https://www.psiaudio.swiss/a14-m-broadcast/
