PMC 8-2 Sub Professional Active Subwoofer (left / right unit)

Absolute Low-End Authority

The PMC 8-2 SUB is a high-resolution, active low-frequency monitor engineered for the most demanding professional environments. Designed to deliver full-bandwidth accuracy, it is the ultimate tool for mixing, post-production, and immersive formats like Dolby Atmos. Whether used as a standalone subwoofer or integrated into a massive XBD system, it provides the uncompromising clarity required for critical monitoring.

Advanced Bass Loading with ATL™ and Laminair™
PMC’s legendary sound is rooted in Advanced Transmission Line (ATL™) technology, which manages energy more efficiently than standard ported designs. When paired with Laminair™ airflow technology, air noise is eradicated and timing is significantly improved. This translates to a low-frequency response that is tight, uncoloured, and detailed, allowing you to hear the smallest nuances in your sub-bass.

Massive Headroom for Dynamic Precision
Equipped with twin eight-inch studio drivers and independent 400W Class-D amplifiers, the PMC 8-2 SUB delivers 800W of total power. This configuration allows for a staggering 115dB of continuous SPL and response down to 25Hz. The result is a system with effortless headroom that handles modern high-resolution transients without distortion or compression.

Seamless Integration and Digital Control
The built-in SoundAlign™ web interface allows complete control of the sophisticated DSP engine from any LAN-connected device. This provides access to 5-band parametric EQ, delay, and phase options, ensuring the subwoofer is perfectly aligned within stereo or immersive arrays. A dedicated XBD mode allows for seamless pairing with PMC6-2 or PMC8-2 monitors for even greater dynamic range.

Main features:

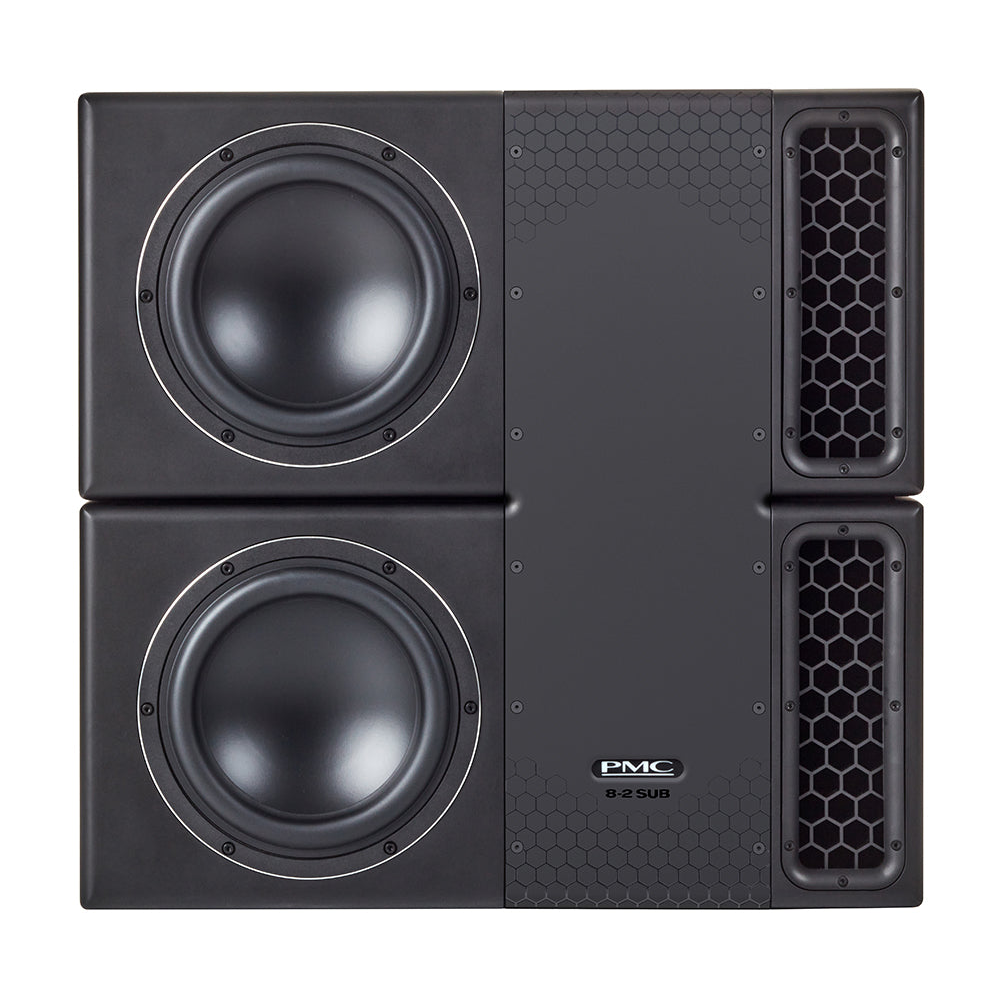

• Active subwoofer featuring twin 8-inch high-excursion studio drivers
• Dual 400W Class-D amplification for 800W of total power
• Advanced Transmission Line (ATL™) for natural and uncoloured low-end
• Laminair™ airflow technology to eliminate turbulence and improve timing
• Powerful DSP engine for driver protection and room optimization
• SoundAlign™ network interface for remote control via any web browser
• Flexible connectivity with switchable analogue and AES3 digital inputs
• Dedicated XBD configuration mode for enhanced monitor system performance
• User-definable presets including 5-band parametric EQ and shelving filters
• Available in left and right-handed versions for perfect stereo imaging

Tech Specs:

• Type: Active subwoofer with ATL™ bass loading
• LF Drivers: 2 x PMC 200mm (8”) studio drivers
• Frequency Response: 25Hz - 500Hz (-3dB)
• Effective ATL™ Length: 3m (9.8ft)
• Maximum SPL: 115dB Continuous / 121dB Peak @ 1m
• Amplifier Power: 800W (2 x 400W Class-D)
• Input Types: XLR switchable Analogue / AES3 Digital
• Digital Output: XLR AES3 (fixed 24-bit @ 96kHz)
• DSP Controls: 5-band Parametric EQ, Level Trim, Delay, Phase
• Network Interface: RJ45 for SoundAlign™ web control
• System Latency: 2.4mS
• Dimensions (HxWxD): 534 x 551 x 440 mm
• Weight: 37.5 kg (82.7 lbs)
• Discover the Professional Monitor Company [PMC8-2 SUB]: https://pmc-speakers.com/studio/pmc-8-2-sub
