PMC 15 XBD Active Three-Way Far-Field Reference Monitor System - New

The Pinnacle of Reference Monitoring

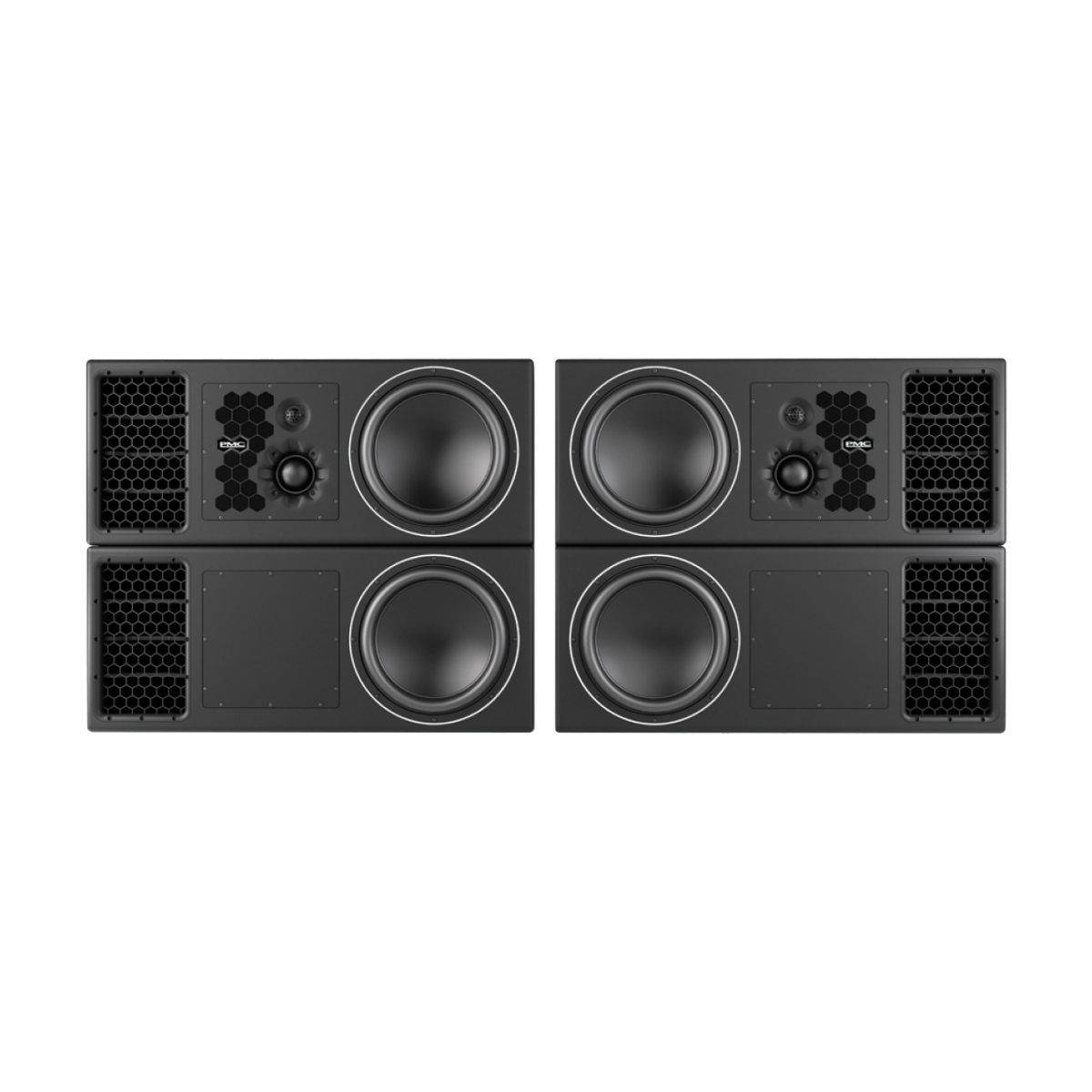

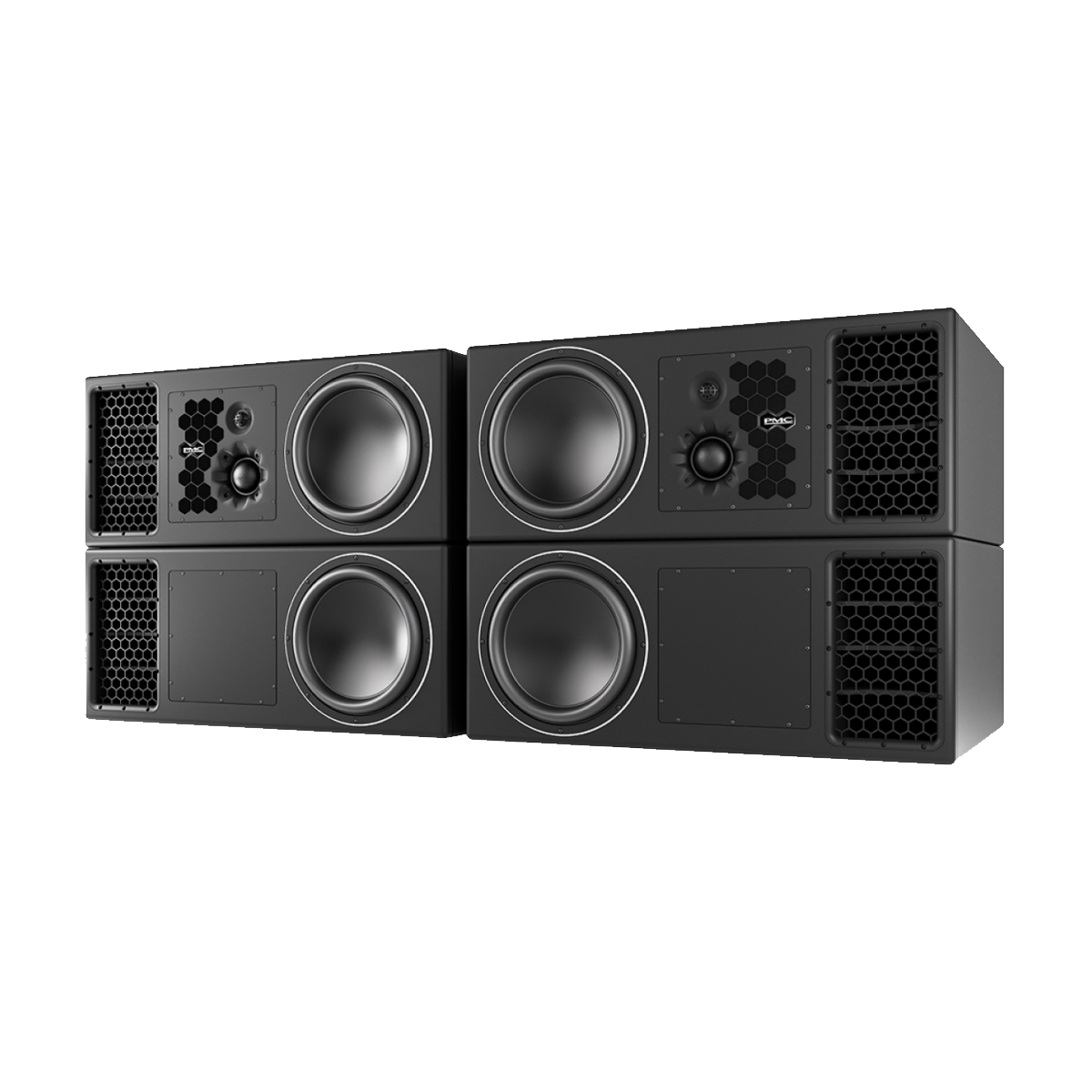

The PMC (Professional Monitor Company) 15 XBD is the flagship of the new Main Monitor Series, representing the absolute peak of active reference monitoring. By pairing the PMC 15 with a dedicated XBD low-frequency cabinet, this system provides two massive 15-inch Radial™ drivers per channel to deliver sound on a monumental scale with infinite headroom. Designed for elite mixing engineers, film scoring stages, and mastering suites, it offers the unwavering transparency and physically tangible bass power required when absolute audio truth is non-negotiable.

ATL™ and LaminairX™: Physics in Service of Bass
PMC’s proprietary Advanced Transmission Line (ATL) technology utilizes the energy generated by the dual 15-inch drivers far more efficiently than sealed or ported designs. By absorbing undesirable frequencies and allowing only the lowest to pass through the front-baffle vent, the system extends bass response down to 17Hz while significantly reducing distortion. This is further enhanced by LaminairX™ aerodynamic venting, which uses F1-inspired principles to create smooth laminar airflow, resulting in superior bass timing and a transparent midrange that makes balancing vocals and solo instruments effortless.

Next-Generation Hybrid Drive and SoundAlign2™ Control

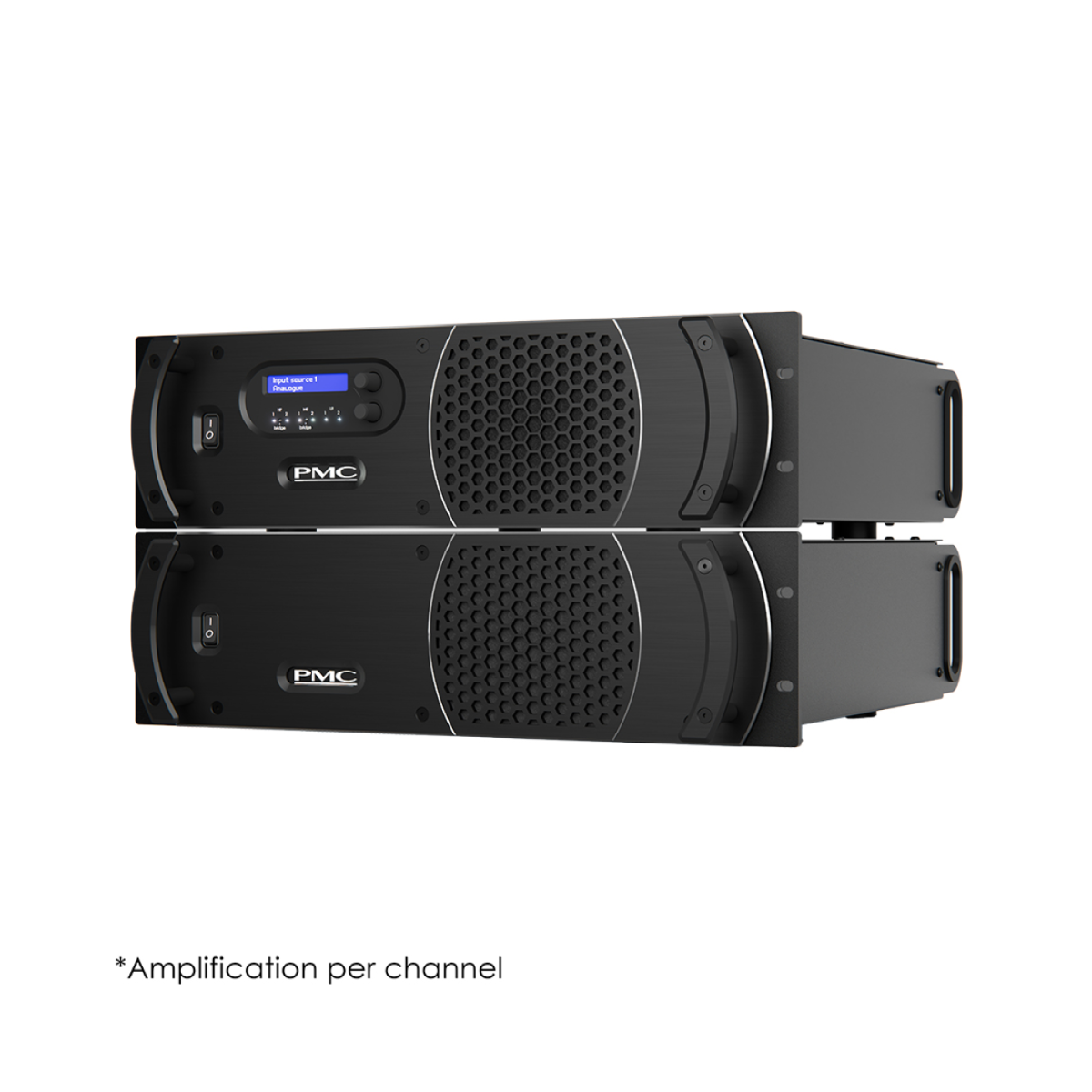

The system is powered by a sophisticated set of digitally controlled amplifiers—the Master36 and Power20—delivering a combined 5600W per channel. This massive power reserve ensures that the system maintains its frequency response and transient definition even at extreme SPL levels exceeding 133dB. For perfect integration, the SoundAlign2™ DSP engine provides precise time and phase alignment, alongside comprehensive room EQ accessible via any standard web browser, ensuring your monitors are calibrated perfectly to your space.

Main features:

• Flagship 3-way, four-driver active far-field reference system
• Dual 15-inch Radial LF drivers for monumental low-frequency power and impact
• Dedicated PMC75v3 75mm soft-dome midrange for unrivaled vocal transparency
• Precision 34mm soft-dome tweeter for detailed high-frequency extension
• Over 5600W of Class-D power per channel via Master36 and Power20 units
• Advanced Transmission Line (ATL) technology for deep, uncoloured bass to 17Hz
• LaminairX aerodynamic venting for reduced turbulence and increased efficiency
• SoundAlign2 browser-based interface for intuitive DSP control and room EQ

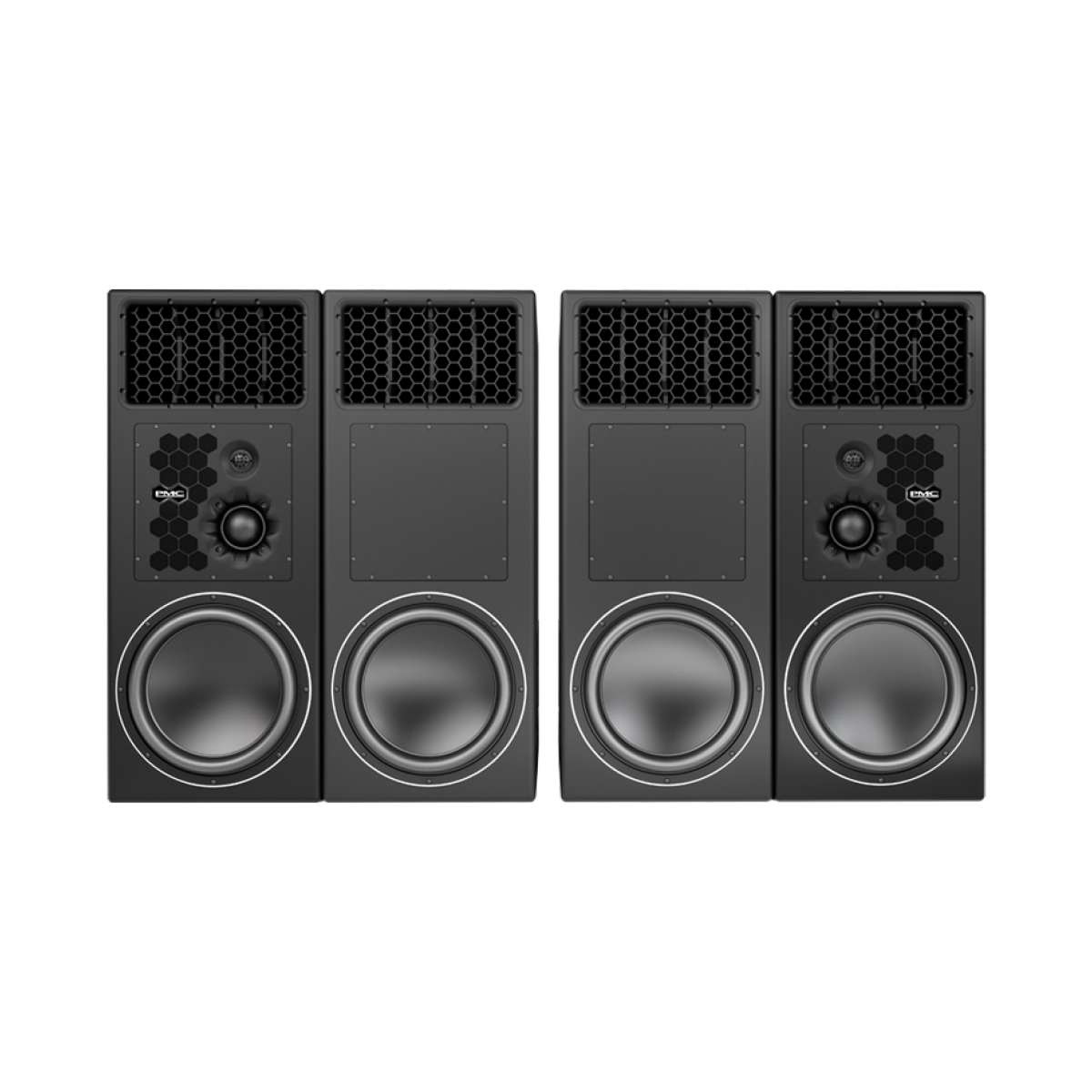

• Flexible installation options including vertical, horizontal, or multi-cabinet arrays
• Switchable XLR inputs for both analog and digital AES3 (up to 192kHz)

Tech Specs:

• Type: 3-way, four-driver, dual-cabinet
• Frequency Response: 17Hz – 25kHz
• Maximum SPL: >133 dB (Estimated for XBD configuration)
• Technology: ATL™ + LaminairX™ Aerodynamics
• Directivity: Wide-dispersion n-compass™ waveguide
• LF Drivers: 2 x 15-inch (380mm) Radial™ drivers
• MF Driver: 75mm (2.95") PMC75v3 soft-dome
• HF Driver: 34mm (1.34") soft-dome tweeter
• Total System Power: >5600W per channel (Class-D)
• Amplifier Breakdown: HF: 800W / MF: 800W / LF: 2 x 2000W
• Input Types: XLR switchable between Analog and Digital AES
• Network Control: RJ45 port for SoundAlign2™ web interface
• Cabinet Dimensions: 1040mm x 432mm x 790mm (Per Cabinet)
• System Weight: 184kg per channel (Master: 97kg / XBD: 87kg)
• Discover the Professional Monitor Company [PMC 15 XBD]: https://pmc-speakers.com/studio/pmc-15-xbd/
