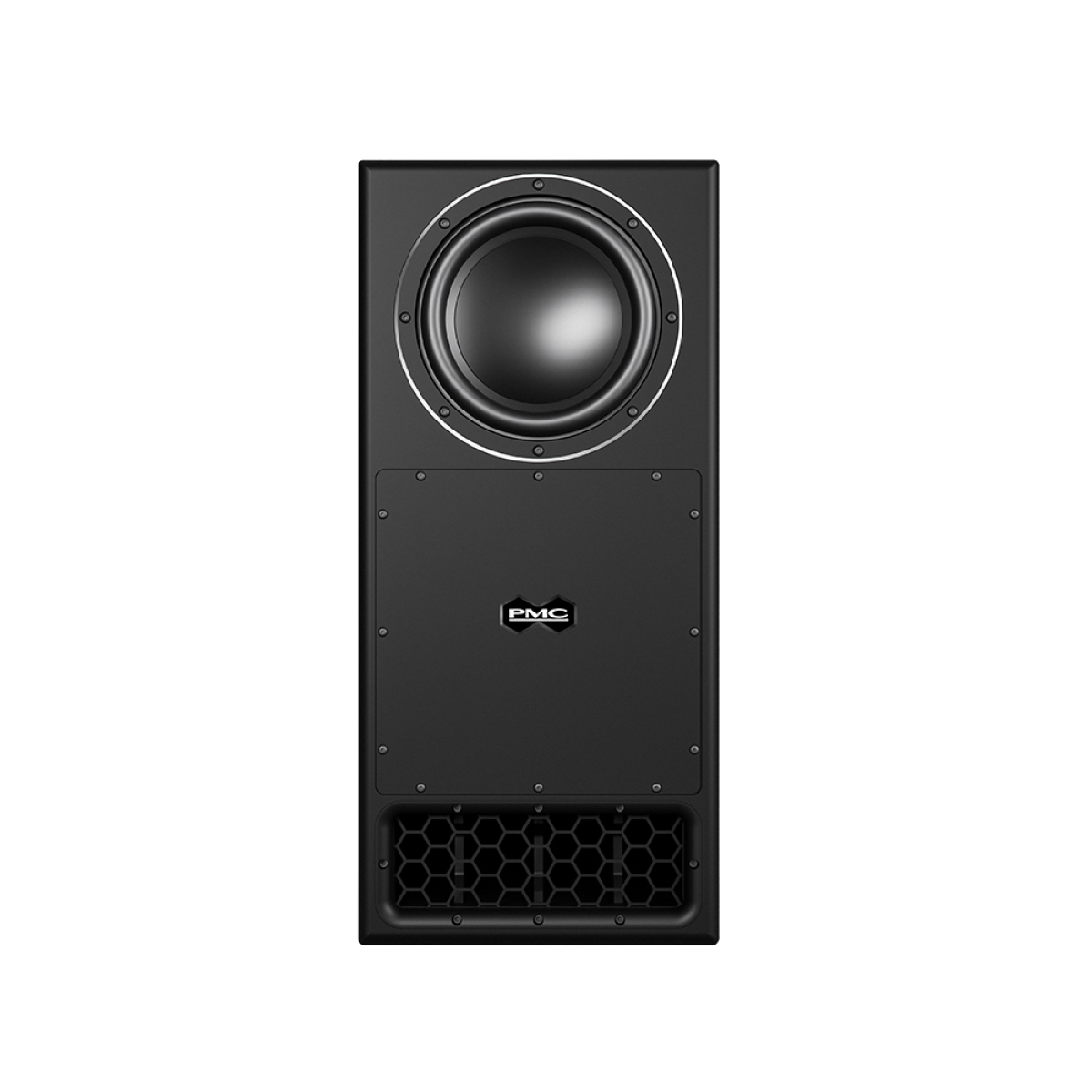

PMC 10 SUB Professional Active Reference Subwoofer

Unrivaled Precision for the Modern Control Room

The PMC (Professional Monitor Company) 10 SUB is a high-performance active reference subwoofer designed to deliver the extended, highly controlled low-frequency power required by today’s most demanding professional environments. Engineered for mixing engineers, broadcast professionals, and post-production specialists, this subwoofer provides the scale and finesse needed to handle complex scores and dynamic modern mixes with absolute composure. Whether you are working in a stereo or immersive setup, the PMC 10 SUB ensures your low-end is fast, clean, and clinical.

Advanced ATL™ with LaminairX™ Timing
At the heart of the PMC 10 SUB is the proprietary Advanced Transmission Line (ATL) technology, paired with aerodynamic LaminairX venting. Unlike traditional ported designs, ATL uses energy from the rear of the driver to extend bass response while absorbing frequencies that cause distortion. This results in a supremely natural, uncoloured sound with superior bass timing and wide dynamic range, ensuring your mix remains in balance even at low listening levels.

Massive Headroom via Master36 DSP

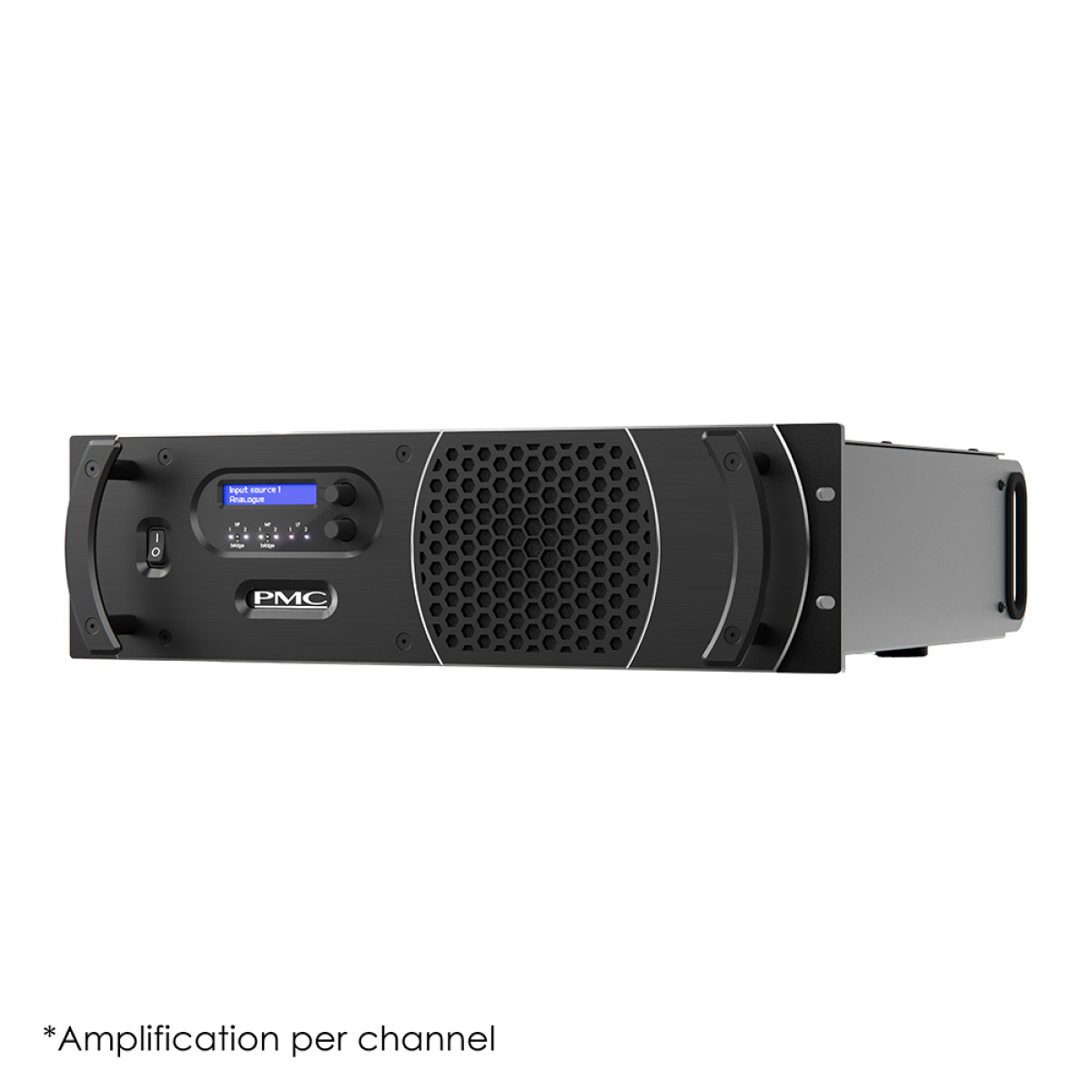

Powered by the rack-mountable PMC Master36 DSP amplifier, this system delivers 1000W of ultra-transparent Class-D amplification to a custom 10-inch long-throw driver. This intelligent engine provides more than just raw power; it features precision digital high and low-pass filters, transparent excursion limiting for system protection, and comprehensive room-optimization EQ. The result is a low-end that feels large in scale yet remains nimble and tightly controlled.

Seamless Integration and Scalability
The PMC 10 SUB is built to grow with your studio requirements. Through the browser-based SoundAlign2 interface, you can manage detailed room alignment and EQ over a standard LAN connection. For larger spaces or projects requiring extreme SPL, a second PMC 10 SUB can be daisy-chained to the same amplifier channel, doubling your output to a massive 2000W of total system power.

Main features:

• Active 10-inch studio reference subwoofer designed for professional monitoring
• Advanced Transmission Line (ATL) cabinet design for deeper, cleaner bass
• LaminairX aerodynamic venting eliminates air noise and improves definition
• 1000W of Class-D power via the dedicated Master36 DSP/Amplifier
• SoundAlign2 web interface for intuitive DSP control and room alignment
• Scalable architecture allows daisy-chaining a second unit for 2000W output
• High-resolution connectivity accepting analogue and digital signals up to 192kHz
• Custom-designed long-throw LF driver delivers performance of a 12-inch system in a compact footprint

Tech Specs:

• Device Type: 1-way ATL™ active reference subwoofer
• Cabinet Construction: ATL™ with LaminairX™ venting
• Low Frequency Driver: 1 x 10-inch in-house long-throw LF driver
• Effective ATL Length: 3.6 m (11.8 ft)
• Total System Power: 1000 W (2000 W with daisy-chained second unit)
• Management System: PMC Master36 DSP/Amplifier
• Amplifier Class: Class-D
• Inputs: Analogue & Digital (up to 192 kHz)
• Control Interface: SoundAlign2 with full DSP Room Alignment EQ
• Finish: Studio Black
• Cabinet Size (HxWxD): 770 x 355 x 420 mm
• Weight: 42 kg
• Discover the Professional Monitor Company [PMC 10 SUB]: https://pmc-speakers.com/studio
