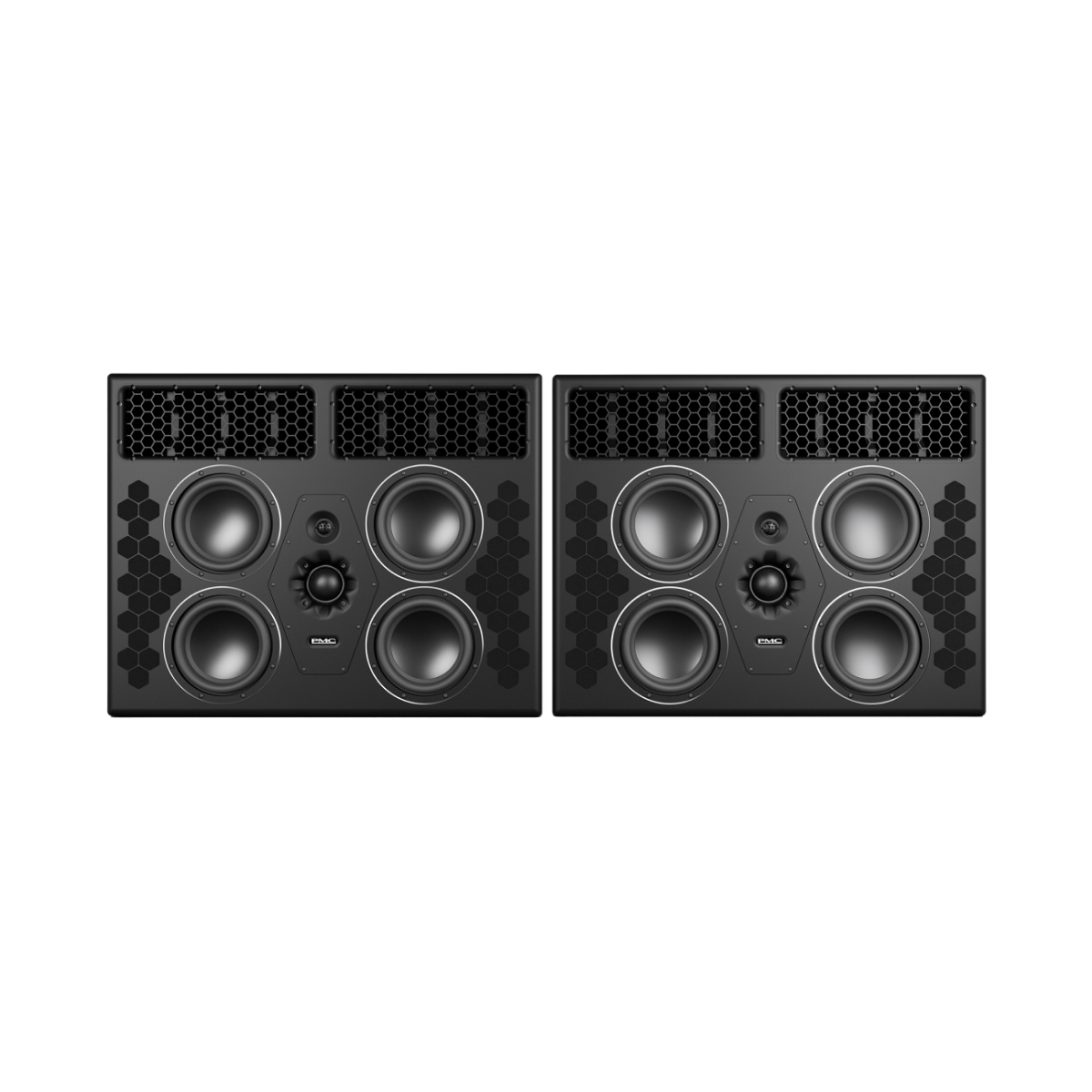

PMC 10-4 Active Reference Main Monitors - New

The Monumental Main: Uncompromising Forensic Resolution

The PMC (Professional Monitor Company) 10-4 is a no-compromise, ground-up active reference monitor designed for the world’s most demanding recording, mixing, and mastering environments. Inspired by the iconic QB1 architecture developed for Capitol Studios, this flagship system delivers extraordinary dynamic headroom and profound low-frequency extension. It is the ultimate tool for lead mix engineers, mastering specialists, and immersive facilities requiring absolute transparency and visceral impact to make critical decisions with total confidence.

Immense Low-End with Surgical Control
Achieve a level of low-frequency authority that remains nimble and tightly controlled even at the limits of the audible range. By utilizing four 10-inch ultra-long-throw Radial™ drivers feeding the latest generation of PMC’s Advanced Transmission Line (ATL™) technology, the 10-4 eliminates the power compression that plagues conventional designs. The addition of LaminairX™ aerodynamic venting—inspired by F1 engineering—ensures smooth, laminar airflow at the vent, resulting in superior bass timing and a massive, uncoloured soundstage that remains balanced at any playback level.

Forensic Imaging and Midrange Clarity
Experience a vast, consistent sweet spot that ensures your mixes translate perfectly across any playback system. High-frequency reproduction is handled by a 34mm soft-dome driver, while the legendary PMC75v3 midrange driver provides the signature vocal transparency required by the world's most discerning ears. Both are housed within the proprietary n-compass™ waveguide, ensuring unwavering phase coherence and tonal uniformity across the listening area, even at extreme sound pressure levels.

Effortless Headroom and Digital Precision
Drive your sessions with an staggering 5600W of high-headroom Class-D amplification per channel. Every cabinet is managed by an external Master36 DSP/Amplifier unit and a linked Power20 amp, providing optimized crossovers and transparent system protection. Through the SoundAlign2™ web interface, engineers can perform comprehensive room EQ and system alignment from any standard browser, allowing the monitors to integrate seamlessly into elite control rooms without sacrificing signal integrity.

Main features:

• Unique four-woofer configuration featuring 10-inch Radial drivers for maximum punch
• Advanced Transmission Line (ATL) bass-loading for extension down to 20Hz
• LaminairX aerodynamic venting to eliminate air turbulence and noise
• Proprietary n-compass waveguide for ultra-wide dispersion and pinpoint imaging
• Master36 external controller providing 5600W of tri-amped Class-D power
• SoundAlign2 browser-based interface for intuitive DSP and room EQ management
• Seamless integration for stereo, multichannel, and Dolby Atmos immersive arrays
• Hand-built PMC75v3 soft-dome midrange for legendary vocal transparency
• Scalable architecture with optional XBD extensions for additional 6dB of headroom
• HDF cabinet construction with precision-machined panels for an inert platform

Tech Specs:

• System Type: 3-way ATL™ active reference monitor
• LF Drivers: 4 x 10” (250mm) Radial™ drivers
• MF Driver: 75mm (3”) soft-dome PMC75v3
• HF Driver: 34mm soft-dome with n-compass™ waveguide
• Frequency Response: 20Hz - 25kHz (system dependent)
• Total Power: 5600W per channel
• Amplifier Breakdown: LF: 4 x 1000W | MF: 800W | HF: 800W

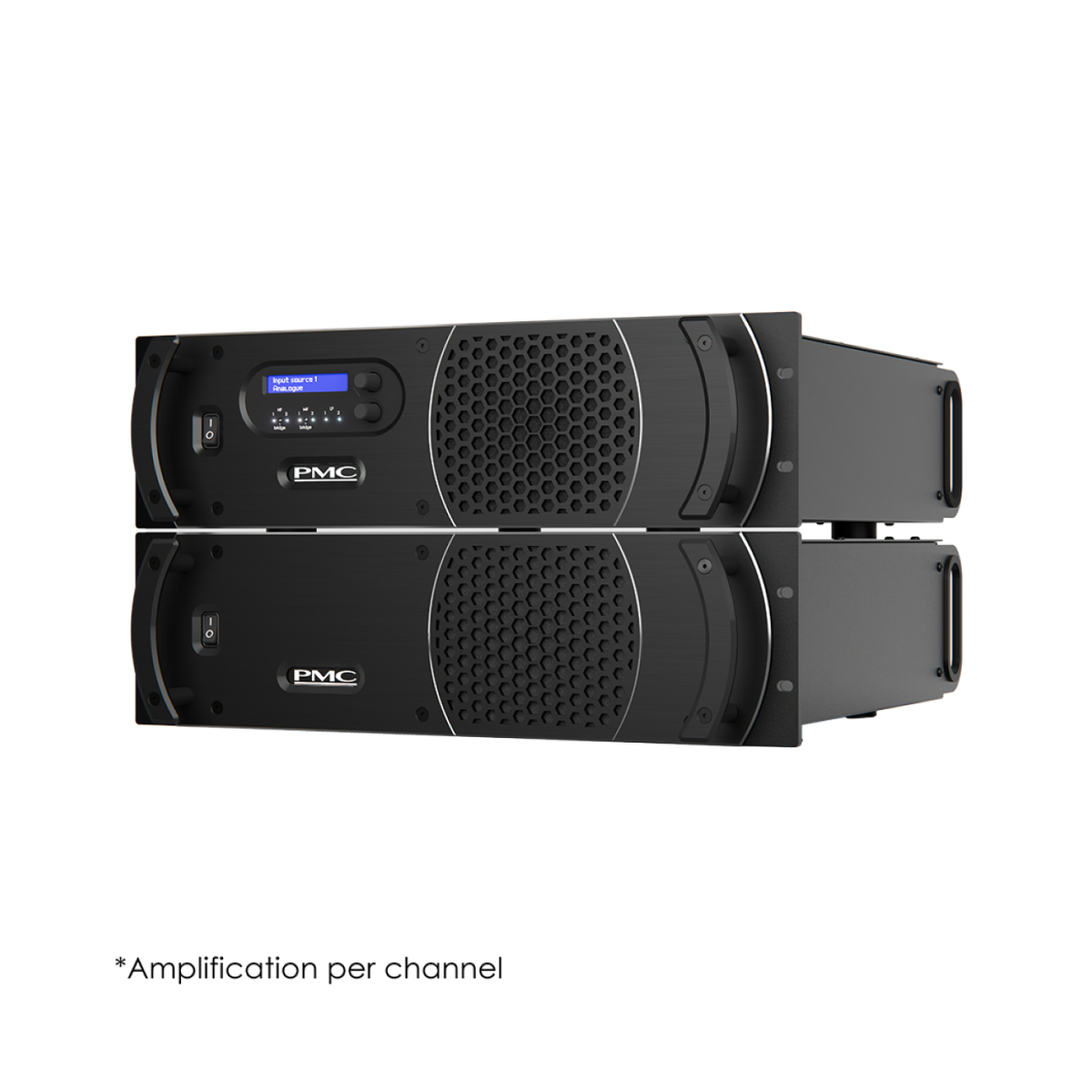

• Control Unit: Master36 DSP/Amplifier & Power20 amplifier
• Input Connectors: XLR (Switchable Analogue / Digital AES3)
• Digital Resolution: Support for sampling rates up to 192kHz
• Network Interface: RJ45 for SoundAlign2™ web control
• Effective ATL™ Length: 3.4m (11.2ft)
• Dimensions (HxWxD mm): 820 x 1040 x 523 (+10mm surround)
• Weight: 140kg per unit
