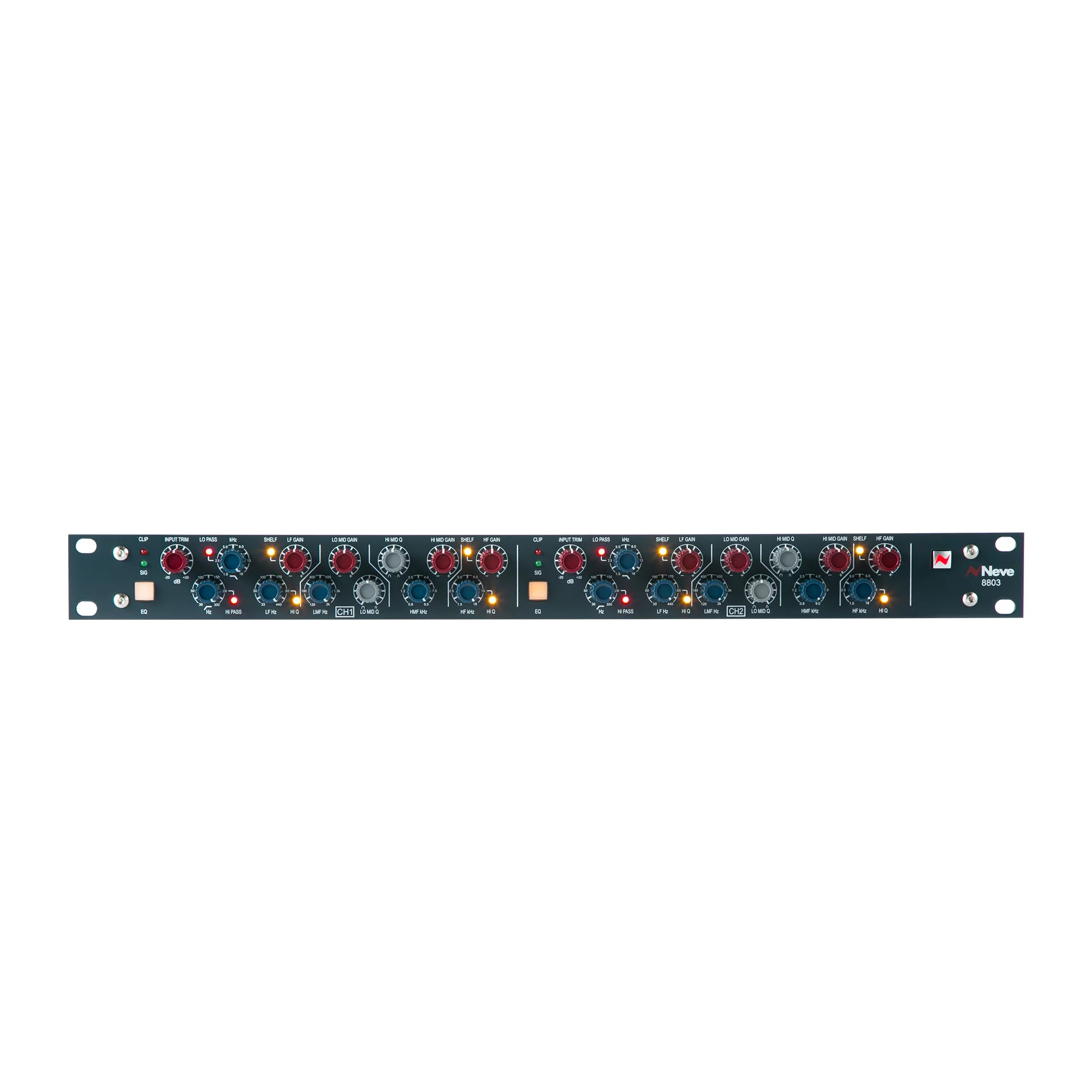

AMS Neve 8803 Dual Channel 4-band Equalizer - On Request

2-channel, 4-band Equalizer with Semi-parametric High/Low Bands, Fully Parametric Mid Bands, Highpass/Lowpass Filters, USB Port, Combination +4dBu/-10dBV Inputs, and XLR/Parallel Outputs.

AMS Neve 8803 Dual Channel EQ Features:

• Packs 2 channels of Neve console-style sound shaping into a 1U rackmount unit
• Gleaned from the EQ circuit in Neve’s classic 8108 and flagship 88RS consoles
• 1 semi-parametric high band, 1 semi-parametric low band, 2 fully parametric midbands, 1 highpass filter, and 1 lowpass filter on each channel
• High bands range from 1.5–18kHz with selectable shelving/bell filter types and switchable Q
• Low bands range from 33–440Hz with selectable shelving/bell filter types and switchable Q
• High midbands range from 0.8k–9kHz with a 0.3–7 continuously variable Q
• Low midbands range from 120–2kHz with a 0.3–7 continuously variable Q
• Highpass filters range from 30–300Hz with a 12dB/octave slope
• Lowpass filters that range from 3–15kHz with a 12dB/octave slope
• Each channel includes a ±20dB input trim that accommodates sources referenced to +4dBu or to -10dBV
• Independent bypass switch on each channel (Note: this switch does not bypass the highpass/lowpass filters)
• Signal and Clip LEDs indicate when a signal reaches -30dBu or >25dBu, respectively
• Combination input jacks accept both XLR and 1/4-inch connectors, balanced or unbalanced, at either +4dBu or -10dBV reference levels
• Parallel XLR and 1/4-inch outputs integrate effortlessly with most balanced and unbalanced gear
• USB port allows for recall of your settings via control software on your Mac or PC

Specifications:

• Type:Solid State
• Number of Channels:2
• Bypass:Yes
• Number of Bands:4
• High Pass Filter:Yes
• Low Pass Filter:Yes
• Q Type:Selectable (Low, High), Variable (Lo-Mid, Hi-Mid)
• Boost/Cut Range:±18dB
• Freq Range High:1.5kHz-18kHz
• Freq Range Hi-Mid:800Hz-9kHz
• Freq Range Lo-Mid:120Hz-2kHz
• Freq Range Low:33Hz-440Hz
• Inputs:2 x XLR/1/4" combo
• Outputs:2 x XLR, 2 x 1/4"
• USB:1 x Type B
• Frequency Response:10Hz-20kHz (±0.3dB)
• Rack Spaces:1U
• Power Source:8-pin DIN power supply (included)
• Height:1.75"
• Depth:9.5" (without power socket plugged in)
• Width:19.0"
