AMS Neve 1073OPX 8-channel Microphone Preamp with USB or Dante or ADAT

AMS Neve

AMS Neve 1073OPX 8-channel Microphone Preamp with USB or Dante or ADAT

R91,199.00

Tax included.

Description

Where Legend Meets the Future: The Ultimate Studio Workhorse

The AMS Neve 1073OPX brings 8 channels of legendary 1073 preamp character to your studio or live rig. Built around Marinair transformers and the iconic analogue warmth that defined generations of recordings, this rack unit delivers pristine signal clarity for any source. Control everything remotely via Total Recall software, and expand capabilities with optional digital cards supporting USB, Dante, or ADAT. Features include a summing matrix, dedicated headphone amp, and daisy-chain compatibility for scaling up your setup. Whether you're tracking vintage instruments or building a modern interface, the 1073OPX combines timeless sonic character with contemporary workflow efficiency.

Legendary "Big Iron" Tone

Every one of the eight independent preamps is balanced using Neve's proprietary Marinair transformers, a critical component for achieving the signature "big iron" sound. This classic transformer-coupled Class A circuitry delivers unmatched tonal quality, characterized by seductive warmth, a punchy low-mid response, and subtle harmonic distortion. With up to 70dB of gain and massive headroom, the 1073OPX ensures that every source—from passive ribbon mics to bombastic drum kits—is captured with audiophile clarity and rich, full-bodied character.

Modern Workflow with Total Recall

Described as the "Swiss Army knife" for modern studios, the 1073OPX features a state-of-the-art remote control application that allows you to adjust every gain setting and routing option via Ethernet. The preamps utilize 1dB stepped encoders for ultimate accuracy, making it effortless to perfectly match stereo pairs or instrument groups. With automatic Total Recall™, you can save and instantly reload your exact hardware settings for every song, bridging the gap between classic analog soul and the efficiency of a DAW-based workflow.

Integrated Monitoring and Summing Hub

The 1073OPX is more than just a preamp; it is a comprehensive studio hub featuring a separate stereo monitor path and an integrated latency-free cue mix matrix. You can route preamp outputs directly into the monitor path for latency-free monitoring or utilize the unit for high-quality analog summing via the rear XLR outputs. Additionally, the front-panel headphone output, with its precision level control, allows the unit to serve as a complete standalone I/O interface or a remote preamp for live room tracking.

Main Features:

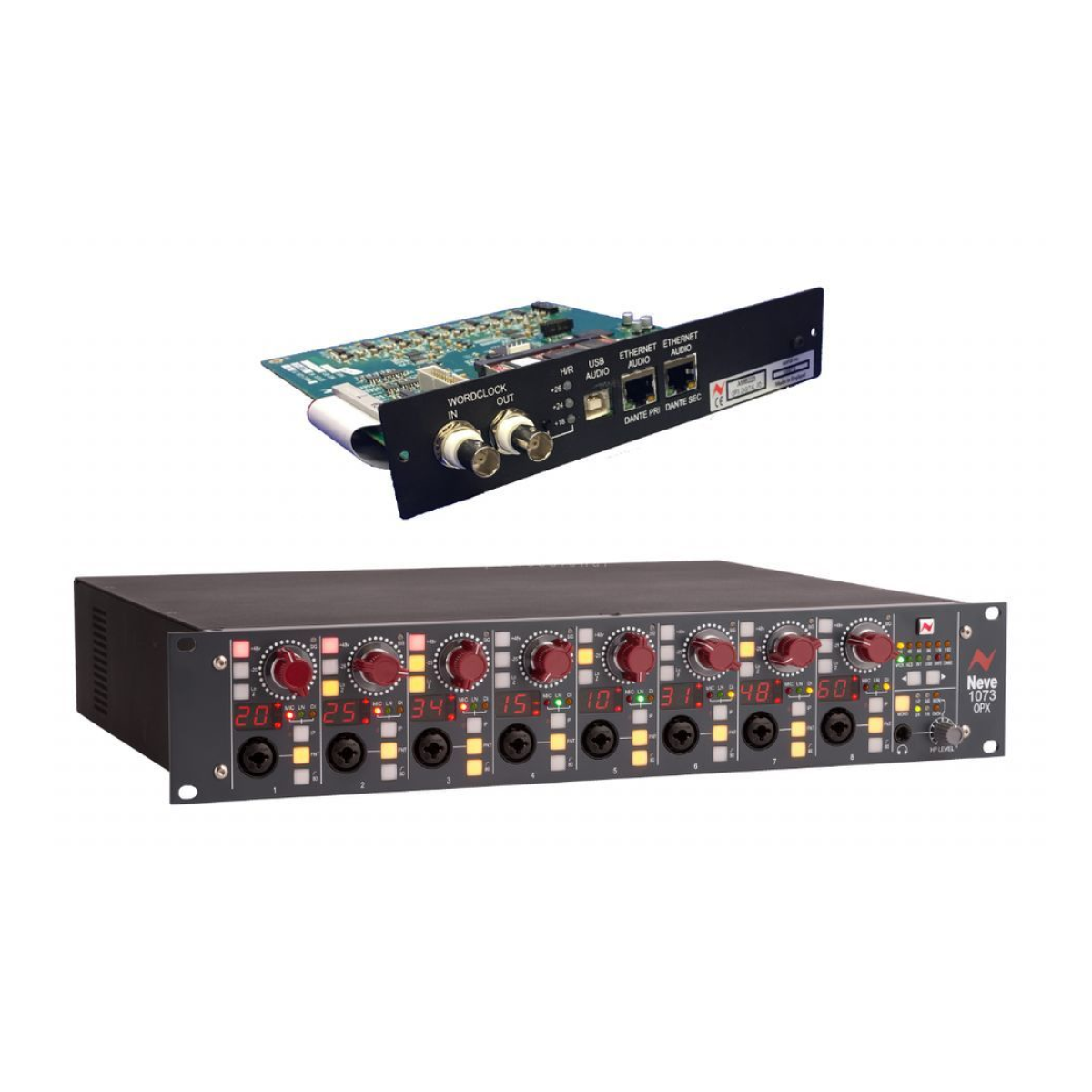

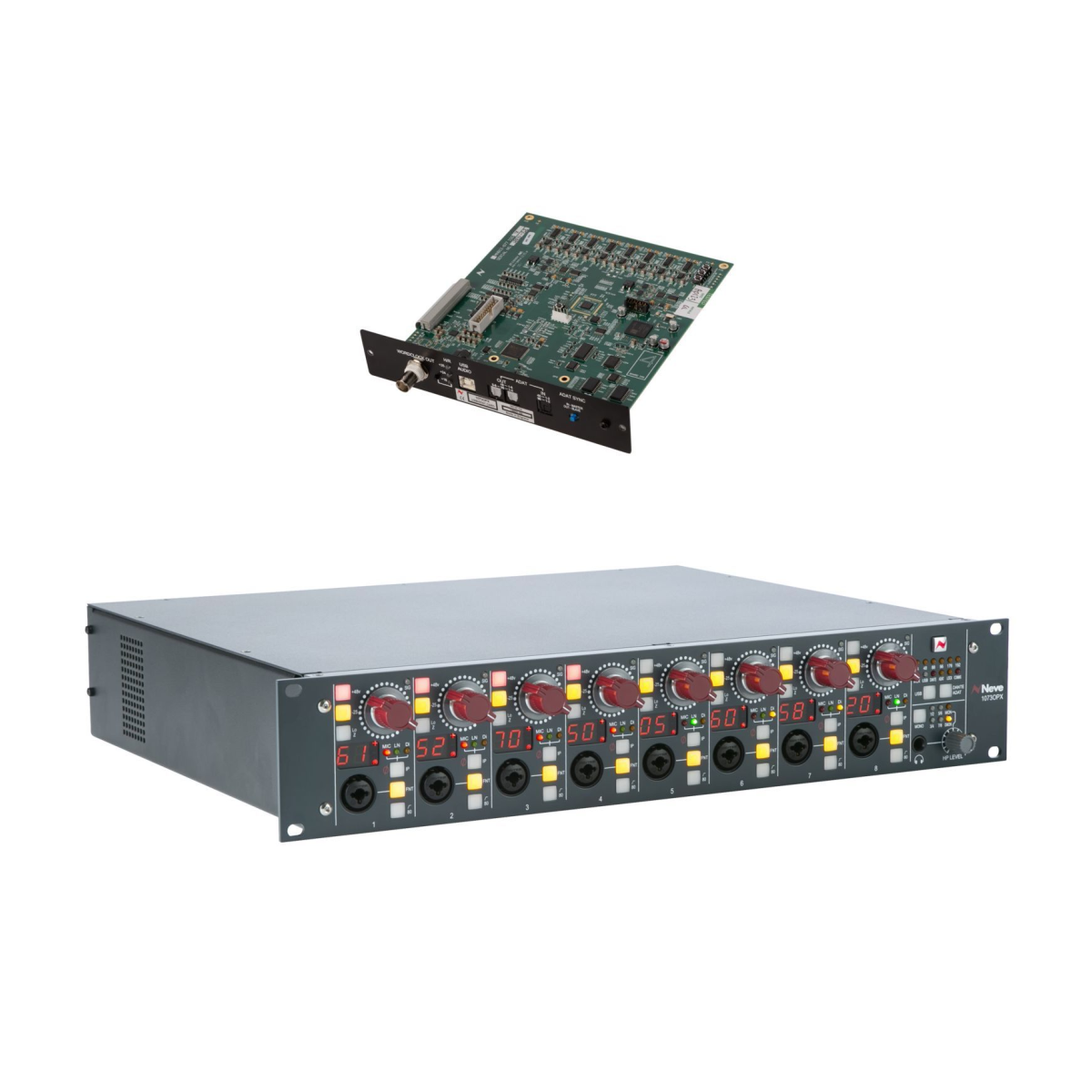

Eight remote-controllable 1073 preamps housed in a 2U rackmount chassis.
Exclusive Marinair transformers featured on all microphone inputs.
Gain adjustments in precise 1dB increments up to 70dB.
Remote control application for managing up to 64 preamps with Total Recall.
Instrument DI inputs using a unique Class-A FET design.
Selectable input impedance settings of 300 ohms and 1.3k ohms.
Independent front and rear input connections with automated switching.
Integrated stereo monitor path for latency-free cue mixing and summing.
Smart phantom power, -25dB pad, and 80Hz high-pass filter per channel.

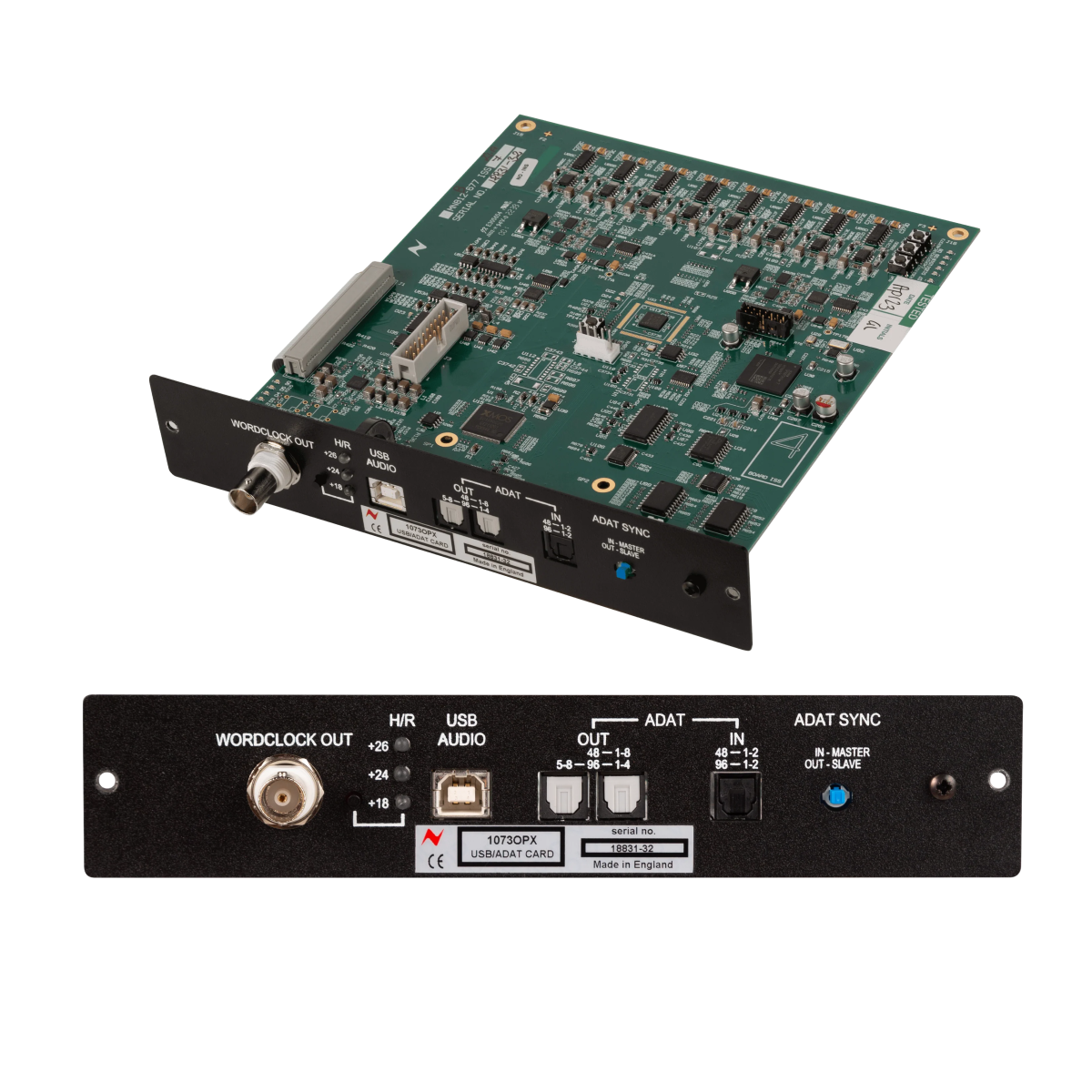

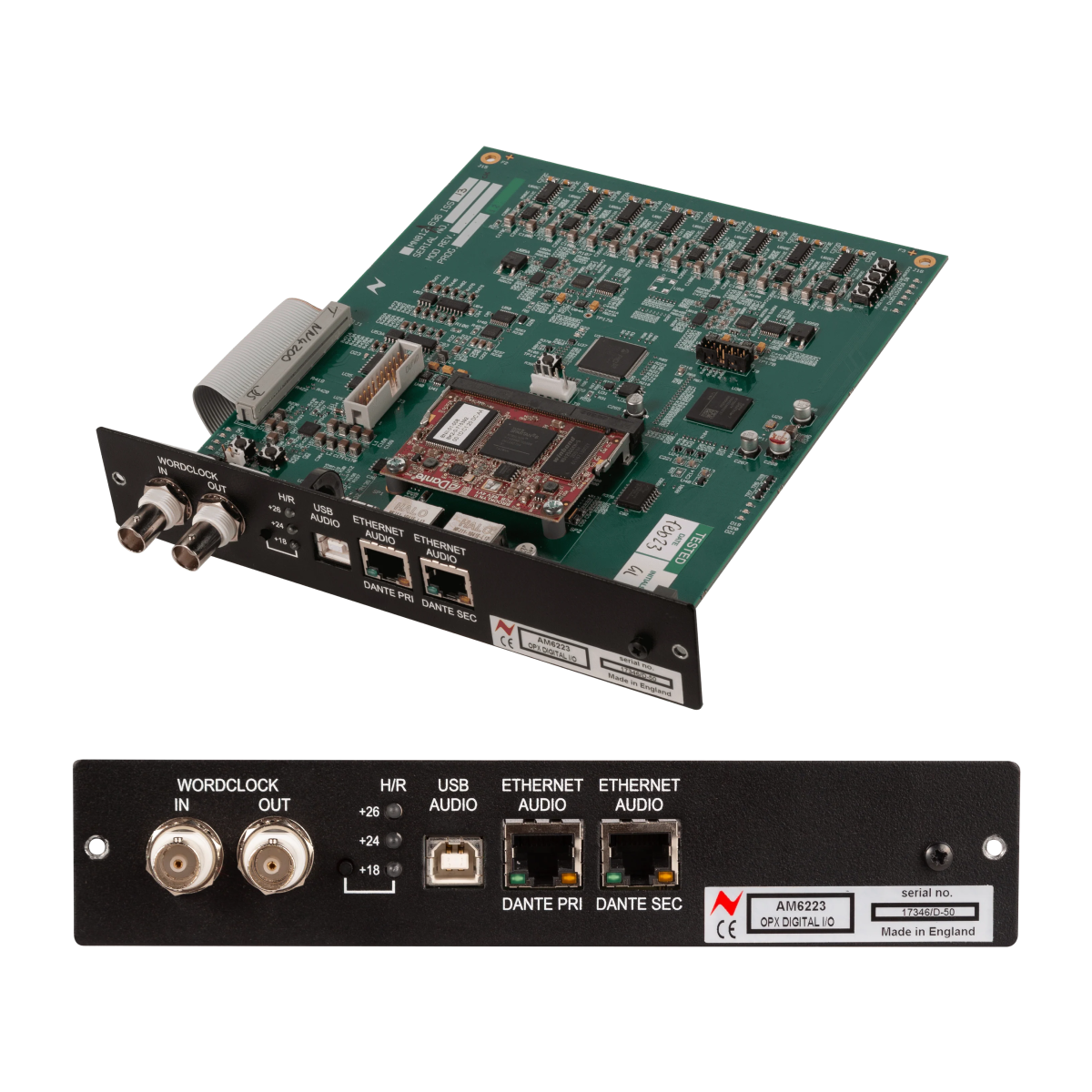

Expansion slot for optional 192kHz USB, Dante, or ADAT digital connectivity.

Tech Specs:

Channel Configuration: 8 Channels of Mic | Line | DI Preamplification
Amplifier Design: Solid-state, Class A Discrete Transistor
Transformers: Exclusive Neve Marinair® on Mic Inputs
Mic Gain Range: 20dB to 70dB in 1dB steps
Line Gain Range: -20dB to +20dB in 1dB steps
DI Gain Range: 30dB to 60dB in 1dB steps
Input Impedance: Mic: 300Ω or 1.3kΩ; DI: >650kΩ
Frequency Response: Typically +/-0.15dB (20Hz to 20kHz)
Distortion (THD+N): Typically 0.002% @ 1kHz
High Pass Filter: 80Hz (12dB/Octave)
Connectivity (Front): 8x Class A DI Inputs; XLR/TRS Combo Inputs

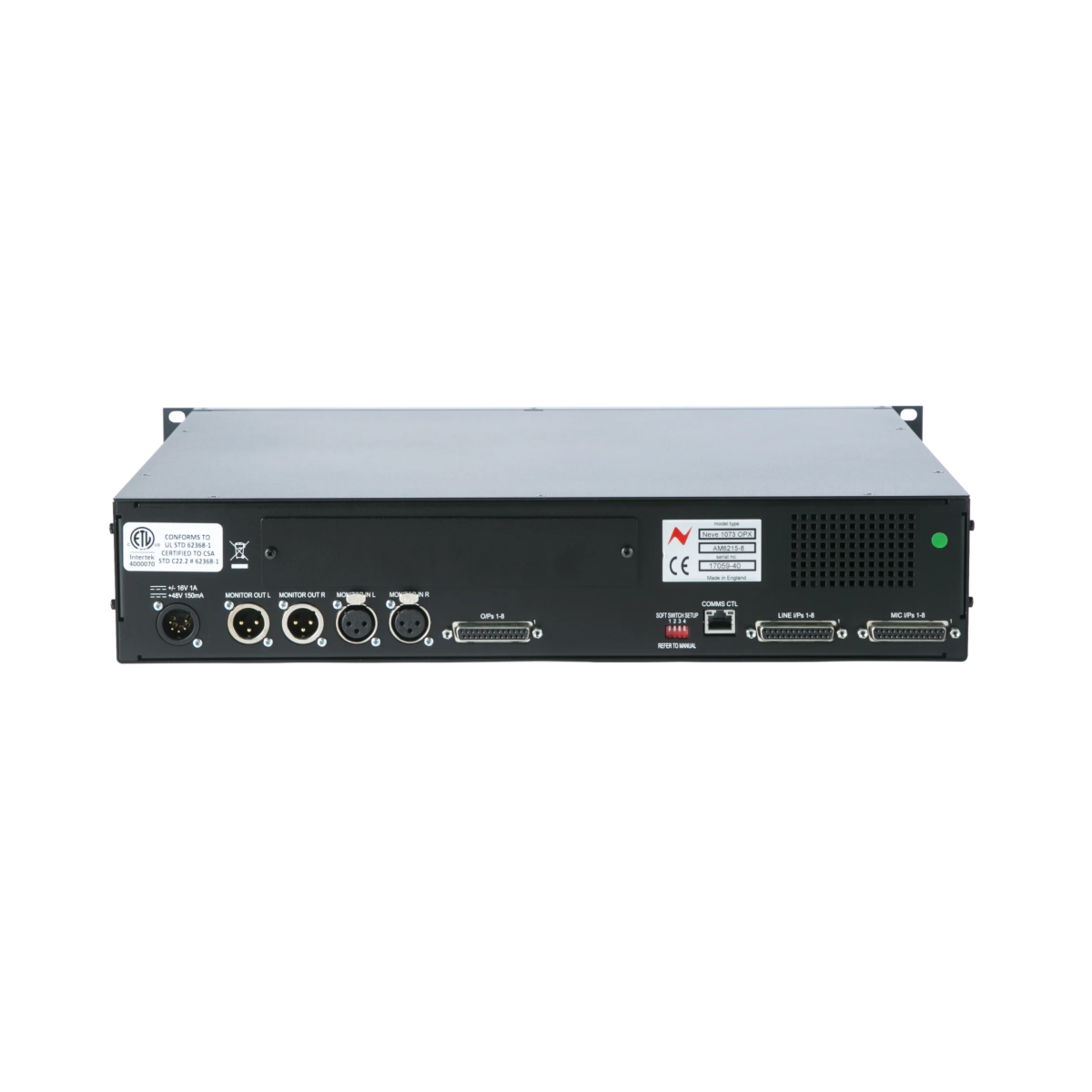

Connectivity (Rear): D-Sub 25 Mic/Line Inputs & Outputs; XLR Monitor Out
Remote Control: OPX App via RJ45 Ethernet (up to 8 units/64 preamps)
Chassis Size: 19-inch Rack-Mount, 2U Height
Weight: 7.8kg
