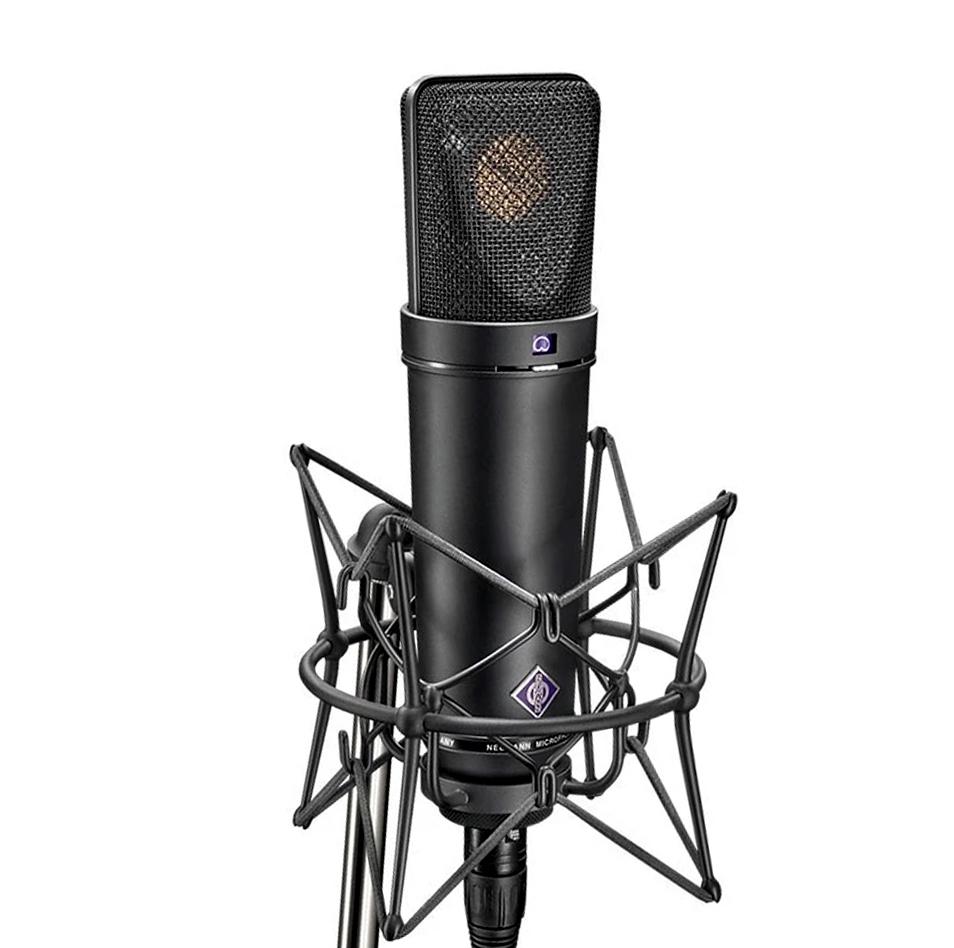

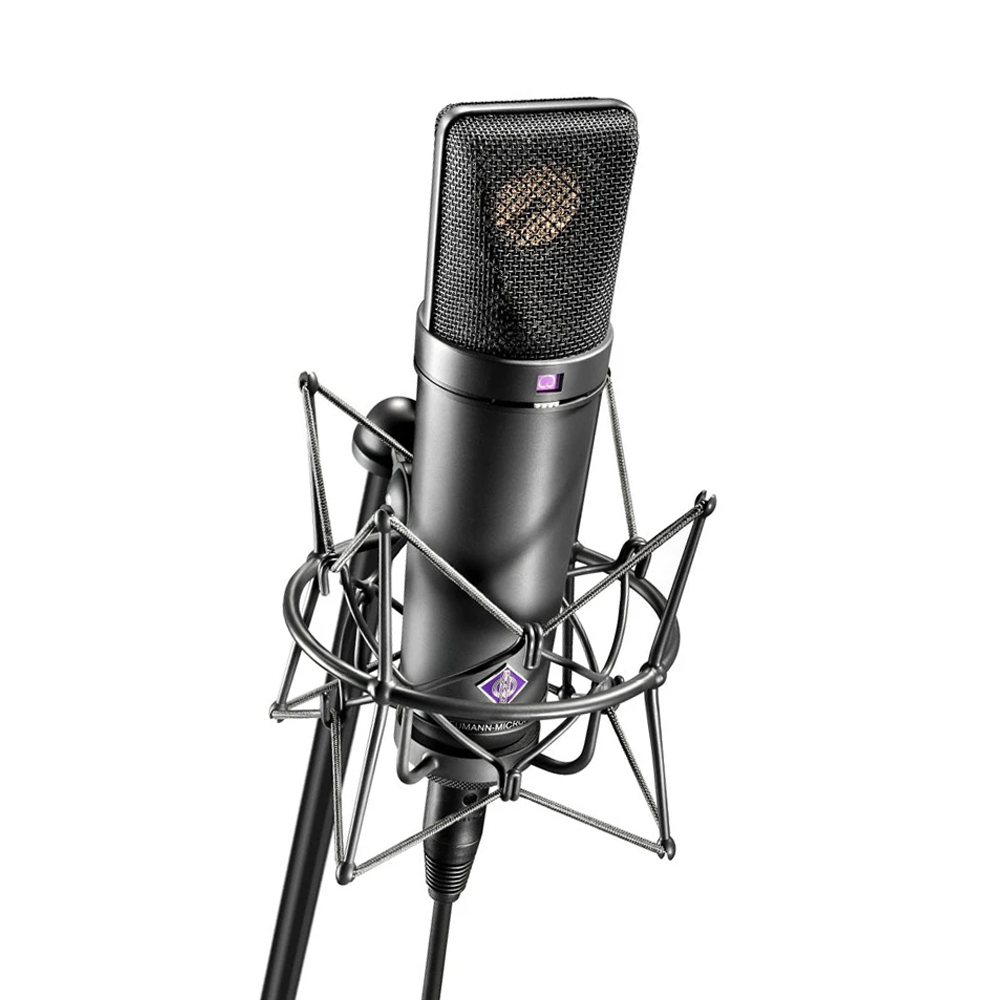

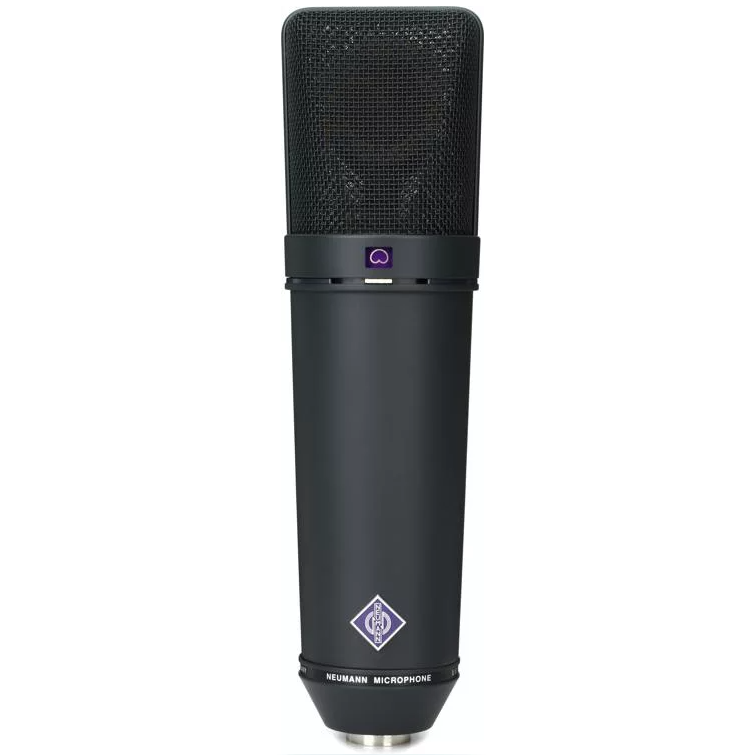

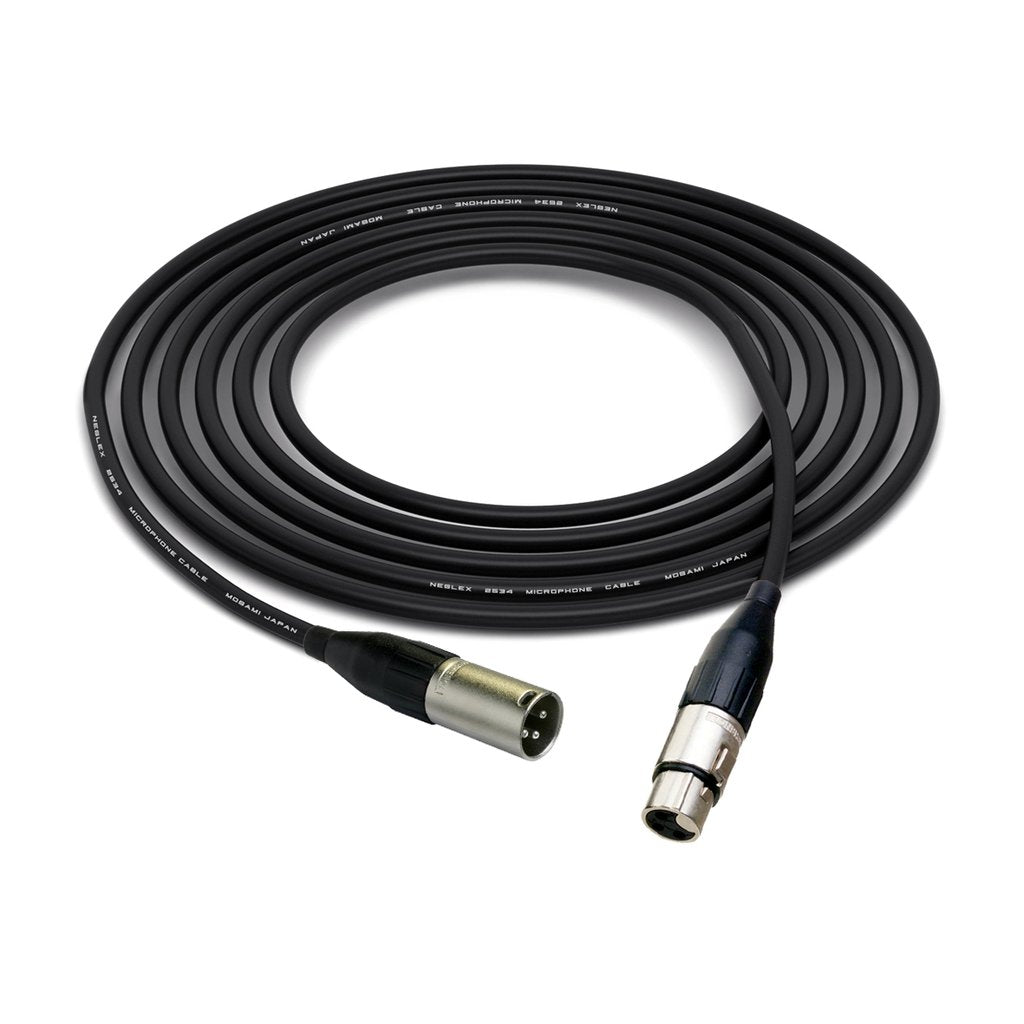

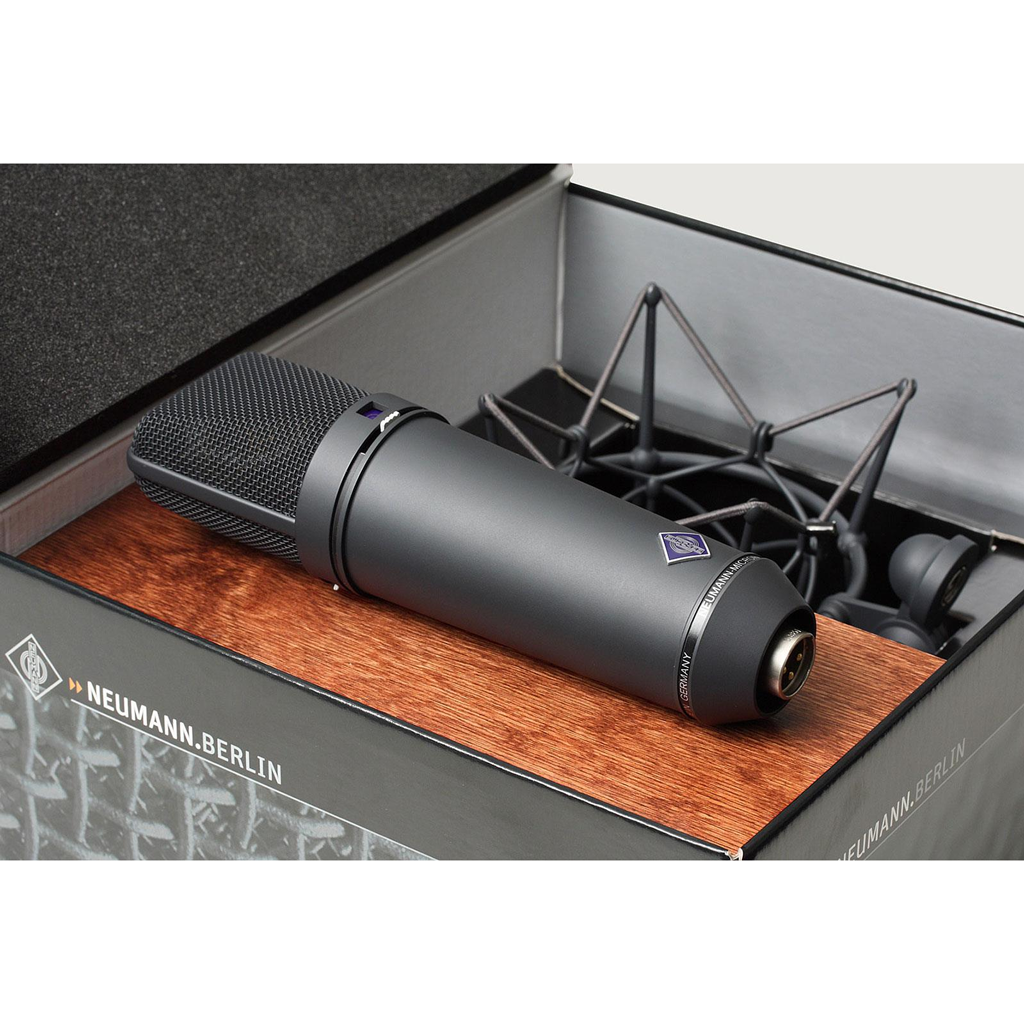

Neumann U87 Ai Matte Black Studio Set with Mogami 5 meter cable

The Industry-standard Large-diaphragm Condenser Mic

Large-Diaphragm Studio Condenser Microphone with 3 Polar Patterns, Shockmount, Windscreen, Mogami 5m Mic Cable, and Wooden Storage Box - Black

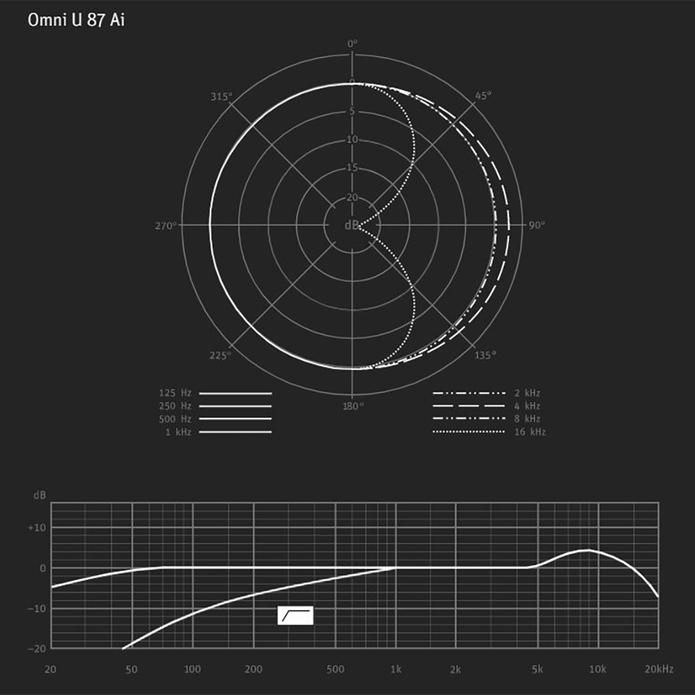

The U 87 Ai Condenser Microphone from Neumann is a large dual-diaphragm condenser microphone. It features three directional patterns, including omnidirectional, cardioid and figure-8. These are selectable with a switch below the head grille and the window above this switch shows the symbol of the selected characteristic. A 10 dB attenuation switch is located on the rear. It enables the microphone to handle sound pressure levels up to 127 dB without distortion. The low frequency response can be reduced to compensate for proximity effect.

The U 87 Ai is used as a main microphone for orchestra recordings, as a spot microphone for single instruments, and extensively as a vocal microphone for all types of music and speech.

The U 87 Ai is addressed from the front. The frequency response of the cardioid and figure-8 directional characteristics are very flat for frontal sound incidence, even in the upper frequency range. The microphone can be used very close to a sound source without the sound becoming unnaturally harsh. By means of a high-pass filter, interference through subsonic and low frequencies are reduced.

The circuitry increases operational headroom of the U 87 Ai by supplying the bias voltages for the capsule through a reduced resistance. The result is a higher sensitivity of 10 dB for identical sound pressure levels, and an improved S/N ratio of 3 dB.

A switch located at the rear attenuates the sensitivity by 10 dB. When this switch is activated, the microphone accepts sound pressure levels up to 127 dB (equivalent to a sound pressure of 45 Pa) without distortion.

An additional switch at the rear allows to change the microphone's cutoff frequency. This reduces low frequency interference directly at the input of the microphone amplifier. This setting also compensates for the unavoidable bass boost that occurs with all pressure gradient transducers when they are used at close distance (proximity effect).

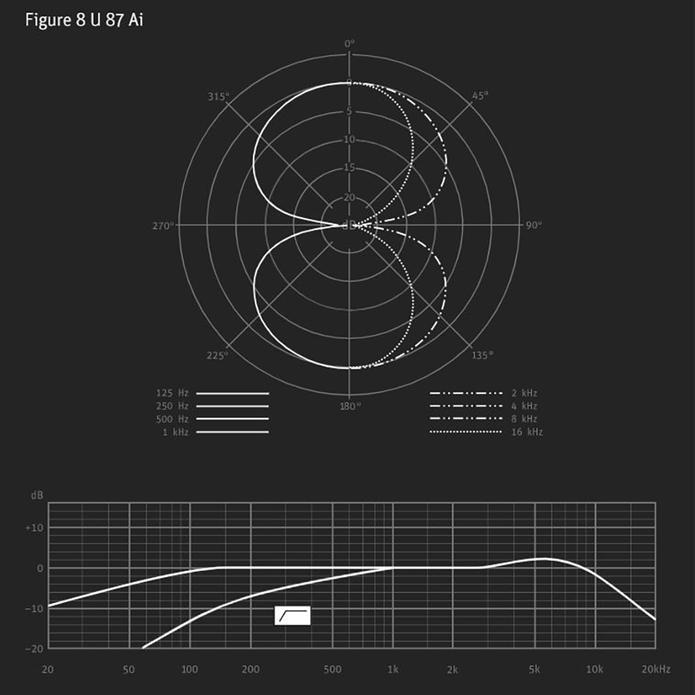

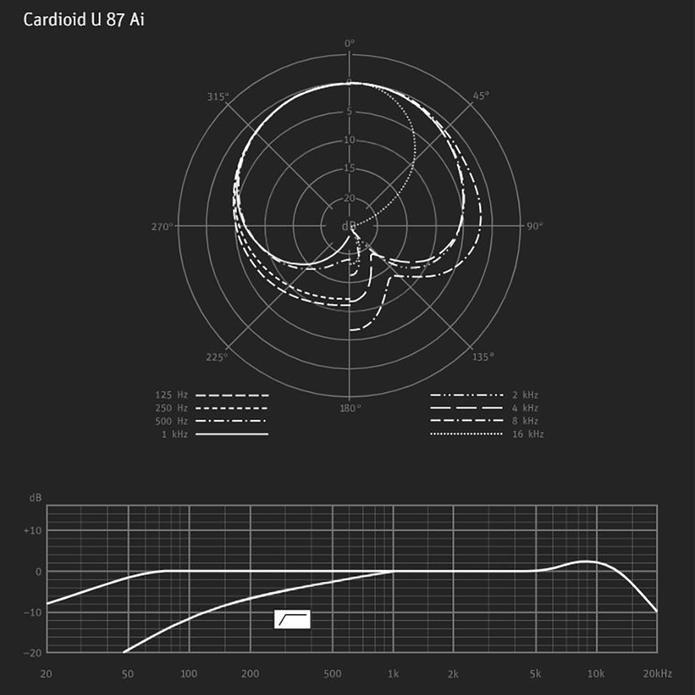

The cardioid characteristic maintains a smooth frequency response at a distance of 30 to 40 cm, and the figure-8 characteristic at a distance of 15 to 20 cm.

Neumann U 87 Ai Studio Set Features:

• Large-diaphragm FET condenser microphone
• Pressure-gradient transducer with double-membrane capsule
• The studio microphone classic
• Three directional characteristics: omni, cardioid, figure-8
• Switchable low-frequency roll-off
• Switchable 10dB pre-attenuation pad
• Ideal as main and support microphone in practically all recording situations
• Requires +48-volt phantom power

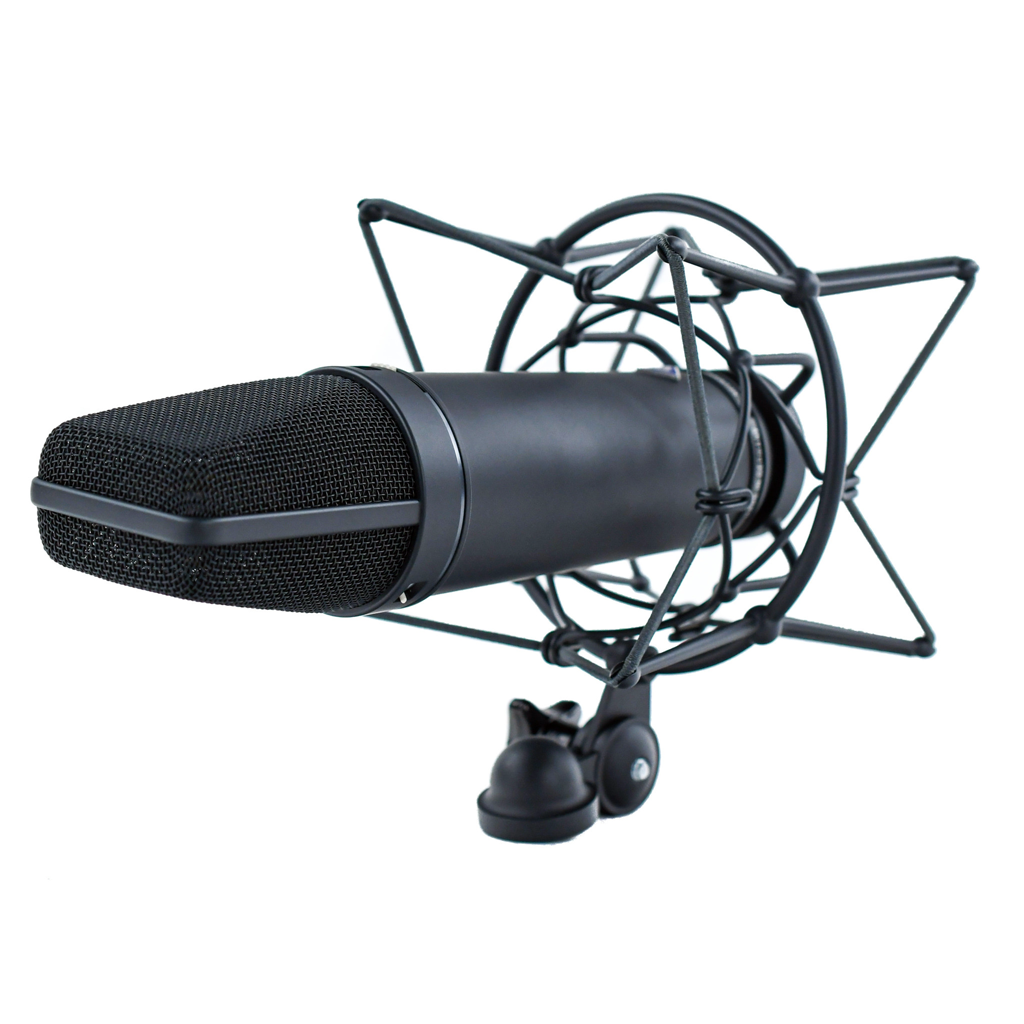

• Includes shockmount, pop filter, and wooden storage box

Tech Specs:

• Microphone Type:Condenser
• Polar Pattern:Cardioid, Omni, Figure-8
• Diaphragm Size:1" (25.4mm)
• Frequency Response:20Hz-20kHz
• Max SPL:117dB (Cardioid), 127dB w/10dB Preattenuation
• Output Impedance:200 ohms
• Signal to Noise Ratio:82dB (Cardioid), 79dB (Omni), 80dB (Figure-8)
• Self Noise:12dB (Cardioid), 15dB (Omni), 14dB (Figure-8)
• Low Cut Filter:Yes
• Pads:-10dB
• Color:Matte Black
• Connector:XLR
• Included Accessories:Shock Mount, Wood Box
