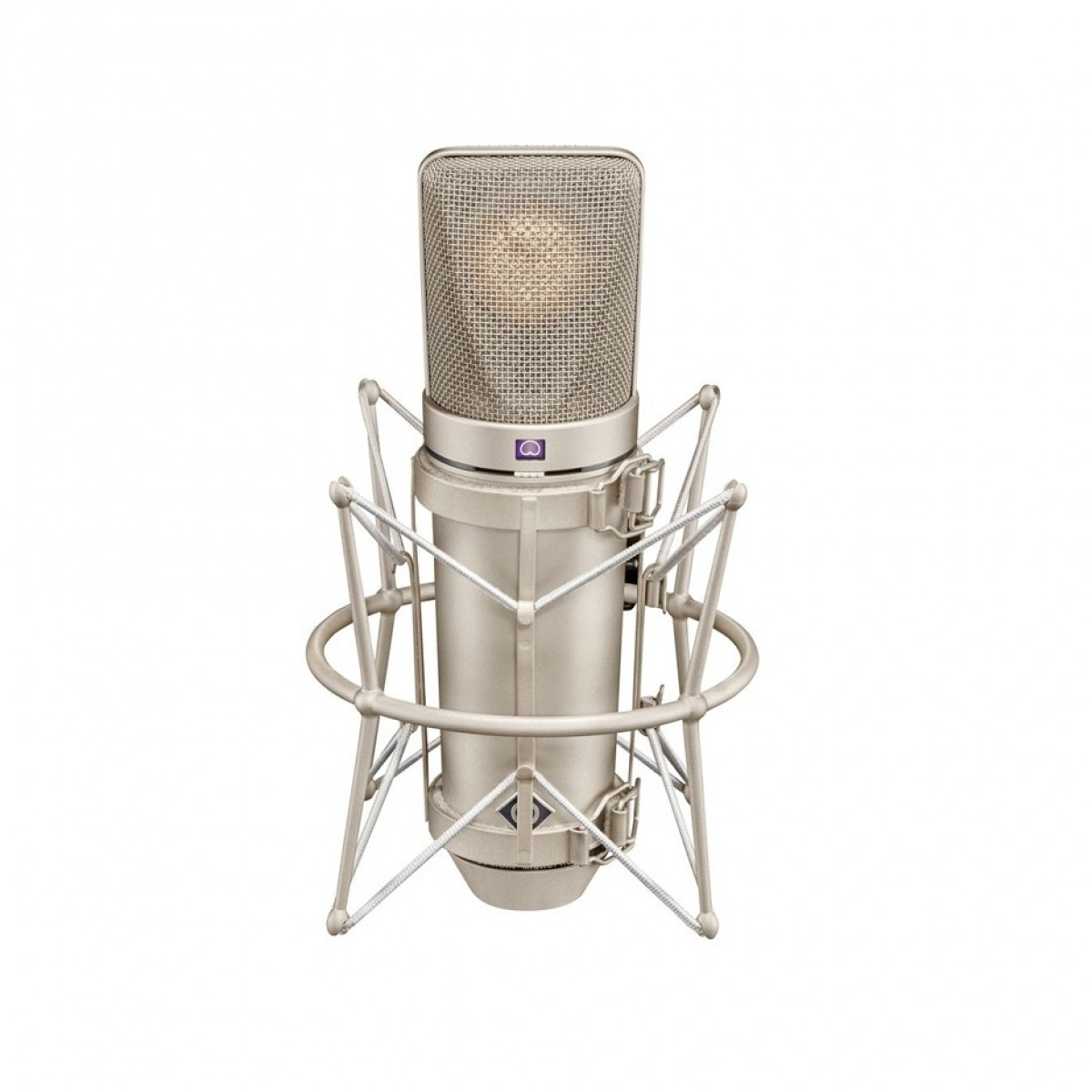

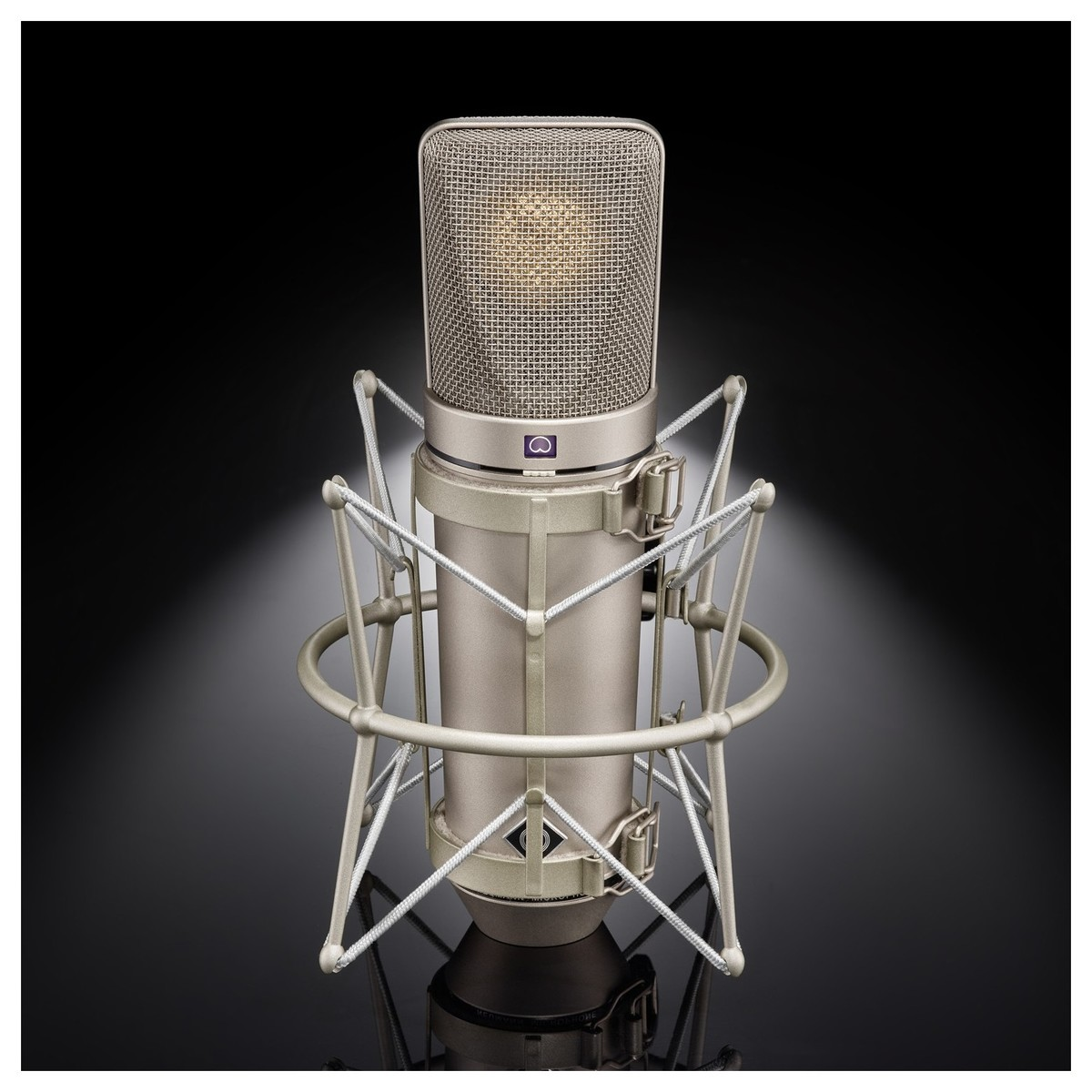

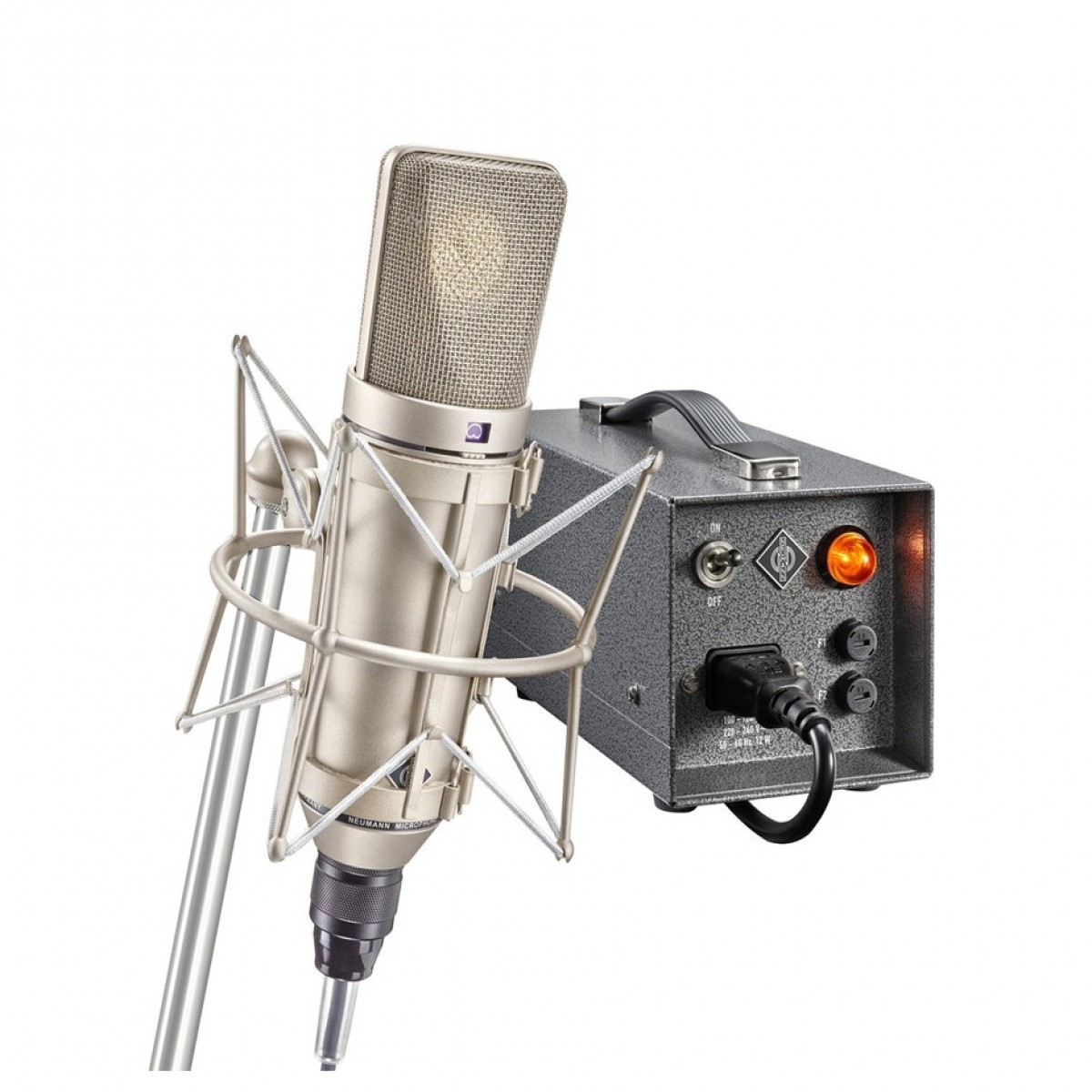

Neumann U 67 Studio Tube Microphone Set

The Definitive Studio Workhorse

The Neumann U 67 Set is the authentic reproduction of the most iconic large-diaphragm tube condenser microphone in recording history. Built meticulously to original 1960 factory specifications, the U 67 delivers an inimitably smooth frequency response, golden-era harmonic richness, and unmatched versatility across any sound source. Designed for world-class recording engineers, music producers, and professional vocalists, this legendary microphone brings historic Neumann warmth, authority, and mix-ready presence directly to your studio setup.

Timeless Tube Warmth with Unrivalled Clarity
At the heart of the Neumann U 67 lies a hand-selected EF86 pentode vacuum tube operating alongside a custom pre-emphasis and de-emphasis feedback circuit. This sophisticated electronic design minimises inherent tube noise while adding subtle, high-headroom harmonic compression. The result is a lush, three-dimensional audio character that flatters vocalists and acoustic instruments without introducing unwanted sibilance or high-frequency harshness.

Iconic K 67 Dual-Diaphragm Capsule Design
Engineered with two individually tuned gold-sputtered membranes mounted back-to-back, the original K 67 capsule provides exemplary linear response and phase stability across three selectable polar patterns. This double-membrane system allows instant switching between cardioid, omnidirectional, and figure-8 directional characteristics directly on the microphone body, offering exceptional acoustic flexibility for close vocal tracking, room ambience, or M/S stereo arrays.

Custom BV 12 Transformer and High-SPL Headroom
The meticulously recreated BV 12 output transformer provides authoritative low-end weight and smooth midrange density, enabling recorded tracks to sit effortlessly in a mix without aggressive corrective equalization. Combined with a switchable -10 dB pre-attenuation pad and a low-cut filter, the U 67 effortlessly manages extreme sound pressure levels up to 124 dB, ensuring pristine capture of screaming guitar cabs, brass sections, and dynamic drum overheads.

Main features:

• Authentic reissue of the legendary 1960 tube condenser microphone handcrafted in Germany using original archived documentation.
• Premium K 67 dual-diaphragm condenser capsule providing balanced midrange response and silky treble articulation.
• Rigorously selected EF86 vacuum tube delivering iconic harmonic warmth and exceptionally low self-noise.
• Meticulously reproduced BV 12 output transformer for vintage signal weight and transparent mix integration.
• Three switchable directional polar patterns comprising cardioid, omnidirectional, and figure-8 for total session adaptability.
• Integrated switchable -10 dB pre-attenuation pad allowing distortion-free recording of sources up to 124 dB SPL.
• Switchable low-cut filter to effectively control proximity effect and eliminate sub-bass mechanical rumble.

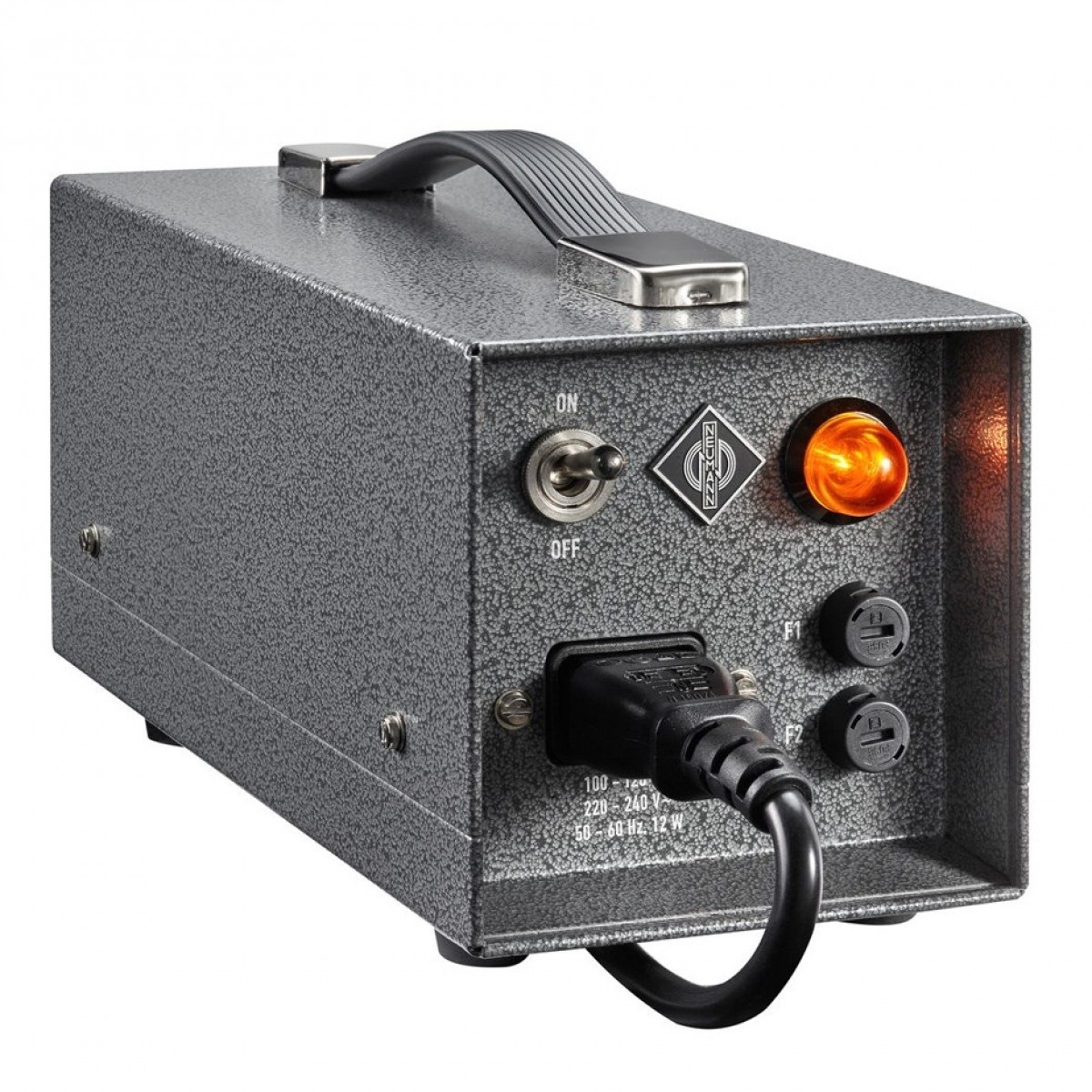

• Redesigned NU 67 V external power supply providing automatic mains voltage adaptation and gentle tube soft-start technology.

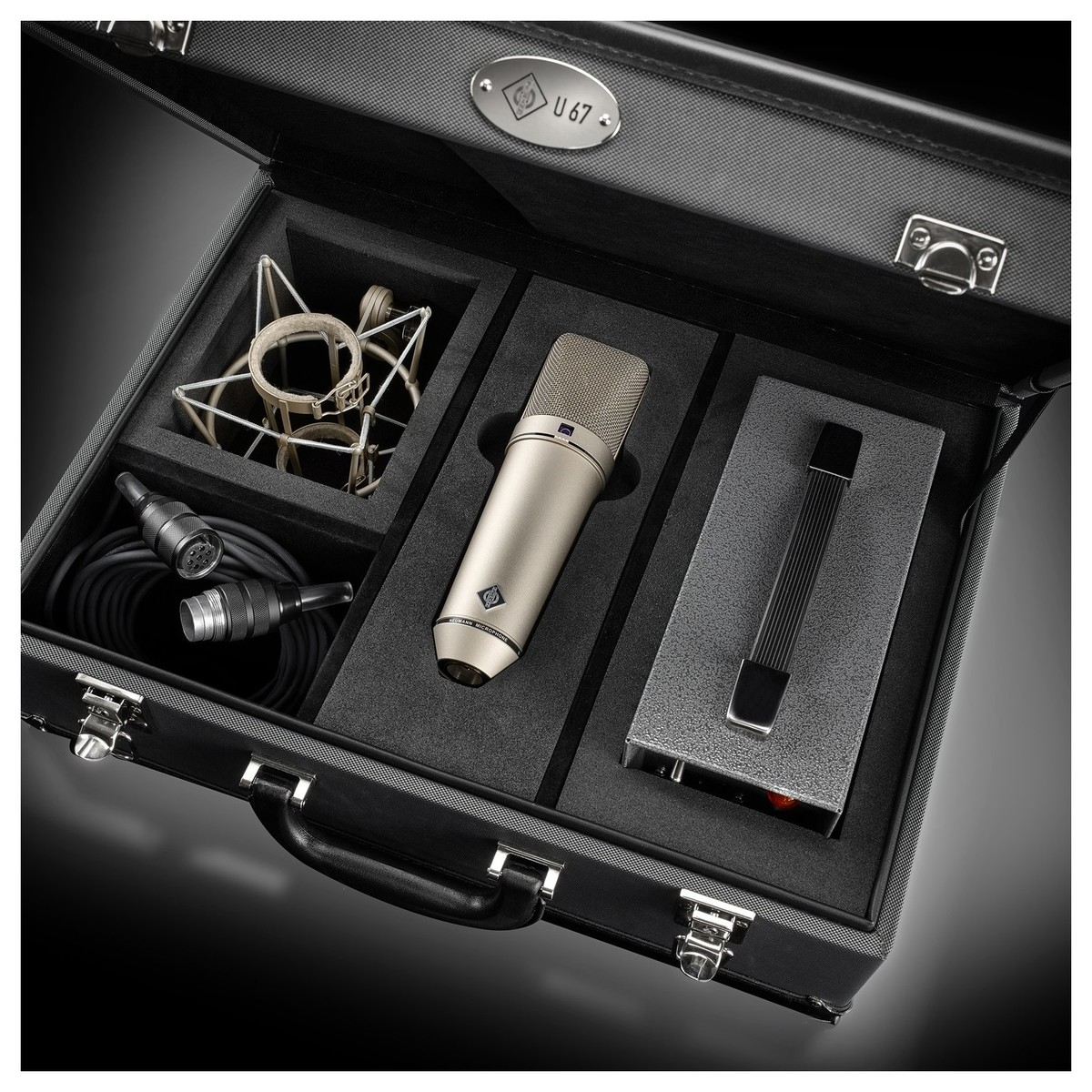

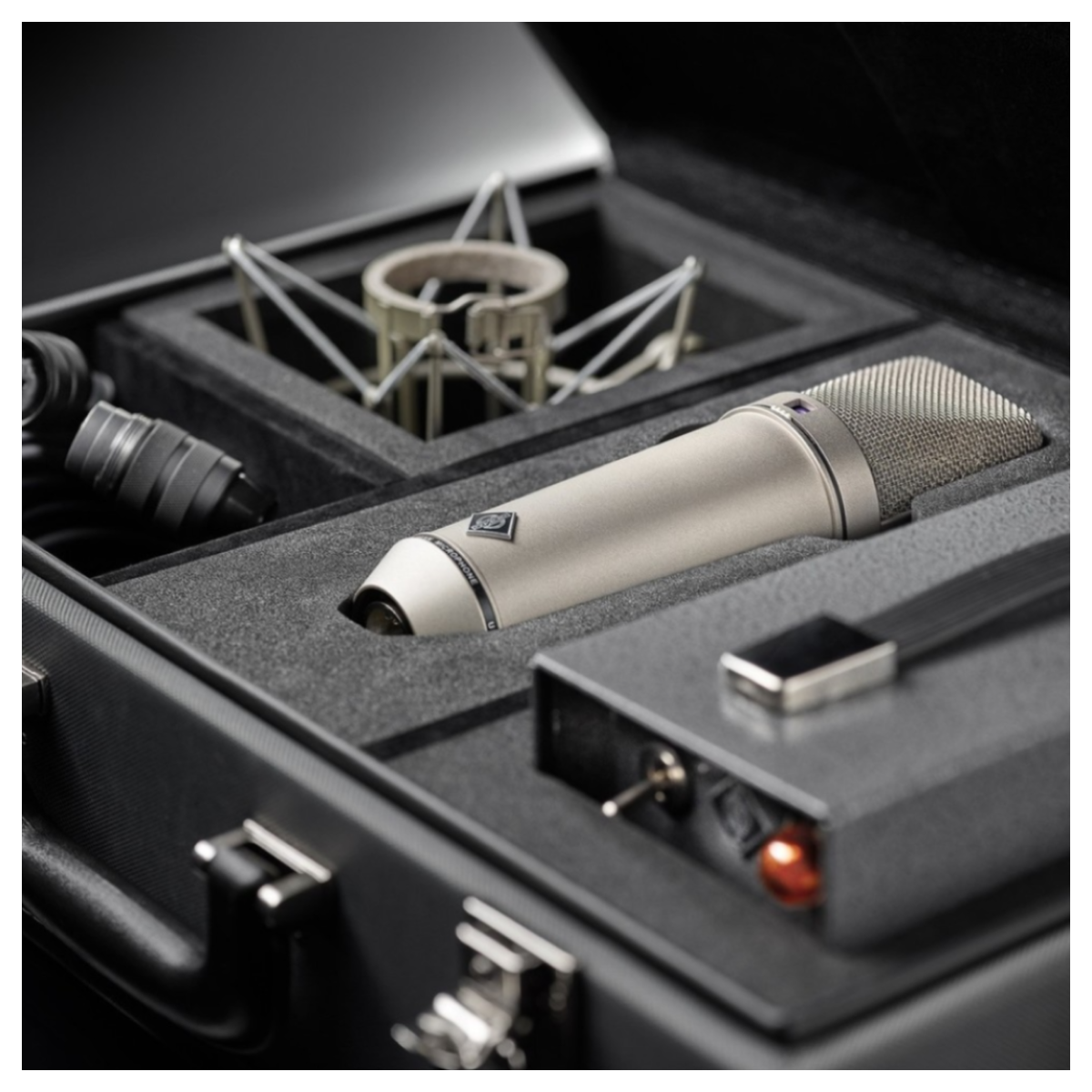

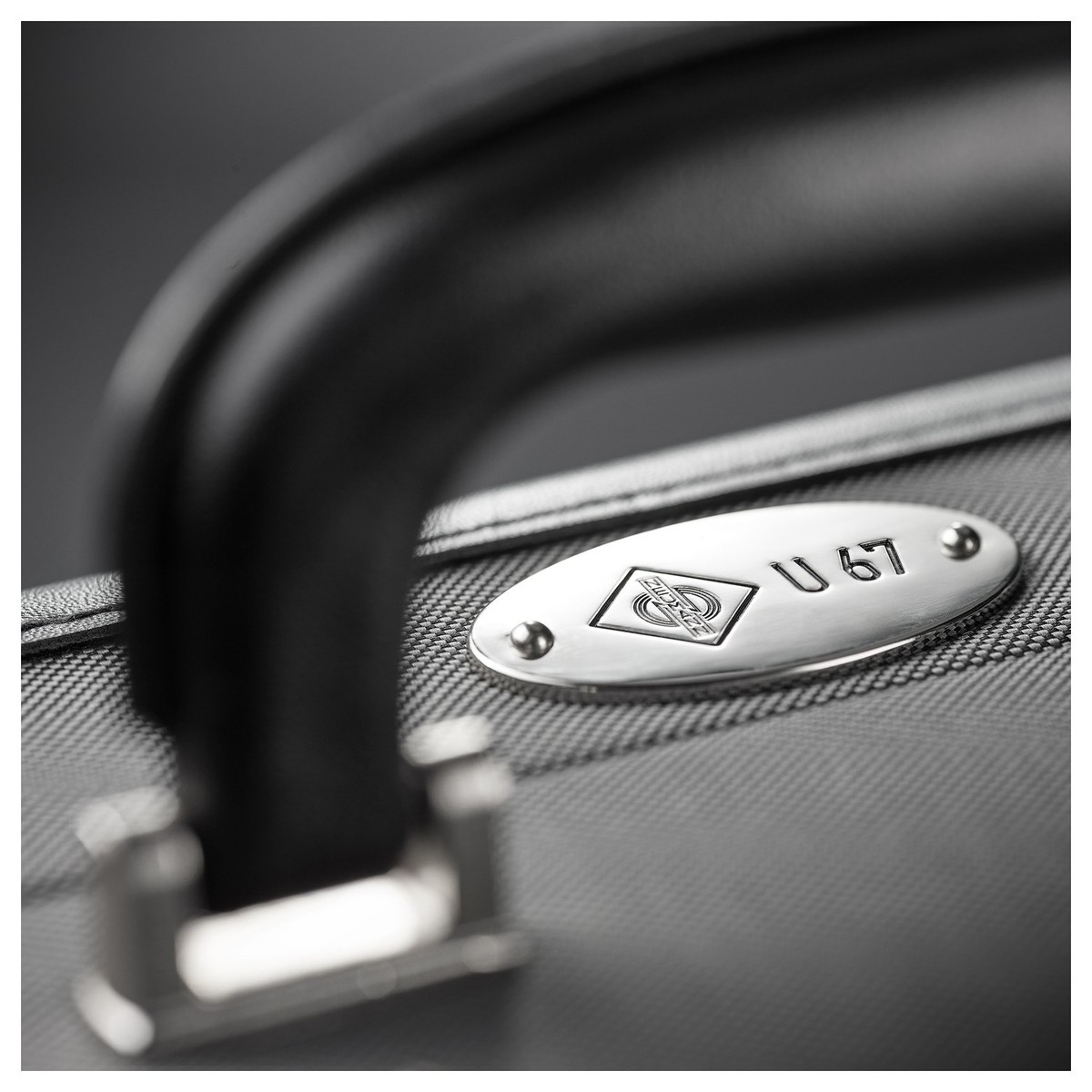

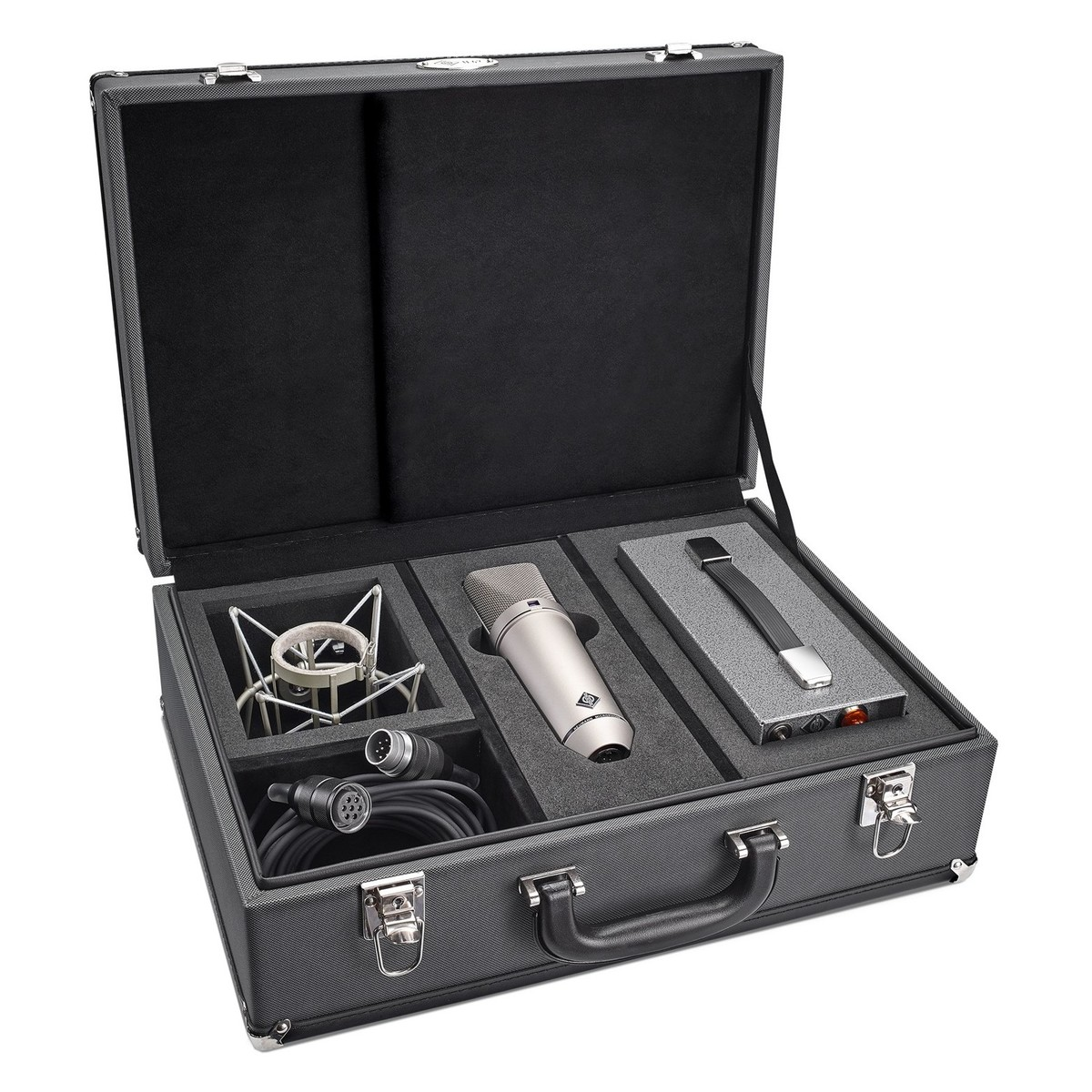

• Complete professional outfit including Z 48 elastic shock mount, UC 5 7-pin connection cable, and vintage-style aluminium case.

Tech Specs:

• Operating Principle: Pressure gradient transducer
• Capsule Type: K 67 dual-diaphragm condenser
• Active Circuitry: EF86 vacuum tube with transformer-balanced output
• Output Transformer: Custom reproduced BV 12 output transformer
• Directional Patterns: Cardioid, Omnidirectional, Figure-8
• Frequency Range: 20 Hz – 20,000 Hz
• Sensitivity (1 kHz into 1 kΩ): 24 mV/Pa (Cardioid) | 15 mV/Pa (Omni) | 16 mV/Pa (Figure-8)
• Impedance & Rated Load: 200 ohms | 1,000 ohms (1 kΩ)
• Maximum SPL: 114 dB (Cardioid) | 124 dB (with -10 dB pre-attenuation engaged)
• Equivalent Noise Level (A-weighted): 17 dB-A (Cardioid) | 21 dB-A (Omni) | 20 dB-A (Figure-8)
• Signal-to-Noise Ratio (A-weighted): 77 dB (Cardioid) | 73 dB (Omni) | 74 dB (Figure-8)
• Maximum Output Voltage: -9.8 dBu
• Acoustic Controls: Switchable high-pass filter | Switchable -10 dB pre-attenuation pad
• Power Supply Unit: NU 67 V external power supply (100–120 V / 220–240 V AC, 50–60 Hz)
• Audio Connectors: Dedicated 7-pin mic socket / 3-pin XLR-M output on PSU
• Dimensions: 56 mm Diameter x 200 mm Length
• Weight: 560 g
• Package Includes: U 67 Microphone, NU 67 V PSU, UC 5 Cable, Z 48 Shock Mount, Aluminium Case
