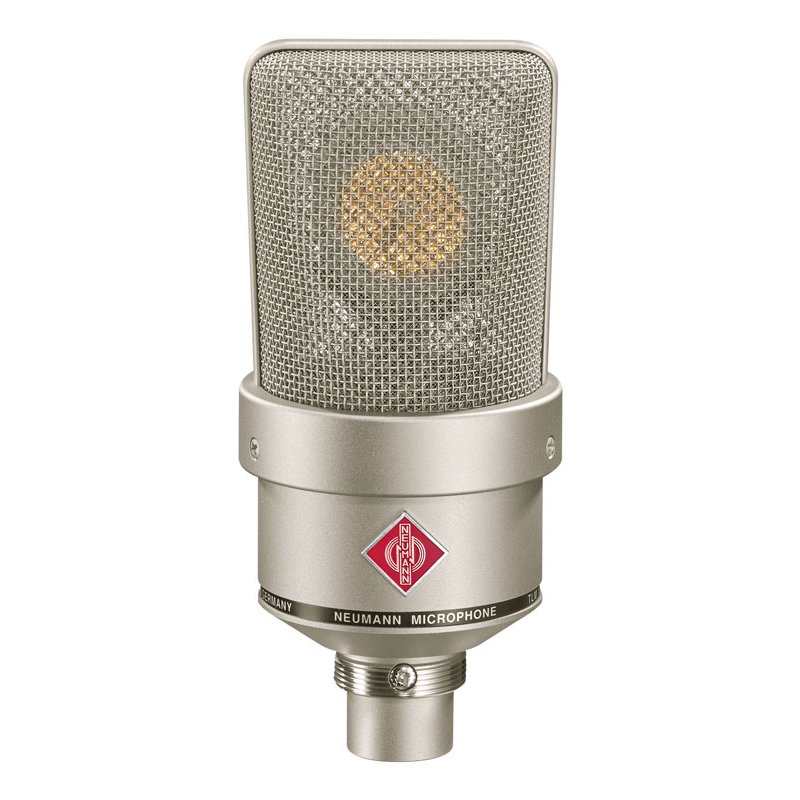

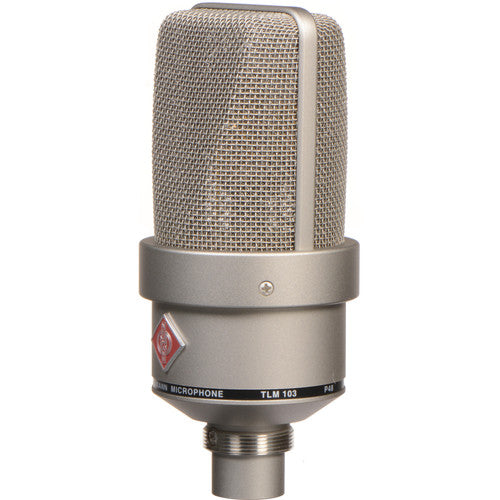

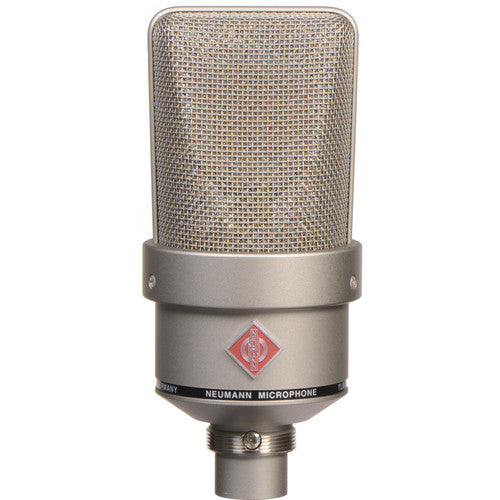

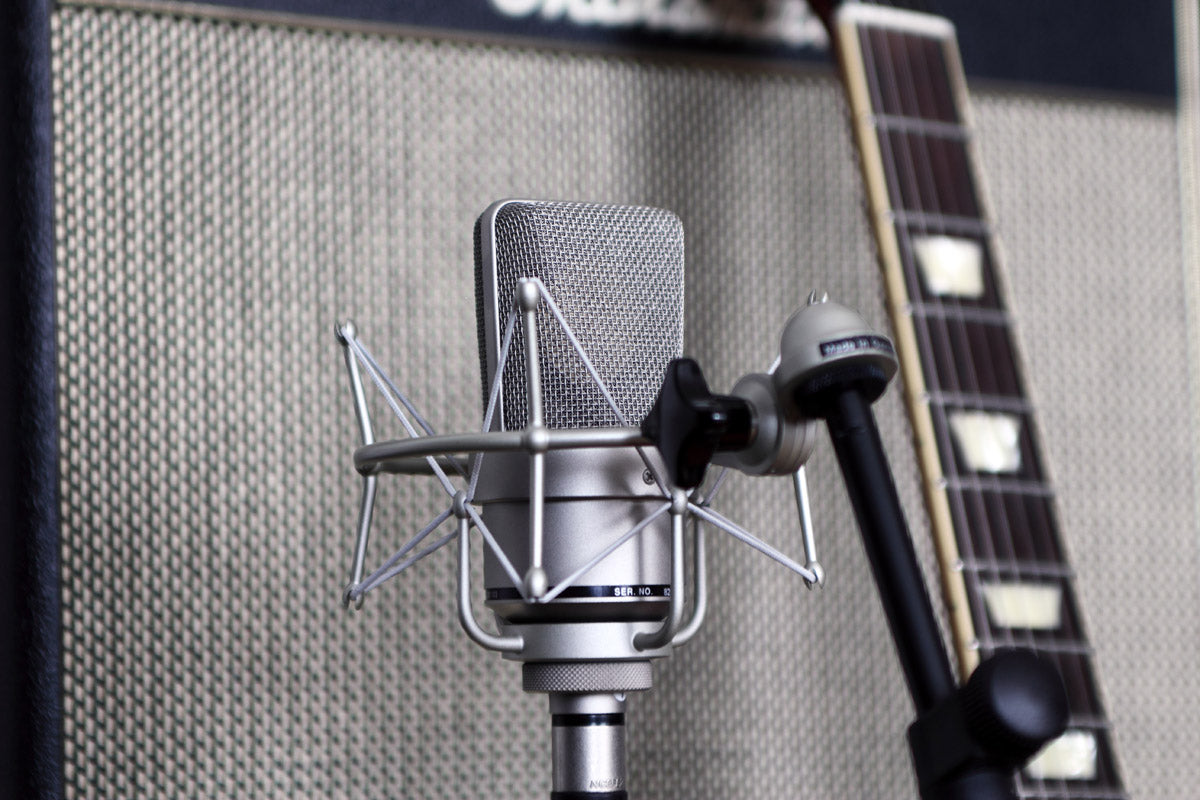

Neumann TLM 103NI Large Diaphragm Condenser Mic

Achieve beautiful recordings with this ultra low-noise mic!

The black TLM 103 Large Diaphragm Condenser Microphone from Neumann is a cardioid, directional microphone that features low self-noise and high sound pressure level transmission. The capsule, derived from that used in the Neumann U 87, has a cardioid pattern, is acoustically well-balanced and provides great attenuation of signals from the rear.

The TLM 103 is equipped with a large diaphragm capsule with cardioid pattern. By focusing on this pattern, the attenuation of unwanted rear sound has been optimized. Off-axis sounds are rendered naturally while isolation is increased. This also leads to a high feedback suppression when the microphone is used in live situations or where loudspeaker playback is a factor.

The TLM 103 is addressed from the front. The K 103 large diaphragm capsule is based on the K 87, and has a flat frequency response up to about 5 kHz, and above that, a wide flat 4 dB presence boost.

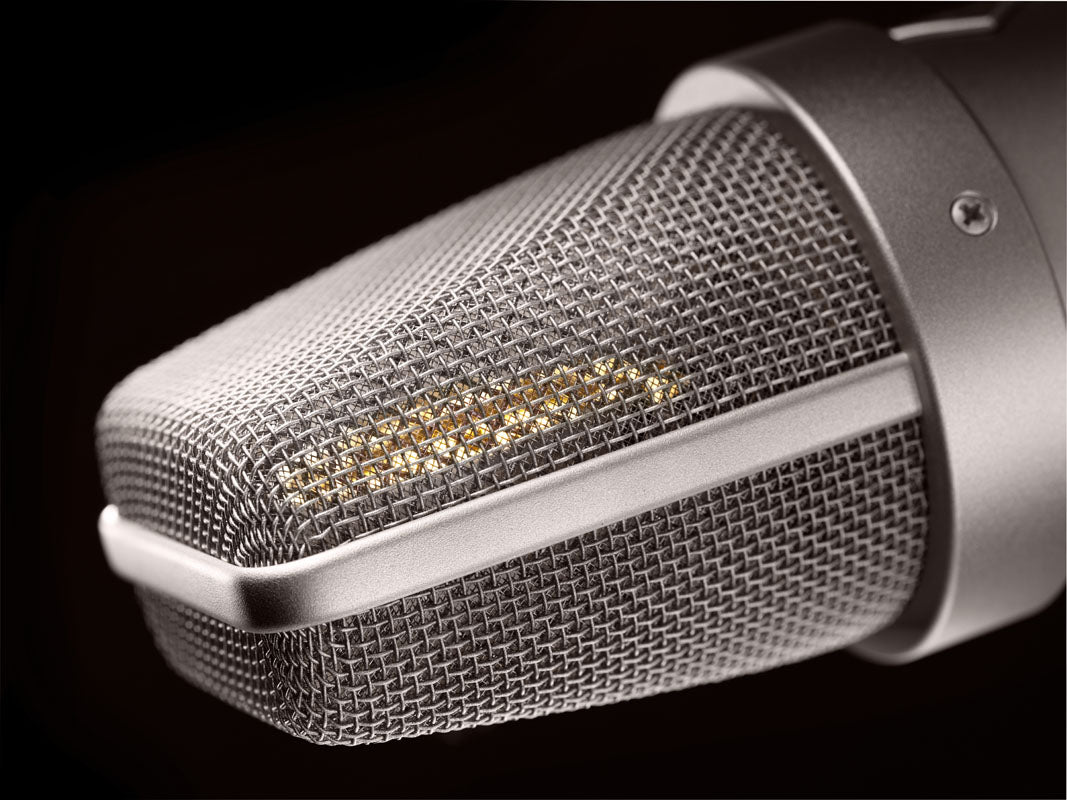

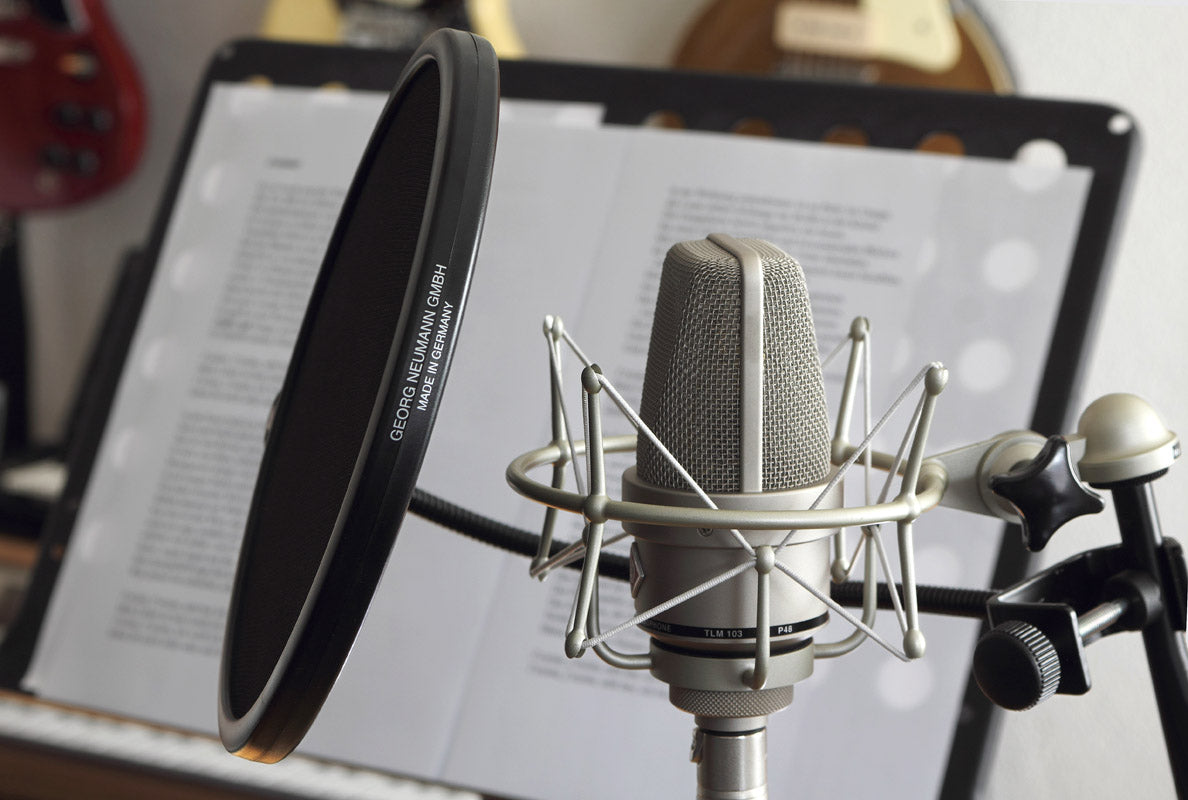

The large wire mesh head-grille protects the capsule from plosive sounds and effectively prevents pop noises. These characteristics are achieved without resorting to corrective resonance effects. The microphone maintains a great impulse response and reproduces details of music and speech without coloration.

With just 7 dB-A and 17.5 dB CCIR, the self-noise level of the TLM 103 is so reduced that even the smallest signals are reproduced almost noise-free. It is capable of handling sound pressure levels up to 138 dB without distortion.

With TLM technology the usual output transformer is replaced by an electronic circuit. As with traditional transformers, it ensures good common mode rejection, and prevents RF interference that may influence the balanced audio signal.

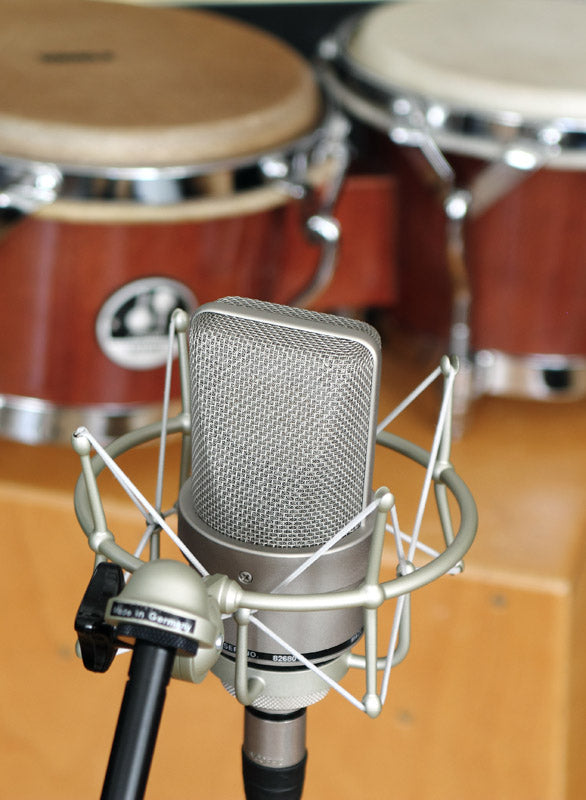

The entire internal construction is elastically mounted to attenuate any structure borne noise that could interfere with the TLM 103's operation. The capsule is set on an elastic mount and the frequency range reaches below 20 Hz, allowing even very low bass signals are reproduced without coloration. Due to this low frequency extension, the TLM 103 is more sensitive to structure borne interference and wind noise.

Neumann TLM 103 Features:

• Nickel finish
• Large-diaphragm cardioid condenser microphone
• Pressure gradient transducer with one-diaphragm capsule
• Transformerless circuitry
• Extremely low noise
• Includes swivel mount
• Minimal self-noise
• Frequency range: 20Hz-20kHz
• Rated impedance: 50 ohms
• Rated load impedance: 1 kohms
• Maximum SPL for 0.5% THD: 138dB

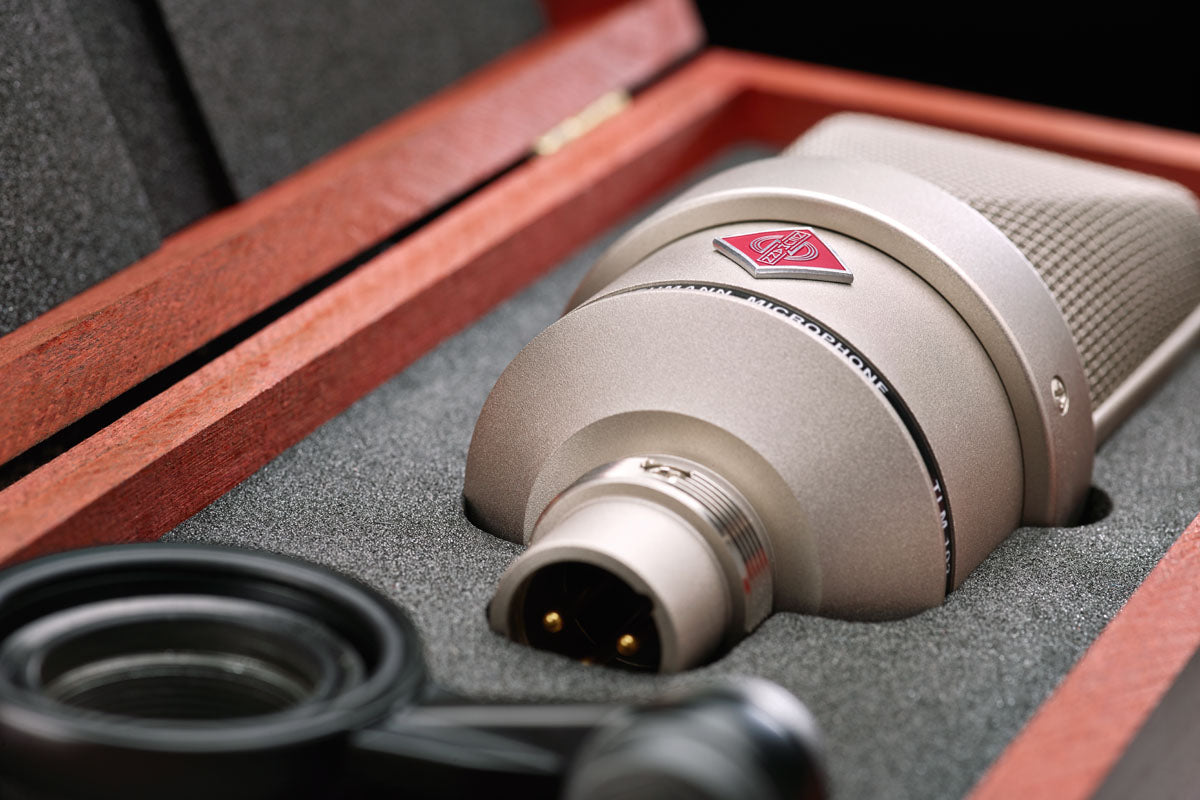

• Wooden box and stand mount included
• Requires +48V phantom power

Tech Specs

• Microphone Type:Condenser
• Polar Pattern:Cardioid
• Frequency Range:20Hz-20kHz
• Max SPL:138dB SPL
• Output Impedance:50 ohms
• Signal to Noise Ratio:87dB (A weighted)
• Self Noise:7dB (A weighted)
• Color:Nickel
• Connector:XLR
• Power Source:48V phantom power
• Dimensions:5.2" x 2.36"
• Weight:1 lb.
• Included Accessories:Swivel Mount, Wooden Case, Mogami Cable
