Neumann KM184 Small Diaphragm Condenser Cardioid Mic (MT)

Neumann KM184 Small Diaphragm Condenser Cardioid Mic (MT)

The matte black KM 184 MT Microphone from Neumann is a small-diaphragm cardioid condenser microphone that offers premium Neumann sound that's both open and musical....

Vendor :Neumann

Type :Microphones

R14,995.00

Add to wishlist

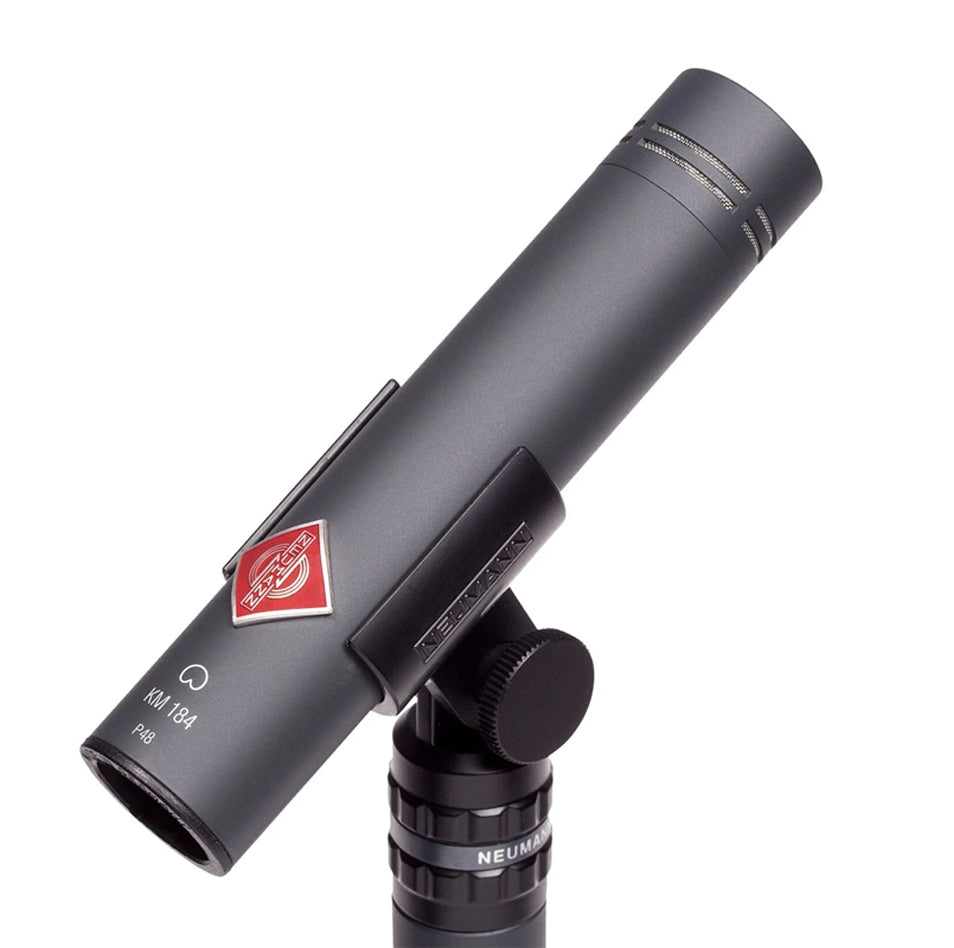

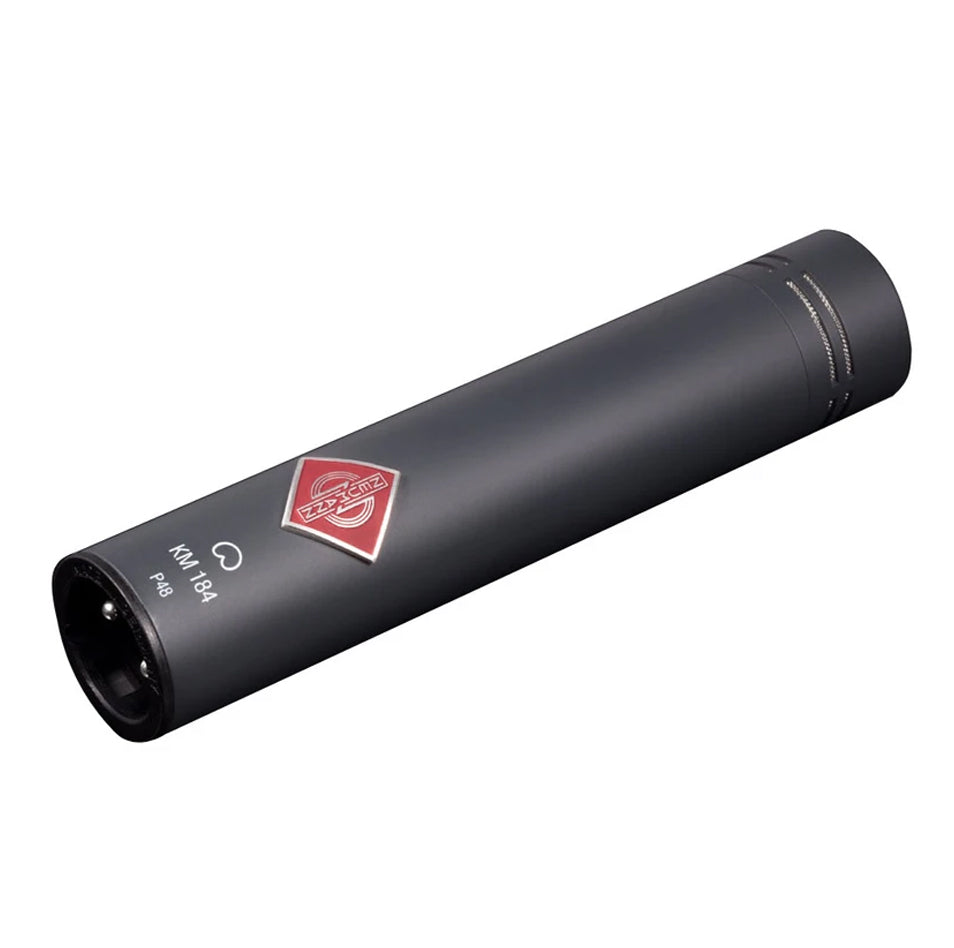

The matte black KM 184 MT Microphone from Neumann is a small-diaphragm cardioid condenser microphone that offers premium Neumann sound that's both open and musical. It is great for solo instruments, ensemble, and spot miking.

Capturing the Nuances to Make a Great Performance!
The Neumann KM 184 is an excellent example of this. The KM 184 is capable of handling high sound pressure levels with ease - as high as 138dB before overloading. But it's also extremely quiet, making it an excellent choice for capturing the subtle nuances of acoustic guitars and orchestral instruments. Plus you get that everlasting classic Neumann sound!

Main features:

  • Small-diaphragm condenser mic
  • Of the "fet 100" series with a transformerless microphone circuit
  • Capsule with cardiod pick-up pattern
  • Exceptionally low inherent self-noise (16dB A-weighted)
  • Exceptionally high overload capacity (up to 138dB SPL before overload)
  • Exceptionally clear sound reproduction free of coloration
  • Very smooth frequency curves parallel to 0 degrees sound incidence
  • 20Hz to 20kHz frequency range
  • Equivalent loudness level due to inherent noise: 16dB (DIN/IEC 651 dB-A), 25dB (CCIR 468-3 weighted)
  • S/N ratio re:1Pa @ 1kHz, (CCIR 468-3 weighted) 69dB (S/N = 94dB - equiv. noise) A-weighted: 78dB
  • Max SPL for less than 0.5% THD: 138dB
  • Total dynamic range of the microphone amplifier (Max SPL-self noise): 122dB
  • Requires +44V to +52V phantom power

  • Tech Specs:

    • Acoustical operating principle: Pressure transducer
    • Directional pattern: Cardioid
    • Frequency range: 20 Hz ... 20 kHz
    • Sensitivity at 1 kHz into 1 kohm: 15 mV/Pa
    • Rated impedance: 50 ohms
    • Rated load impedance: 1 kohms
    • Equivalent noise level, CCIR1): 22 dB
    • Equivalent noise level, A-weighted1): 13 dB-A
    • Signal-to-noise ratio, CCIR1) (rel. 94 dB SPL): 72 dB
    • Signal-to-noise ratio, A-weighted1) (rel. 94 dB SPL): 81 dB
    • Maximum SPL for THD 0.5 2): 138 dB
    • Maximum output voltage: 10 dBu
    • Supply voltage (P48, IEC 61938): 48 V ± 4 V
    • Current consumption (P48, IEC 61938): 3.2 mA
    • Matching connectors: XLR 3F
    • Weight: approx. 80 g
    • Diameter: 22 mm
    • Length: 107 mm
