Neumann KH series 7.1.4 Dolby Atmos Bundle

Neumann Quality packed with Innovation

Get your hands on one of the best surround monitoring experiences for the professional mixing & post production studio.

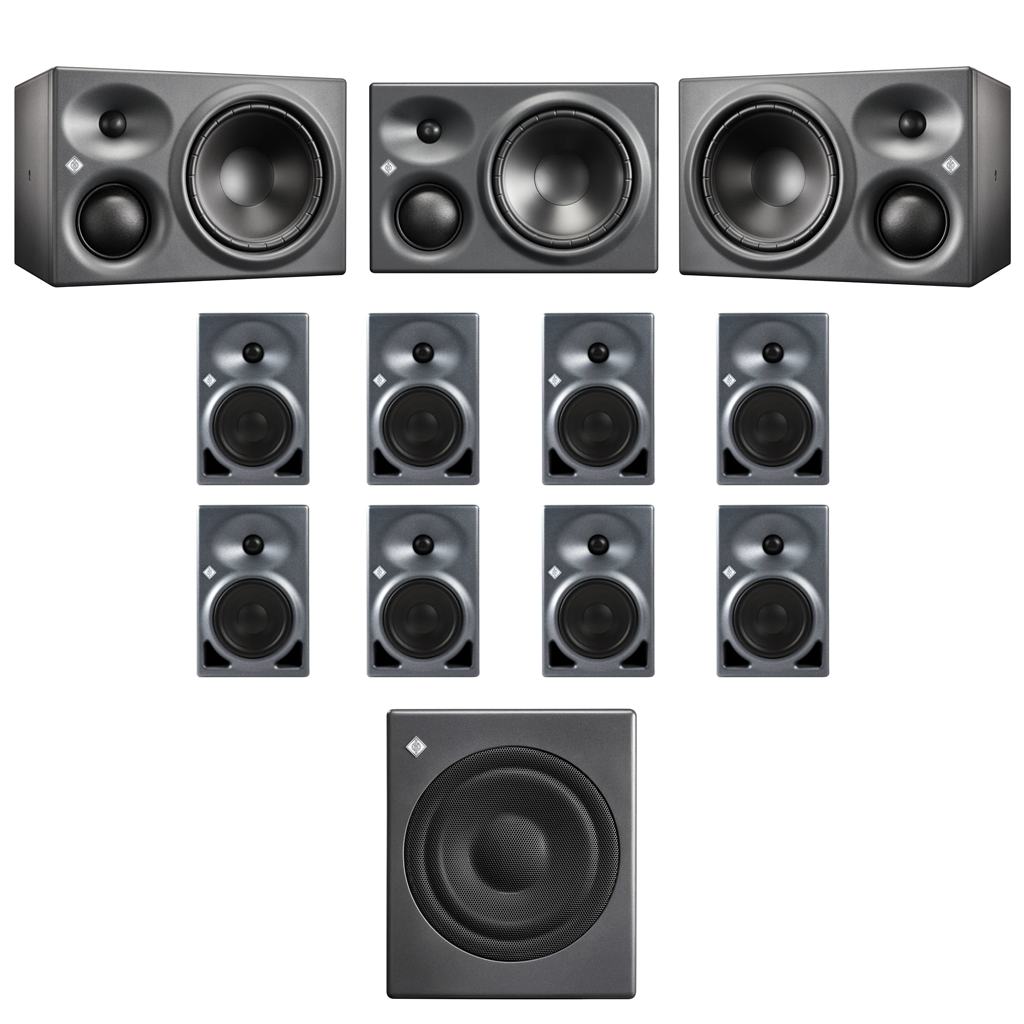

Whats included in this bundle:

3 x Neumann KH 310 Powered 3-way monitors.

8 x Neumann KH 120 Powered 2-way monitors.

1 x Neumann KH 750 Powered Subwoofer.

Whats not included:

11 x Studio monitor stands/mountings - Chat to us for options.

1 x Professional Surround monitor controller - Chat to us for options.

1 x All required cabling from your mixer or monitor controller.

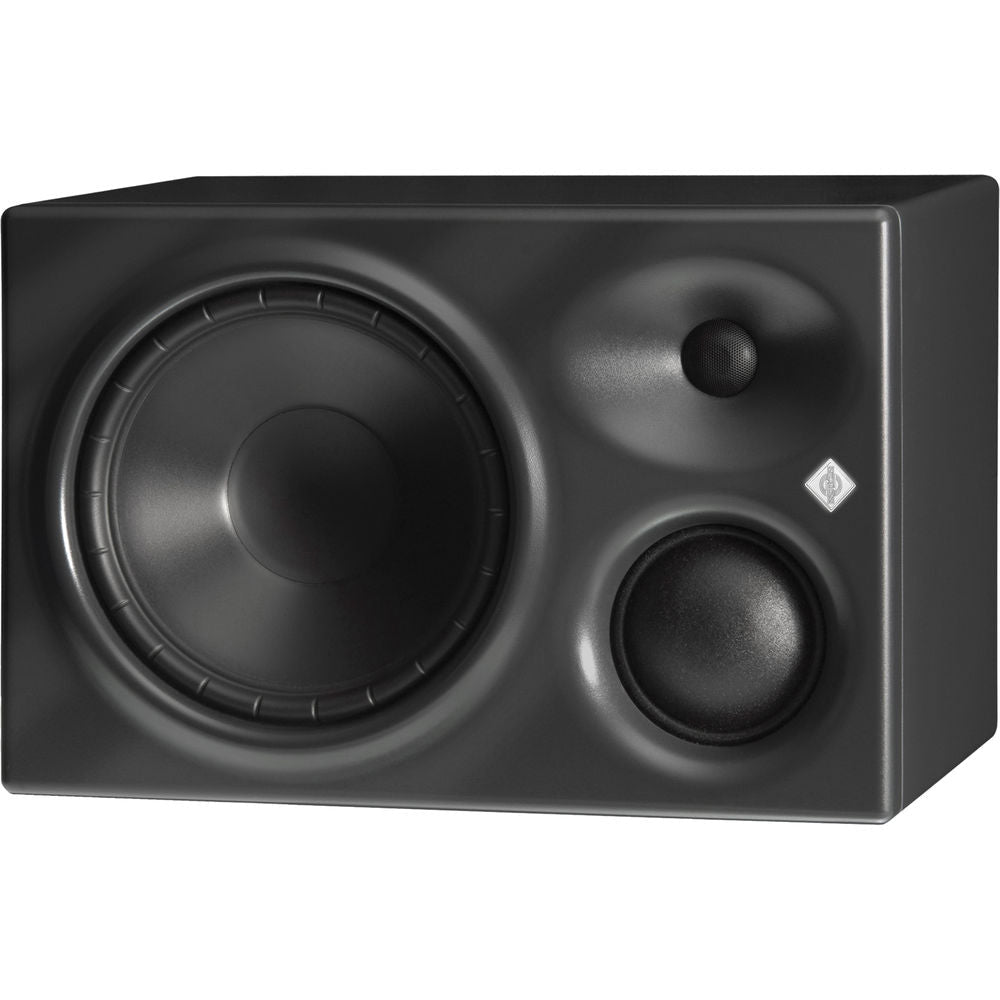

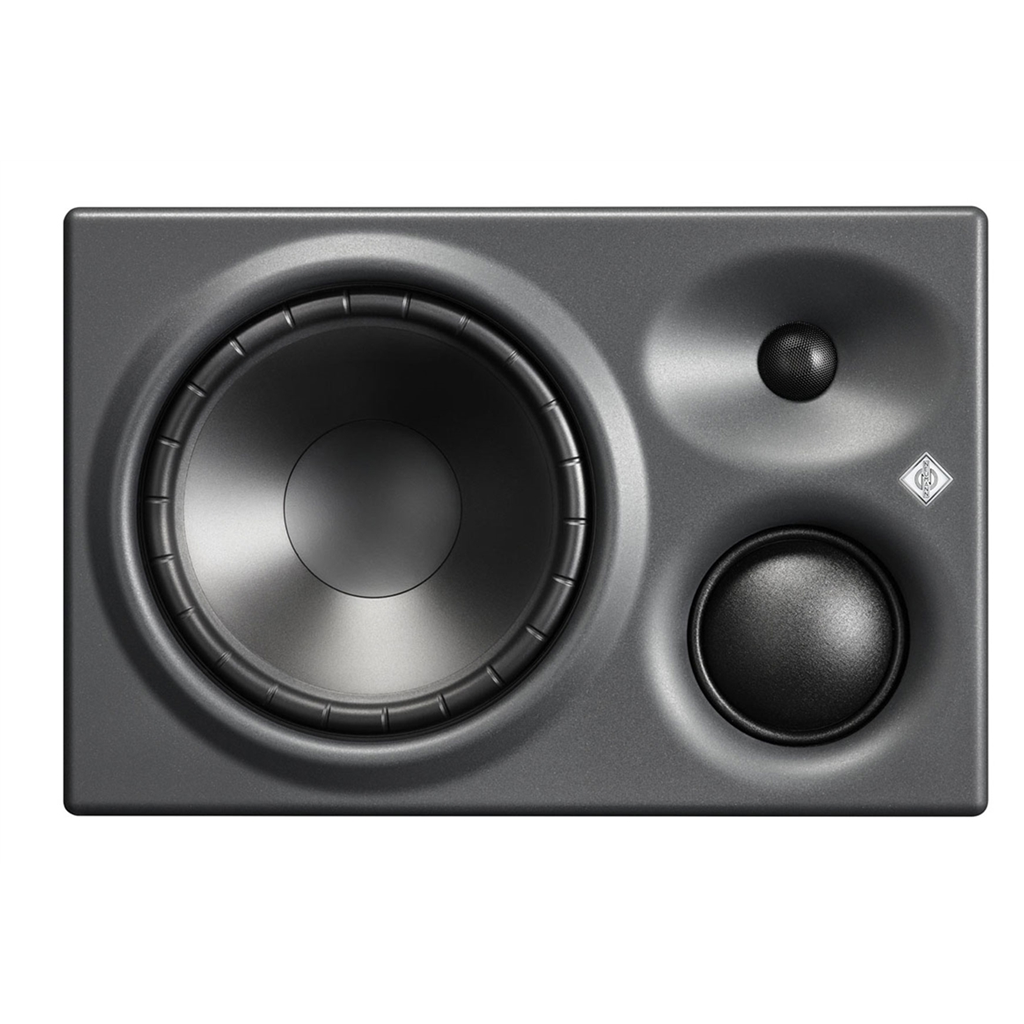

With its specially designed midrange driver, the compact Neumann KH 310 Powered Studio Monitor is particularly suited for precise work with speech, vocals, guitars and other instruments that have a midrange emphasis. Its closed design enables a very fast transient response. The associated low harmonic distortion guarantees a neutral reference sound to meet the highest standards.

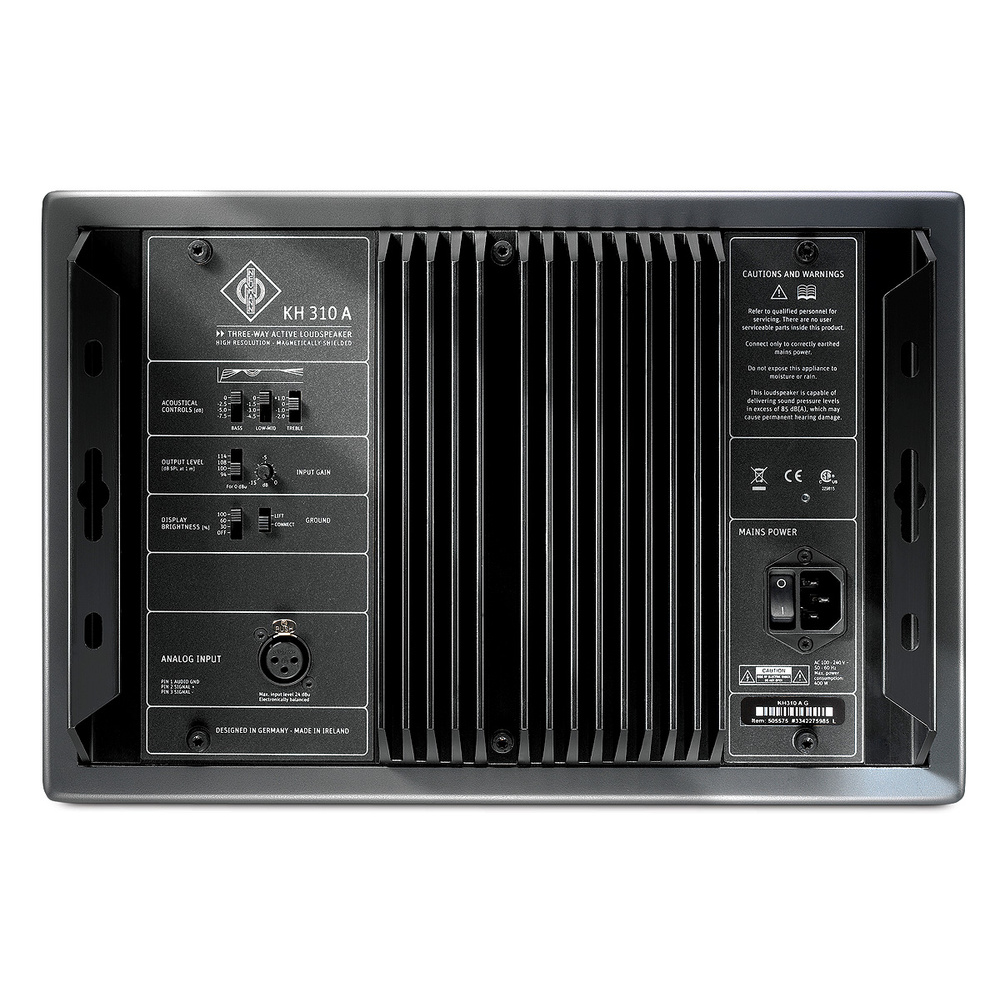

Acoustic controls let you fine-tune for your room
The Neumann KH 310 sports four-position controls for low, mid, and high frequencies to help tailor them to your room or personal taste. So no matter what type of room you're mixing in, or where you place the monitors, it's easy to get a balanced sound from the Neumann KH 310 active studio monitors.

Neumann KH 310 Features:

​Active three-way studio monitor for near-field or rear-surround use

For use as a left-channel monitor

Elliptical MMD waveguide gives you a wider sweet spot and better off-axis response

Sealed cabinet design for more accurate bass and better transient response

One-piece front panel reduces diffraction and improves frequency response

Powerful Class AB amplifiers give you high headroom and fast transient response​​

Tech Specs:

• Powered: Yes
• Power Configuration: Tri-amped
• LF Driver Size: 8.25"
• LF Driver Type: Cone
• HF Driver Size: 1"
• HF Driver Type: Dome
• LF Driver Power Amp: 150W (Low), 70W (Mid)
• HF Driver Power Amp: 70W (High)
• Total Power: 290W
• Frequency Range: 34Hz-21kHz (±3 dB)
• Crossover Frequency: 650Hz, 2kHz, 24 dB/octave
• Maximum Peak SPL: 100 dB
• Input Types: 1 x XLR
• Enclosure Type: Sealed

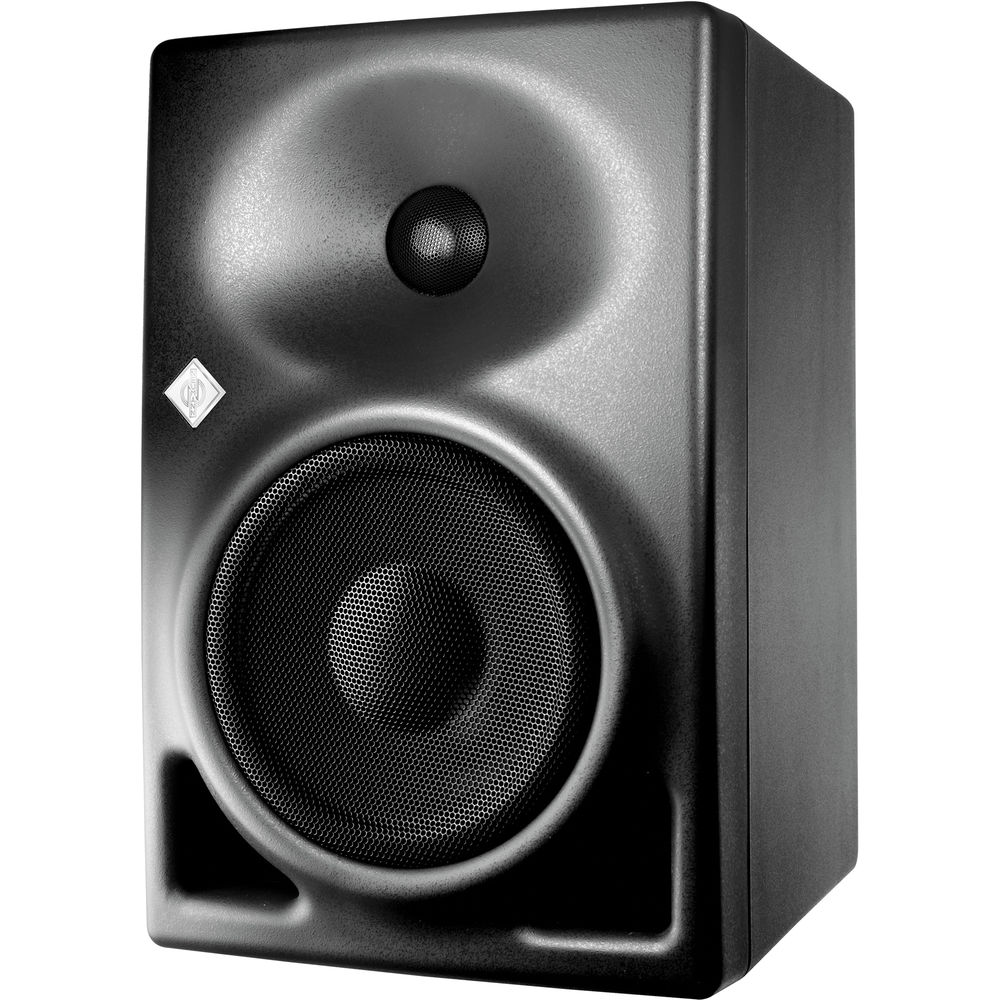

Neumann KH 120 Features:

Compact bi-amplified nearfield studio monitor

5.25" low-frequency driver (50W), 1" high-frequency driver (50W)

Elliptical Mathematically Modelled Dispersion (MMD) waveguide provides smooth off-axis response and accurate monitoring in non-ideal acoustical environments

Powerful titanium fabric dome tweeter delivers low-distortion and high-frequency reproduction

Composite sandwich cone woofer designs dampen breakup modes and reduce harmonic distortion

Free-field frequency response: 52Hz to 21kHz (+/-3dB)

Self-generated noise (with input gain set to 100dB for 0dBu): <20dB(A) at 10cm

Maximum SPL: (half space at 3% THD at 1m): 111.1dB SPL, averaged 100Hz to 6kHz

Crossover frequency: 2kHz

Crossover slope: 24dB/octave, 4th order

Bass equalization: 0dB, -2.5dB, -5dB, -7.5dB

Mid equalization: 0dB, -1.5dB, -3dB, -4.5dB

High equalization: +1dB, 0dB, -1dB, -2dB

Protection circuitry: low and high limiter

Input: XLR, >10 kOhms

Input gain control (sensitivity): -15dBu to 0dBu

Output level control: 94dB, 100dB, 108dB, 114dB SPL

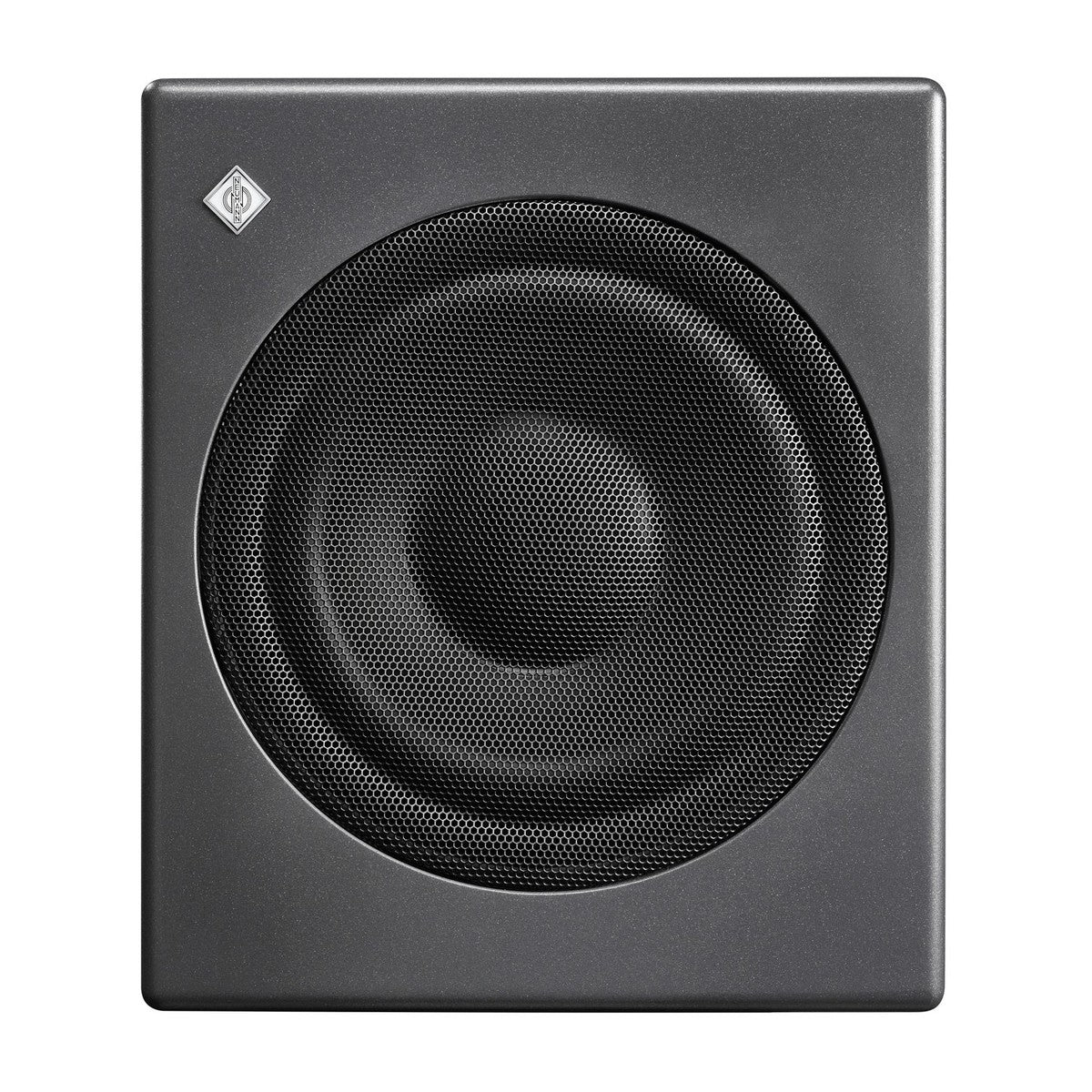

Neumann KH 750 Features:

Main features:

10″ DSP Powered Subwoofer

Designed for Small Rooms & Monitors

18 to 300 Hz Response

Can Handle up to 105 dB SPL

Integrates with Neumann Monitors

Ethernet Control over Alignment & Setup

Low-Pass Filtering, 180° Phase Inversion

Analog XLR & BNC-AES I/O

For LFE or Sub Channels

Tech Specs:

• Powered: Yes
• Speaker Size: 10"
• Driver Type: Long-throw with Pressed-steel basket
• Total Power: 256W
• Frequency Range: 20Hz-300Hz
• Crossover Frequency: 80Hz
• Maximum Peak SPL: 105 dB SPL @ 1m
• Input Types: 2 x XLR
• Output Types: 2 x XLR
• Other I/O: AES3 In/Out (digital)

Order the Neumann KH series 7.1.4 Surround Bundle from Audiosaurus. The online Pro Audio specialist in South Africa.
