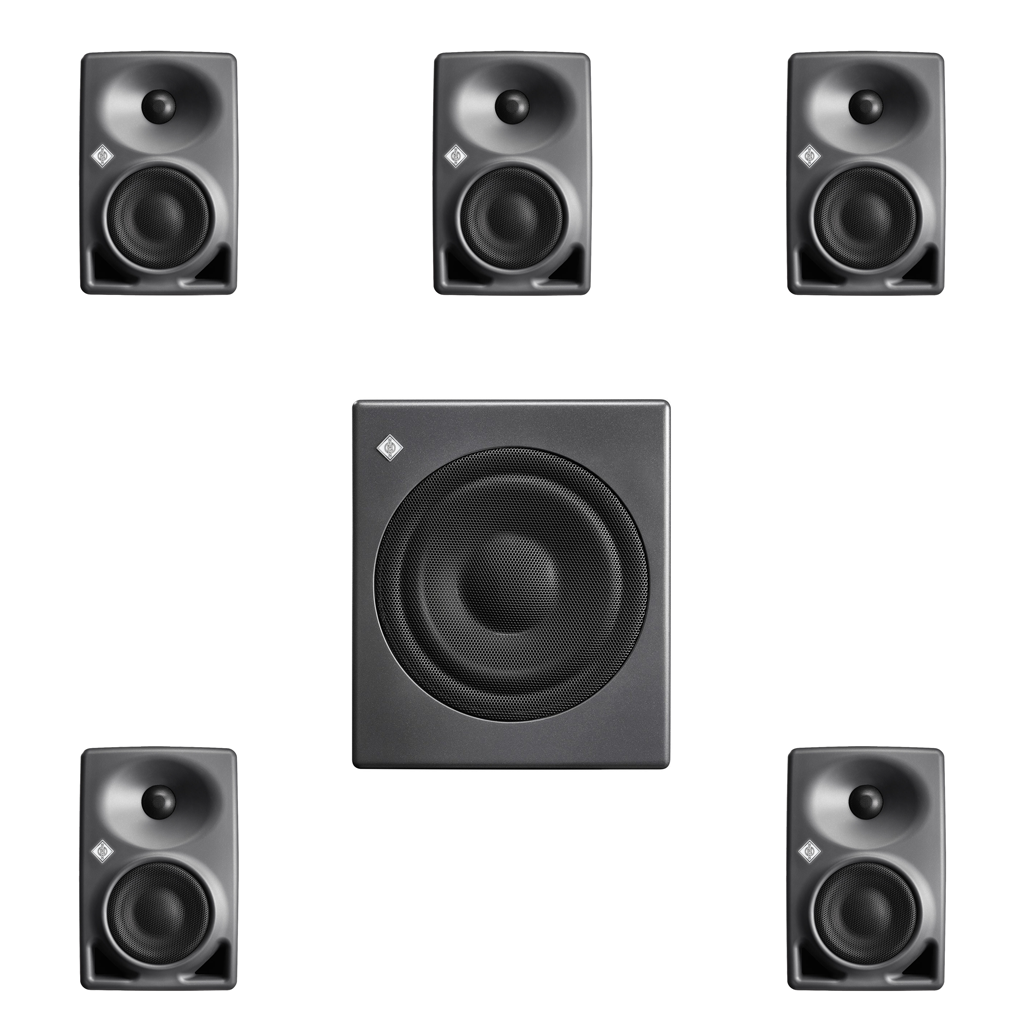

Neumann KH 80 DSP 5.1 Surround Sound System

Perfect Your Neumann KH DSP Studio Monitors

Embrace this KH 80 / KH 750 DSP Sub and MA1 Monitor Alignment Calibration Bundle. The Neumann MA 1 automatic alignment system requires a stereo set of KH 80 DSP studio monitors or a KH 750 DSP subwoofer to operate. An audio interface with a balanced analog input, +48V phantom power, and two balanced analog outputs are required. The KH 750 DSP subwoofer also accepts AES.

Whats included in this bundle:

5 x Neumann KH 80 Powered 2-way DSP monitors.

1 x Neumann KH 750 DSP Powered Subwoofer.

1 x Neumann MA 1 Monitor Alignment Microphone and Calibration System.

Whats not included:

5 x Studio monitor stands - Chat to us for options.

1 x Professional Surround monitor controller - Chat to us for options.

1 x All required cabling from your mixer or monitor controller.

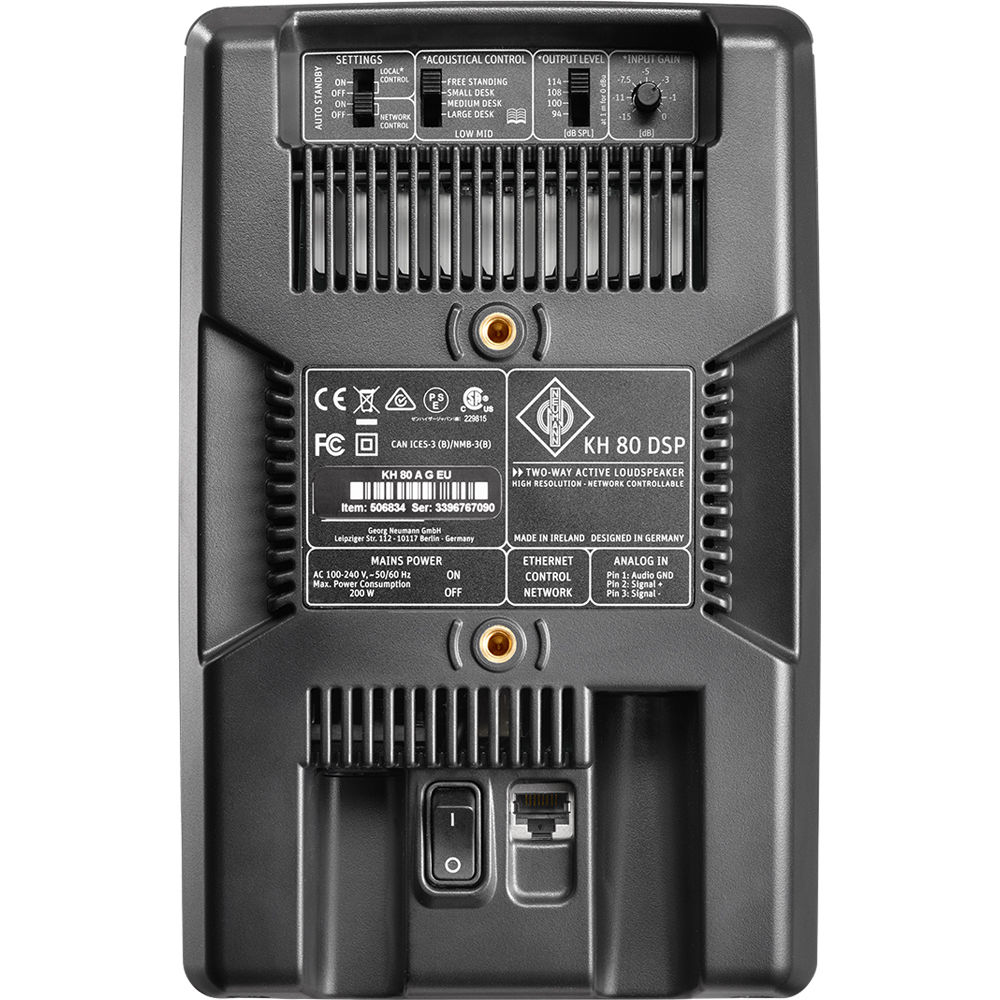

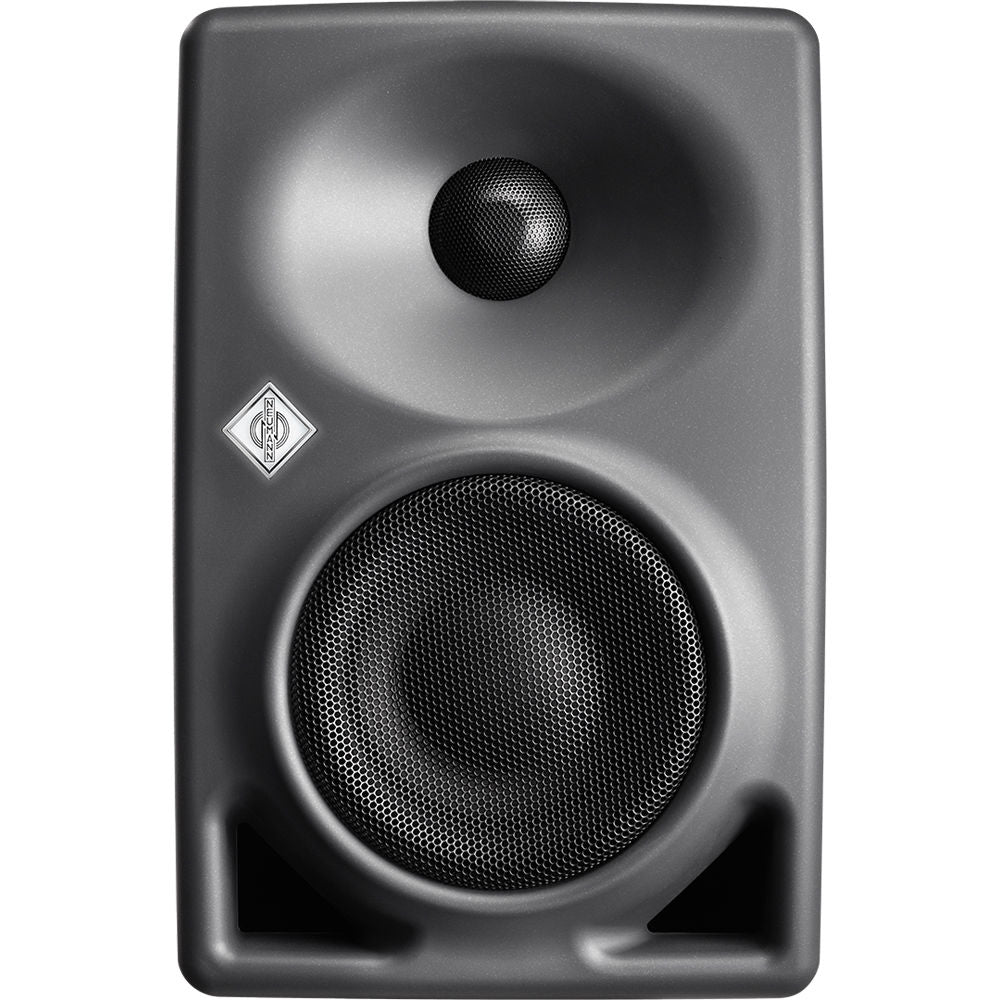

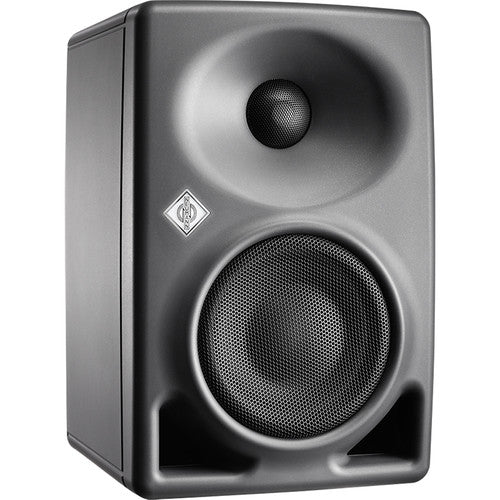

The KH 80 DSP's polycarbonate composite cabinet is loaded with a long-throw, composite-sandwich 4" woofer and a titanium-fabric 1" dome tweeter, each driven by a powerful onboard high-headroom amplifier (120 watts for the lows, 70 watts for the highs). The front baffle incorporates Neumann's Mathematically Modeled Dispersion (MMD) waveguide, which helps produce a broad sweet spot and smooth off-axis response. In a stereo configuration, the KH 80 delivers a stable image with a satisfying sense of depth. Its compact form factor, excellent imaging, and DSP management features also make it a great choice for 5.1 and 7.1 surround monitoring configurations.

A monitor worthy of the Neumann badge

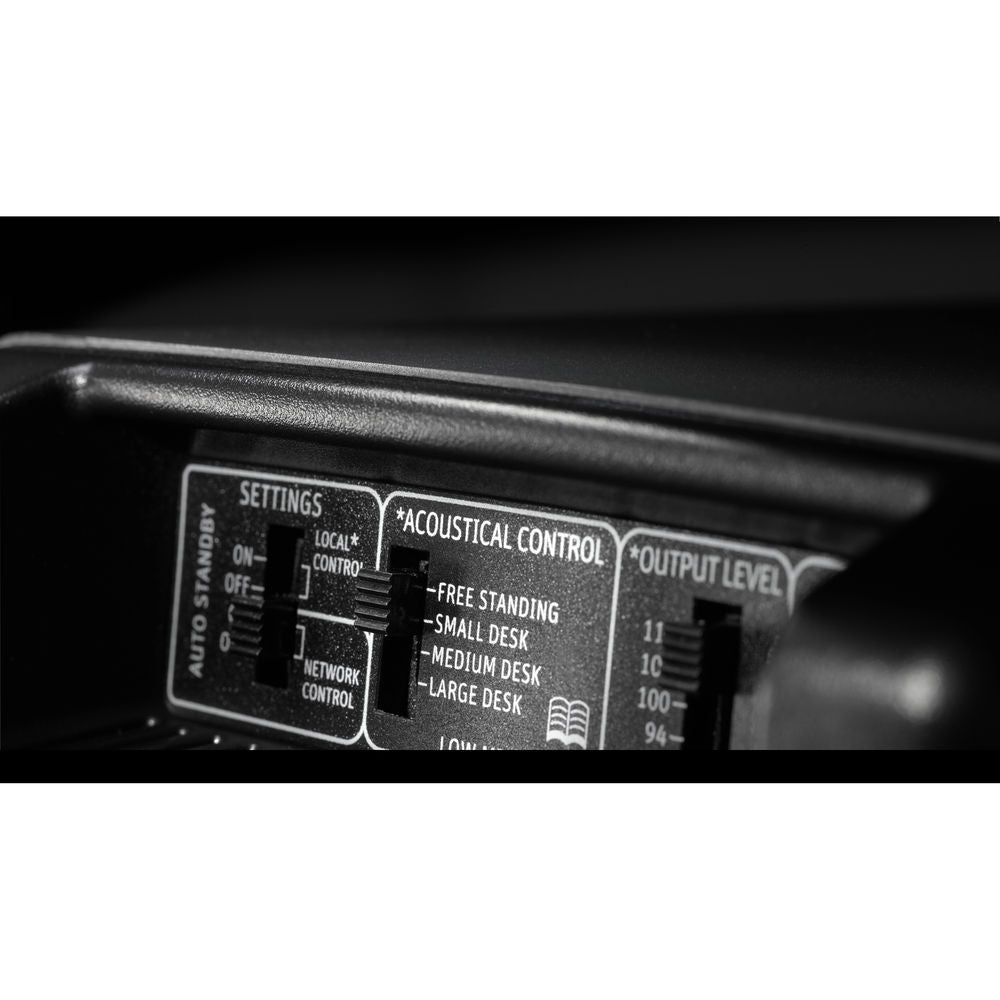

The KH 80's frequency response is smooth and natural, delivering bass remarkably well for this size monitor. Its midrange presentation is detailed and revealing, neither overly forward nor recessive. The KH 80 DSP features network-accessible DSP-regulated bi-amplification that lets you configure your system from a central controller and manage multiple monitors from Mac, Windows, iOS, or Android platforms.

Main Features:

Top-shelf Neumann speaker technology in an affordable nearfield monitor

Tried-and-true 4" x 1" nearfield speaker configuration is ideal for mixing suites and small studios

Network-accessible DSP-regulated bi-amplification lets you configure your system from a central controller

Manage multiple monitors from Mac, Windows, iOS, or Android platforms

Mathematically Modeled Dispersion Waveguide (MMD) provides superior dispersion

Premium technology ensures top-quality imaging and signal handling

Tech Specs:

• Powered:Yes
• Power Configuration:Bi-amped
• LF Driver Size:4" long throw driver
• HF Driver Size:1" tweeter
• LF Driver Power Amp:120W peak
• HF Driver Power Amp:70W peak
• Frequency Response:57Hz-21kHz (±3 dB)
• Crossover Frequency:1.8 kHz, 48dB slope per octave
• Maximum Peak SPL:108.8 dB SPL
• Input Types:1 x XLR-1/4" combo
• Other I/O:Ethernet control network
• Features:DSP engine with network control, Elliptical Dispersion waveguide surface (MMD), 2 x M6 mounting points
• Enclosure Type:Front ported

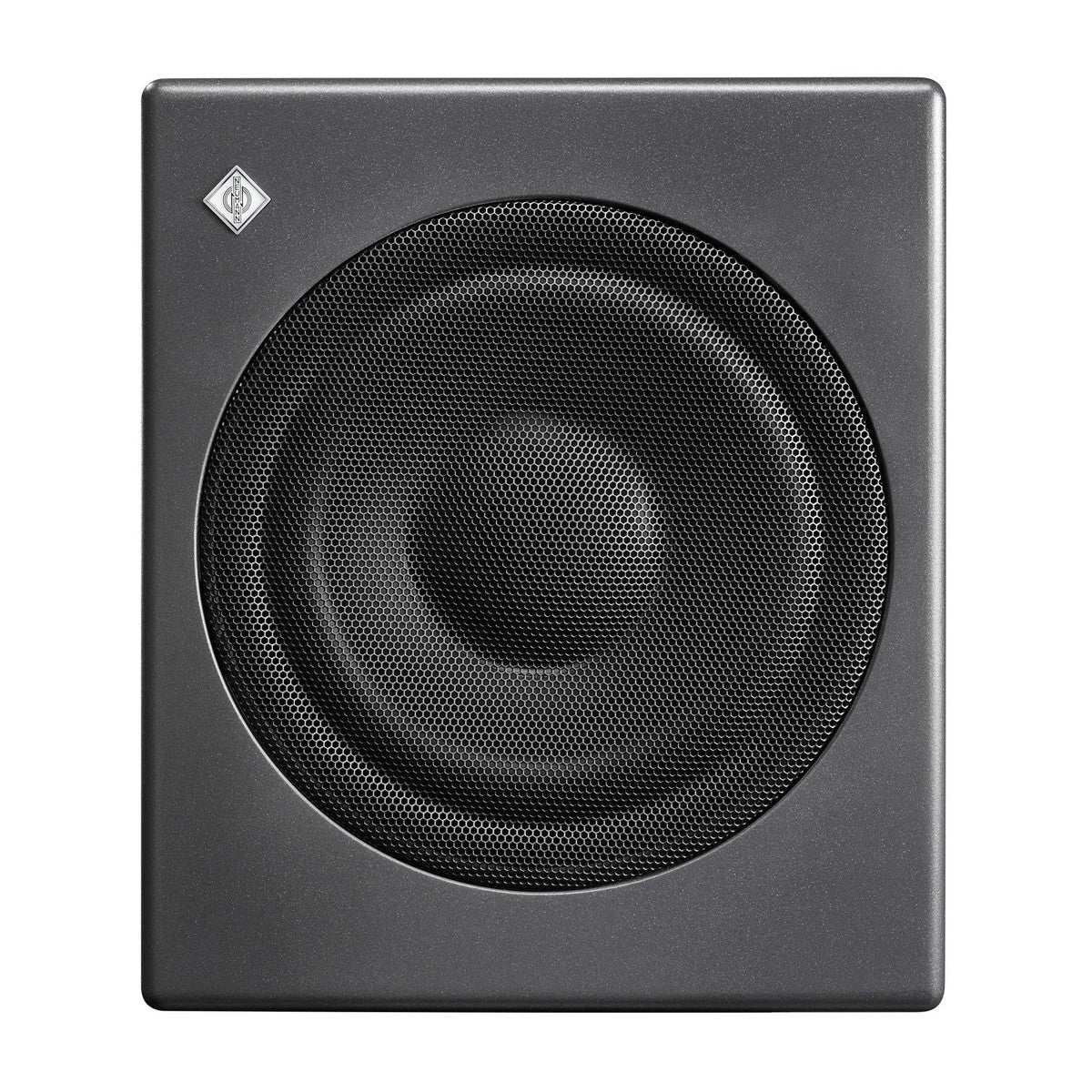

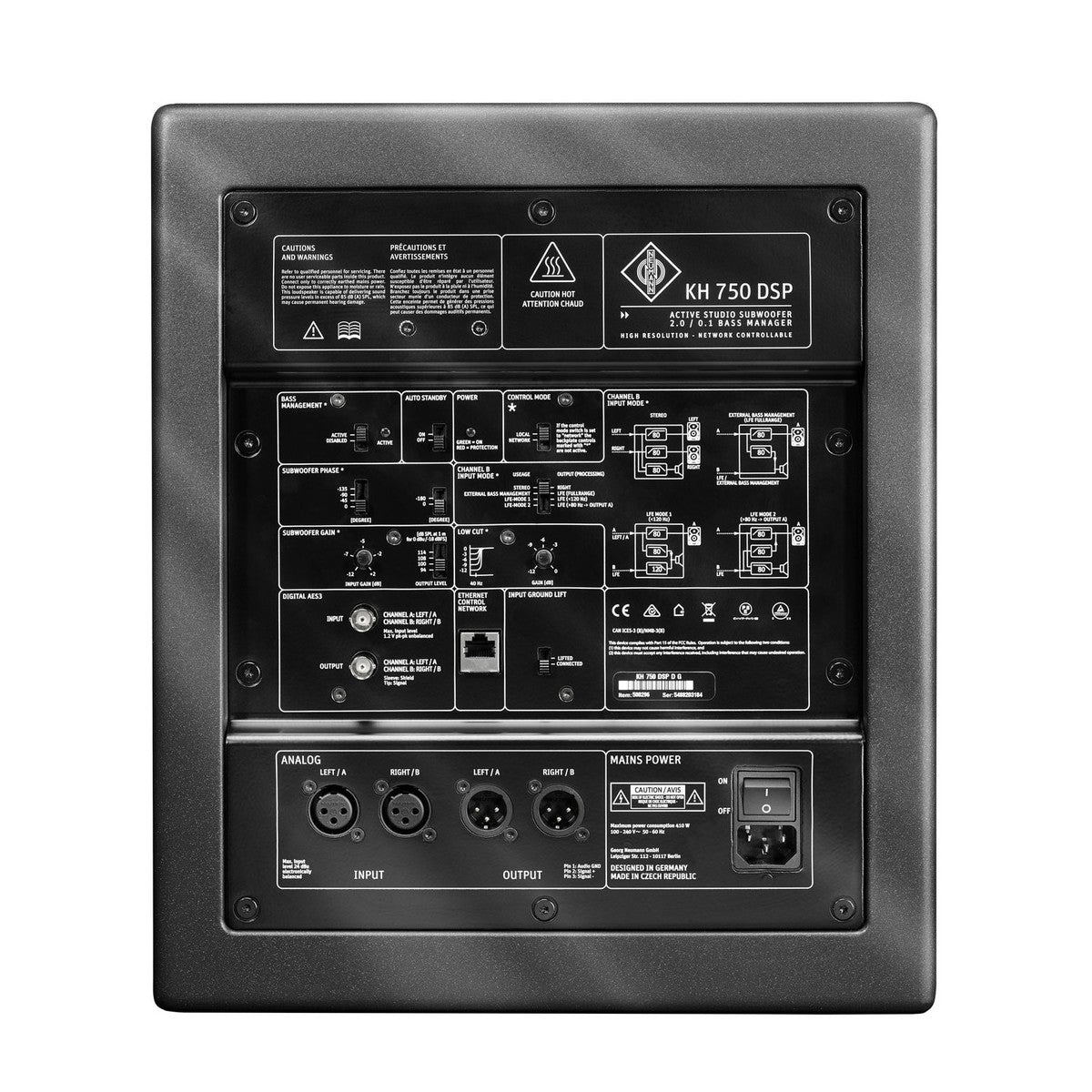

Sub Control and Monitor Alignment like never before

By combining the KH 750 DSP with the freely available iPad® app (version 3.0 or newer), the subwoofer becomes the intelligent control center of every Neumann stereo setup. In addition to the KH 80 DSP, the KH 120, KH 310 and KH 410** analogue monitors now also benefit from the DSP power of the KH 750 DSP.

The iPad® connects to the subwoofer via a standard IP network with an Ethernet cable between the router and subwoofer. The stereo pair receives the analog audio signal directly from the subwoofer.

Main features:

10″ DSP Powered Subwoofer

Designed for Small Rooms & Monitors

18 to 300 Hz Response

Can Handle up to 105 dB SPL

Integrates with Neumann Monitors

Ethernet Control over Alignment & Setup

Low-Pass Filtering, 180° Phase Inversion

Analog XLR & BNC-AES I/O

For LFE or Sub Channels

Tech Specs:

• Powered: Yes
• Speaker Size: 10"
• Driver Type: Long-throw with Pressed-steel basket
• Total Power: 256W
• Frequency Range: 20Hz-300Hz
• Crossover Frequency: 80Hz
• Maximum Peak SPL: 105 dB SPL @ 1m
• Input Types: 2 x XLR
• Output Types: 2 x XLR
• Other I/O: AES3 In/Out (digital)

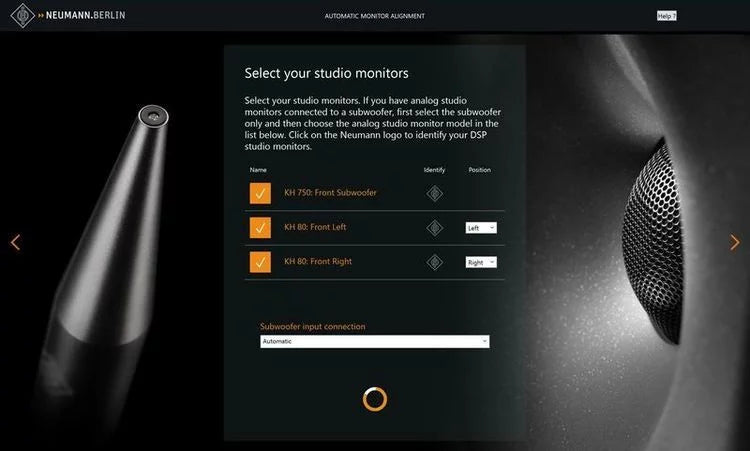

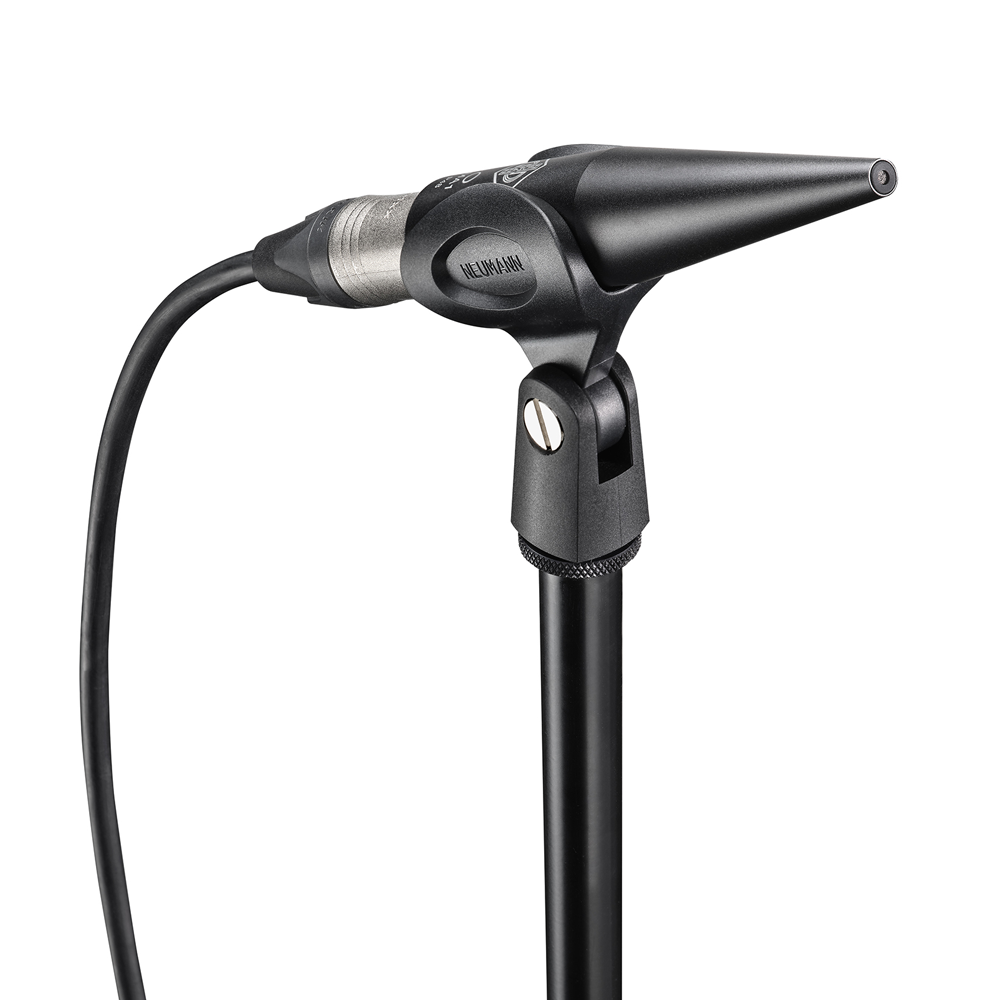

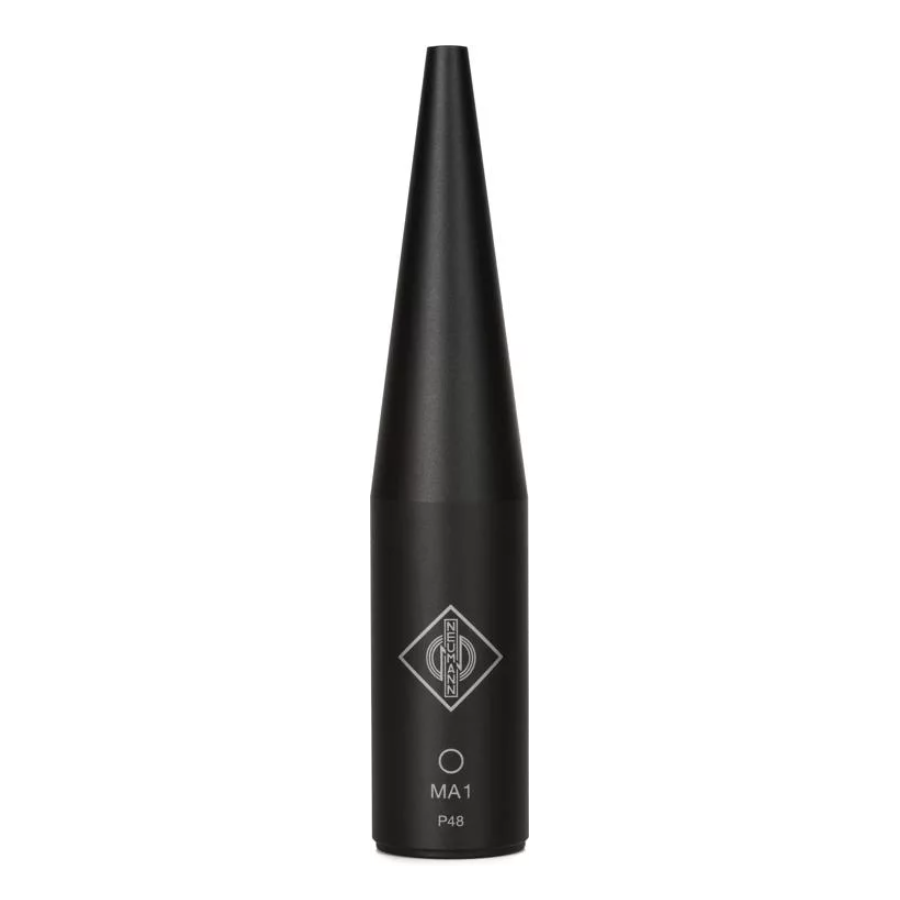

Neumann MA 1 Automatic Monitor Alignment Features:

Provides automatic monitor alignment for KH 80 DSP loudspeakers or non-DSP KH monitors via a KH 750 DSP subwoofer

Employs calibration algorithms developed in cooperation with Fraunhofer IIS

Comes with an individually calibrated measurement microphone

Adjusts the frequency curve of your DSP-powered monitors

Optimizes the amplitude response and phase of all the speakers in your setup

Calibration settings stored directly inside of your DSP-powered monitors — no plug-in required

Ethernet connections may be disconnected after optimization has been completed

Tech Specs:

• Microphone Type:Pressure Transducer
• Polar Pattern:Omnidirectional
• Frequency Response:20Hz-20kHz
• Max SPL:132dB
• Output Impedance:50 ohms
• Signal to Noise Ratio:67dB (A weighted)
• Self Noise:27dB (A weighted)
• Sensitivity:30mV/Pa (-30 dB)
• Connector:XLR

Buy the Neumann KH 80 DSP 5.1 Surround Sound System with the MA1 measurement Microphone From Audiosaurus. The Online Pro Audio Specialists in South Africa.
